Apollo 55000-390APO AlarmSense Optical Smoke Detector | Standard Base Set

Name: Apollo 55000-390APO AlarmSense Optical Smoke Detector | Standard Base Set
Brand: Apollo
Price: 19.38 GBP
Availability: InStock

Code: FDS410/040

£19.38

INC VAT

Code: FDS410/040

In stock
Typically dispatched in 2-3 working days

Add these extras to your kit

Please Select

DetectaReach DR1 Smoke Detector Handheld Test Dispenser & Gas Set(£18.18 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

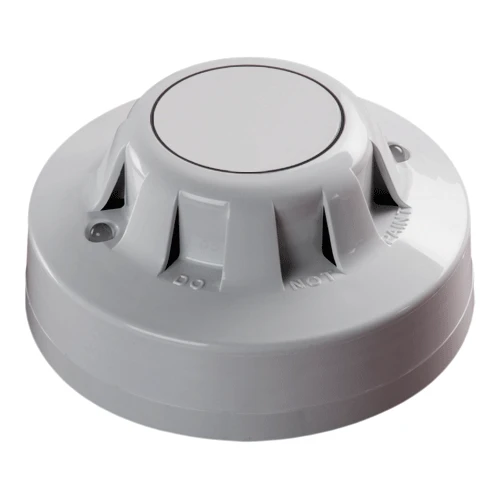

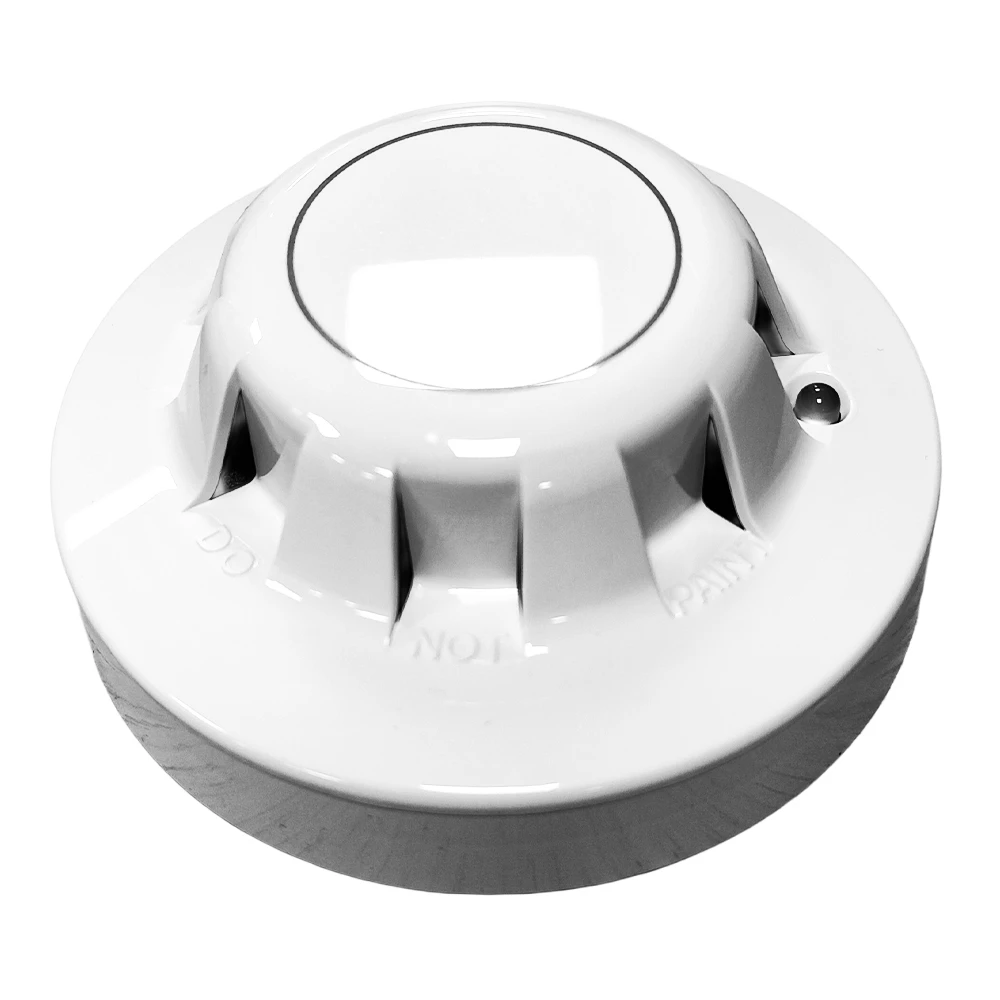

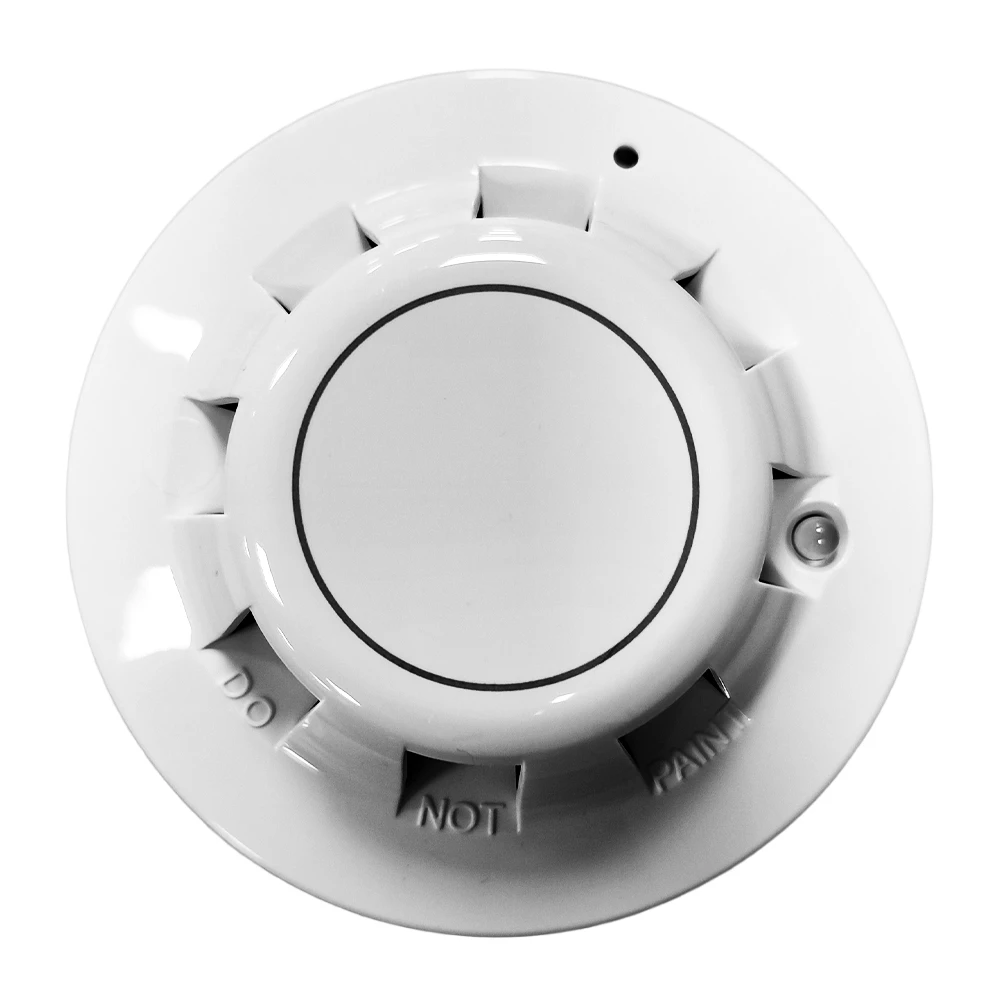

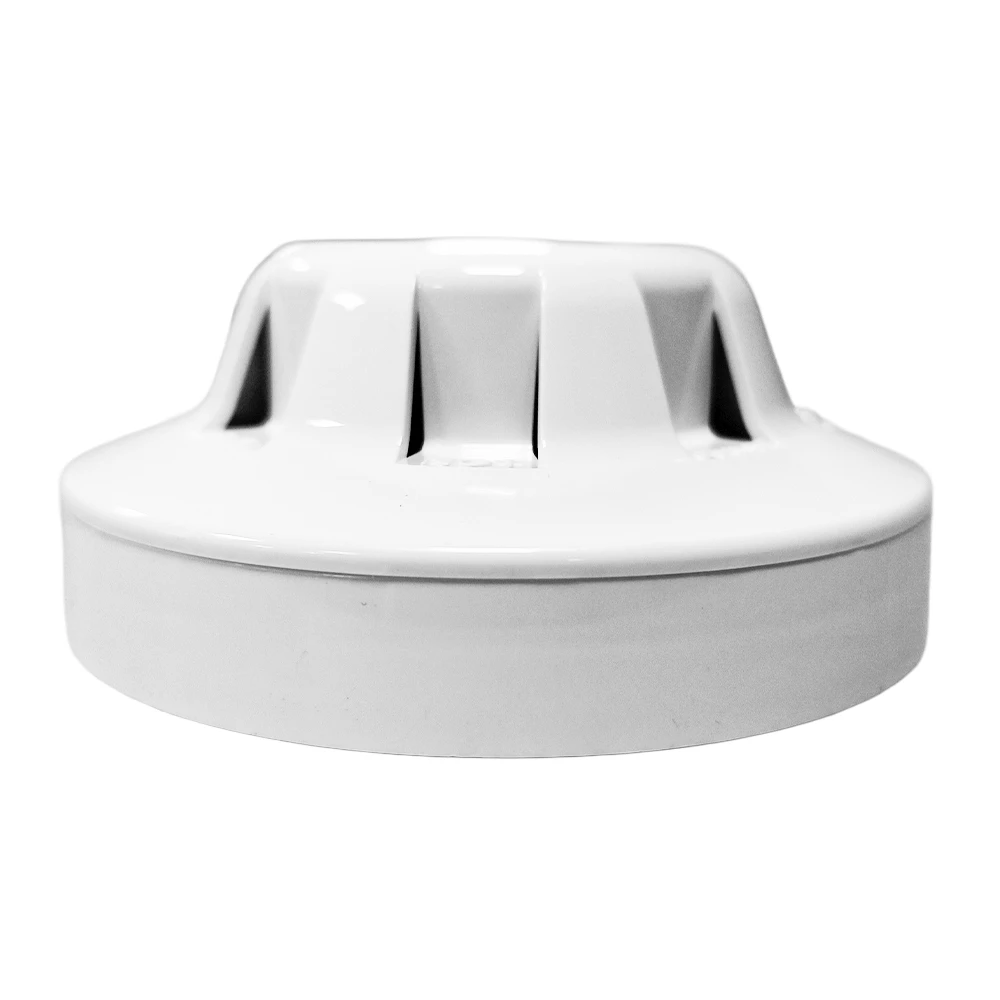

The Apollo 55000-390APO AlarmSense Optical Smoke Detector with standard base provides reliable smoke detection using the proven light scatter principle. When smoke particles enter the sensing chamber and reach a pre-set threshold, the detector switches to alarm, offering early warning of developing fires.

This optical detector is particularly effective at detecting slow-burning and smouldering fires, making it well suited to bedrooms, corridors and escape routes.

As part of the Apollo AlarmSense range, the device operates on a two-wire system that allows detectors, sounders and call points to be connected on a single cable pair. This reduces installation time, lowers wiring costs and simplifies system configuration.

This set includes the compatible AlarmSense standard detector base for straightforward installation.

Apollo 55000-390
Responds well to slow-burning, smouldering fires
Well suited for bedrooms and escape routes
360 visibility of LEDs
Reduces false alarms
Quick and simple installation
Base supplied

Specification	Value
Detection principle	Photo-electric detection of light scattered by smoke particles over a wide range of angles
Sampling frequency	Once every four seconds
Supply voltage	9 Vdc to 33 Vdc
Supply wiring	Two wire supply, polarity insensitive
Quiescent current at 15 V	< 50 µA
Alarm current (2–8.5 V)	< 1.5 mA
Alarm current (10.5–15 V)	25 ± 2 mA
Alarm current (18–24 V)	< 1.5 mA
Alarm current (33 V)	< 2 mA
Maximum reset voltage	2 V
Reset time	1 second
Maximum supply interruption time	40 ms
Operating temperature	-10°C to +55°C
Humidity	0% to 95% RH (no condensation or icing)
IP Rating	Designed to IP44
Standards and approvals	EN 54-7, CPR, FG
Dimensions	100 mm diameter × 42 mm height
Dimensions in base	100 mm diameter × 50 mm height
Weight	90 g (detector)
Materials – Housing	White flame-retardant polycarbonate
Materials – Terminals	Nickel plated stainless steel

Apollo 55000-390APO Datasheet
