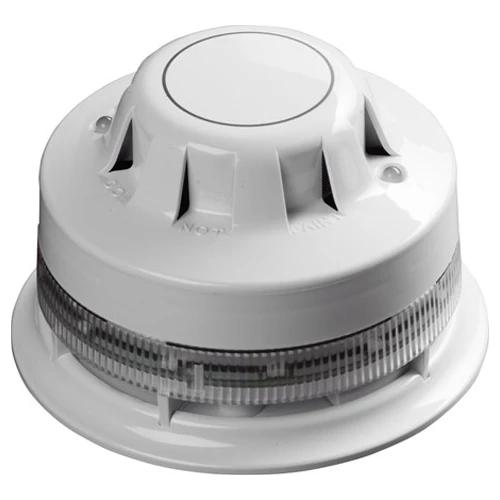

Apollo 55000-394APO AlarmSense Optical Smoke Detector & Sounder Beacon Base Set
Code: FDS341/032
INC VAT
Code: FDS341/032
The Apollo AlarmSense 55000-394APO is a combined optical smoke detector with an integrated sounder beacon, bringing together the Apollo 55000-390 detector and the Apollo 45681-509 sounder base in one efficient unit.
Designed for use with the AlarmSense system, this device simplifies installation by allowing detectors, sounders, and accessories to be connected on a single cable, reducing costs and setup time.
The optical smoke detection technology is highly responsive to slow-burning, smouldering fires, making it particularly suitable for bedrooms and escape routes.
With 360-degree LED visibility, the device ensures clear status indication from any angle. The built-in sounder offers selectable volume levels between 70dB(A) and 87dB(A), providing effective audible alerts, while the visual indicator enhances emergency notification.
To improve reliability, the unit detects the removal of the detector head and reports a fault, reducing the risk of system failures.
Apollo 55000-394APO
Responds well to slow-burning, smouldering fires
Well suited for bedrooms and escape routes
360 visibility of LEDs
Reduces false alarms
Quick and simple installation
Visual and audible sounder
Sounder range selectable between 70dB(A) and 87dB(A)
Detects the removal of a detector head and reports a fault
Quick and simple installation
Specification | Value |
|---|---|
Detection principle | Photo-electric detection of light scattered by smoke particles over a wide range of angles |
Sampling frequency | Once every four seconds |
Supply voltage | 9 Vdc to 33 Vdc |
Supply wiring | Two wire supply, polarity insensitive |
Quiescent current at 15 V | < 50 µA |
Alarm current (2–8.5 V) | < 1.5 mA |
Alarm current (10.5–15 V) | 25 ± 2 mA |
Alarm current (18–24 V) | < 1.5 mA |
Alarm current (33 V) | < 2 mA |
Maximum reset voltage | 2 V |
Reset time | 1 second |
Maximum supply interruption time | 40 ms |
Operating temperature | -10°C to +55°C |
Humidity | 0% to 95% RH (no condensation or icing) |
IP Rating | Designed to IP44 |
Standards and approvals | EN 54-7, CPR, FG |
Dimensions | 100 mm diameter × 42 mm height |
Dimensions in base | 100 mm diameter × 50 mm height |
Weight | 90 g (detector) |
Materials – Housing | White flame-retardant polycarbonate |
Materials – Terminals | Nickel plated stainless steel |
The Apollo AlarmSense 55000-394APO is a combined optical smoke detector with an integrated sounder beacon, bringing together the Apollo 55000-390 detector and the Apollo 45681-509 sounder base in one efficient unit.
Designed for use with the AlarmSense system, this device simplifies installation by allowing detectors, sounders, and accessories to be connected on a single cable, reducing costs and setup time.
The optical smoke detection technology is highly responsive to slow-burning, smouldering fires, making it particularly suitable for bedrooms and escape routes.
With 360-degree LED visibility, the device ensures clear status indication from any angle. The built-in sounder offers selectable volume levels between 70dB(A) and 87dB(A), providing effective audible alerts, while the visual indicator enhances emergency notification.
To improve reliability, the unit detects the removal of the detector head and reports a fault, reducing the risk of system failures.
Apollo 55000-394APO
Responds well to slow-burning, smouldering fires
Well suited for bedrooms and escape routes
360 visibility of LEDs
Reduces false alarms
Quick and simple installation
Visual and audible sounder
Sounder range selectable between 70dB(A) and 87dB(A)
Detects the removal of a detector head and reports a fault
Quick and simple installation
Specification | Value |
|---|---|
Detection principle | Photo-electric detection of light scattered by smoke particles over a wide range of angles |
Sampling frequency | Once every four seconds |
Supply voltage | 9 Vdc to 33 Vdc |
Supply wiring | Two wire supply, polarity insensitive |
Quiescent current at 15 V | < 50 µA |
Alarm current (2–8.5 V) | < 1.5 mA |
Alarm current (10.5–15 V) | 25 ± 2 mA |
Alarm current (18–24 V) | < 1.5 mA |
Alarm current (33 V) | < 2 mA |
Maximum reset voltage | 2 V |
Reset time | 1 second |
Maximum supply interruption time | 40 ms |
Operating temperature | -10°C to +55°C |
Humidity | 0% to 95% RH (no condensation or icing) |
IP Rating | Designed to IP44 |
Standards and approvals | EN 54-7, CPR, FG |
Dimensions | 100 mm diameter × 42 mm height |
Dimensions in base | 100 mm diameter × 50 mm height |
Weight | 90 g (detector) |
Materials – Housing | White flame-retardant polycarbonate |
Materials – Terminals | Nickel plated stainless steel |
