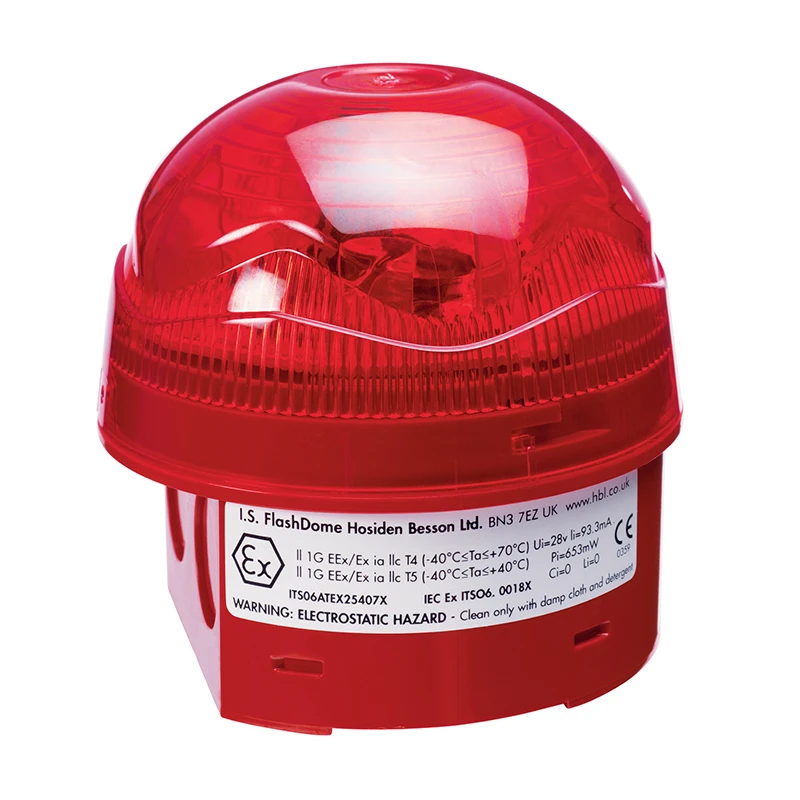

Vimpex 8645700 Intrinsically Safe FlashDome Red Beacon ATEX
Code: FDS002/596
Code: FDS002/596
The Vimpex 8645700 Intrinsically Safe FlashDome Red Beacon is a high-visibility visual warning device designed for use in hazardous and explosive atmospheres.
Certified to ATEX and IECEx standards, this intrinsically safe beacon is suitable for installation in Zones 0, 1 and 2, making it ideal for industrial, oil and gas, chemical, and process control environments where reliable signalling is critical.
The FlashDome produces a clear red flashing signal at a rate of 1 Hz, ensuring effective visual indication even in challenging conditions. To maintain intrinsic safety, the unit must be powered via an approved 28 V, 300 Ω zener barrier or certified galvanic isolator.
Constructed with a flame-retardant ABS body and a durable polycarbonate lens, the FlashDome offers excellent resistance to impact and environmental stress.
With an IP66 rating, it is protected against dust ingress and powerful water jets, making it suitable for both indoor and outdoor installations. The wide operating temperature range further supports deployment in extreme environments.
Installation must be carried out via a certified galvanic isolator or zener barrier with output parameters not exceeding Ui 28 V, Ii 93 mA and Pi 0.66 W.
ATEX and IECEx certified intrinsically safe visual beacon
Approved for hazardous area use in Zone 0, Zone 1 and Zone 2
Bright red flashing lens for clear visual warning and status indication
Designed for use with certified zener barriers or galvanic isolators
Low power consumption to maintain intrinsic safety compliance
Robust flame-retardant ABS enclosure with polycarbonate lens
IP66 rated for dust-tight and weather-resistant performance
Suitable for fire alarm, process control and industrial signalling systems
Surface mount design for straightforward installation
Reliable operation across a wide industrial temperature range
Specification | Detail |
|---|---|
Product code | 8645700 |
Product type | Intrinsically safe visual beacon |
Lens colour | Red |
Flash rate | 1 Hz |
Supply method | Via certified zener barrier or galvanic isolator |
Maximum input voltage (Ui) | 28 V |
Maximum input current (Ii) | 93 mA |
Maximum input power (Pi) | 0.66 W |
ATEX certification | II 1G Ex ia IIC T4 Ga |
IECEx certification | Ex ia IIC T4 Ga |
Hazardous area rating | Zone 0, Zone 1, Zone 2 |
Ingress protection | IP66 |
Body material | Flame-retardant ABS |
Lens material | Polycarbonate |
Operating temperature | -20°C to +55°C |
Mounting | Surface mounted |
Application | Hazardous area visual warning |
The Vimpex 8645700 Intrinsically Safe FlashDome Red Beacon is a high-visibility visual warning device designed for use in hazardous and explosive atmospheres.
Certified to ATEX and IECEx standards, this intrinsically safe beacon is suitable for installation in Zones 0, 1 and 2, making it ideal for industrial, oil and gas, chemical, and process control environments where reliable signalling is critical.
The FlashDome produces a clear red flashing signal at a rate of 1 Hz, ensuring effective visual indication even in challenging conditions. To maintain intrinsic safety, the unit must be powered via an approved 28 V, 300 Ω zener barrier or certified galvanic isolator.
Constructed with a flame-retardant ABS body and a durable polycarbonate lens, the FlashDome offers excellent resistance to impact and environmental stress.
With an IP66 rating, it is protected against dust ingress and powerful water jets, making it suitable for both indoor and outdoor installations. The wide operating temperature range further supports deployment in extreme environments.
Installation must be carried out via a certified galvanic isolator or zener barrier with output parameters not exceeding Ui 28 V, Ii 93 mA and Pi 0.66 W.
ATEX and IECEx certified intrinsically safe visual beacon
Approved for hazardous area use in Zone 0, Zone 1 and Zone 2
Bright red flashing lens for clear visual warning and status indication
Designed for use with certified zener barriers or galvanic isolators
Low power consumption to maintain intrinsic safety compliance
Robust flame-retardant ABS enclosure with polycarbonate lens
IP66 rated for dust-tight and weather-resistant performance
Suitable for fire alarm, process control and industrial signalling systems
Surface mount design for straightforward installation
Reliable operation across a wide industrial temperature range
Specification | Detail |
|---|---|
Product code | 8645700 |
Product type | Intrinsically safe visual beacon |
Lens colour | Red |
Flash rate | 1 Hz |
Supply method | Via certified zener barrier or galvanic isolator |
Maximum input voltage (Ui) | 28 V |
Maximum input current (Ii) | 93 mA |
Maximum input power (Pi) | 0.66 W |
ATEX certification | II 1G Ex ia IIC T4 Ga |
IECEx certification | Ex ia IIC T4 Ga |
Hazardous area rating | Zone 0, Zone 1, Zone 2 |
Ingress protection | IP66 |
Body material | Flame-retardant ABS |
Lens material | Polycarbonate |
Operating temperature | -20°C to +55°C |
Mounting | Surface mounted |
Application | Hazardous area visual warning |
