Pepperl-Fuchs KFD0-CS-EX1.51P Galvanic Isolator - Single Channel

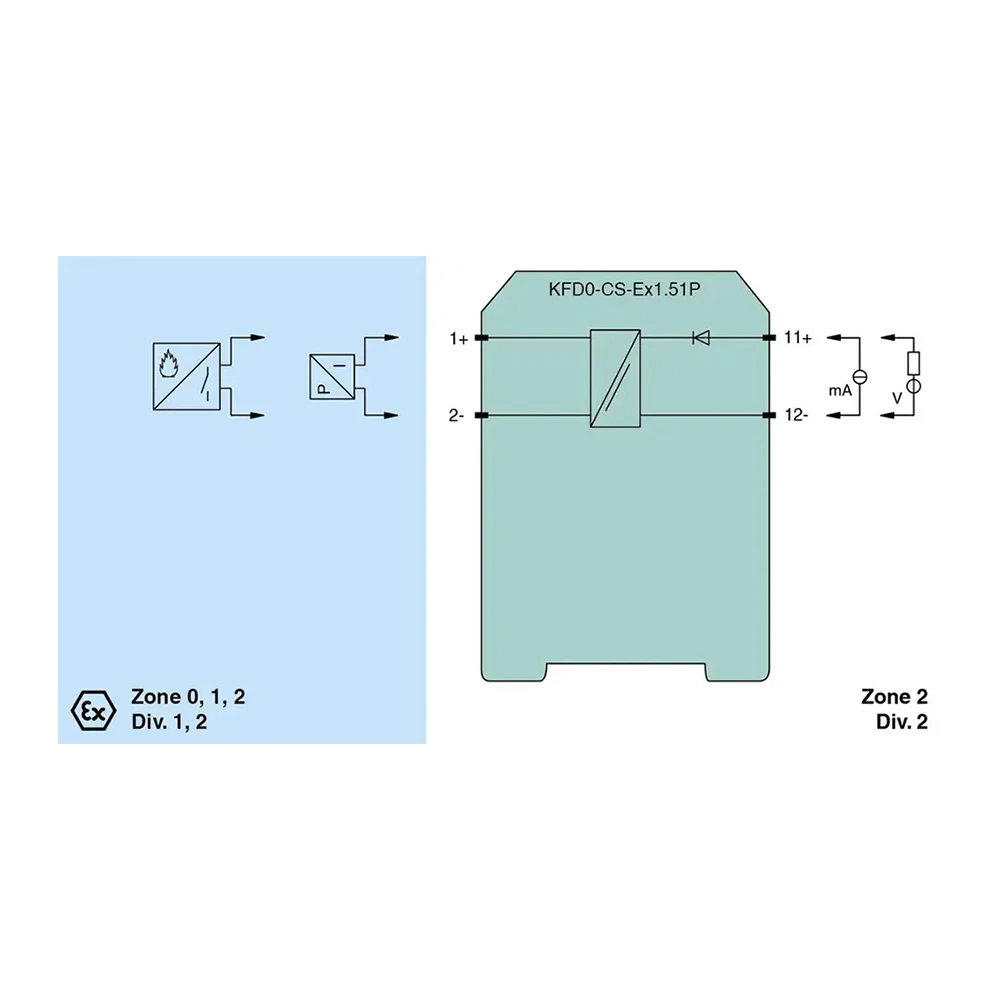

The Pepperl+Fuchs KFD0-CS-Ex1.51P is a single-channel intrinsically safe current driver and repeater designed for the safe transfer and isolation of analogue signals between hazardous and non-hazardous areas.

Commonly used with fire alarm, smoke detection, and process control systems, the device reliably transfers 0–40 mA signals while providing galvanic isolation and intrinsic safety protection.

It is loop powered, removing the need for an additional control-side power supply, and includes reverse polarity protection to safeguard against wiring errors.

Certified up to SIL 2 (SC 3) and approved for use in Zone 0, 1 and 2 hazardous areas, the KFD0-CS-Ex1.51P is well suited to safety-critical applications involving detectors, I/P converters, valves, indicators, and audible alarms

• Single-channel intrinsically safe current driver / repeater

• Transfers analogue signals from hazardous to safe areas

• Supports current input and output from 0 to 40 mA

• Loop powered operation with no additional control-side supply required

• Galvanic isolation between field and control circuits

• Reverse polarity protection for enhanced reliability

• Suitable for fire alarm, smoke alarm, and process control applications

• SIL 2 (SC 3) certified to IEC / EN 61508

• DIN rail mountable compact housing
