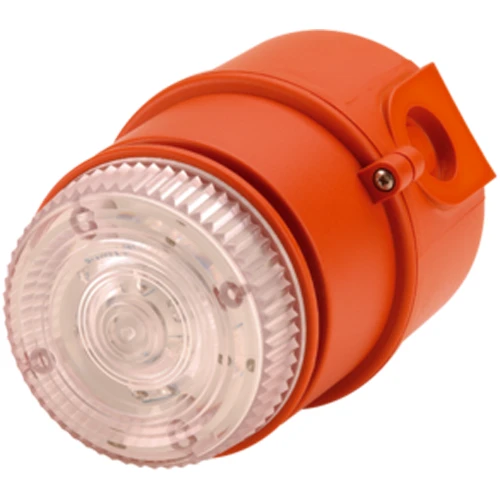

E2S IS-MC1 Intrinsically Safe Minialert Wall Mounted Sounder Beacon

The E2S IS-MC1 Minialert is an intrinsically safe combined sounder and LED beacon designed for hazardous area applications.

It delivers 100dB(A) alarm output at 1 metre and features an array of 6 high intensity LEDs in a compact, wall-mounted enclosure.

The unit is certified for Zone 0 and Class I Division 1 hazardous locations under ATEX, IECEx, FM and GOST-R standards.

Both sounder and beacon can be powered from a single Zener barrier or galvanic isolator, or operated as independent signals.

The IS-MC1 is suitable for oil and gas installations, petrochemical facilities, offshore platforms and other environments requiring UKOOA/PFEER compliant intrinsically safe alarm devices.

It is designed for installation by qualified engineers in hazardous areas where flammable gases or vapours may be present.

• Input overload and reverse current protection ensures circuit safety.

• End of line resistor certified for system integrity monitoring.

• Auto synchronised sound output for multi-device installations.

• 49 selectable alarm tones including UKOOA/PFEER compliant options.

• 3-stage alarm capability with adjustable volume control from 90dB(A) to 100dB(A).

• Prismatic lens design optimises LED visibility and effectiveness.

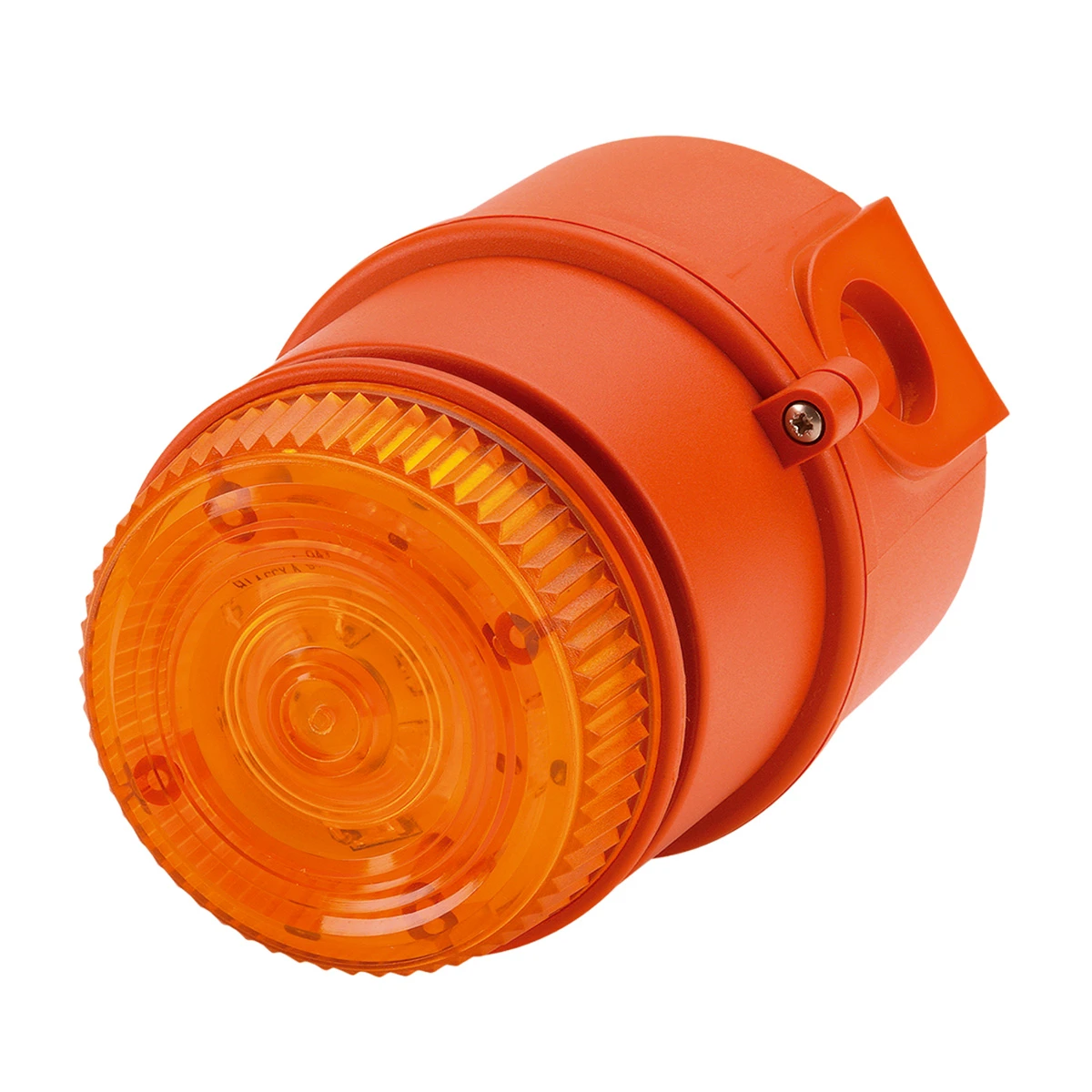

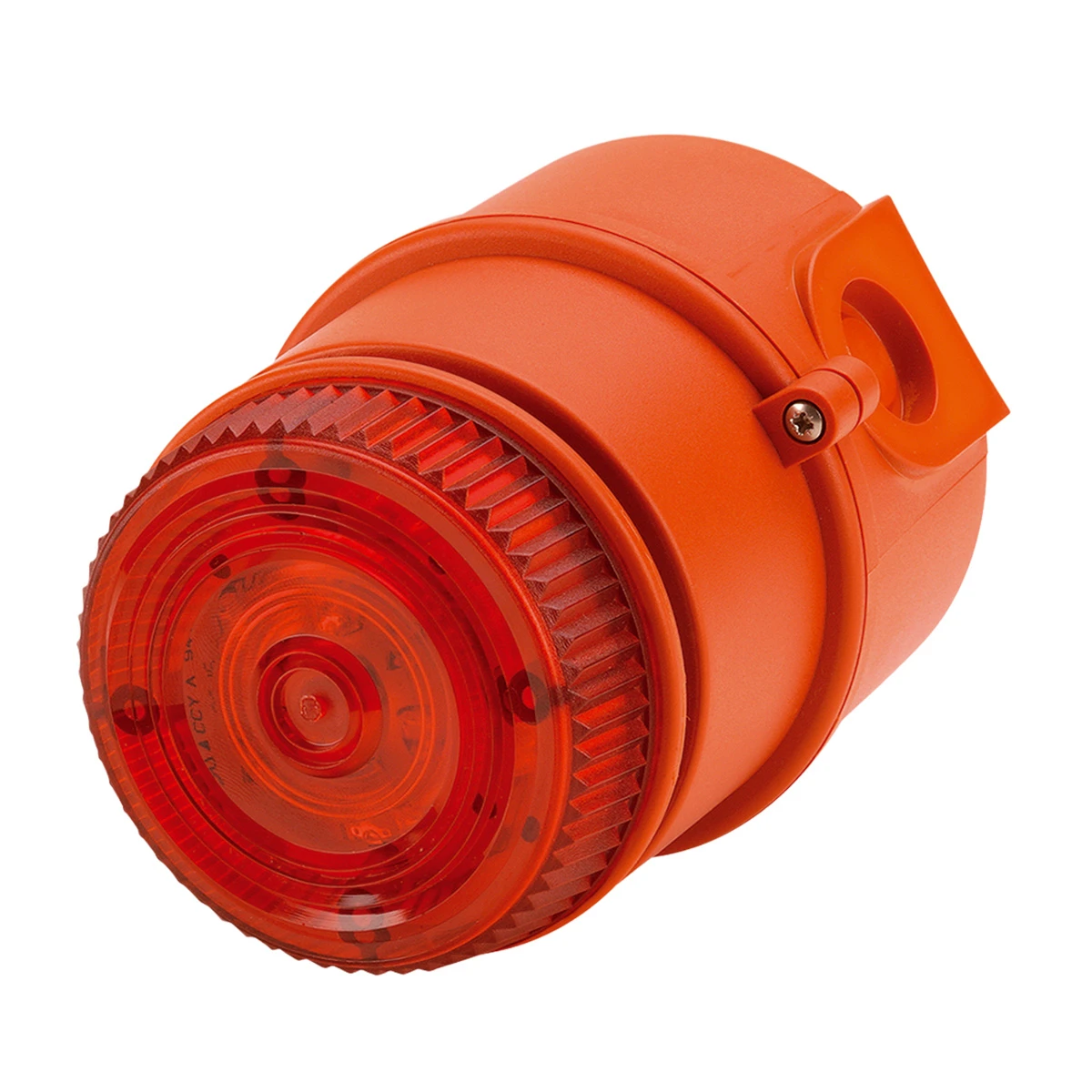

• Available in red, amber, blue, green and clear LED colours.

• Double flash modes at 2Hz and 1Hz frequency.

• IP65 rated enclosure suitable for harsh industrial environments.

• Operates from 16-28Vdc via certified intrinsically safe barrier.

• Wide operating temperature range from -40°C to +60°C.

• Stainless steel fixings and 2 x M20 cable entry knockouts.

• Low current consumption of approximately 30mA at 24V supply.
