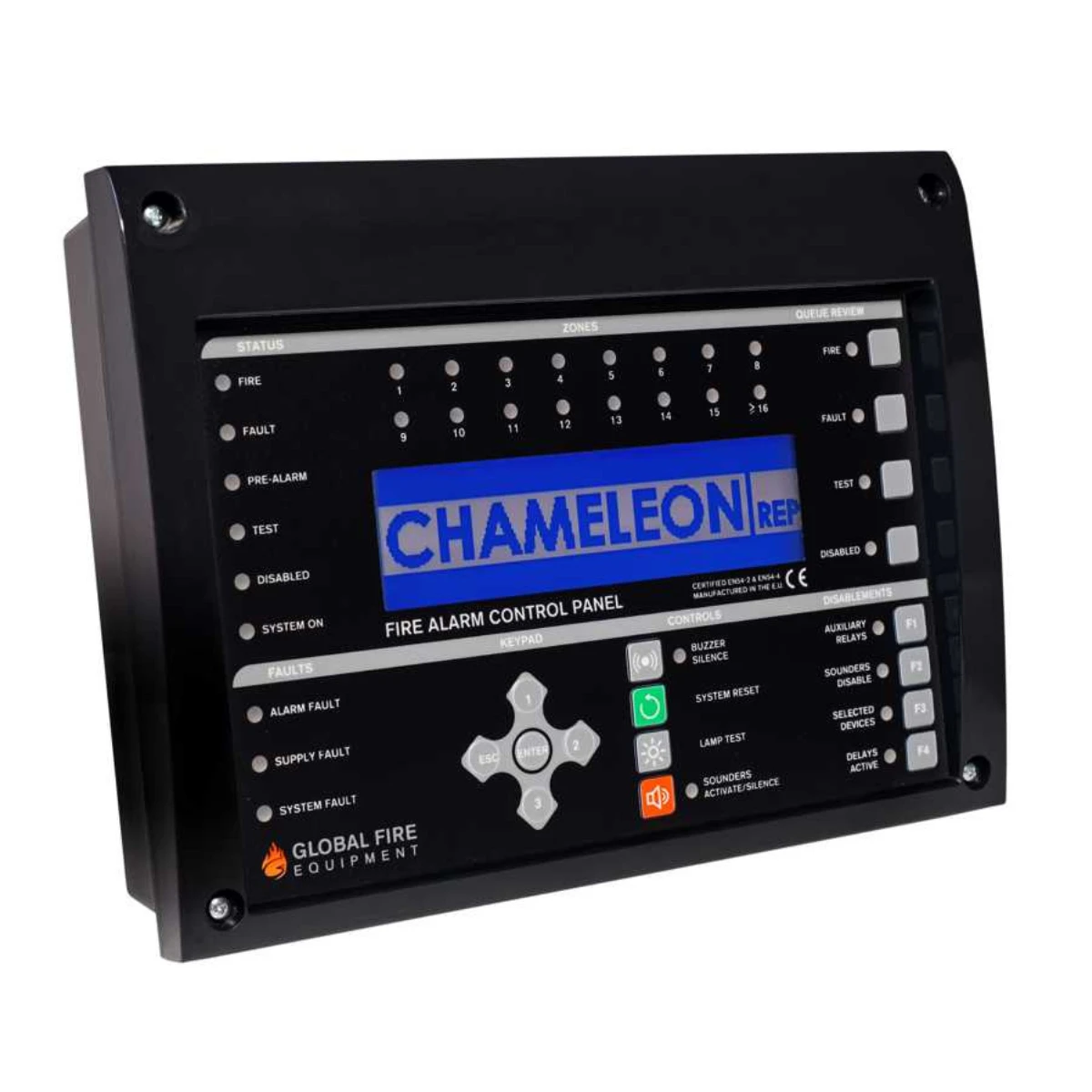

Global Fire CHAMELEON-MINI-REP | Gekko Mini Repeater Panel

The Global Fire CHAMELEON-MINI-REP Gekko Mini Repeater Panel is an ideal solution when complete control of a networked system is required.

Within a Chameleon Network, the Chameleon Repeater functions as a System Repeater. It operates as an addressed network panel (without loops) and is capable of processing and logging all system information.

The Chameleon Mini Rep is powered by an external power supply and does not require batteries. System-wide Cause and Effect programming, along with all customer-specific configurations, can be downloaded or uploaded using the Chameleon Connector software and subsequently distributed to other networked Chameleon panels.

• Loop/Panel supply voltage: 28.5 V DC nominal

• Quiescent current: approx. 65 mA

• Operating temperature: –10 °C to +50 °C

• Humidity: up to 85% RH non-condensing

• Ingress protection: IP30; Enclosure material ABS

• Dimensions: 256 mm (L) × 194 mm (H) × 75 mm (W); Weight approx. 760 g

• No loop card required — works purely as networked repeater/display unit

• Compatible with CHAMELEON network panels (e.g., GEKKO, NODE+, OCTO+) via RS-422, fibre-optic or TCP/IP connections

• Event log capacity: up to 10,000 entries; supports full system control and broadcast configuration changes
