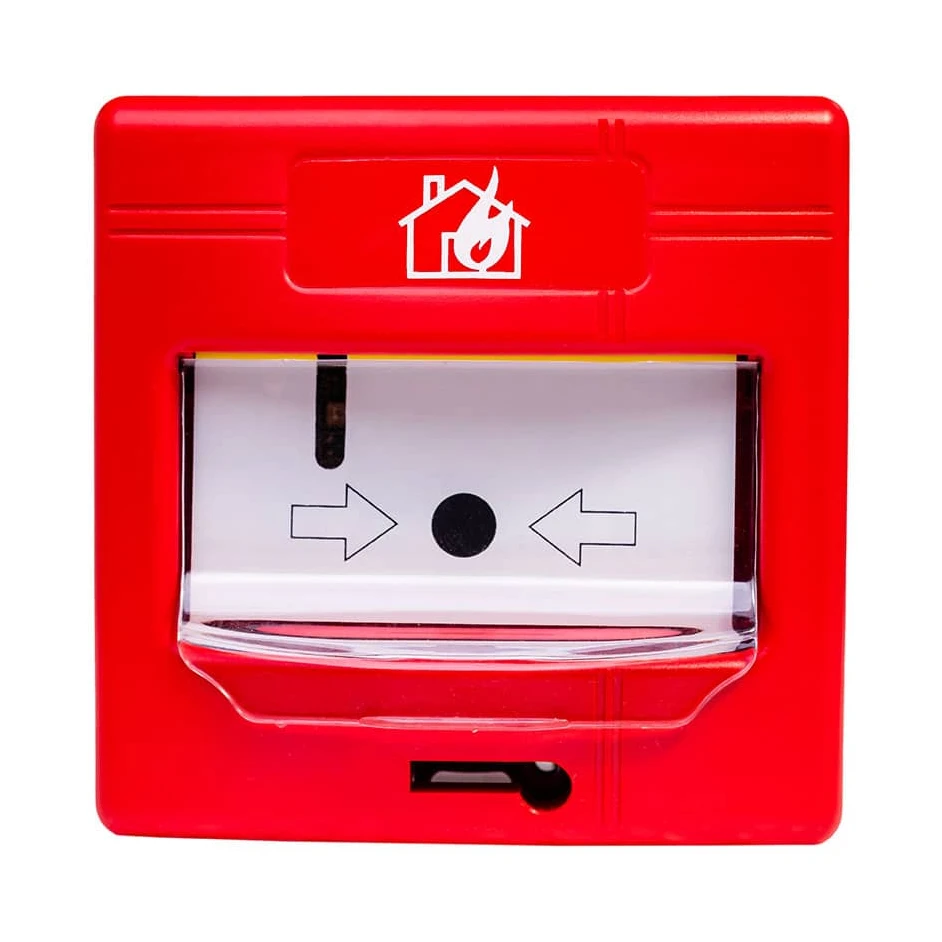

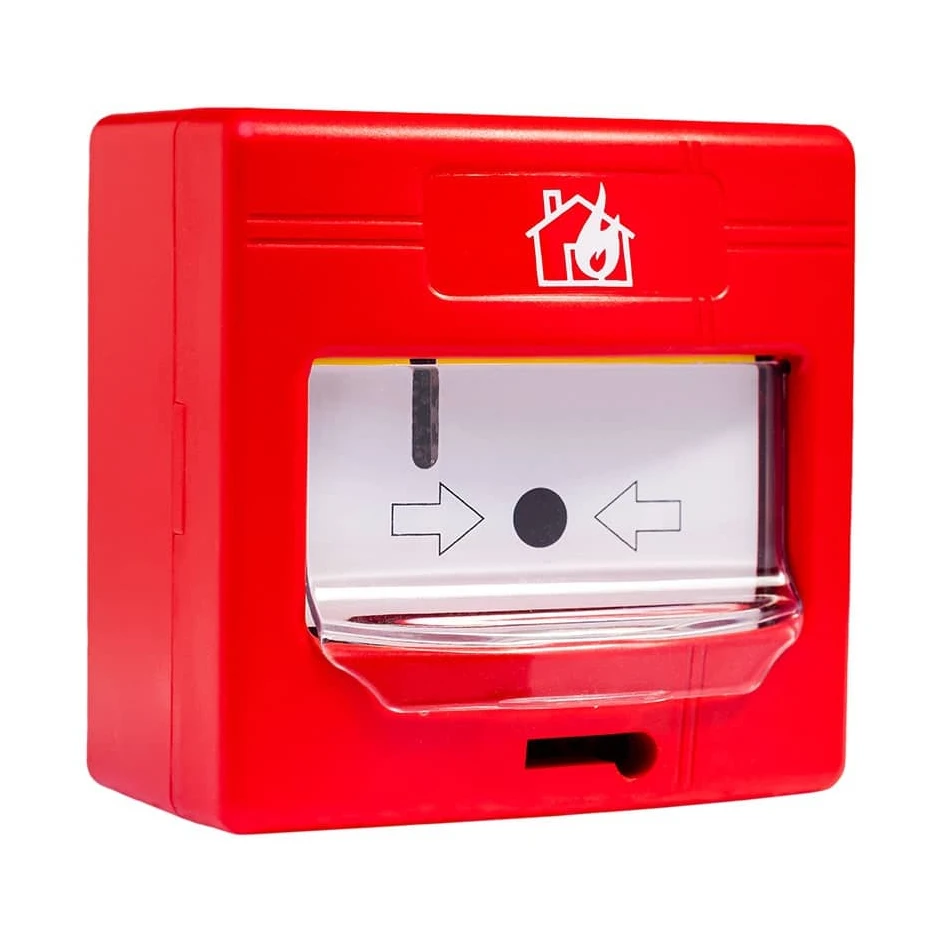

Global Fire GFE-MCPE-A GFE Addressable Manual Call Point & Built-in Hinged Cover

The GFE-MCPE is an analogue addressable manual call point designed for use with Global Fire Equipment addressable fire alarm systems.

Manufactured to EN54-11, it provides fast and reliable alarm signalling, with a typical response time of around one second depending on loop size.

Each call point features bi-colour LED indication, flashing green during normal polling and illuminating red when the device is activated and the alarm has been confirmed by the control panel.

The unit is supplied with a hinged protective flap, helping to prevent accidental or malicious activation by requiring two deliberate actions to operate.

Addressing is set locally using an eight-way DIL switch, allowing up to 125 individual addresses per loop.

The GFE-MCPE can be surface or flush mounted and is easily reset after activation using the supplied key, making it suitable for a wide range of commercial and public buildings.

• Analogue addressable manual call point

• EN54-11 compliant

• Compatible with all GFE addressable control panels

• Fast alarm response, typically around one second

• Bi-colour LED indication for status and alarm confirmation

• Hinged protective flap to reduce false or malicious activation

• Address set via 8-way DIL switch, up to 125 addresses

• Surface or flush mounting options

• Easy reset using supplied key

• Optional version with integral loop isolator
