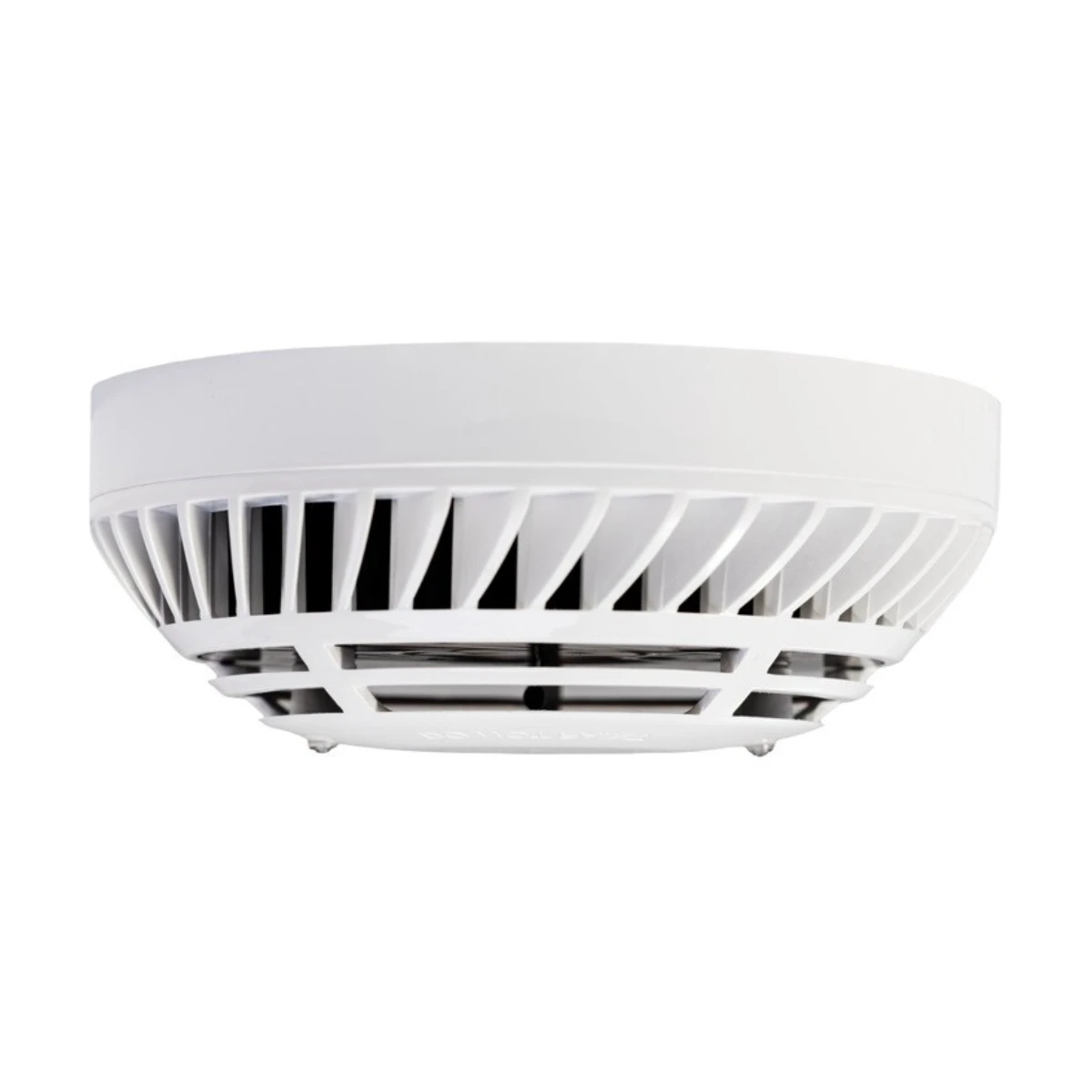

Global Fire ZEOS-C-S ZEOS Conventional Smoke Detector

Name: Global Fire ZEOS-C-S ZEOS Conventional Smoke Detector
Brand: Global-fire
Availability: InStock

Code: FDS202/115

Call to place order

INC VAT

Code: FDS202/115

Optical smoke detector
Compatible with conventional fire systems
EN54 certified

Have a question about this? Click here

Overview Features Technical Data

The Global Fire ZEOS-C-S is a conventional optical smoke detector designed for reliable fire detection within compatible conventional fire alarm systems. Part of the ZEOS-C detector range, it is specifically engineered for use with GFE conventional detection zones and is compatible with ORION, ORION MINI, ORION EX, and ORION-PLUS control panels, as well as QUAD-ZMU and ZMU addressable zone monitoring units.

The ZEOS-C series is EN54 certified and available in optical smoke, heat, and combined smoke/heat variants to suit a wide range of applications.

Key Features:

Optical smoke detector
Compatible with conventional fire systems
EN54 certified

Optical smoke detector
Compatible with conventional fire systems
EN54 certified

SUPPLY VOLTAGE	17 to 30V DC
CURRENT – QUIESCENT	Heat: 7uA / Smoke: 33uA / Smoke & Heat: 35uA
CURRENT – DEVICE IN ALARM	24mA – Alarm LEDs
SENSITIVITY	According to EN54-5 or/and EN54-7 A1 & A2
CABLE SIZE	0.5-2.5 mm²
RESET/START-UP TIMES	20 seconds max
IP RATING	IP20
COLOUR	White
CASE MATERIAL	ABS
MAX. HUMIDITY	95% RH Non-Condensing
OPERATING TEMPERATURE (NORMAL)	0ºC to 50ºC
OPERATING TEMPERATURE (TRANSIENT)	-10ºC to 85ºC
DIMENSIONS	100 (D) x 46.4 (H) mm
WEIGHT	144g included base
COMPATIBILITY	All GFE conventional systems
