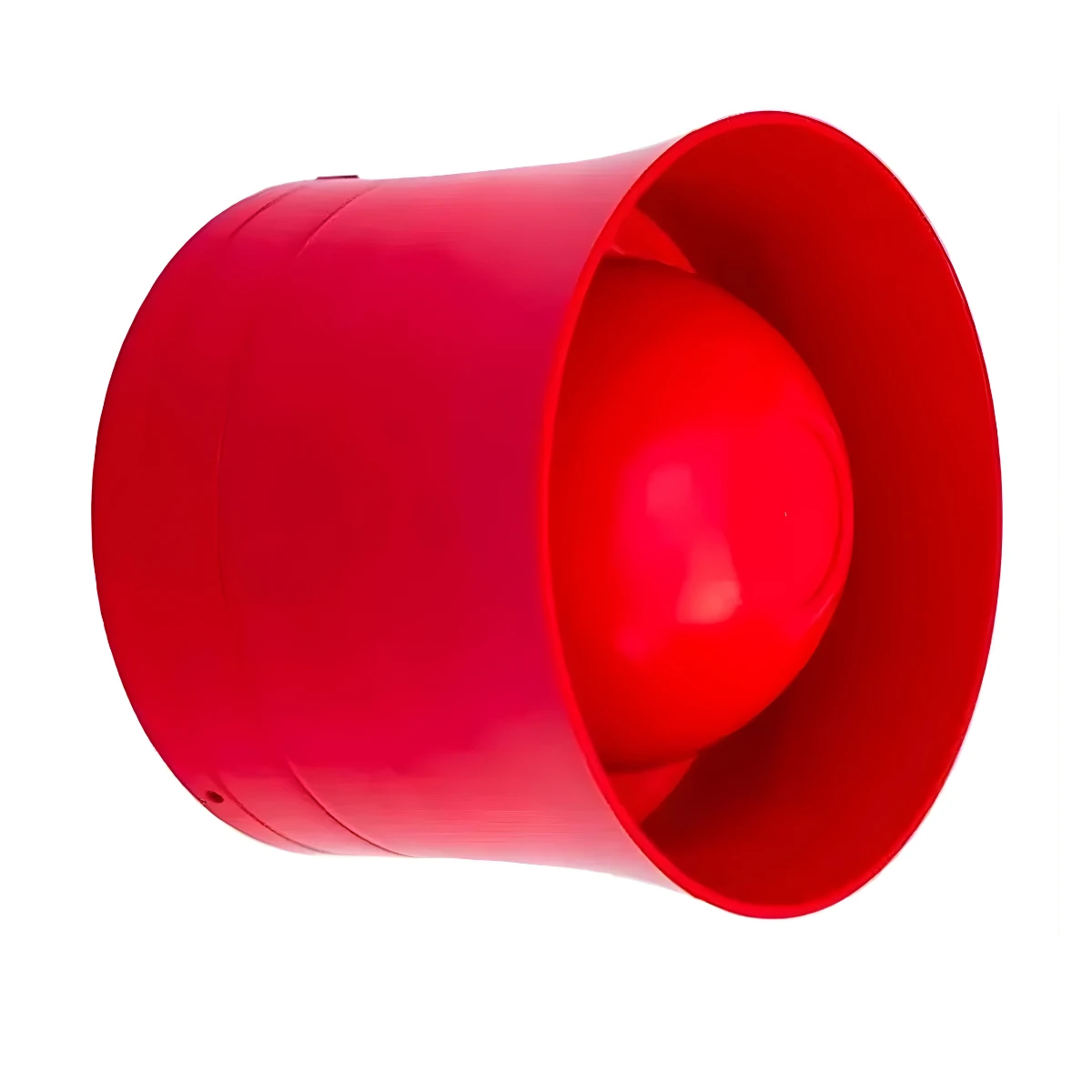

Global Fire VALKYRIE-AS VALKYRIE - Addressable Wall Mount Sounder - Red

Name: Global Fire VALKYRIE-AS VALKYRIE - Addressable Wall Mount Sounder - Red
Brand: Global-fire
Availability: InStock

Code: FDS120/266

Call to place order

INC VAT

Code: FDS120/266

Wall mounted
Red Addressable Sounder
Low power consumption

Have a question about this? Click here

Overview Features Technical Data

The VALKYRIE AS is a wall-mounted addressable sounder designed for low power consumption. Up to 32 individually addressed sounders can be installed on a single loop, using addresses 94 to 125. Address selection is configured via switches 1 to 5 on the 8-way DIL switch. 4 selectable tones are available and are chosen using switches 6 and 7.

When individual address reporting is not required, the VALKYRIE AS can be configured as a Shadow Sounder. In this mode, the sounder does not occupy a loop address, allowing additional detection devices to be added. Shadow sounders do not communicate their status to the control panel, meaning their presence on the loop is not monitored.

Although unaddressed, Shadow sounders draw current from the loop (10 mA in alarm) and must be included in loop loading calculations.

Wall mounted
Red Addressable Sounder
Low power consumption
Up to 32 individually addressed sounders per loop (occupying address 94-125)
Address is set using switches 1 - 5 of the 8-way DIL switch
4 selectable tones
Can be configured as a shadow sounder

SUPPLY VOLTAGE	Loop: 20V to 30V DC
LOOP CURRENT – QUIESCENT	550 uA max. with isolator
LOOP CURRENT – SOUNDER/ BEACON ACTIVE	10mA – 280mW @ 28V DC inc. isolator
MAXIMUM SOUNDER OUTPUT	100 dB (@ 1m – 30V DC)
LIGHT FLASH RATE	0,92Hz
MAX. CABLE SIZE	2.5 mm²
OPERATING TEMPERATURE	-10ºC to 55ºC
MAX. HUMIDITY	95% RH Non-Condensing
CASE MATERIAL	ABS and PC
COLOUR	Red or White
PROTECTION CATEGORY	IP21C – Type A – Indoor use
DIMENSIONS	110 (D) x 85 (A) mm included base
WEIGHT	254g included base
