20 Zone EDA Zerio Plus Addressable Wireless Fire Alarm System Builder

Name: 20 Zone EDA Zerio Plus Addressable Wireless Fire Alarm System Builder
Brand: Eda
Price: 775.68 GBP
Availability: InStock

Code: FDS778/002

£775.68

INC VAT

Code: FDS778/002

Wireless system
Completely addressable
20 zone panel

Add these extras to your kit

Please Select

Yucel 12vdc Trade Fire Alarm Batteries(£18.24 inc vat)

EDA C5000 | Zerio Plus Manual Call Point(£119.70 inc vat)

EDA R5000 | Zerio Plus Wireless Optical Smoke Detector(£133.08 inc vat)

EDA R6000 | Zerio Plus Wireless Optical Smoke Detector with Sounder(£245.58 inc vat)

EDA R6030 | Zero Plus Wireless Optical Smoke Detector with Sounder Beacon(£330.00 inc vat)

EDA D5000 | Zerio Plus Wireless Heat Detector(£124.92 inc vat)

EDA D6000 | Zerio Plus Wireless Heat Detector with Sounder(£245.70 inc vat)

EDA D6030 | Zerio Plus Wireless Heat Detector with Sounder Beacon(£289.14 inc vat)

EDA A6000 | Zerio Plus Wireless Wall Mounted Sounder(£181.14 inc vat)

EDA Z6000 | Zerio Plus Wireless Booster Unit(£425.34 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

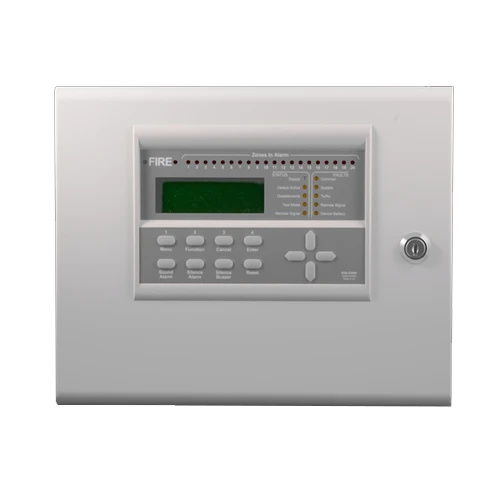

The EDA Zerio Plus 20 Zone Addressable Wireless Fire Alarm System is a fully compliant solution for modern fire protection, meeting the requirements of BS5839:PT1 and UK building regulations.

This versatile wireless system is designed for a wide range of environments, including commercial properties, HMOs, residential buildings, self-builds, and more.

Ideal for projects where conventional wired systems are impractical or disruptive, the Zerio Plus operates entirely wirelessly, with only the control panel needing a mains connection.

This significantly reduces installation time, cost, and disturbance to the building fabric, making it perfect for retrofits, listed buildings, or fast-track projects.

The System Builder format allows you to create a tailored fire alarm system that meets the specific needs of your site.

Simply select the required number and types of wireless devices, such as detectors, sounders, and manual call points, from the options box to build a complete, addressable fire alarm solution.

Please note:
We recommend a professional radio survey is carried out before installation to ensure optimal wireless coverage and performance. Please contact us for further details.

This product includes the Zerio Plus 20 Zone addressable panel only. Choose additional compatible devices from the options box to complete your bespoke system.

20 zone, fully addressable wireless fire alarm system
Complies with BS5839:PT1 and UK building regulations
Perfect for commercial, residential, HMO, and self-build projects
Wireless devices simplify installation and minimise disruption
Only the control panel requires mains power
Customise your system using the System Builder options
Expandable and scalable for future requirements
Ideal for retrofits, refurbishments, and sensitive sites

Specifications	Details
Maximum Number of Zones	EDA-Z5008 8, EDA-Z5020 20
Maximum Number of Devices	240 (for larger premises, up to four systems can be linked together)
Max no of radio control / booster units	15 (per system)
Alarm Indicators	Twin flashing red LEDsRed individual zone indicationFire message on LCD with 60 scrolling characters of location text
Fault Indicators	Amber LEDs and LCD providing details and location of fault with 60 scrolling characters of location text
Event Log Storage	255 events maximum
Mains Supply	230V 50Hz 0.3A max
No of Relays	(Programmable) 2Fire - 1A Changeover ContactsFault - 1A Changeover Fail Safe Contacts12V Sounder Circuit (500mA)
Operating Frequency	868MHz
Modulation	NBFM
Output Power (ERP)	10mW
Operational Temperature	0°C to +60°C
Monitored Inputs	2 x wired monitored circuit (4k7Ω end of line resistor monitored for open and short circuit, 470Ω alarm load)
Battery	1 x 12V 7.0Ah sealed lead acid
Weight	4kg (not including battery)

What type of buildings is the EDA Zerio Plus 20 Zone system suitable for?

This system is ideal for commercial buildings, HMOs, residential properties, self-builds, and any location where a fully wireless addressable fire alarm is required.

Does the system require any wiring?

All devices are wireless, with only the main control panel needing a mains power connection. No additional wiring for detectors, call points, or sounders is necessary.

Is the system compliant with UK standards?

Yes, the EDA Zerio Plus 20 Zone panel is fully compliant with BS5839:PT1 and UK building regulations, making it suitable for new builds, retrofits, and refurbishment projects.

Can the system be expanded in the future?

Yes, the Zerio Plus system is scalable, allowing you to add zones or devices as your requirements grow or change.

EDA Zerio Plus Panel Datasheet	Click here to download
EDA Zerio Plus Brouchure	Click here to download
