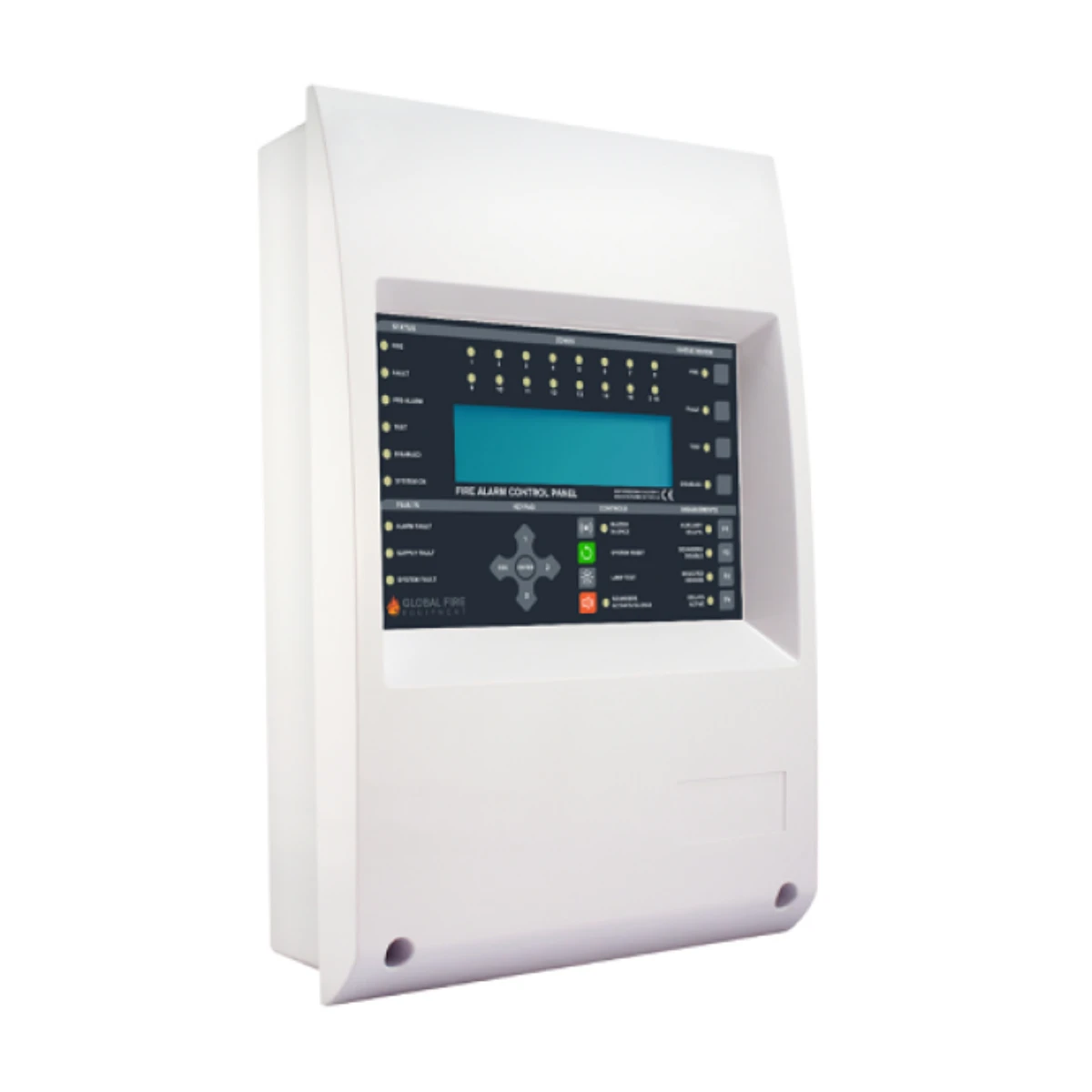

Global Fire G-ONE Gekko Addressable Fire Alarm Control Panel - 1 Loop

The Global Fire G-ONE Gekko Addressable Fire Alarm Control Panel - 1 Loop from Global Fire is a versatile, addressable single-loop fire control panel with advanced connectivity, fully CPR certified to EN54-2 and EN54-4.

Designed for affordability and flexibility, the G-ONE combines a modern, intuitive design with easy installation and commissioning, making it ideal for offices, restaurants, shops, schools, and other single-loop applications.

It features Chameleon peer-to-peer multi-master networking and powerful Cause & Effect programming, allowing up to 32 GFE panels to be networked. The panel supports high-speed, resilient communication with up to 250 devices per loop and can be surface or recessed mounted.

A unique automatic self-learn facility simplifies setup, while the high-resolution backlit blue LCD ensures a clear, intuitive interface. Fully compatible with all GFE digital analogue-addressable devices, the G-ONE retains a familiar menu structure for ease of operation.

• 900mA single loop (digital communication) addressable fire alarm control panel

• Up to 32 G-ONE, GEKKO, OCTO+ and NODE+ panels can be networked

• Connection to the repeater panels via RS422, Fibre-Optic or TCP/IP

• 250 devices per loop (125 address limit)

• Up to 95 VULCAN 2 (addressable) ultra-low current base sounders (32 address limit) per loop.

• 32 individually programmable sounder addresses

• Full Self-Addressing device support

• 2 Fire output relays (change-over) and 1 Fault relay (NC)

• 2 Non-addressable (conventional) alarm outputs (individually programmable)

• High integrity loop communication and device monitoring

• 384 fully programmable network zones

• 512 fully programmable alarm (sounder) groups

• 512 I/O groups

• Event log (10,000 events)

• Compatible with ZEOS, GFE and Apollo™ digital analogue addressable protocols

• Compatible with all GFE manufactured digital addressable ancillary modules

• High resolution, high contrast backlit blue graphical LCD display (240 x 64 pixels)

• Programming by integrated tactile keypad or USB Loader PC software

• Multiple menu selectable language support

• 16 integrated programmable fire zone LED’s

• SMS and EMAIL notification by means of TCP IP-WEB interface

• Installer friendly automatic self-learn facility

• CPR Certified to EN54-2 and EN54-4
