Apollo 55100-908APO | XP95 Addressable Manual Call Point

Name: Apollo 55100-908APO | XP95 Addressable Manual Call Point
Brand: Apollo
Price: 47.16 GBP
Availability: InStock

Code: FDS600/013

£47.16

INC VAT

Code: FDS600/013

Apollo 55100-908APO
Matches existing call points
Plug and play terminal connections for fast wiring

Add these extras to your kit

Please Select

Apollo 44251-189 | Perspex Call Point Cover(£2.46 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

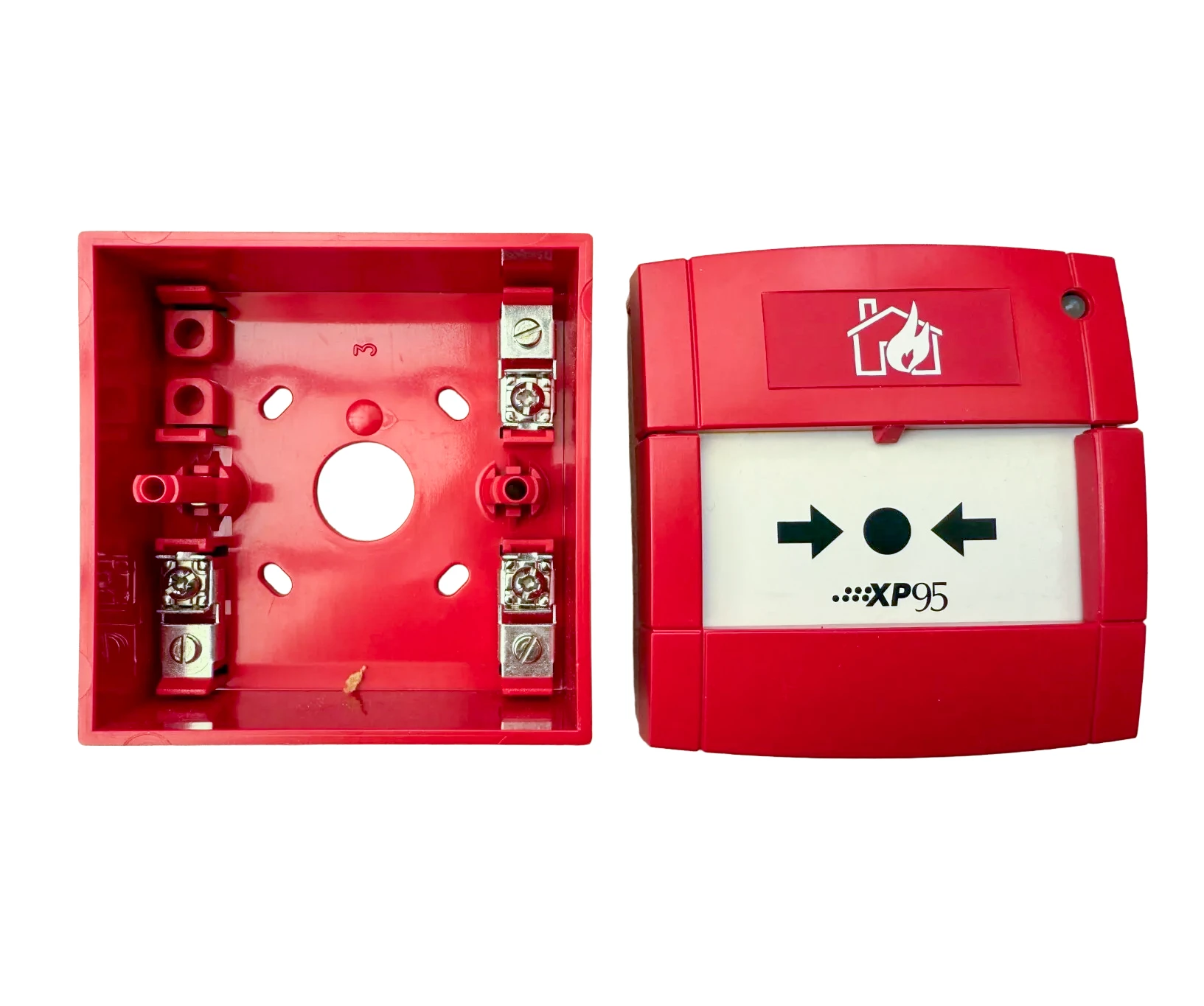

The Apollo 55100-908APO XP95 Addressable Manual Call Point is a legacy model designed for use with addressable fire alarm systems that operate on the Apollo XP95 protocol.

Compatible with Apollo XP95 addressable systems
Legacy style manual call point – available by order only

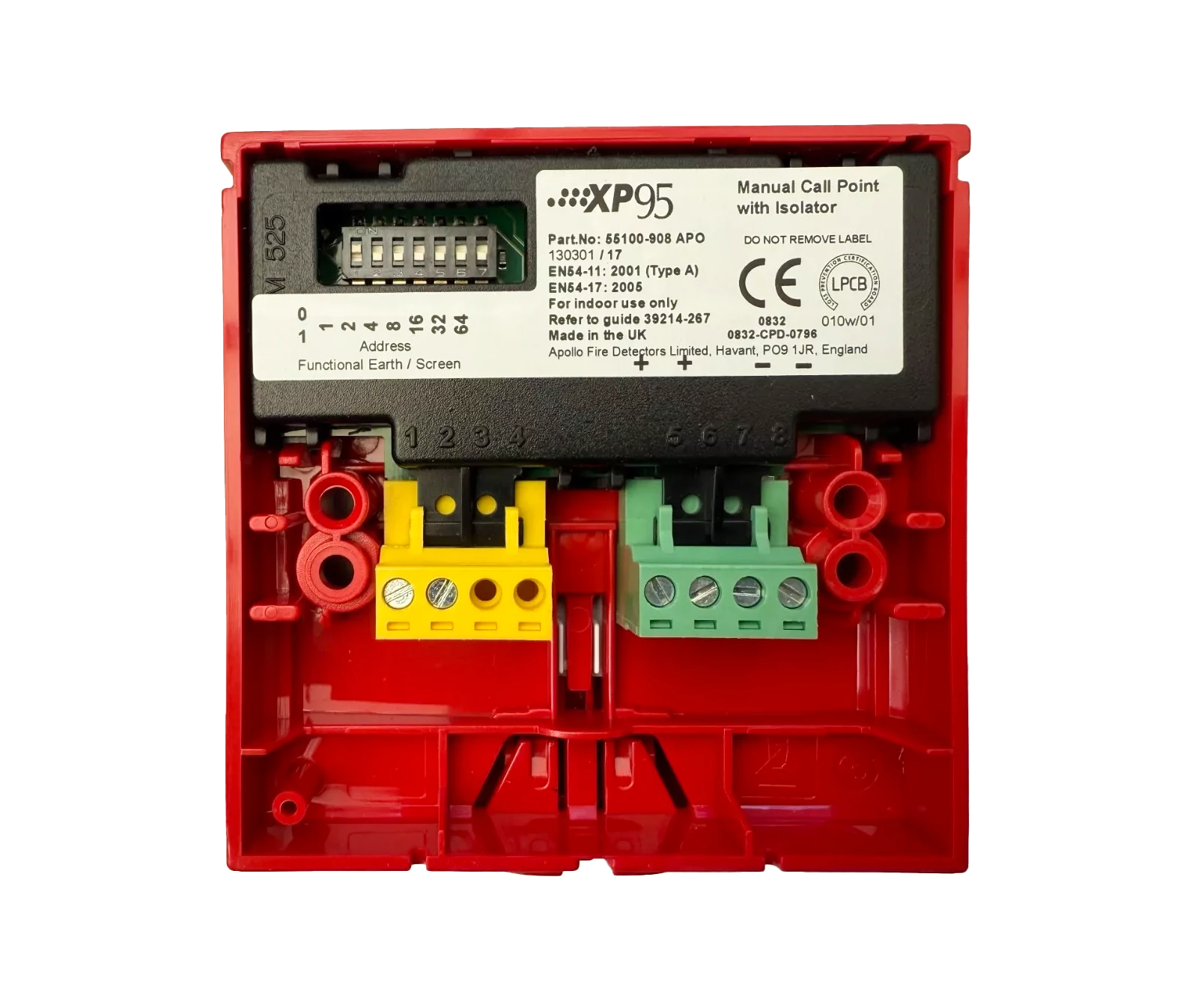

Address set via DIL switch for commissioning flexibility
Resettable element for reduced maintenance
Plug-and-play terminals for fast installation

Ideal for system expansions or replacements, this call point features a seven-segment DIL switch for address configuration during commissioning, providing flexibility and straightforward setup.

Installation is quick thanks to plug-and-play terminal connections, while the resettable element helps reduce maintenance time and long-term servicing costs.

Please note: This is an older style unit and is available to order only.

Apollo 55100-908APO
Matches existing call points
Plug and play terminal connections for fast wiring
Easy wiring continuity testing before fitting
Resettable element
Built in isolator
Reports an alarm in under 0.2 seconds

Warranty	10 year
Colour	Red
Weight	151g
Materials housing	Polycarbonate, ABS
Product length	93mm
Product width	89mm
Product depth	26.5mm
Detection principle	Operation of a switch
Product length (inches)	3.66in
Product width (inches)	3.5in
Product depth (inches)	1.04in
Standards	EN 54-17
Approvals	LPCB, CPR
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Protocol voltage	5 to 9V peak to peak
Power-up surge current	1mA
Maximum power-up time	1 second
Quiescent current	100μA
Quiescent current tested at	24V dc
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
Operating temperature	-20 to 60°C
Operating temperature (max)	60°C
Operating temperature (min)	-20°C
IP rating Value	IP24
Storage temperature (min)	-30°C
Storage temperature (max)	80°C
Storage temperature	-30 to 80°C
Operating Temperature (°F)	-4 to 140°F
Operating temperature (max)	140°F
Operating temperature (min)	-4°F
Part Number	55100-908APO

Apollo 55100-908APO | XP95 Addressable Manual Call Point Datasheet

Click here to download
