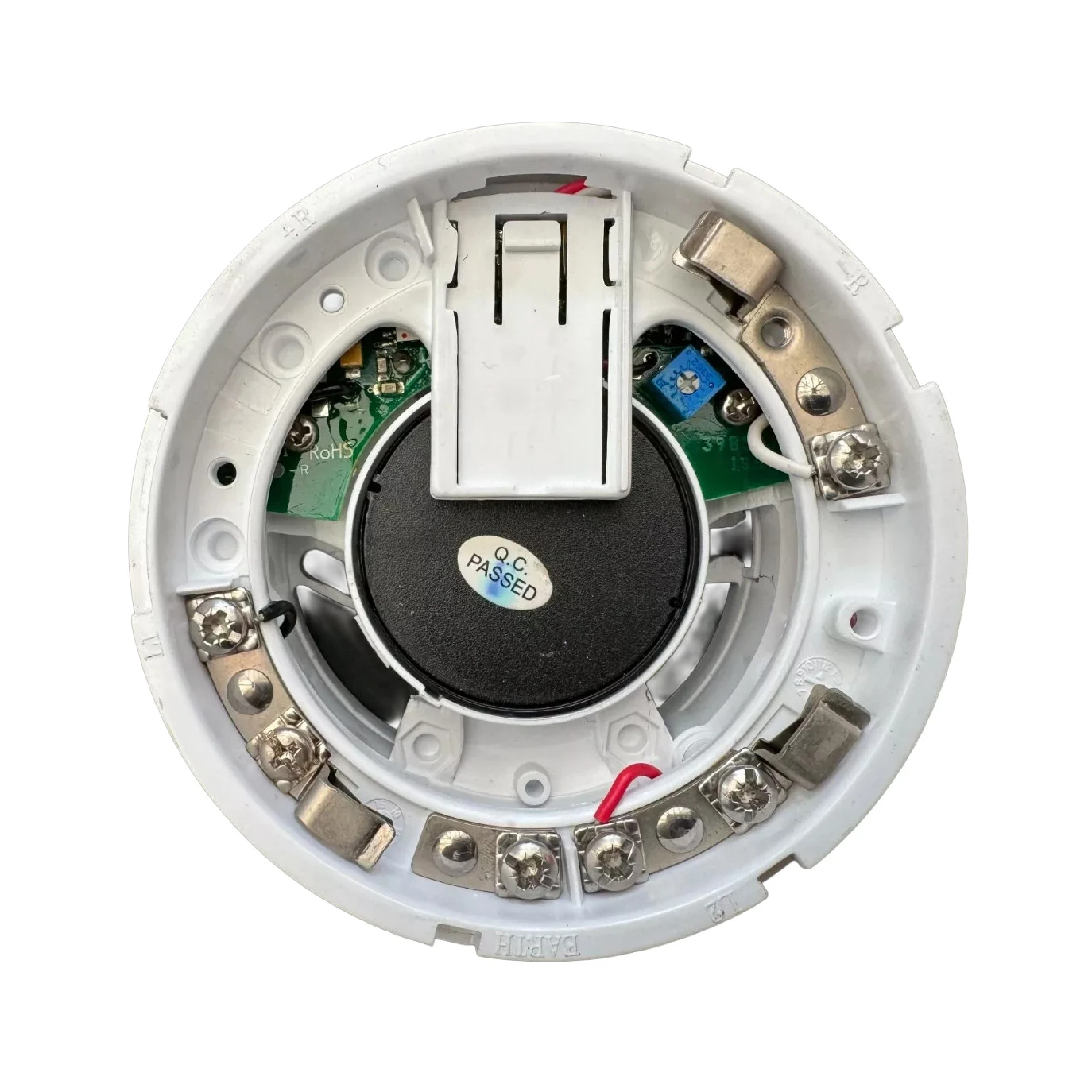

The Apollo 45681-276APO Ancillary Base Sounder is compatible with any fire panel operating on the XP95 protocol.
It does not require its own loop address, as it responds directly to signals from the connected detector.
This unit must be used in conjunction with an Apollo XP95 or Discovery sensor head, making it an ideal sounder solution for applications where address capacity is limited or full loop addressing is not required.
Apollo 45681-276APO
Sound output of 85dB(A) at 1 metre
Current consumption of only 3ma
Loop-powered
Responds to signals from the associated detector - does not have an address of its own
Adjustable volume control
Selectable volume(s) | 70 dB (A) to 85 dB (A) (in 1 dB increments) |
Tone(s) | 1 |
Colour | White |
Materials housing | Polycarbonate |
Product depth | 38 mm |
Product diameter | 115 mm |
Product depth (inches) | 1.5 in |
Product diameter (inches) | 4.53 in |
Conformance Standards | EN 54-3 |
Approvals | FG, CPR |
Polarity | L1 & L2 are polarity sensitive |
Battery powered | No |
Quiescent current | 100 μA |
Quiescent current tested at | 24 V dc |
Supply voltage (max) | 28 V dc |
Supply voltage (min) | 17 V dc |
Supply voltage (Vmin - Vmax) | 17 to 28 V dc |
Loop powered | Yes |
External power supply required | No |
Humidity | 0% to 95% (no condensation or icing) |
Humidity (max) | 95% RH |
Humidity (min) | 0% RH |
Humidity Note | no condensation or icing |
Operating temperature | -20°C to 60°C |
Operating temperature (max) | 60°C |
Operating temperature (min) | -20°C |
IP rating Value | IP23D |
Operating temperature (min, °F) | -4°F |
Operating temperature (max, °F) | 140°F |
Operating temperature (°F) | -4 to 140°F |
The Apollo 45681-276APO Ancillary Base Sounder is compatible with any fire panel operating on the XP95 protocol.
It does not require its own loop address, as it responds directly to signals from the connected detector.
This unit must be used in conjunction with an Apollo XP95 or Discovery sensor head, making it an ideal sounder solution for applications where address capacity is limited or full loop addressing is not required.
Apollo 45681-276APO
Sound output of 85dB(A) at 1 metre
Current consumption of only 3ma
Loop-powered
Responds to signals from the associated detector - does not have an address of its own
Adjustable volume control
Selectable volume(s) | 70 dB (A) to 85 dB (A) (in 1 dB increments) |
Tone(s) | 1 |
Colour | White |
Materials housing | Polycarbonate |
Product depth | 38 mm |
Product diameter | 115 mm |
Product depth (inches) | 1.5 in |
Product diameter (inches) | 4.53 in |
Conformance Standards | EN 54-3 |
Approvals | FG, CPR |
Polarity | L1 & L2 are polarity sensitive |
Battery powered | No |
Quiescent current | 100 μA |
Quiescent current tested at | 24 V dc |
Supply voltage (max) | 28 V dc |
Supply voltage (min) | 17 V dc |
Supply voltage (Vmin - Vmax) | 17 to 28 V dc |
Loop powered | Yes |
External power supply required | No |
Humidity | 0% to 95% (no condensation or icing) |
Humidity (max) | 95% RH |
Humidity (min) | 0% RH |
Humidity Note | no condensation or icing |
Operating temperature | -20°C to 60°C |
Operating temperature (max) | 60°C |
Operating temperature (min) | -20°C |
IP rating Value | IP23D |
Operating temperature (min, °F) | -4°F |
Operating temperature (max, °F) | 140°F |
Operating temperature (°F) | -4 to 140°F |
