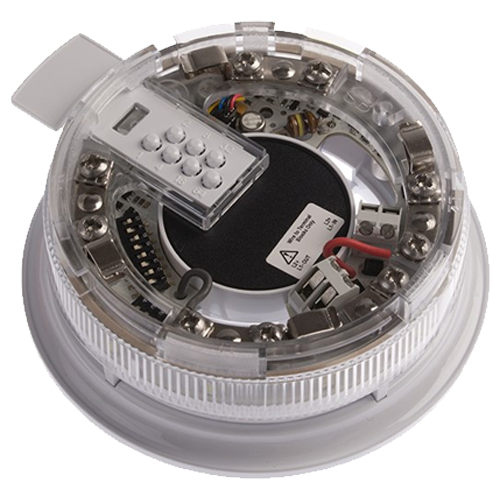

Apollo 45681-705APO | XP95 Addressable VAD Sounder Base | EN54-23

The Apollo 45681-705APO is an EN54-23 certified loop-powered Visual Alarm Device (VAD) with integrated sounder, designed to provide both audible and visual alerts in a single unit.

Supplied with a built-in XP95 Intelligent Mounting Base, it simplifies installation and commissioning in addressable fire alarm systems.

Ideal for enclosed indoor areas where visual indication is essential, such as loud environments or premises with occupants who are hard of hearing, this device delivers reliable, high-intensity light output and a clear audible tone upon fire alarm activation.

Compatible with both Apollo XP95 and Discovery protocols, the 45681-705APO supports easy integration into a wide range of addressable systems.

The device operates on a standard loop power supply, reducing installation costs while maintaining full functionality.

Key Features

• EN54-23 certified combined sounder and beacon

• Integrated XP95 Intelligent Base

• Compatible with Apollo XP95 and Discovery systems

• Loop-powered, no separate power supply required

• Ideal for enclosed or high-noise areas requiring visual alerting

• Suitable for wall or ceiling mounting

• Apollo 45681-705APO

• EN54-23 Approved VAD

• Two volume ranges 55-75dB(A) and 75-91dB(A)

• Visual indicator flash rate of once per second

• Synchronisation of 'alert' and 'evacuate' tones

• Synchronisation of visual indicator flash

• Individual and group addressing

• Unique acoustic and visual indicator self-test

• Built-in Isolator
