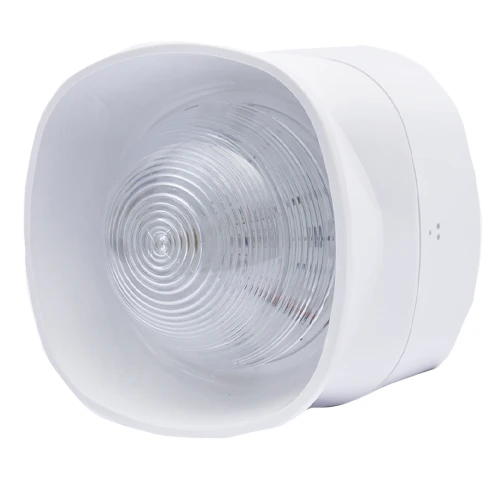

The Apollo 55000-294APO Multi-Tone Open-Area Sounder Visual Indicator is a high-performance alarm device designed to provide both audible and visual alerts in indoor open areas. Fully compatible with any fire panel using the XP95 or Discovery protocol, it seamlessly integrates into intelligent fire detection systems, ensuring reliable and effective alarm signalling.
With a maximum sound output of 100dB(A) and selectable volume levels of 92dB(A) and 100dB(A), the sounder ensures clear and powerful notifications tailored to different environments. The built-in visual indicator enhances alert visibility, making it particularly suitable for applications where both sound and flashing light are essential for effective evacuation.
Designed to complement Apollo’s intelligent base sounders and the Multi-Tone Open-Area Sounder, the 55000-294APO is an ideal choice for commercial and industrial fire safety applications.
Apollo 55000-294APO
Choice of tones on standard devices: Apollo, Slow Whoop and DIN
Two volume settings 92dB(A) and 100dB(A)
Synchronisation of 'alert' and 'evacuate' tones
Individual and group addressing
Built in isolator
IP21C
General | Model | Apollo 55000-294APO |
Product Type | Multi-Tone Open-Area Sounder Visual Indicator | |
Warranty | 10 year | |
Performance | Maximum sound output tone | 100dB (A) |
Selectable volume(s) | 92dB (A), 100dB (A) | |
Mechanical | Colour | White |
Product length | 105mm / 4.13in | |
Product width | 105mm / 4.13in | |
Product depth | 90mm / 3.54in | |
Weight | 290g | |
Conformance | Approvals | CPR |
Electrical | Power-up surge current | 1.2mA |
Maximum power-up time | <1 second | |
Quiescent current | 330μA | |
Quiescent current tested at | 24V dc | |
Supply voltage (max) | 28V dc | |
Supply voltage (min) | 18V dc | |
Supply voltage (Vmin-Vmax) | 18 to 28V dc | |
Environmental | Operating temperature | -10 to 55°C / 14 to 131°F |
Operating temperature (max) | 55°C / 131°F | |
Operating temperature (min) | -10°C / 14°F | |
IP rating Value | IP21C |
