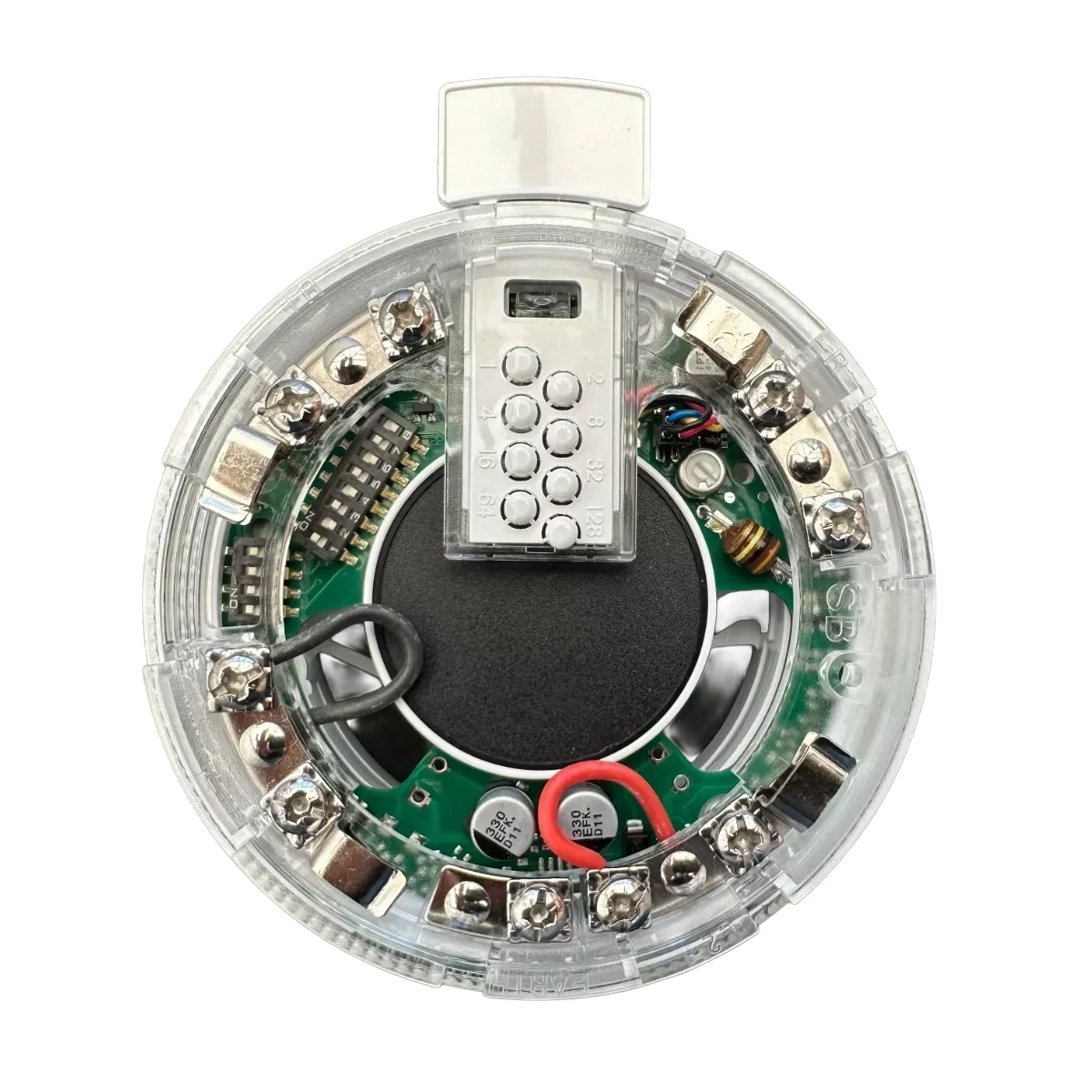

Apollo 45681-330APO | XP95 Addressable Sounder Beacon Base | Red Flash

Flash rate

1 Hz

Maximum sound output tone

91 dB (A)

Selectable volume(s)

55–75 dB (A), 75–91 dB (A)

Tone(s)

2

Colour

White

Finish

Semi-gloss

Weight

160 g (0.35 lbs)

Materials housing

Polycarbonate

Product depth

38 mm

Product diameter

115 mm

Product depth (inches)

1.5 in

Product diameter (inches)

4.53 in

Conformance Standards

EN 54-3, EN 54-17

Approvals

FG, CPR

Terminal functions L2

+L2 Loop in & out positive, double terminal

Terminal functions L1 in

-L1 in Loop in & out, double terminal

Terminal functions +R

+R Remote indicator positive connection

Terminal functions -R

-R Remote indicator negative connection

Polarity

L1 & L2 are polarity sensitive

Battery powered

No

Protocol voltage

5 to 9 V peak to peak

Protocol voltage (max)

9 V

Protocol voltage (min)

5 V

Power-up surge current

1.2 mA

Maximum power-up time

<1 second

Quiescent current

300 μA

Quiescent current tested at

24 V dc

Supply voltage (min)

17 V dc

Supply voltage (max)

28 V dc

Supply voltage (Vmin - Vmax)

17 to 28 V dc

Loop powered

Yes

Storage temperature (min)

-20°C

Storage temperature (max)

60°C

Storage temperature

-20 to 60°C

Humidity (max)

95% RH

Humidity (min)

0% RH

Humidity

0% to 95% (no condensation or icing)

Humidity Note

no condensation or icing

Operating temperature (max)

60°C

Operating temperature (min)

-20°C

Operating temperature

-20 to 60°C

IP rating Value

IP21C

Operating temperature (min, °F)

-4°F

Operating temperature (max, °F)

140°F

Operating temperature (°F)

-4 to 140°F
