Apollo 55000-760APO | XP95 Mini Addressable Switch Monitor with Isolator

Name: Apollo 55000-760APO | XP95 Mini Addressable Switch Monitor with Isolator
Brand: Apollo
Price: 40.08 GBP
Availability: InStock

Code: FDS340/771

£40.08

INC VAT

Code: FDS340/771

Apollo 55000-760APO
Four input states - 'normal', 'fault', 'pre-alarm' and 'alarm'
Two visible LEDs

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

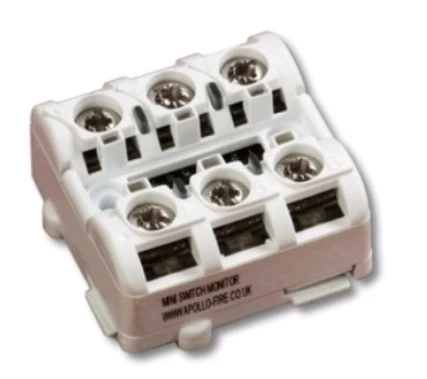

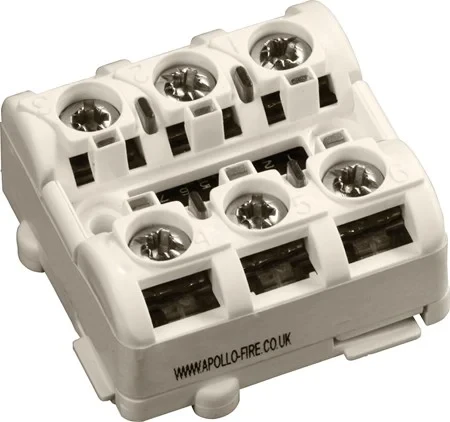

The Apollo 55000-760APO DIN-Rail Mini Switch Monitor Module is a compact, high-performance device designed for monitoring switches in space-constrained environments.

Suitable for installation on DIN rails, it’s ideal for integrating into control panels, fire alarm systems, and emergency systems.

Compatible with Apollo’s XP95 and Discovery protocols, this module ensures seamless integration with modern addressable fire detection systems.

It operates efficiently in demanding conditions, with a low quiescent current of just 0.2mA and a wide temperature tolerance from -20°C to 60°C, making it suitable for use in dusty or industrial settings.

Built for long-term reliability, it comes with a 10-year manufacturer warranty and a durable, space-saving design.

Compact DIN-rail design for tight installations
Compatible with Apollo XP95 and Discovery protocols
Low quiescent current: 0.2mA with 20kΩ EOL resistor
Wide operating range: -20°C to 60°C
Ideal for control panels, emergency systems, and industrial use

Apollo 55000-760APO
Four input states - 'normal', 'fault', 'pre-alarm' and 'alarm'
Two visible LEDs
Loop-Powered
Din rail mount

Model	Apollo 55000-760APO
Product Type	DIN-Rail Mini Switch Monitor Module
Warranty	10 years
Colour	White
Weight	31.3g
Product Length	20mm / 0.79in
Product Width	39mm / 1.54in
Product Depth	39mm / 1.54in
Standards	EN 54-17, EN 54-18
Approvals	FG, LPCB, VdS, CPR
Protocol Voltage (Min)	5V
Protocol Voltage (Max)	9V
Protocol Voltage	5 to 9V peak to peak
Supply Voltage (Max)	28V DC
Supply Voltage (Min)	17V DC
Supply Voltage (Vmin-Vmax)	17 to 28V DC
Power-up Surge Current	0.8mA
Quiescent Current	0.2mA (with 20kΩ EOL fitted)
Humidity (Min)	0% RH
Humidity (Max)	95% RH
Operating Temperature	-20°C to 60°C / -4°F to 140°F
Operating Temperature (Max)	60°C / 140°F
Operating Temperature (Min)	-20°C / -4°F

Apollo 55000-760APO | XP95 Mini Addressable Switch Monitor with Isolator Datasheet

Click here to download
