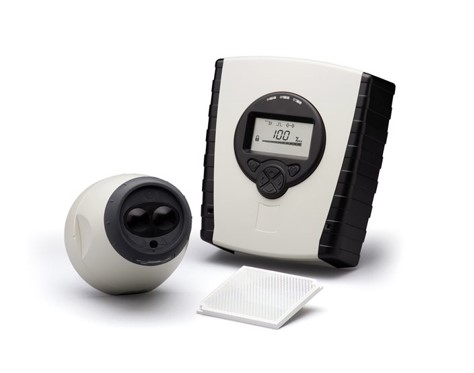

Apollo SA7100-100APO Intelligent Auto Aligning Beam Detector

Name: Apollo SA7100-100APO Intelligent Auto Aligning Beam Detector
Brand: Apollo
Price: 645.06 GBP
Availability: InStock

Code: FDS223/189

£645.06

INC VAT

Code: FDS223/189

XP95, Discovery and Core compatible
Loop powered
Automatic alignment and drift compensation

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

The Apollo SA7100-100APO Intelligent Auto Aligning Beam Detector is designed to protect large open areas where traditional point detectors are less effective.

It combines a transmitter and receiver within a single unit and uses a motorised auto-alignment system for fast installation.

The detector continuously monitors beam strength and automatically adjusts for environmental changes to maintain peak performance.

Integrated addressability allows simple configuration with Apollo intelligent systems, making it easy to identify location and status.

This beam detector is suitable for applications such as warehouses, churches, airports, shopping centres and other large buildings.

XP95, Discovery and Core compatible
Loop powered
Automatic alignment and drift compensation
Built in short circuit isolator
Ground level controller

Category	Specification	Detail
General	Warranty	10 years
	Applications	Churches, Warehouses
Performance	Operating distance (min)	8 m
	Operating distance (max)	100 m
	Operating distance	8 to 100 m
	Optical wavelength	850 nm
Mechanical	Colour	Grey
	Housing material	Polycarbonate
	Controller with base – height	230 mm
	Controller with base – width	202 mm
	Controller with base – weight	1000 g
	Detector with base – height	131 mm
	Detector with base – width	134 mm
	Detector with base – weight	537 g
	Universal bracket – height	230 mm
	Universal bracket – width	202 mm
	Reflector – height	100 mm
	Reflector – width	100 mm
	Reflector – weight	100 g
Conformance	Standards	EN 54-12, EN 54-17
	Approvals	CPR, VdS
Electrical	Supply voltage (min)	17 V DC
	Supply voltage (max)	35 V DC
	Supply voltage range	17 to 35 V DC
Environmental	Humidity (min)	0% RH
	Humidity (max)	93% RH
	Humidity note	No condensation or icing
	Humidity range	0% to 93% (no condensation or icing)
	Operating temperature (min)	-10 °C / 14 °F
	Operating temperature (max)	55 °C / 131 °F
	Operating temperature range	-10 to 55 °C / 14 to 131 °F
	Storage temperature (min)	-40 °C
	Storage temperature (max)	85 °C
	Storage temperature range	-40 to 85 °C
	IP rating	IP54

What makes this detector different from standard beam detectors?

It features an auto-aligning motor and automatic gain control software, which simplify installation and maintain performance.

What areas are best suited for this detector?

It is ideal for large open spaces such as warehouses, churches, airports, and shopping centres.

How far can it detect?

The detector covers distances from 8 m up to 100 m.

Is the detector compliant with fire safety standards?

Yes. It is certified to EN 54-12 and EN 54-17 and approved under CPR and VdS.

Apollo SA7100-100APO Datasheet	Click here to download
Apollo SA7100-100APO User Guide	Click here to download
