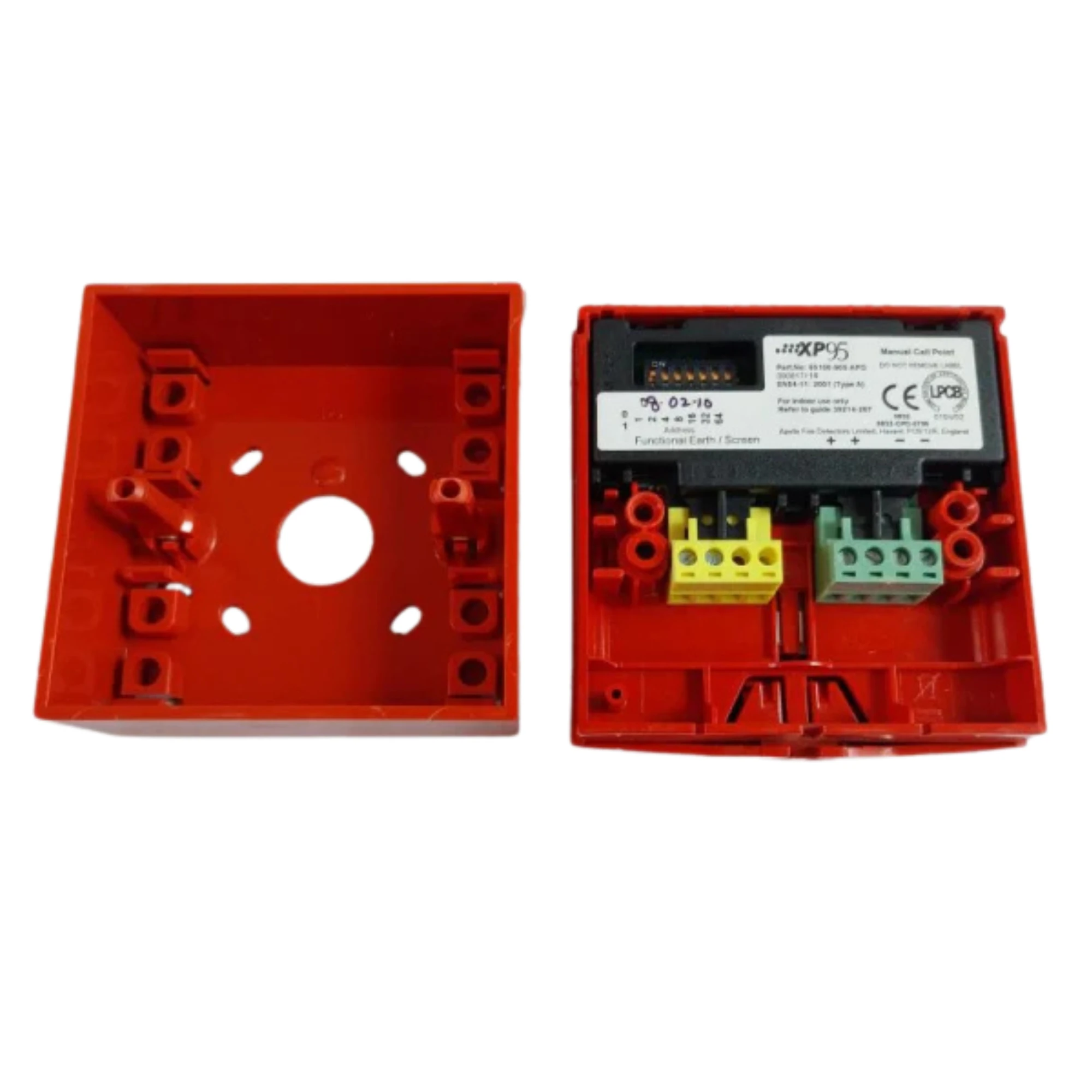

Apollo 55100-905APO | XP95 Addressable Manual Call Point | Non Isolator

Name: Apollo 55100-905APO | XP95 Addressable Manual Call Point | Non Isolator
Brand: Apollo
Price: 51.3 GBP
Availability: InStock

Code: FDS600/883

£51.30

INC VAT

Code: FDS600/883

In stock
Typically dispatched in 1-2 working days
Apollo XP95 compatible
Apollo 55100-905APO
Designed for addressable systems

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

The Apollo 55100-905APO is a legacy-style addressable manual call point designed for use with fire alarm systems operating on the Apollo XP95 protocol.

This model is ideal for maintaining visual consistency in systems with older call points already installed.

Each unit is addressed manually using a 7-segment DIL switch during commissioning. It features plug-and-play terminal connections for efficient wiring and a resettable element, allowing the device to be reused after activation without the need to replace any parts. Wiring continuity can also be easily verified before final installation.

This is a non-isolator model, and is suitable for systems where isolation is handled separately or not required. It reports an alarm condition in under 0.2 seconds, ensuring rapid notification in the event of an emergency.

Apollo 55100-908APO
Matches existing call points
Plug and play terminal connections for fast wiring
Easy wiring continuity testing before fitting
Resettable element
Non isolator model
Reports an alarm in under 0.2 seconds

Warranty	10 year
Colour	Red
Weight	151g
Materials housing	Polycarbonate, ABS
Product length	93mm
Product width	89mm
Product depth	26.5mm
Detection principle	Operation of a switch
Product length (inches)	3.66in
Product width (inches)	3.5in
Product depth (inches)	1.04in
Standards	EN 54-11
Approvals	CCCf, LPCB, CPR
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Protocol voltage	5 to 9V peak to peak
Power-up surge current	1mA
Maximum power-up time	1 second
Quiescent current	100μA
Quiescent current tested at	24V dc
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
Operating temperature	-20 to 60°C
Operating temperature (max)	60°C
Operating temperature (min)	-20°C
IP rating Value	IP24
Storage temperature (min)	-30°C
Storage temperature (max)	80°C
Storage temperature	-30 to 80°C
Operating Temperature (°F)	-4 to 140°F
Operating temperature (max)	140°F
Operating temperature (min)	-4°F
Part Number	55100-908APO

Does this model include a built-in isolator?

No, the 55100-905APO is a non-isolator version. If loop isolation is required, consider using the Apollo 55100-908APO instead.

How is the address set on this device?

The address is configured using a seven-segment DIL switch, typically at the commissioning stage.

Can I use this in new installations?

While it is technically compatible, this model is more suitable for refurbishment or extension projects where matching older equipment is essential. For new installations, Apollo’s updated call point models may be more appropriate.

Apollo 55100-905APO | XP95 Addressable Manual Call Point | Non Isolator Datasheet

Click here to download

Overview

Features

Technical Data

FAQs

Downloads & Resources

Related Products

Shop by Brand

We have every brand you work with so you can get everything you need in one place.

Manufacturer's Training

Book your manufacturer training with Fire Detection Shop today

Products From Fire Detection Shop

If you’re looking for high quality fire detection, security of fire safety equipment, we are your one-stop-shop for everything you need to get your job done.

Fire Detection Shop has a wide range of products, kits and accessories in stock and ready to ship - so you can place your order now with confidence.

To help you choose the right product, our technical team are on the end of the telephone to answer your questions. Alternatively, you can complete the form here and one of our specialists will call you back.

We have a team of in-house engineers trained to design, install and commission the products we sell. If you’re interested in the services we can provide you with a quotation.

Apollo 55100-905APO | XP95 Addressable Manual Call Point | Non Isolator

£51.30

Apollo 45681-209APO XP95 Addressable Deep Base

£3.09

Apollo 45681-210APO Addressable Base with XPERT Card | XP95/Discovery

£1.95

Apollo 45681-215APO XP95 I.S Detector Mounting Base

£5.95

Apollo 45681-276APO | XP95 Ancillary Base Sounder

£21.95

Apollo 45681-277APO | XP95 Integrated Base Sounder with Isolator

£26.95

Apollo 45681-278APO | XP95 Integrated Base Sounder

£26.65

Apollo 45681-284APO | XP95 Addressable Isolator Base with XPERT Card

£7.60

Apollo 45681-292 | XP95 Locking Sounder Base Cap | White

£2.25

Apollo 45681-293APO | XP95 Addressable Locking Sounder Cap | Red

£2.05

Apollo 45681-330APO | XP95 Addressable Sounder Beacon Base | Red Flash

£44.90

Apollo 45681-333APO | XP95 Addressable Beacon Base | Red Flash

£28.75

Apollo 45681-705APO | XP95 Addressable VAD Sounder Base | EN54-23

£57.80

Apollo 45681-709APO | XP95 Addressable VAD Base | EN54-23

£45.30

Apollo 55000-001APO | XP95 Addressable Intelligent Open Area Sounder

£36.40

Apollo 55000-005APO | XP95 Addressable Intelligent Open-Area Sounder Beacon | Red Flash

£54.95

Apollo 55000-009APO | XP95 Addressable IP65 Intelligent Open-Area Beacon | Red Flash

£35.10

Apollo 55000-274APO | XP95 Addressable Weatherproof Multi-Tone Open Area Sounder

£111.95

Apollo 55000-278APO | XP95 Addressable Multi-Tone Open Area Sounder

£48.80

Apollo 55000-279APO | XP95 Addressable Multi-Tone Open Area Sounder

£55.70

Apollo 55000-293APO | XP95 Addressable Multi-Tone Open-Area Sounder Beacon | Red Flash

£73.50

Apollo 55000-294APO | XP95 Multi-Tone Open-Area Sounder Beacon | Red Flash

£79.45

Apollo 55000-296APO | XP95 Addressable Weatherproof Multi-Tone Open Area Sounder Beacon | Red Flash

£123.65

Apollo 55000-298APO | XP95 Addressable Multi-Tone IP66 Open-Area Sounder Beacon | Red Flash

£131.90

Apollo 55000-400APO | XP95 Standard Addressable 55°C Heat Detector

£26.30

Apollo 55000-401APO | XP95 High Temp 90°C Addressable Heat Detector

£26.30

Apollo 55000-600APO | XP95 Addressable Optical Smoke Detector

£26.30

Apollo 55000-741APO | XP95 Addressable cat W Loop Powered VAD 6m | White Flash

£36.40

Apollo 55000-760APO | XP95 Mini Addressable Switch Monitor with Isolator

£33.40

Apollo 55000-877APO | XP95 Addressable LED Loop Powered Beacon | Red Flash

£31.40

Apollo 55000-879APO | XP95 Addressable LED Loop Powered Beacon | Amber Flash

£38.35

Apollo 55000-885APO | XP95 Addressable Optical/Heat Multisensor Detector

£31.45

Apollo 55000-982APO | 200N XP95 Addressable Door Retainer

£155.95

Apollo 55100-905APO | XP95 Addressable Manual Call Point | Non Isolator

£42.75

Apollo 55100-908APO | XP95 Addressable Manual Call Point

£39.30

Apollo RW1700-030APO REACH Wireless Loop Interface Module - XP95

£213.55

Apollo SA6700-100APO | XP95 Intelligent Twin Switch Monitor

£43.70

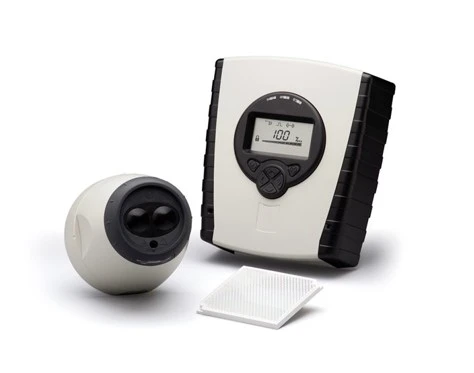

Apollo SA7100-100APO Intelligent Auto Aligning Beam Detector
