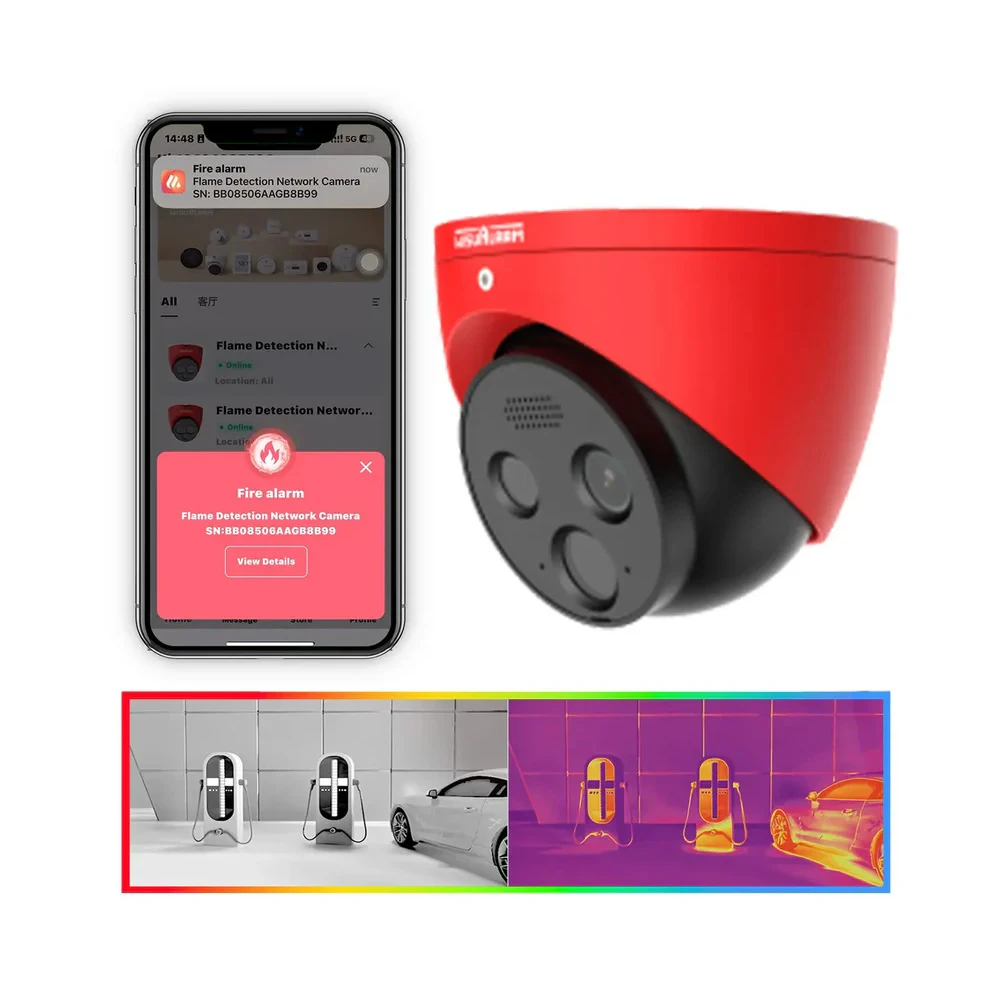

WisuAlarm Flame Detection Eyeball Network Camera (Thermal Camera)

The WisuAlarm Flame Detection Eyeball Network Camera combines thermal imaging and 4MP visible-light surveillance to detect, verify and track potential flame events across monitored areas.

Designed for locations where both fire risk monitoring and video surveillance are required, it provides real-time visual confirmation alongside intelligent temperature and alarm functions.

An uncooled vanadium oxide thermal detector monitors abnormal heat patterns, while the integrated visible camera captures clear video at resolutions up to 2688 x 1520. The camera can detect a 10cm x 10cm flame at up to 10 metres and supports flame tracking, hot and cold spot alarms and industrial temperature monitoring.

Temperature detection covers a range from -10°C to +200°C, with point, line and polygon monitoring rules available for tailored site coverage. This allows the camera to monitor specific machinery, storage areas or high-risk zones rather than relying on a single fixed threshold.

Built-in audible and visual alarms can activate when flame or temperature events are detected. The camera also includes an integrated microphone and speaker for remote intercom, with an alarm sound output of at least 70dB at 1 metre. One alarm input and one alarm output support linkage with compatible external equipment.

The 4MP visible camera includes 15m infrared illumination, day/night switching, WDR and noise reduction for consistent monitoring in changing light conditions. PoE or 12V DC power options simplify installation, while ONVIF support helps integrate the camera with compatible surveillance platforms.

With an IP66 enclosure and wall, ceiling or vertical pole mounting options, the camera is suitable for warehouses, shopping centres, libraries, archive rooms, waste storage areas and other environments requiring combined flame detection and video monitoring.

• DHI-HY-FT431LDP-MB

• Combines thermal flame detection with 4MP video surveillance

• Detects a 10cm x 10cm flame at up to 10 metres

• Uncooled VOx thermal detector with high sensitivity

• Flame tracking and positioning

• Temperature monitoring from -10°C to +200°C

• Point, line and polygon temperature detection rules

• Built-in audible and visual alarm notification

• Integrated microphone and speaker for remote intercom

• 15m infrared illumination

• One alarm input and one alarm output

• 12V DC or PoE power

• IP66-rated enclosure
