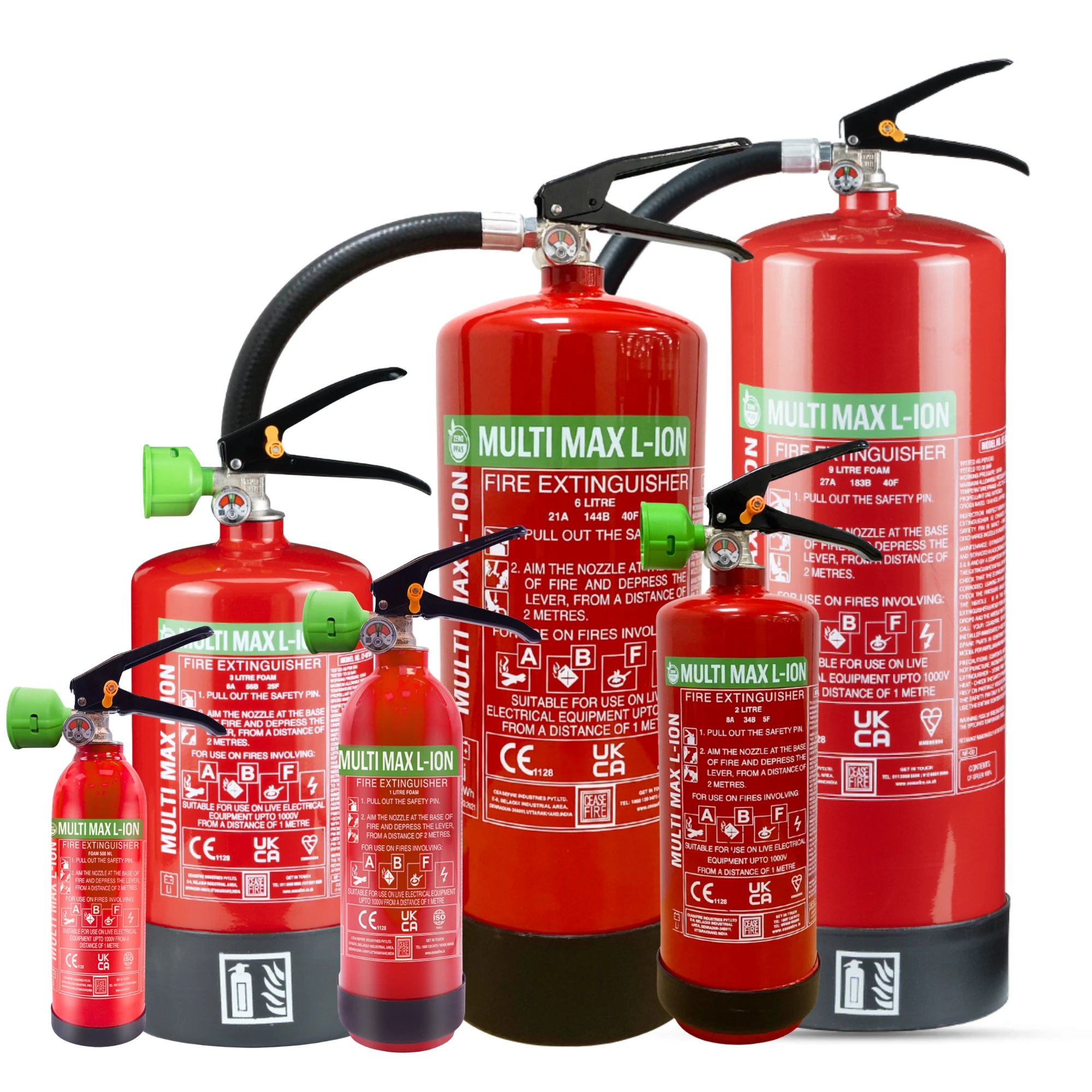

Specification | 500ml (CF-001551) | 1L (CF-001552) | 2L (CF-001535) | 3L (CF-001536) | 6L (CF-001537) | 9L (CF-001538) |
|---|
Product Name | MultiMax L-Ion Fire Extinguisher MS SP Red | MultiMax L-Ion Fire Extinguisher MS SP Red | Multimax L-Ion Fire Extinguisher MS SP Red | MultiMax L-Ion Fire Extinguisher MS SP Red | MultiMax L-Ion Fire Extinguisher MS SP Red | MultiMax L-Ion Fire Extinguisher MS SP Red |

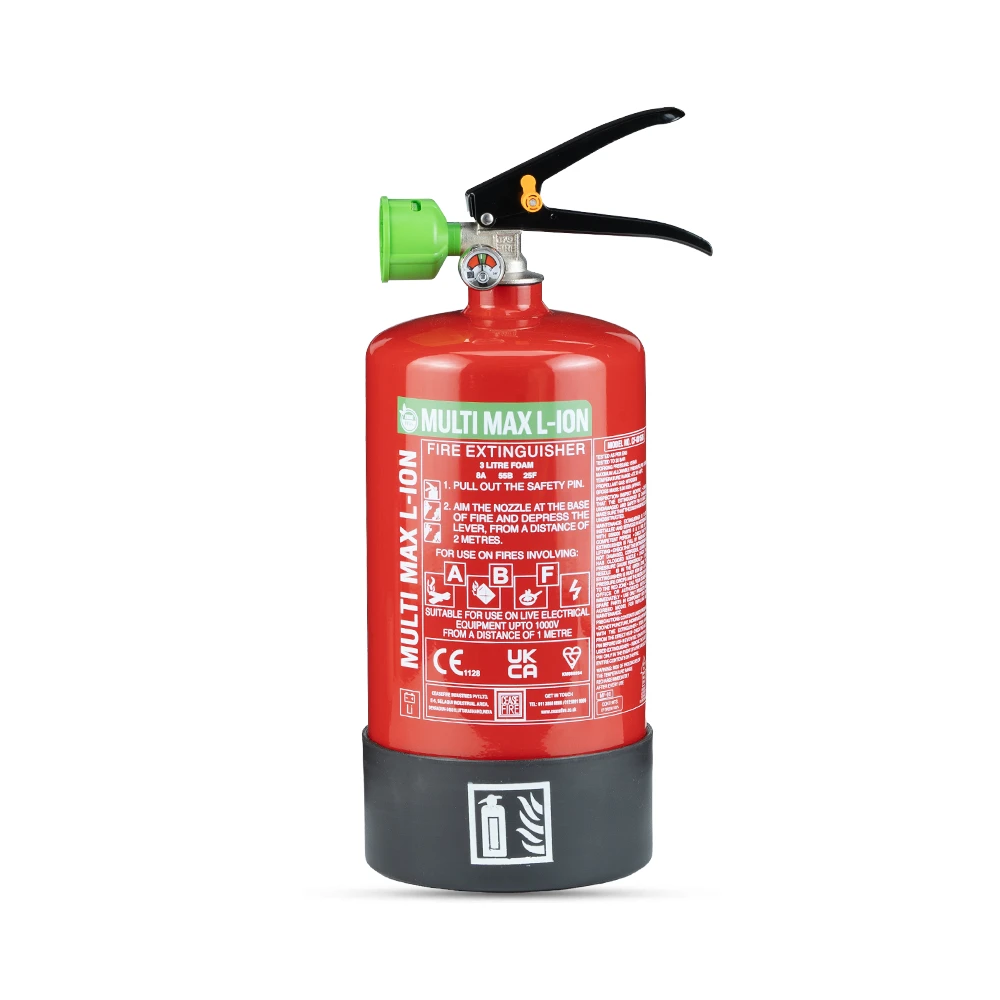

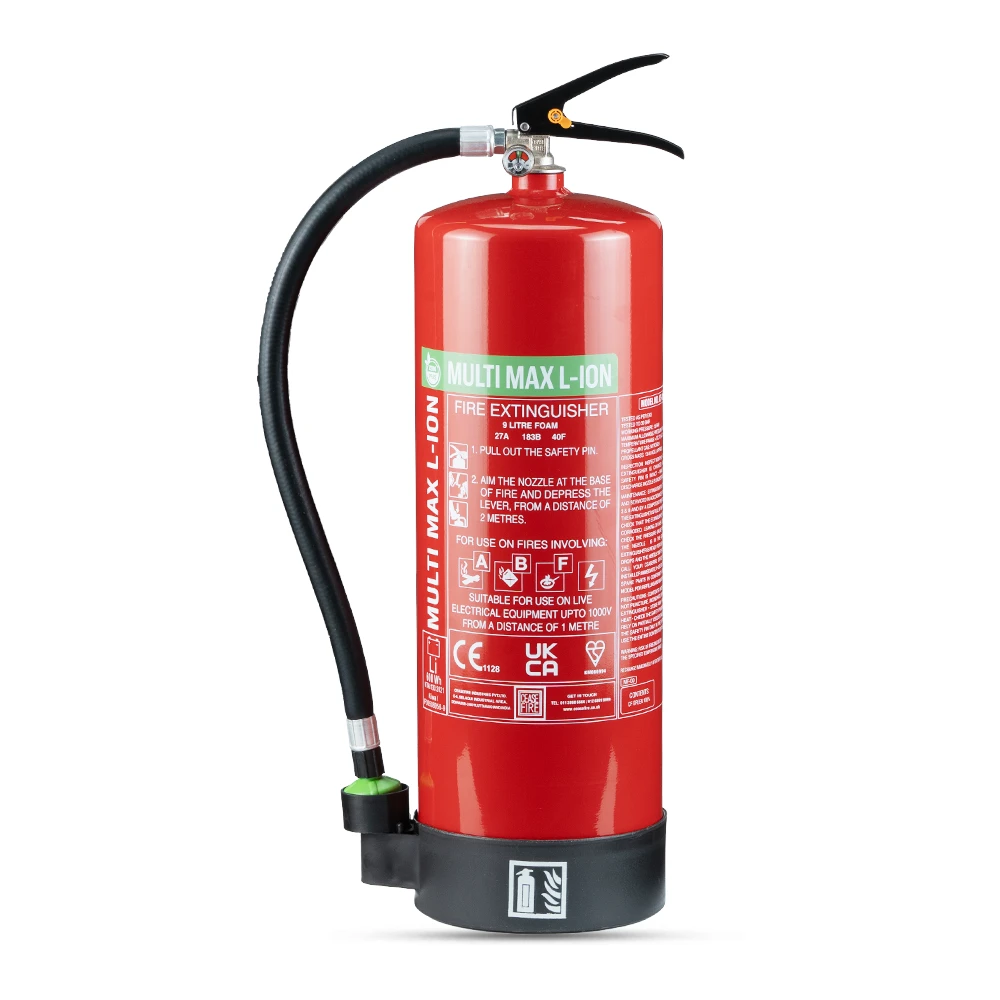

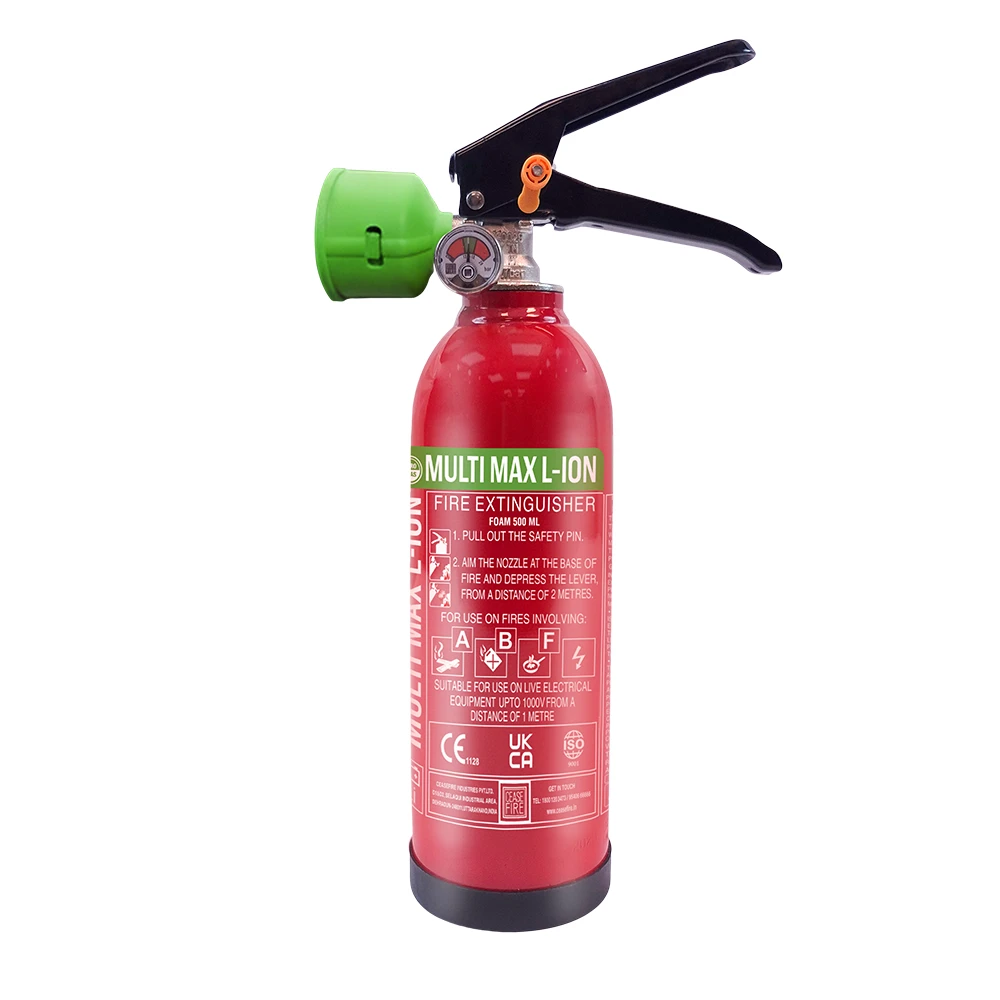

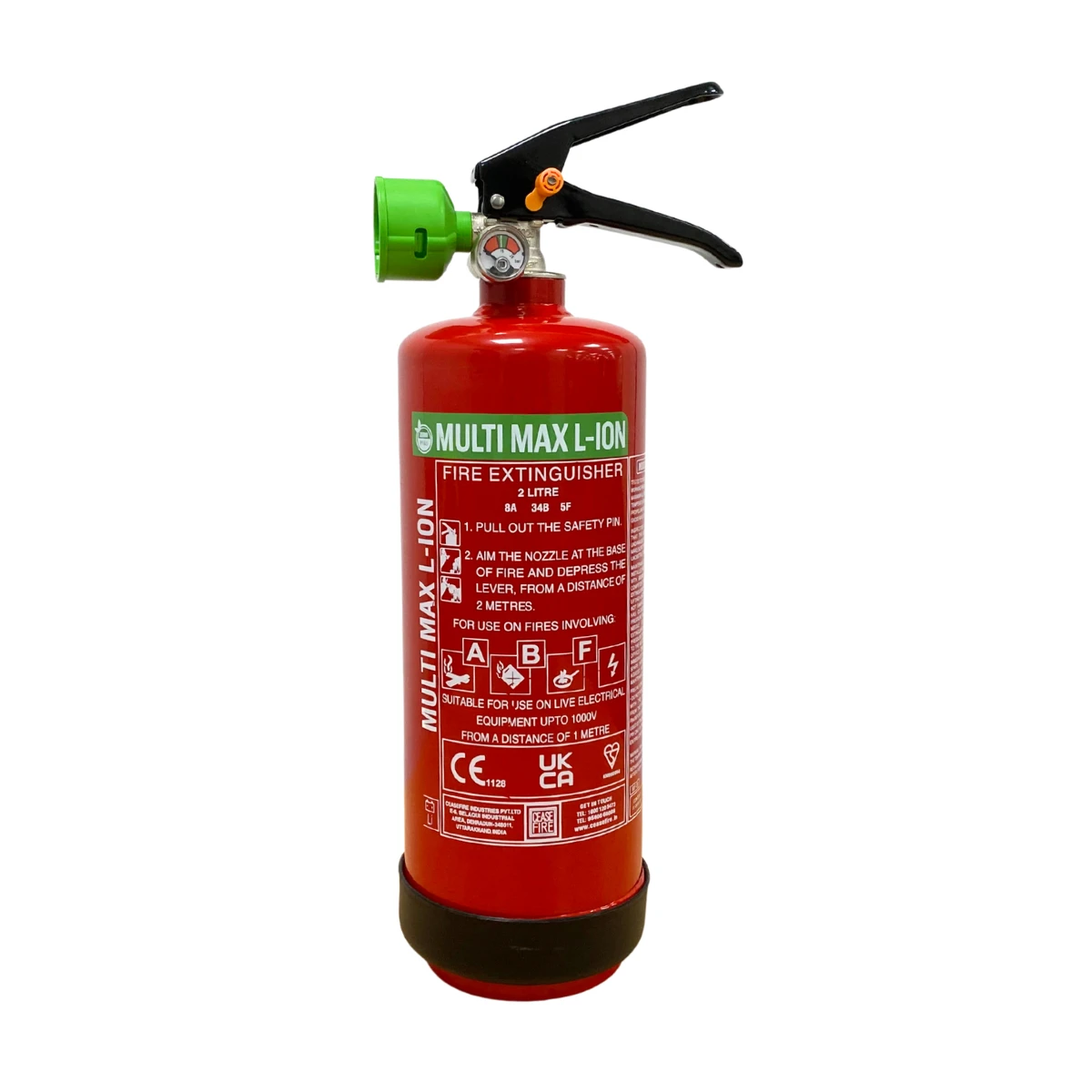

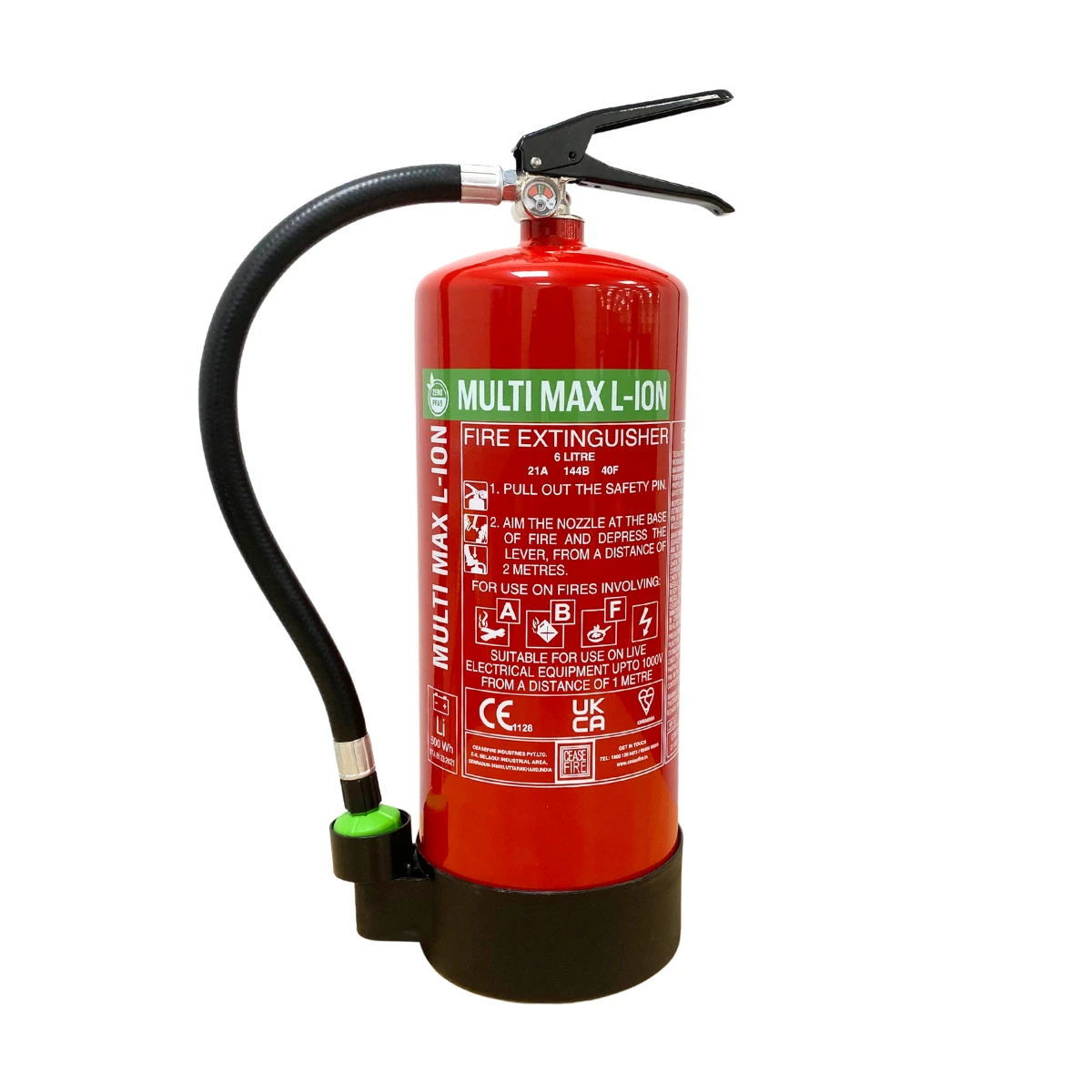

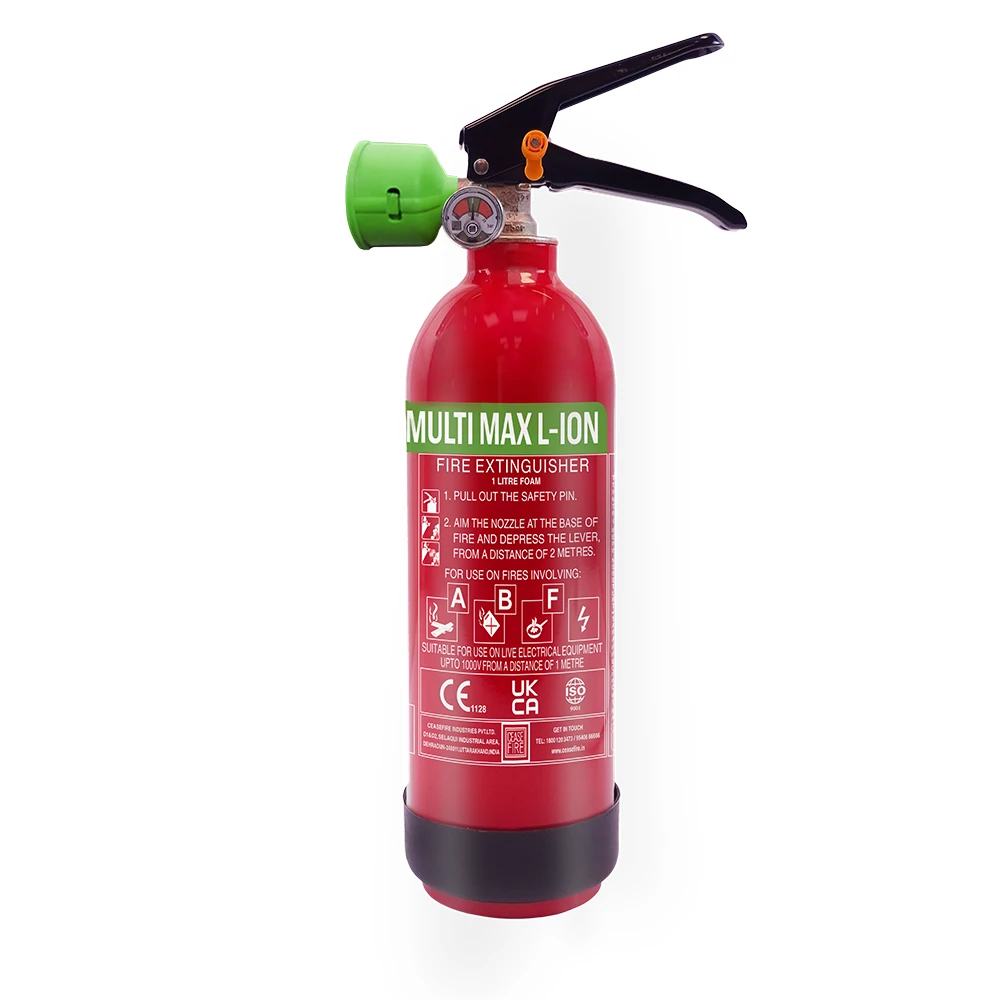

Capacity | 0.5L | 1L | 2L | 3L | 6L | 9L |
Description | Portable Fire Extinguisher, Foam Based (Fluorine Free Synthetic Foam), Stored Pressure Type, Mild Steel Body | Same | Same | Same | Same | Same |
Filling Tolerance | +5% | +5% | +5% | +5% | +5% | +5% |
Agent | CF Green 100x | CF Green 100x | CF Green 100x | CF Green 100x | CF Green 100x | CF Green 100x |
Certification | PED (CE Marked) | PED (CE Marked) | PED (CE Marked), Kitemarked | PED (CE Marked), Kitemarked | PED (CE Marked), Kitemarked, Tested to NTA 8133 | PED (CE Marked), Kitemarked, Tested to NTA 8133 |
Shell Diameter | 77.5mm | 92mm | 112mm | 145mm | 217mm | 236mm |
Approx. Height | 300mm | 350mm | 390mm | 380mm | 520mm | 610mm |
Shell Material | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) | Steel CR2 (DC01) |
Minimum Wall Thickness | 1.2mm | 1.0mm | 1.4mm | 1.2mm | 1.4mm | 1.4mm |
Test Pressure | 30 Bar | 30 Bar | 30 Bar | 30 Bar | 30 Bar | 30 Bar |
External Corrosion Protection | EP Powder Coated, RAL 3000 Red | EP Powder Coated, RAL 3000 Red | EP Powder Coated, RAL 3000 Red | EP Powder Coated, RAL 3000 Red | EP Powder Coated, RAL 3000 Red | EP Powder Coated, RAL 3000 Red |
Internal Corrosion Protection | Epoxy / Plastic Lining | Epoxy / Plastic Lining | Epoxy / Plastic Lining | Epoxy / Plastic Lining | Epoxy / Plastic Lining | Epoxy / Plastic Lining |
Service Pressure | 15 Bar | 15 Bar | 15 Bar | 15 Bar | 15 Bar | 15 Bar |
Operating Mechanism | Squeeze Grip with NRV and PRV | Squeeze Grip with NRV and PRV | Squeeze Grip with NRV and PRV | Squeeze Grip with NRV and PRV | Squeeze Grip with NRV and PRV | Squeeze Grip with NRV and PRV |
Pressure Gauge | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type | Magnetic Bourdon Tube Type |
Discharge Hose / Nozzle | Nozzle (Spray Type) | Nozzle (Spray Type) | Nozzle (Spray Type) | Nozzle (Spray Type) | EPDM Rubber Braided Hose Pipe with Nozzle (480mm) | EPDM Rubber Braided Hose Pipe with Nozzle (480mm) |
Valve Material | Nickel Coated Brass | Nickel Coated Brass | Nickel Coated Brass | Nickel Coated Brass | Nickel Coated Brass | Nickel Coated Brass |
Valve Safety | Pressure Relief Valve | Pressure Relief Valve | Pressure Relief Valve | Pressure Relief Valve | Pressure Relief Valve | Pressure Relief Valve |
Average Discharge Duration (BS EN 3-7:2004+A1:2007, Clause 7.12) | 10.5s | 11.5s | 12.5s | 13.5s | 28s | 40s |
Throw Range | 2m | 2m | 5m | 5m | 6m | 6m |
Fire Rating (EN3-7) | 14A*, 8B, F** | 21A*, 13B, F | 8A, 34B, F | 8A, 55B, 25F | 21A, 144B, 40F | 27A, 183B, 40F |
Battery Rating (NTA 8133) | - | - | - | - | 600Wh | 600Wh |
Operating Temperature | +5°C to +60°C | +5°C to +60°C | +5°C to +60°C | +5°C to +60°C | +5°C to +60°C | +5°C to +60°C |

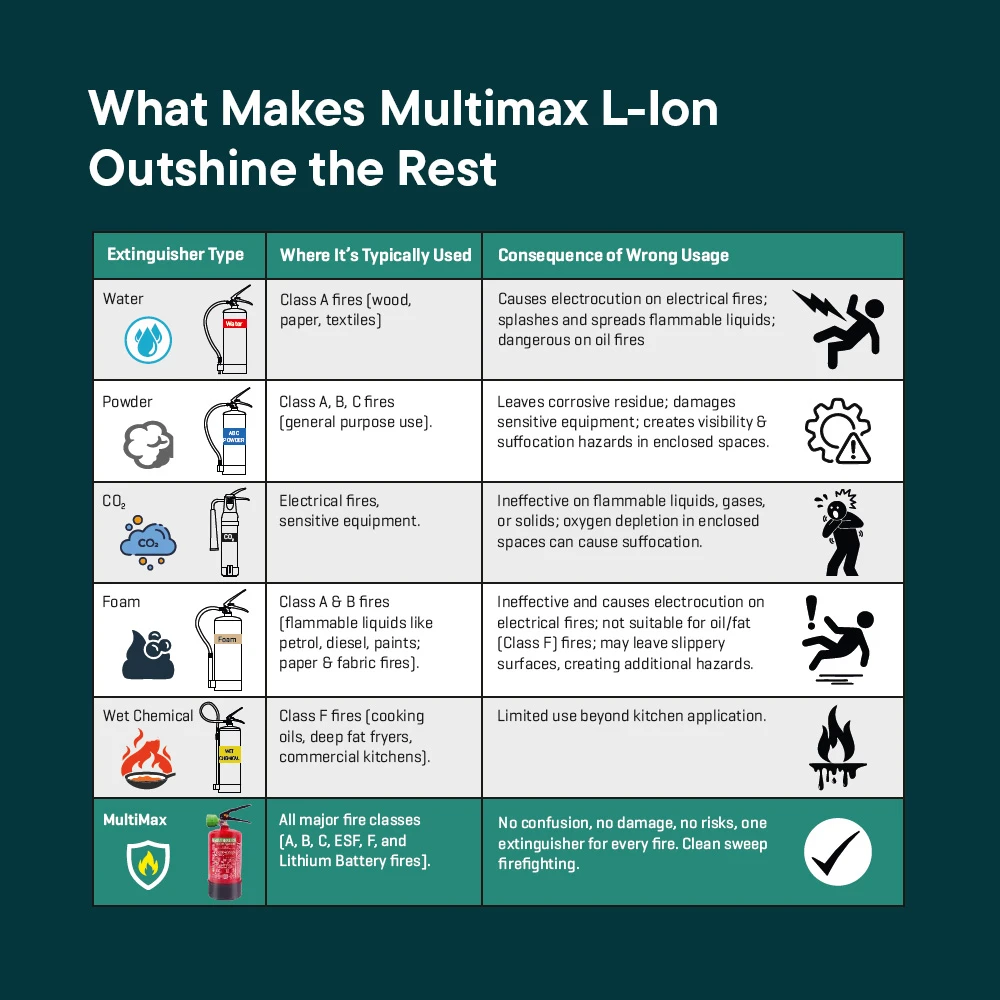

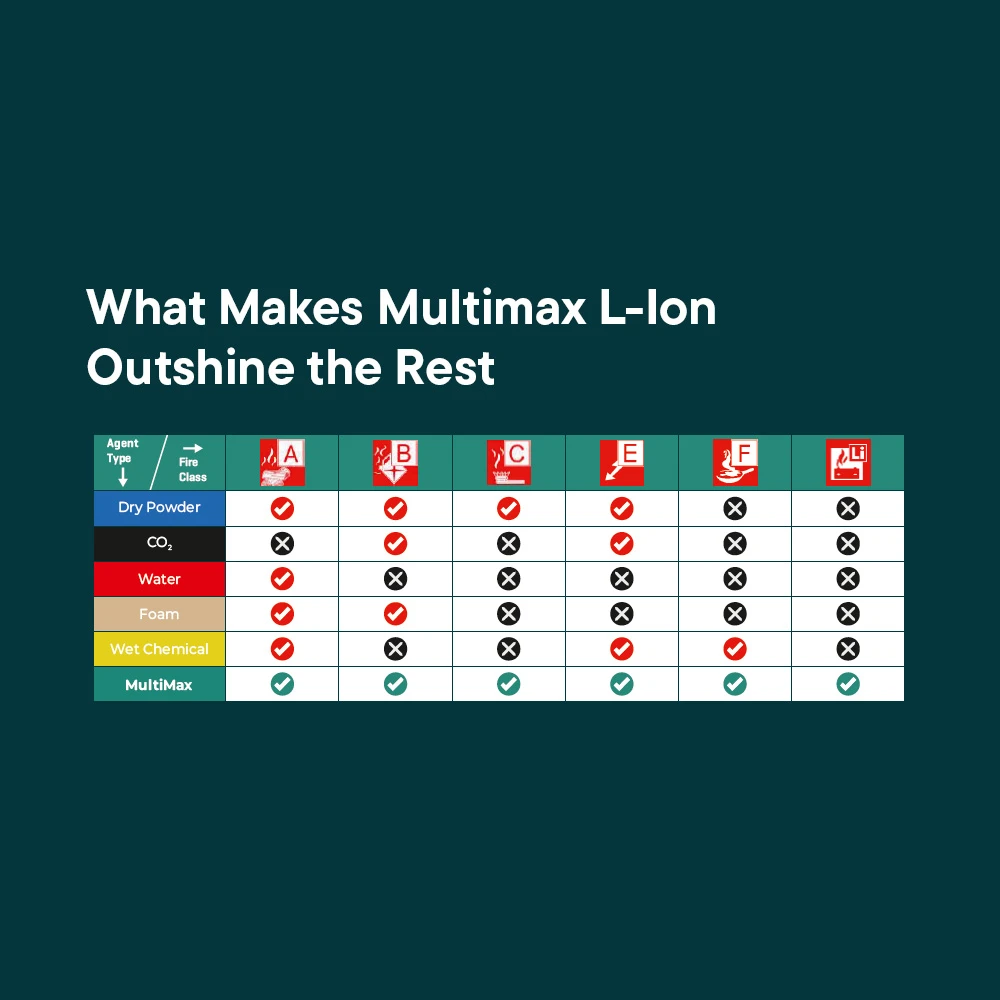

Suitable Fire Classes | Class A, B, C***, Electrical, F & Li-Ion Battery | Class A, B, C***, Electrical, F & Li-Ion Battery | Class A, B, C***, Electrical, F & Li-Ion Battery | Class A, B, C***, Electrical, F & Li-Ion Battery | Class A, B, C***, Electrical, F & Li-Ion Battery | Class A, B, C***, Electrical, F & Li-Ion Battery |
Gross Weight (Approx.) | 1.5kg | 1.98kg | 3.65kg | 5.00kg | 9.40kg | 13.40kg |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
