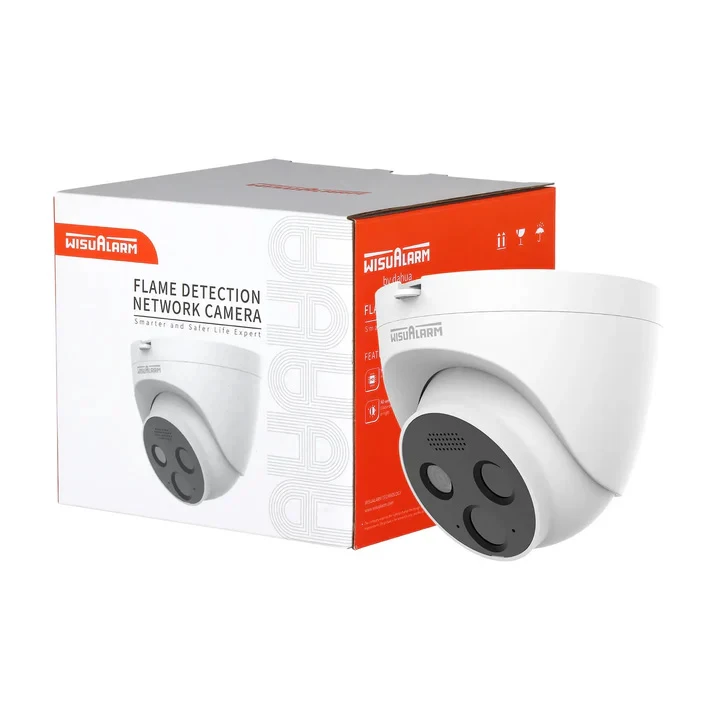

WisuAlarm Flame Detection Eyeball Network Camera Pro (Thermal Camera)

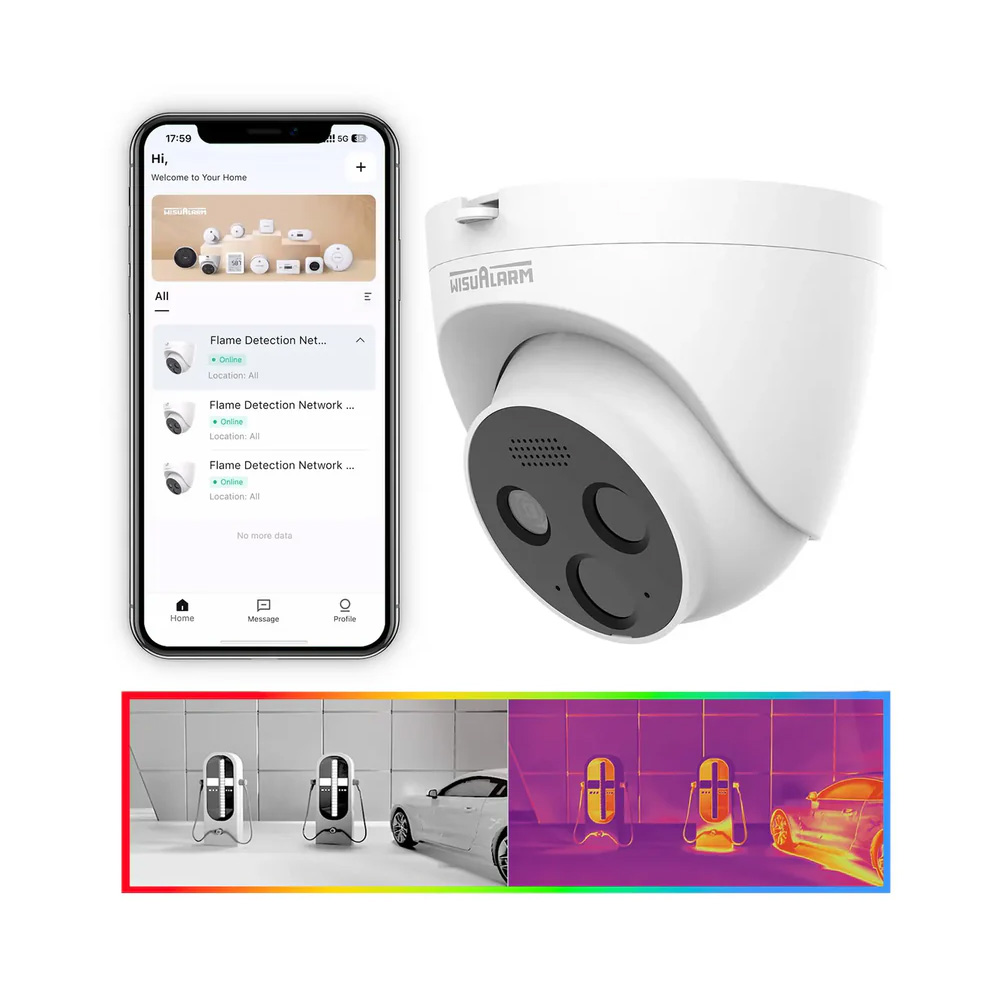

The WisuAlarm Flame Detection Eyeball Network Camera Pro is a thermal and visible-light camera designed to combine video surveillance with flame detection in a single device. It uses an uncooled vanadium oxide thermal sensor alongside a 2MP visible camera to identify abnormal heat and confirm potential flame events visually.

The camera can detect and track flame position, with adjustable detection sensitivity to suit the monitored area. Its stated flame detection performance is 10m for a 10cm x 10cm flame source, making it suitable for locations where early visual confirmation of fire may support a wider safety strategy.

Built-in audible and visual alarms allow the camera to provide local warning when flame is detected. It also supports custom voice files, two-way audio through the integrated microphone and speaker and alarm linkage through one input and one output. Email alerts, snapshots and relay output can be used as part of the configured response.

The 2MP visible camera provides up to 1920 x 1080 resolution and includes IR illumination for monitoring up to 15m in low-light conditions. WDR, 2D and 3D noise reduction and day/night switching help maintain usable images across changing environments.

The camera supports PoE or 12V DC power, ONVIF integration and common network protocols. Its IP66-rated enclosure and operating range of -20°C to +60°C support use in demanding indoor or sheltered outdoor monitoring applications.

Typical locations include warehouses, shopping centres, libraries, archive rooms, residential communities and waste storage areas.

• DHI-HY-FT431LDP

• Combines thermal flame detection with 2MP video surveillance

• Uncooled VOx thermal sensor technology

• Adjustable flame detection sensitivity

• Tracks and identifies the position of detected flames

• Detects a 10cm x 10cm flame at up to 10m

• Built-in strobe light and audible alarm

• Two-way audio with integrated microphone and speaker

• One alarm input and one alarm output

• 15m infrared illumination

• IP66-rated enclosure

• 12V DC or PoE power options

• Supports ONVIF integration
