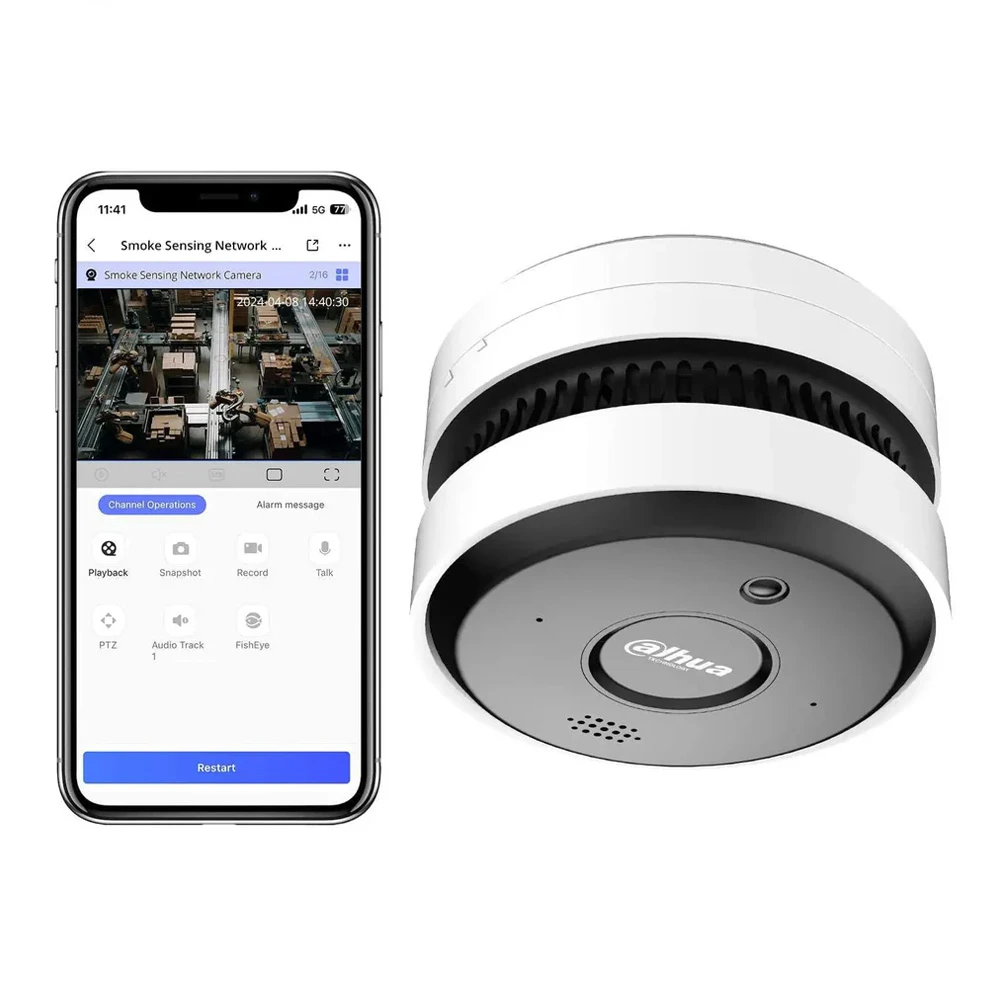

WisuAlarm Smoke Sensing Network Camera

The WisuAlarm Smoke Sensing Network Camera combines photoelectric smoke detection, AI flame detection and 5MP video surveillance in a single ceiling-mounted device. It is designed for locations where remote visual verification is required alongside smoke and fire monitoring.

The camera uses a dual photoelectric smoke sensing chamber with intelligent compensation to help reduce false alarms caused by dust accumulation and environmental changes. A built-in smoke alarm sounder provides an output of at least 85dB at 3 metres, supported by LED indication, self-test and low-battery warnings.

The integrated 5MP camera provides video at up to 2592 x 1944 resolution, with a wide 144° horizontal field of view and infrared illumination up to 20 metres. This helps users remotely assess alarm conditions and identify the source of an incident.

The device also includes AI flame detection, allowing it to monitor for both smoke and visible fire events. Two alarm inputs, two alarm outputs, one audio input, one audio output, an integrated microphone and speaker and an RS-485 port provide flexible integration with compatible security and alarm systems.

Video can be stored using FTP, SFTP, NAS or a Micro SD card up to 256GB. The camera supports 12V DC or PoE power and is compatible with ONVIF, Milestone and Genetec platforms.

Suitable applications include shared areas in HMOs or flats, unmanned power distribution rooms, unattended base stations, ATM areas, libraries and waste storage rooms where combined smoke detection and video surveillance are required.

• DHI-HY-SAV849HA-E

• Combines smoke detection, AI flame detection and 5MP video surveillance

• Dual photoelectric smoke sensing chamber

• Intelligent dust compensation to help reduce false alarms

• Built-in sounder rated at ≥85dB at 3 metres

• Wide 144° horizontal field of view

• Infrared illumination up to 20 metres

• Two alarm inputs and two alarm outputs

• Built-in microphone and speaker

• Supports Micro SD cards up to 256GB

• 12V DC or PoE power

• ONVIF, Milestone and Genetec interoperability
