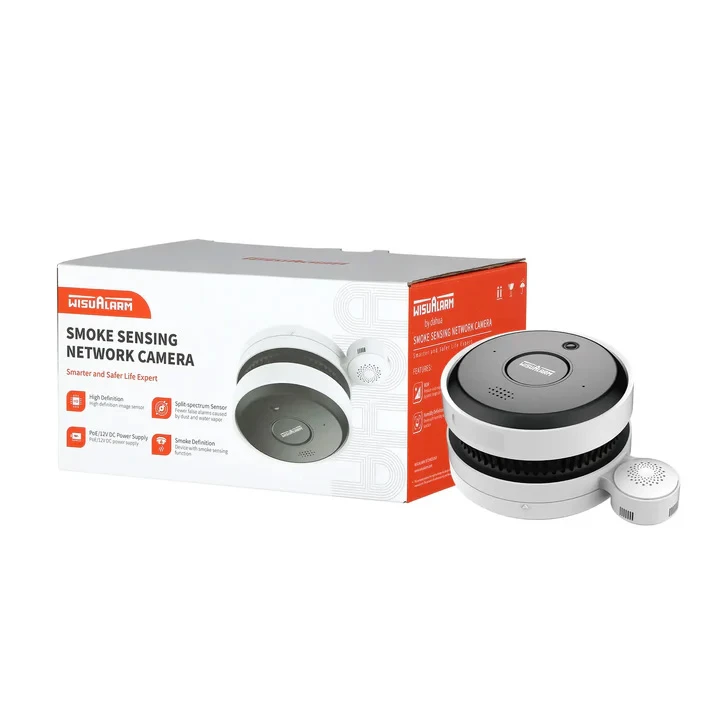

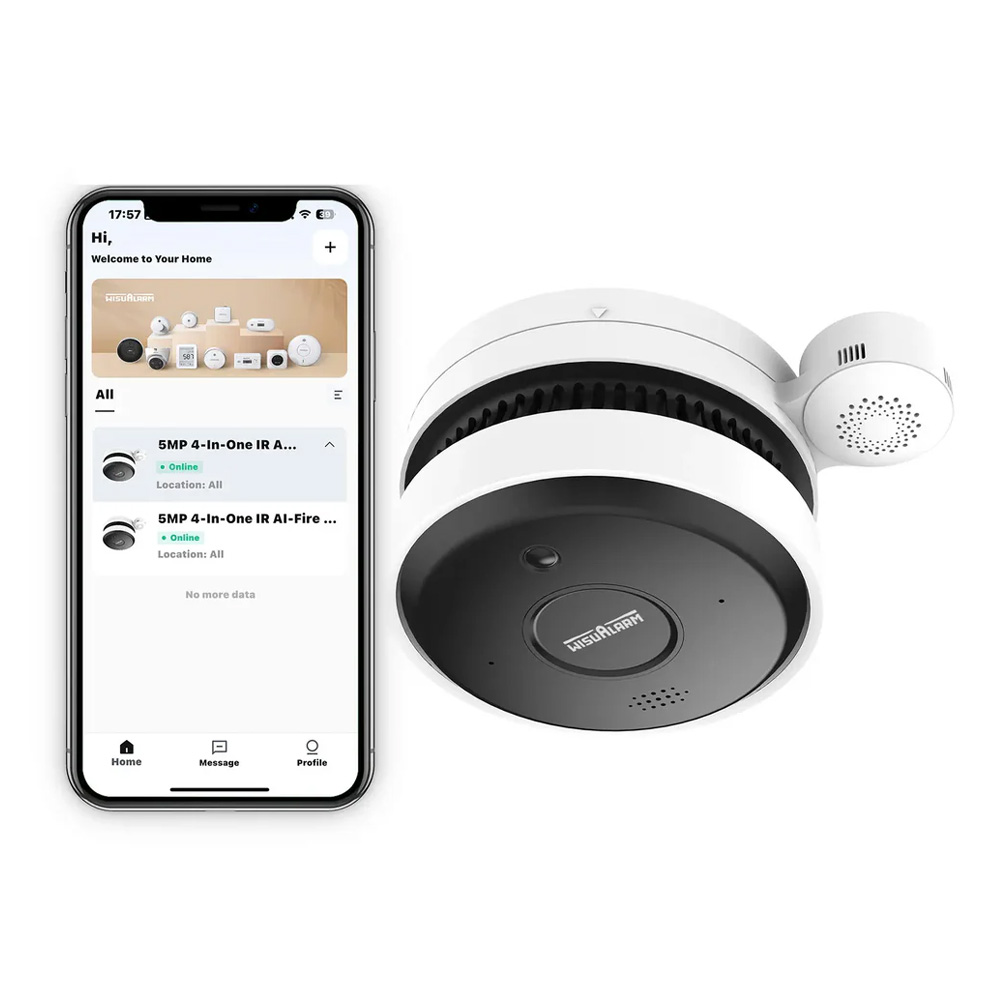

WisuAlarm Smoke Sensing Network Camera Pro

The WisuAlarm Smoke Sensing Network Camera Pro combines photoelectric smoke detection, AI flame detection and 5MP video surveillance in a single ceiling-mounted device. It is designed for locations where remote visual verification is required alongside fire and environmental monitoring.

A split-spectrum smoke chamber and intelligent compensation algorithm help reduce false alarms caused by dust build-up or changing environmental conditions. The unit also monitors ambient temperature and humidity, allowing alerts to be generated when configured thresholds are reached.

The integrated 5MP camera provides video at up to 2592 x 1944 resolution, with a wide 144° horizontal field of view and infrared illumination up to 20 metres. This supports remote investigation of smoke or flame events and helps users identify the source of an incident before attending the area.

A built-in sounder provides an alarm output of at least 85dB at 3 metres, supported by LED indication, self-test and low-battery warnings. The smoke-sensing module includes its own 3V lithium battery with a stated service life of more than three years, while the camera operates from 12V DC or PoE.

The camera also includes built-in flame detection, two alarm inputs, two alarm outputs, audio input and output, an integrated microphone and speaker and support for Micro SD cards up to 256GB. Network compatibility includes ONVIF, Milestone and Genetec integration.

Suitable applications include chain stores, unattended base stations, power distribution rooms, ATM areas, libraries and waste storage rooms where combined fire monitoring and video surveillance are required.

• DHI-HY-SAV849HAP-ET

• Combines smoke detection, flame detection and 5MP video surveillance

• Split-spectrum photoelectric smoke chamber

• Temperature and humidity monitoring

• Built-in sounder rated at ≥85dB at 3 metres

• Wide 144° horizontal viewing angle

• Infrared illumination up to 20 metres

• Two alarm inputs and two alarm outputs

• Built-in microphone and speaker

• Supports Micro SD cards up to 256GB

• 12V DC or PoE power

• ONVIF, Milestone and Genetec interoperability
