ESP MAGfire MAGZC-816 4 Zone Expander Card

Name: ESP MAGfire MAGZC-816 4 Zone Expander Card
Brand: Esp-magfire
Availability: InStock

Code: FDS002/280

Call to place order

INC VAT

Code: FDS002/280

In stock
Typically dispatched in 2-5 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

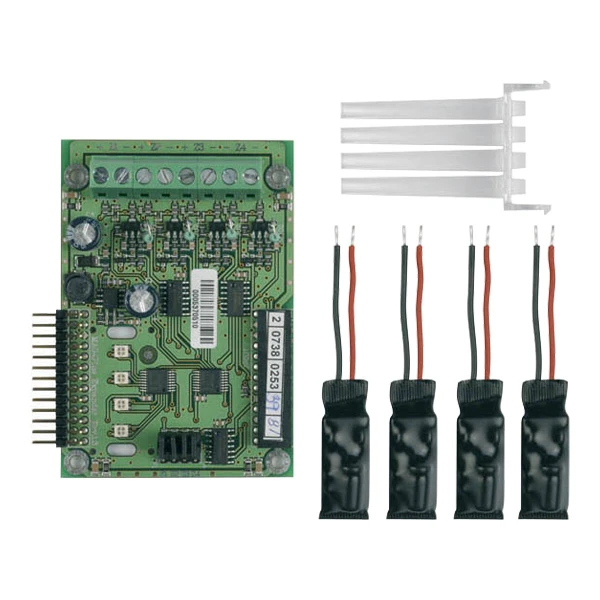

The ESP MAGfire MAGZC-816 is a 4 Zone Detection Expander Card designed for use with the MAG816 conventional fire alarm control panel.

Each expansion card provides four additional detection zones, allowing the MAG816 panel to be expanded from its standard 8 zones up to a maximum of 16.

The card fits directly into the panel’s internal slot and integrates seamlessly with existing system wiring, making it a simple upgrade option for installers expanding site coverage.

4 additional detection zones
Compatible with ESP MAG816 panel
Easy plug-in expansion design
Supports up to 16 zones total
Part of the ESP MAGfire range

Specification	Value
Dimensions (mm)	57 × 81
Maximum Detectors per Zone	32
Maximum Number of Detectors	128
LED Indication for Zone Circuits	Yes
Instant Action Mode for Zones	Yes
Weight (kg)	0.2
Warranty (Years)	3
Supply Voltage (V AC)	21 (main and battery supply from fire alarm panel)
Consumption (Standby Mode) (mA)	130
Consumption (Alarm Mode) (mA)	330
Power Supply from CIE (V DC)	24V
Operating Temperature (°C)	0 to +40
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	MAG816 Fire Alarm Panel

Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Value
Dimensions (mm)	57 × 81
Maximum Detectors per Zone	32
Maximum Number of Detectors	128
LED Indication for Zone Circuits	Yes
Instant Action Mode for Zones	Yes
Weight (kg)	0.2
Warranty (Years)	3
Supply Voltage (V AC)	21 (main and battery supply from fire alarm panel)
Consumption (Standby Mode) (mA)	130
Consumption (Alarm Mode) (mA)	330
Power Supply from CIE (V DC)	24V
Operating Temperature (°C)	0 to +40
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	MAG816 Fire Alarm Panel
