8 Zone Fire Alarm Conventional Kit - Hospitality Sector
We Recommend
Bestseller
Code: FDS330/902
INC VAT
Code: FDS330/902
The 8 Zone Conventional Fire Alarm Kit – Hospitality Sector is designed specifically for cafés, restaurants, bars and micro-breweries that require a reliable and easy to install fire detection system.
Kit Contents
1 × C-TEC CFP708-4 8 Zone Conventional Fire Alarm Panel

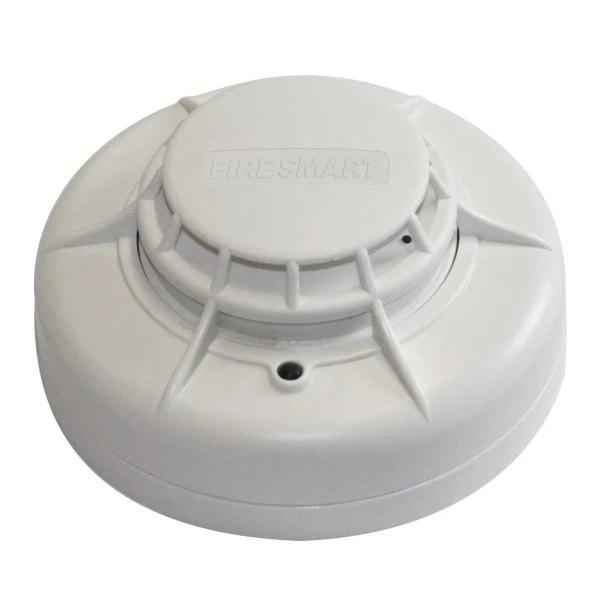

4 × FireSmart Optical Smoke Detectors
1 × FireSmart Rate-of-Rise Heat Detector

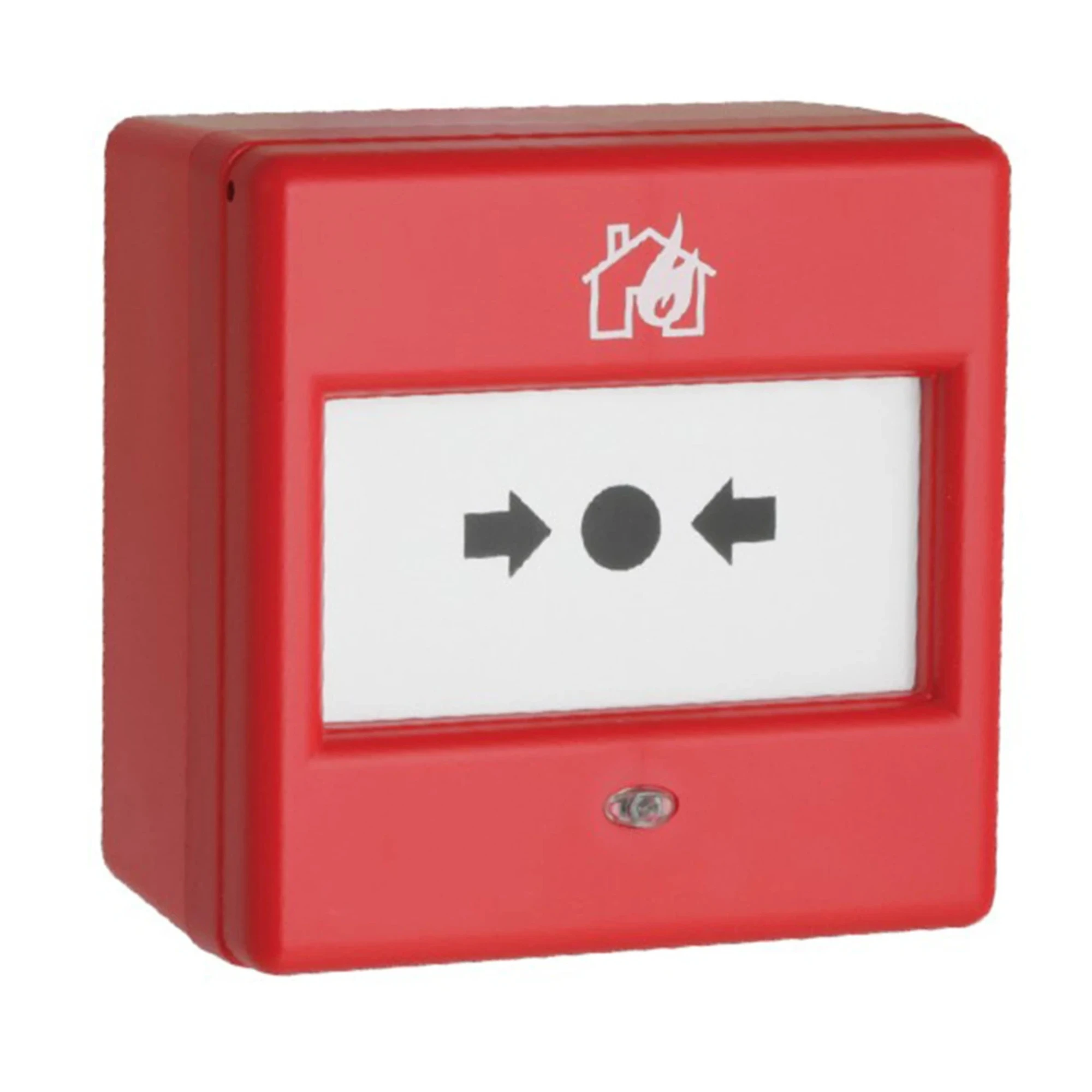

2 × FireSmart Universal Conventional Manual Call Points

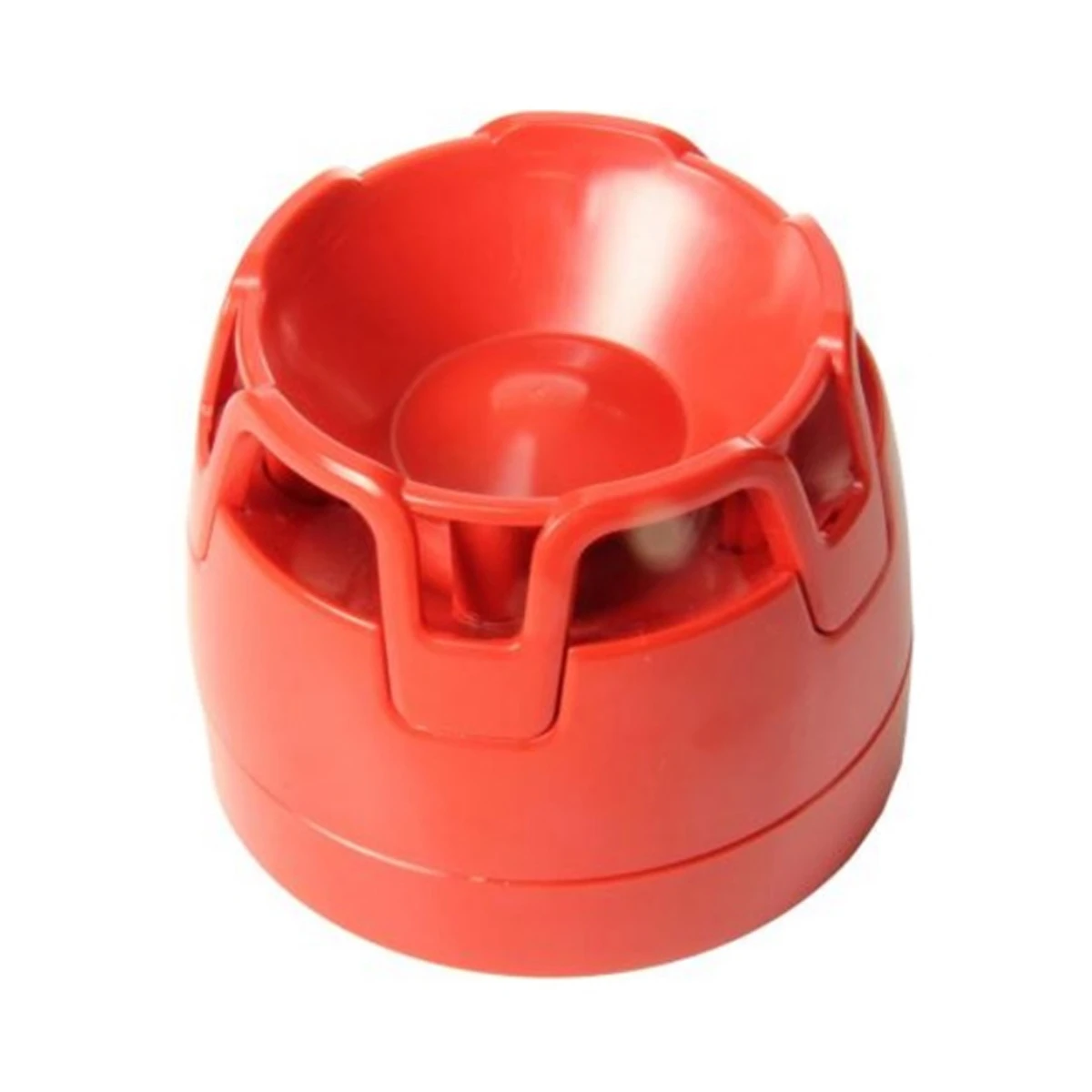

2 × FireSmart Deep Base Sounders
2 × FireSmart Deep Base Beacons
2 × FireSmart 12Vdc 3.2Ah Backup Batteries
This complete kit provides all the essential components required to begin installation quickly, combining the trusted C-TEC CFP708-4 conventional fire alarm panel with reliable FireSmart detection and alarm devices. The carefully selected components ensure full compatibility, helping installers achieve a straightforward installation and dependable system performance.
The kit includes optical smoke detectors for general detection areas, a rate-of-rise heat detector for kitchens or areas where smoke detection may not be suitable, manual call points for manual alarm activation and sounders with beacons to provide clear audible and visual alarm notification.
Ideal for hospitality venues and public buildings, this kit provides a practical and cost-effective fire protection solution while helping maintain compliance with relevant fire safety standards.
Complete conventional fire alarm kit designed for hospitality environments
Built around the C-TEC CFP708-4 LPCB approved 8 zone conventional fire alarm panel
FireSmart optical smoke detectors for reliable fire detection
Rate-of-rise heat detector suitable for kitchens and high humidity areas
Resettable FireSmart manual call points for manual alarm activation
FireSmart sounders with bases provide clear audible alarm signalling
FireSmart beacons provide visual alarm indication
Backup batteries included for standby power in the event of mains failure
Compatible FireSmart devices designed for dependable system performance
Ideal for cafés, restaurants, bars and small public buildings
Simplifies system specification, ordering and installation for contractors
Specification | 8 Zone Panel |
|---|---|
Approvals/Certifications | EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication) |
Mains Supply | 230V 50/60Hz |
Mains Rated Current | 350mA max |
Internal Power Supply | 19V–28.5V (27V nominal), Ripple 7V max |
Total Output Current | 1.5A @ 230Vac (ImaxA eq 146mA) |
Quiescent Current | 25mA (mains failed, internal sounder active) |
Max Battery Size & Type | 2 x 12V 3.2Ah VRLA (Min. 1.2Ah) |
No. of Detector Zones | 8 (Max. 500m per circuit) |
Call Point Resistor Value | 470 to 680Ω |
Max Devices per Zone | Same |
No. of Sounder Circuits | 4 (Max. 500m per circuit) |
EOL Resistor Value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold) |
Alarm Voltage | 27V max, 20V min |
Max Sounder Output Current | 4 x 200mA (800mA total) |
Auxiliary Relays | 2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc |
Open Collector Outputs | 2: Reset & Remote, 30mA max sink, 30V open circuit |
Other Outputs | 24V Aux Power, resettable fuse, 100mA min hold |
Auxiliary Inputs | 2: Class Change & Alert, 27V max input |
Engineer Functions | Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings |
Expansion Connections | Yes – repeater/network/relay/sounder interface board compatible |
Product Dimensions (mm) | 380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D) |
Construction & Finish | Plastic lid/base, RAL7035 textured |
IP Rating | IP30 |
Weight | 1.75kg (without batteries) |
Operating Conditions | -5ºC to +40ºC, 95% RH max |
The 8 Zone Conventional Fire Alarm Kit – Hospitality Sector is designed specifically for cafés, restaurants, bars and micro-breweries that require a reliable and easy to install fire detection system.
Kit Contents
1 × C-TEC CFP708-4 8 Zone Conventional Fire Alarm Panel
4 × FireSmart Optical Smoke Detectors
1 × FireSmart Rate-of-Rise Heat Detector
2 × FireSmart Universal Conventional Manual Call Points
2 × FireSmart Deep Base Sounders
2 × FireSmart Deep Base Beacons
2 × FireSmart 12Vdc 3.2Ah Backup Batteries
This complete kit provides all the essential components required to begin installation quickly, combining the trusted C-TEC CFP708-4 conventional fire alarm panel with reliable FireSmart detection and alarm devices. The carefully selected components ensure full compatibility, helping installers achieve a straightforward installation and dependable system performance.
The kit includes optical smoke detectors for general detection areas, a rate-of-rise heat detector for kitchens or areas where smoke detection may not be suitable, manual call points for manual alarm activation and sounders with beacons to provide clear audible and visual alarm notification.
Ideal for hospitality venues and public buildings, this kit provides a practical and cost-effective fire protection solution while helping maintain compliance with relevant fire safety standards.
Complete conventional fire alarm kit designed for hospitality environments
Built around the C-TEC CFP708-4 LPCB approved 8 zone conventional fire alarm panel
FireSmart optical smoke detectors for reliable fire detection
Rate-of-rise heat detector suitable for kitchens and high humidity areas
Resettable FireSmart manual call points for manual alarm activation
FireSmart sounders with bases provide clear audible alarm signalling
FireSmart beacons provide visual alarm indication
Backup batteries included for standby power in the event of mains failure
Compatible FireSmart devices designed for dependable system performance
Ideal for cafés, restaurants, bars and small public buildings
Simplifies system specification, ordering and installation for contractors
Specification | 8 Zone Panel |
|---|---|
Approvals/Certifications | EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication) |
Mains Supply | 230V 50/60Hz |
Mains Rated Current | 350mA max |
Internal Power Supply | 19V–28.5V (27V nominal), Ripple 7V max |
Total Output Current | 1.5A @ 230Vac (ImaxA eq 146mA) |
Quiescent Current | 25mA (mains failed, internal sounder active) |
Max Battery Size & Type | 2 x 12V 3.2Ah VRLA (Min. 1.2Ah) |
No. of Detector Zones | 8 (Max. 500m per circuit) |
Call Point Resistor Value | 470 to 680Ω |
Max Devices per Zone | Same |
No. of Sounder Circuits | 4 (Max. 500m per circuit) |
EOL Resistor Value | 6800Ω 5% Tol. 0/25W (blue, grey, red, gold) |
Alarm Voltage | 27V max, 20V min |
Max Sounder Output Current | 4 x 200mA (800mA total) |
Auxiliary Relays | 2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc |
Open Collector Outputs | 2: Reset & Remote, 30mA max sink, 30V open circuit |
Other Outputs | 24V Aux Power, resettable fuse, 100mA min hold |
Auxiliary Inputs | 2: Class Change & Alert, 27V max input |
Engineer Functions | Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings |
Expansion Connections | Yes – repeater/network/relay/sounder interface board compatible |
Product Dimensions (mm) | 380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D) |
Construction & Finish | Plastic lid/base, RAL7035 textured |
IP Rating | IP30 |
Weight | 1.75kg (without batteries) |
Operating Conditions | -5ºC to +40ºC, 95% RH max |
