C-TEC 2 Zone Fire Alarm Conventional Kit - Apollo

Name: C-TEC 2 Zone Fire Alarm Conventional Kit - Apollo
Brand: C-tec
Price: 291.36 GBP
Availability: InStock

Code: FDS340/041

£291.36

INC VAT

Code: FDS340/041

Save £ with kits
2 zone panel
Apollo field devices
C-TEC fire alarm panel
Batteries included

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£12.42 inc vat)

Apollo 55000-317APO Series 65 Optical Smoke Detector | With Diode Base(£18.42 inc vat)

Apollo 55000-122APO | Series 65 A1R Heat Detector | Complete with Diode Base(£15.96 inc vat)

Apollo 55000-127APO | Series 65 BR Heat Detector 75c | Complete with Diode Base(£16.56 inc vat)

FireSmart Conventional Sounder | Deep or Shallow Base(£19.14 inc vat)

FireSmart Conventional Sounder VAD | Red or White Flash(£45.90 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

Kickstart your fire alarm installation with this complete 2 Zone Conventional Kit.

Designed for small commercial or industrial projects, the package combines a reliable C-TEC panel and Apollo field devices into one convenient bundle.

This is a 4-wire conventional system, ideal for straightforward, cost-effective fire protection.

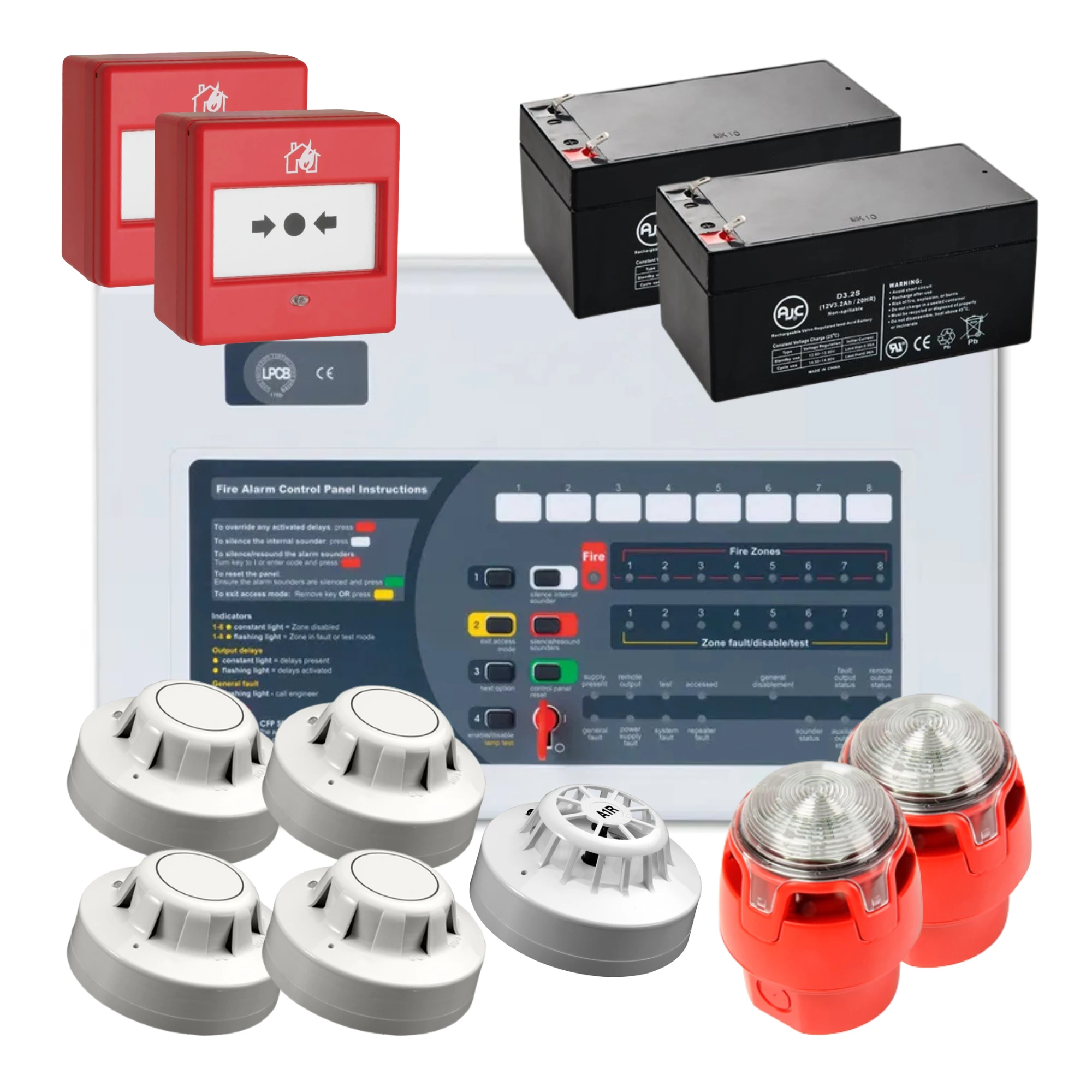

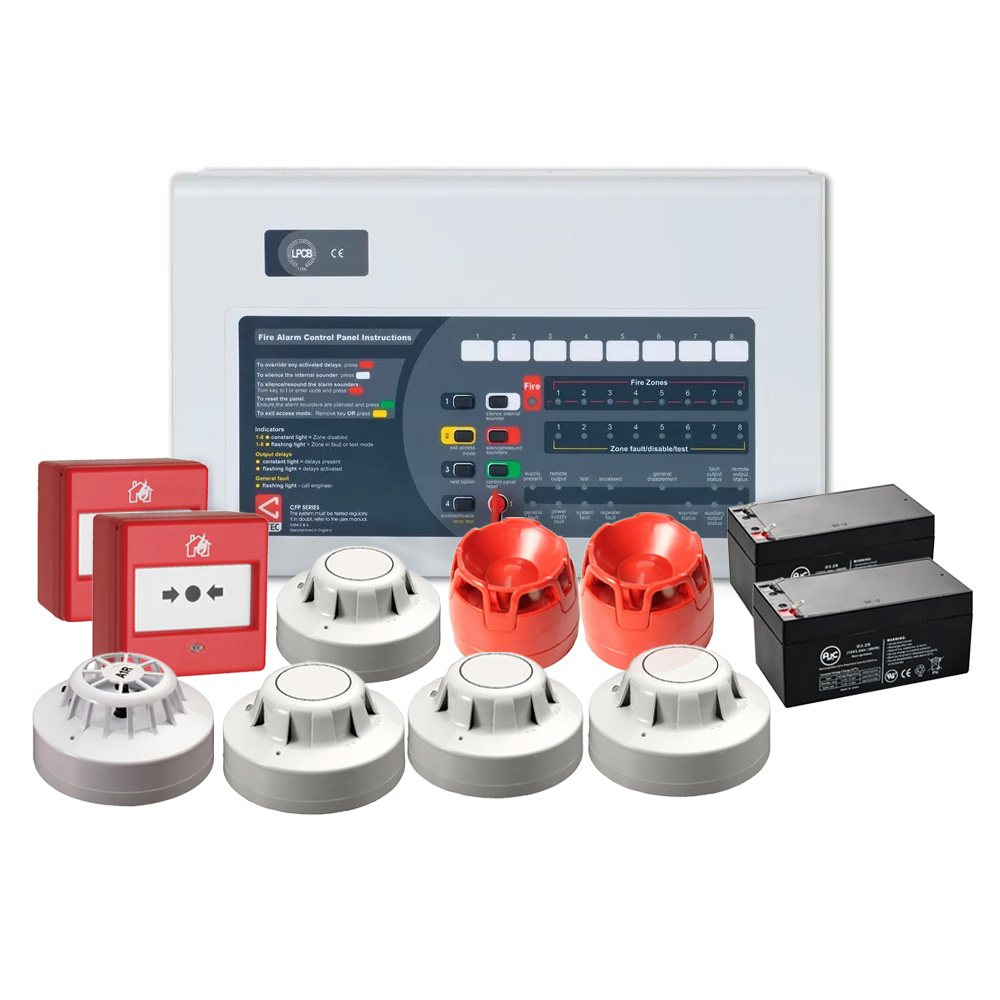

This kit contains the following items:

1 x C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel
4 x Apollo 55000-317APO Series 65 Optical Smoke Detector
1 x Apollo 55000-122APO Series 65 A1R Heat Detector
5 x Apollo 45681-210 Diode Bases
2 x FireSmart Univ. Conventional Manual Call Point
2 x FireSmart Sounders with Bases
2 x FireSmart 12vdc 2.1Ah Backup Batteries

Please add additional devices as required from the options box above to complete your installation.

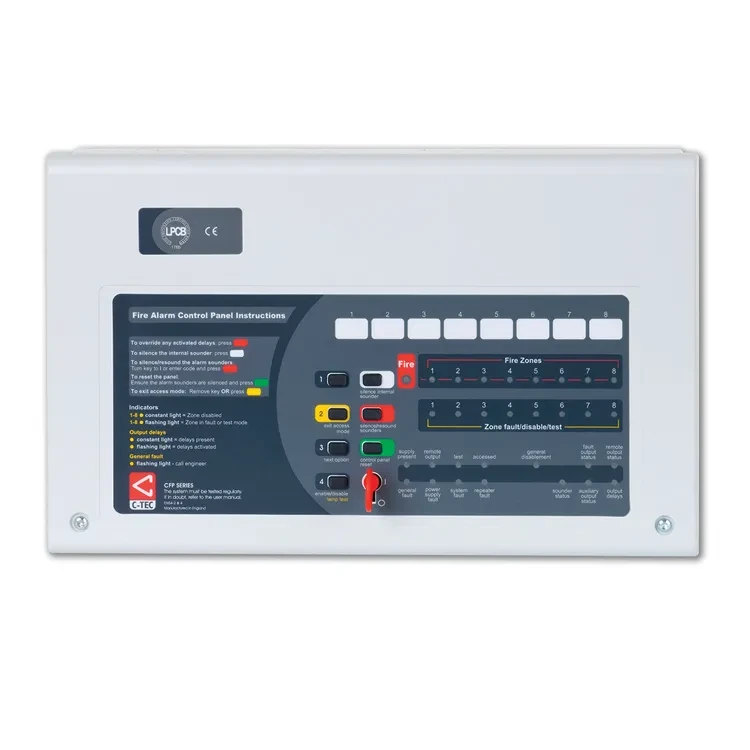

C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel: LPCB certified to EN54-2/4, C-TEC's CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features. Supplied in an attractive flush or surface mountable plastic enclosure.

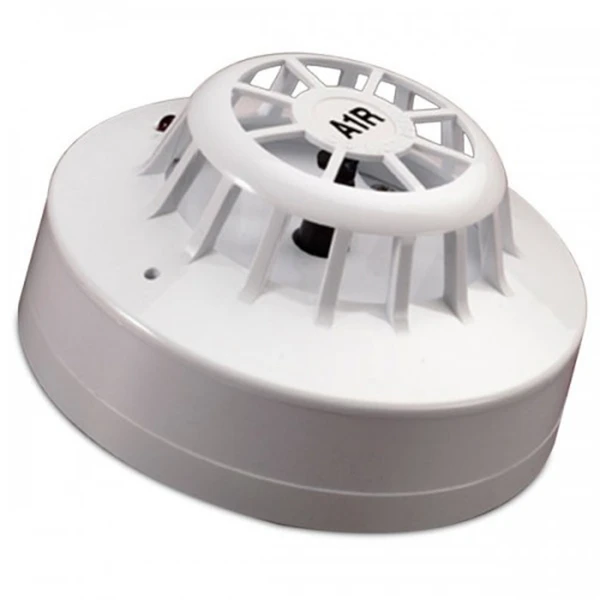

Apollo 55000-122APO Series 65 A1R Heat Detector: The Apollo 55000-122APO can be used with most conventional fire alarm panels, heat detectors monitor temperature by using a dual thermistor network which triggers the fire control panel at a pre-set level.

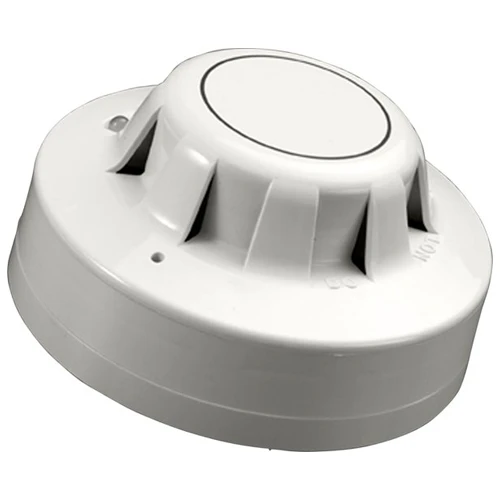

Apollo 55000-317APO Series 65 Optical Smoke Detector: The Series 65 Optical Smoke Detector detects smoke entering the chamber via a pulsing LED located within the housing of the detector.

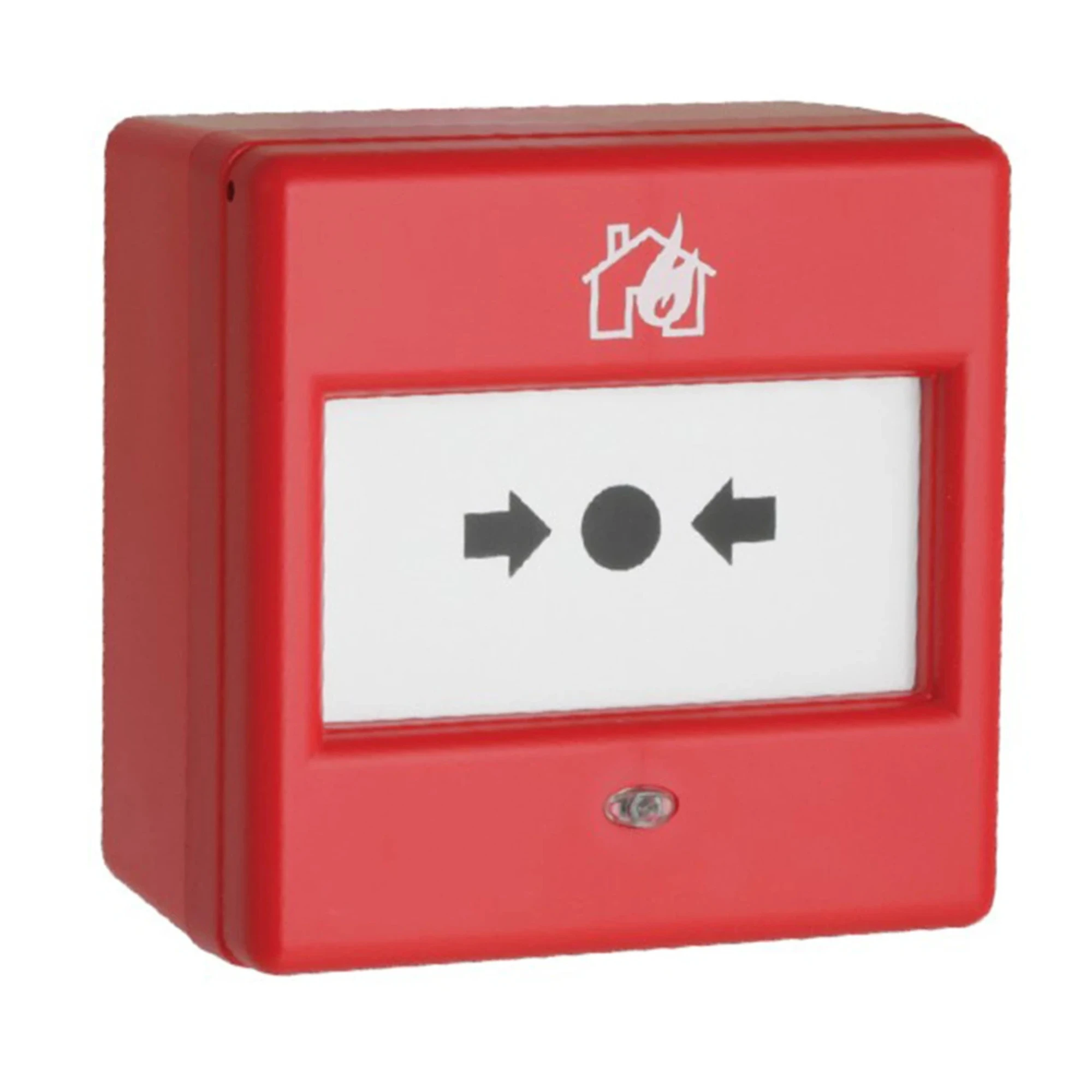

FireSmart Univ. Conventional Manual Call Point An easy to operate fire alarm manual call point. Fully compliant with EN 54-11, each point is manufactured from impact resistant ABS and include a resettable press to break glass.

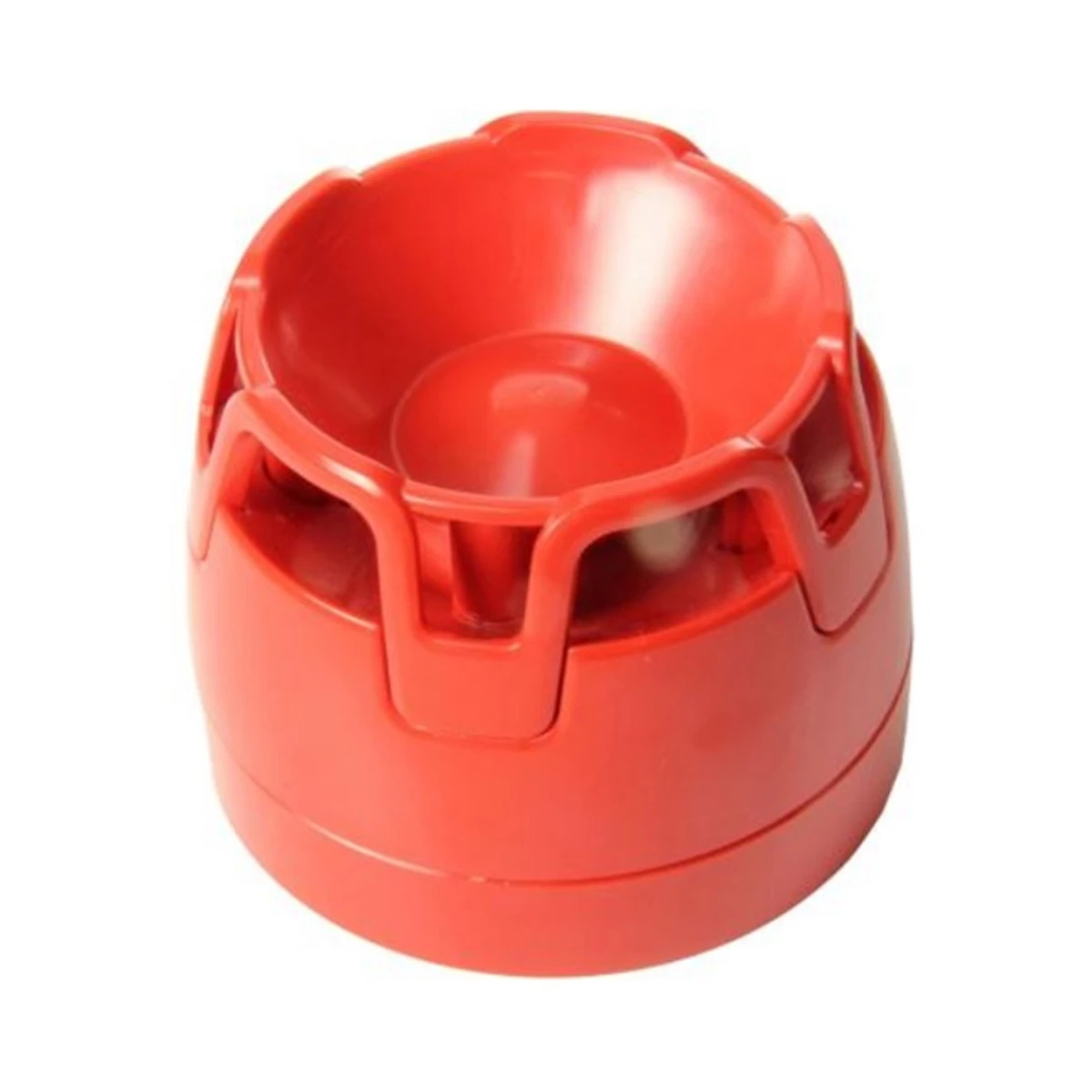

FireSmart Sounder and Base Provides outstanding sound output and low current draw. Specifically designed and approved to meet EN54-3 the FireSmart sounder delivers quality, reliability and extended operational life.
FireSmart 12vdc 2.1Ah Backup Batteries 12v 2.1Ah trade batteries specifically designed for use throughout the fire and security industries.

Category	Specification
C-TEC 2 Zone Panel
Approvals/Certifications	Certified to EN54-2 & 4 by the LPCB.
Mains Supply	230V 50/60Hz.
Mains Rated Current	350mA maximum.
Internal Power Supply	19V-28.5V (27V nominal).
Total Output Current Limited to	1.5A @ 230Vac
Quiescent Current	25mA (mains failed, internal sounder active, PSU & gen fault LED lit).
Max Battery Size and Type	2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
Detector Zone Circuits	4 zone circuits compatible with conventional detectors and call points.
Call Point Resistor Value	standard 470Ω or 680Ω call point required
Max Devices per Detector Zone	25 detectors or 32 detectors and manual call points per zone.
Conventional Sounder Circuits	4 Conventional sounder circuits, max 40 sounders, max cable length 500m.
Sounder EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Alarm Voltage	27V max, 20V min (final battery voltage).
Auxiliary Relays	Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Open Collector Outputs	Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit voltage.
Other Outputs	24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed).
Auxiliary Inputs	Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching).
Engineer (AL3) Functions	Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) when a new zone enters alarm.
Expansion Connections	Optional network driver cards (one required per repeater), relay output cards, and EN54-13 sounder circuit interface boards.
Product Dimensions (mm)	380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required).

What is included in this fire alarm kit?

The kit contains:

1 x C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel
4 x Apollo Series 65 Optical Smoke Detectors
1 x Apollo Series 65 A1R Heat Detector
5 x Apollo Diode Bases
2 x FireSmart Manual Call Points
2 x FireSmart Sounders with Bases
2 x FireSmart 12V 2.1Ah Backup Batteries

Is this kit suitable for commercial use?

Yes, it’s designed for small commercial or industrial premises, such as offices, workshops, and retail spaces.

Can I expand the system?

Yes, additional conventional detectors, call points, and sounders can be added to each zone and sounder circuit as required. Use the options box above to customise your installation.

How many zones can the panel support?

The C-TEC CFP702-4 panel in this kit supports 2 detection zones. Each zone can accommodate multiple detectors and call points.

Can this kit be used in residential settings?

While designed for commercial use, it may be used in larger residential settings or HMOs, depending on the fire risk assessment and applicable regulations.

C-TEC 2 Zone Fire Alarm Conventional Kit - Apollo Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification
C-TEC 2 Zone Panel
Approvals/Certifications	Certified to EN54-2 & 4 by the LPCB.
Mains Supply	230V 50/60Hz.
Mains Rated Current	350mA maximum.
Internal Power Supply	19V-28.5V (27V nominal).
Total Output Current Limited to	1.5A @ 230Vac
Quiescent Current	25mA (mains failed, internal sounder active, PSU & gen fault LED lit).
Max Battery Size and Type	2 x 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah.
Detector Zone Circuits	4 zone circuits compatible with conventional detectors and call points.
Call Point Resistor Value	standard 470Ω or 680Ω call point required
Max Devices per Detector Zone	25 detectors or 32 detectors and manual call points per zone.
Conventional Sounder Circuits	4 Conventional sounder circuits, max 40 sounders, max cable length 500m.
Sounder EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Alarm Voltage	27V max, 20V min (final battery voltage).
Auxiliary Relays	Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Open Collector Outputs	Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition provided all relevant delays have expired). Max. sink current 30mA, Max. open circuit voltage.
Other Outputs	24V Aux. Power (Protected by a resettable fuse. 100mA min. hold current. Resets when fault removed).
Auxiliary Inputs	Two: (1) ‘Class Change’ (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger, Max. input voltage 27V (non-latching).
Engineer (AL3) Functions	Program coincidence (double knock); Invoke One Man Walk Test; Program delays; Set up zones for non-latching operation; Program sounders to resound (or not resound) when a new zone enters alarm.
Expansion Connections	Optional network driver cards (one required per repeater), relay output cards, and EN54-13 sounder circuit interface boards.
Product Dimensions (mm)	380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required).

FAQs

What is included in this fire alarm kit?

The kit contains:

1 x C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel
4 x Apollo Series 65 Optical Smoke Detectors
1 x Apollo Series 65 A1R Heat Detector
5 x Apollo Diode Bases
2 x FireSmart Manual Call Points
2 x FireSmart Sounders with Bases
2 x FireSmart 12V 2.1Ah Backup Batteries

Is this kit suitable for commercial use?

Yes, it’s designed for small commercial or industrial premises, such as offices, workshops, and retail spaces.

Can I expand the system?

Yes, additional conventional detectors, call points, and sounders can be added to each zone and sounder circuit as required. Use the options box above to customise your installation.

How many zones can the panel support?

The C-TEC CFP702-4 panel in this kit supports 2 detection zones. Each zone can accommodate multiple detectors and call points.

Can this kit be used in residential settings?

While designed for commercial use, it may be used in larger residential settings or HMOs, depending on the fire risk assessment and applicable regulations.
