C-TEC 2 Zone Fire Alarm Conventional Kit - Hochiki

Name: C-TEC 2 Zone Fire Alarm Conventional Kit - Hochiki
Brand: C-tec
Price: 304.764 GBP
Availability: InStock

Code: FDS100/518

£304.76

INC VAT

Was £310.98

Code: FDS100/518

2 Zone Conventional System
Detectors, Sounders & Call Points Included
Supplied With Backup Batteries

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£12.42 inc vat)

Hochiki SOC-E3N(WHT) Conventional Optical Smoke Detector w/ Diode base(£20.22 inc vat)

Hochiki DCD-AE3(WHT) Conventional Combined 60°C Heat Detector w/ Diode base(£22.44 inc vat)

FireSmart Conventional Sounder | Deep or Shallow Base(£19.14 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 2 Zone Fire Alarm Conventional Kit – Hochiki provides a complete and reliable conventional fire detection system using the trusted C-TEC control panel and Hochiki detection devices. Designed to simplify installation, the kit includes all the essential components required to begin installing a compliant fire alarm system.

Kit Contents

1 × C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel
4 × Hochiki SOC-E3N(WHT) Conventional Optical Smoke Detectors

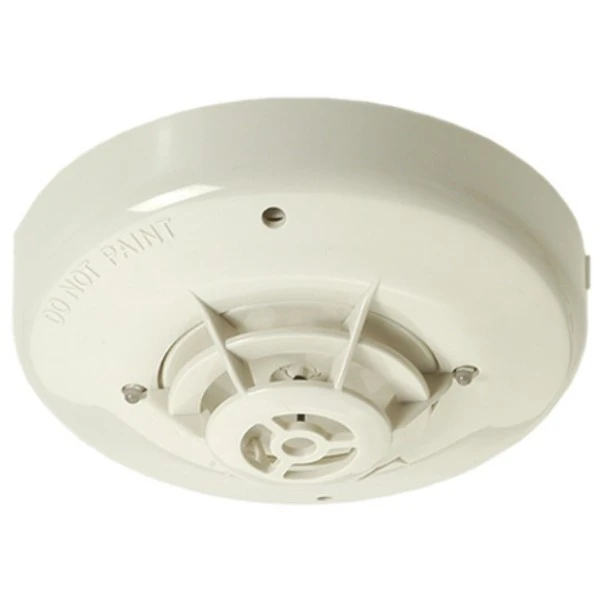

1 × Hochiki DCD-AE3(S/H) Conventional Combined 60°C Heat Detector
5 × Hochiki YBN-R/6SK Detector Bases

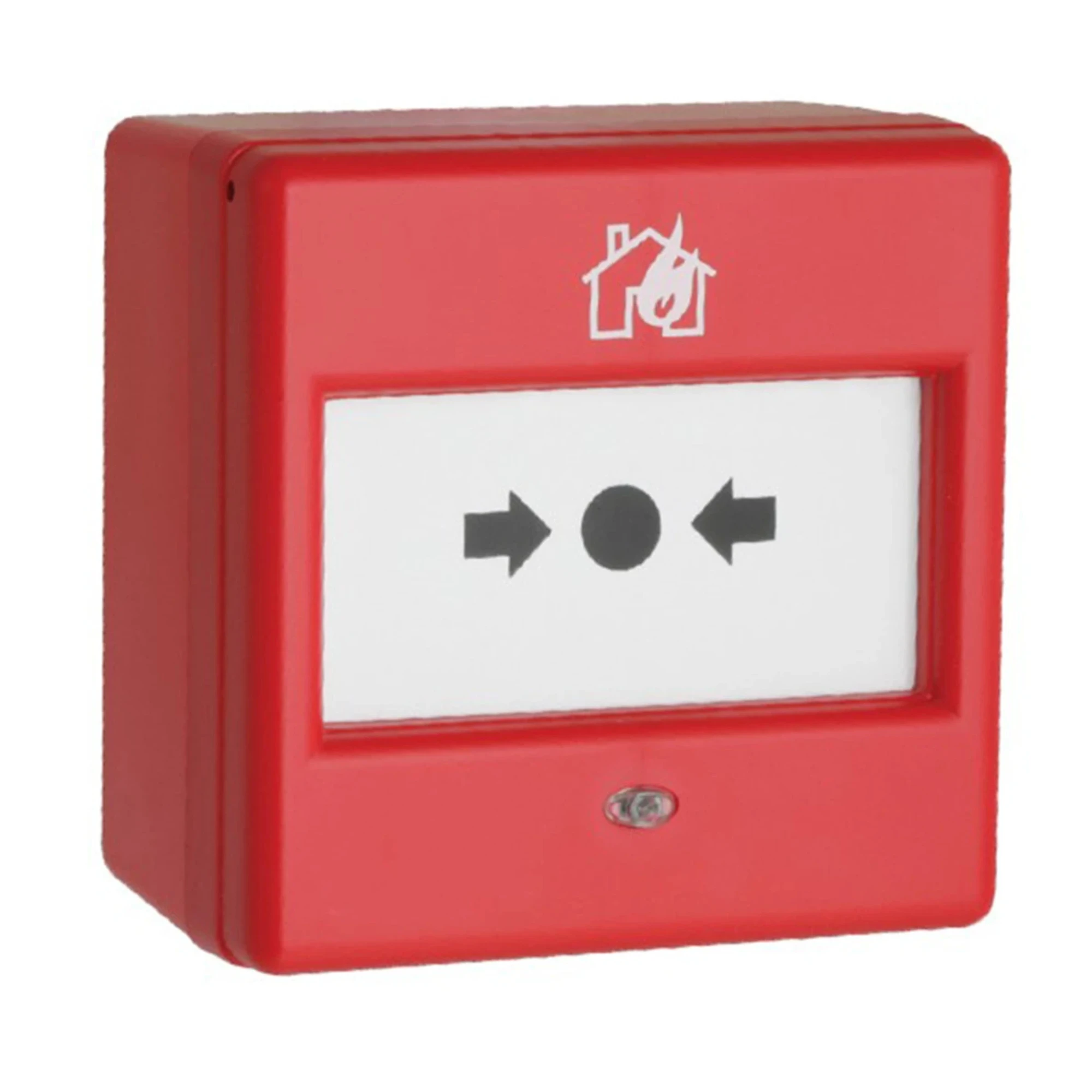

2 × FireSmart Conventional Manual Call Points

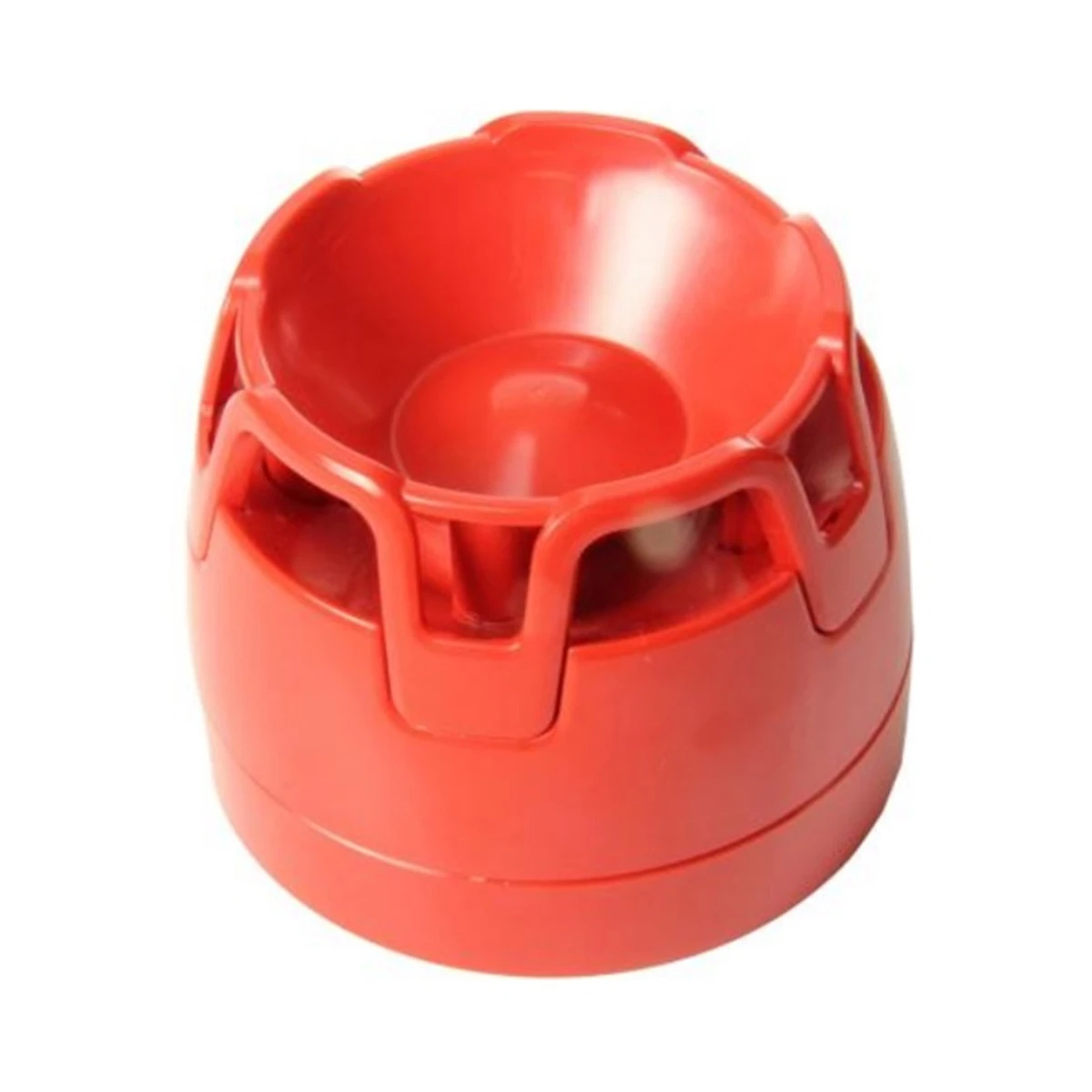

2 × FireSmart Sounders with Deep Base
2 × FireSmart 12Vdc 2.1Ah Backup Batteries

At the centre of the system is the C-TEC CFP702-4 2 zone conventional fire alarm panel, combined with Hochiki optical smoke detectors and a combined heat detector to provide effective fire detection across a range of environments. Manual call points and sounders complete the system, ensuring both manual activation and clear audible alarm signalling when required.

Suitable for small commercial premises such as offices, retail units and workshops, this conventional fire alarm kit offers dependable performance while simplifying system specification and installation.

Complete conventional fire alarm kit using Hochiki detection devices
Built around the LPCB approved C-TEC CFP702-4 2 zone conventional fire alarm panel
Hochiki optical smoke detectors for accurate and reliable fire detection
Combined heat detector suitable for areas where smoke detection is not ideal
Hochiki detector bases for secure and straightforward installation
Conventional manual call points for manual alarm activation
FireSmart sounders provide clear and reliable audible alarm signalling
Backup batteries included for standby power during mains failure
Fully compatible components designed for reliable system performance
Ideal for small commercial premises and contractor installations
Simplifies system specification, ordering and installation

Specification	2 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	2 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	25 detectors or 32 detectors/call points combined
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Conventional Sounder Datasheet	Click here to download
