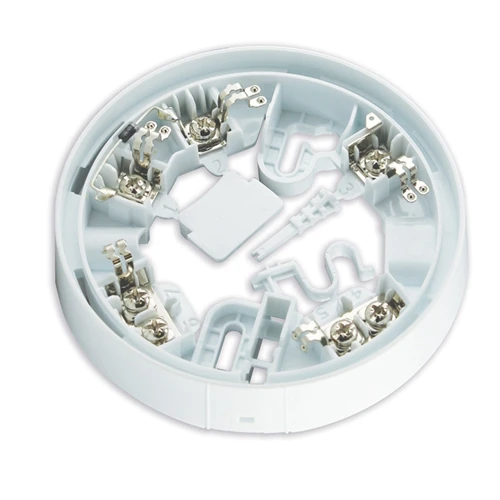

C-TEC C4408D | ActiV Diode Base(£3.06 inc vat)

C-TEC ActiV Conventional Hi-Output Wall Sounder(£18.42 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 2 Zone Fire Alarm Conventional Kit – ActiV provides a complete conventional fire detection solution using devices from the C-TEC ActiV range. Designed to simplify system specification and installation, the kit includes all the essential components required to begin installing a compliant fire alarm system.

Kit Contents

1 × C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel
1 × C-TEC C4403A1R ActiV Rate-of-Rise Heat Detector with Base
4 × C-TEC C4416 ActiV Optical Smoke Detectors with Bases
2 × C-TEC BF430C/CX ActiV Conventional Hi-Output 100dB(A) Wall Sounders with Shallow Base
2 × C-TEC BF370S/No Break Surface Mount Conventional Manual Call Points
2 × C-TEC BCA824 24V 2.3Ah VRLA Backup Batteries

At the centre of the system is the C-TEC CFP702-4 two zone conventional fire alarm panel, paired with ActiV optical smoke detectors, a rate-of-rise heat detector, manual call points and wall-mounted sounders. All components are designed for compatibility and reliable performance, helping installers deliver effective fire detection and alarm signalling with minimal setup time.

Suitable for small commercial premises such as offices, retail units and light industrial buildings, this ActiV kit offers dependable fire protection and excellent value for installers.

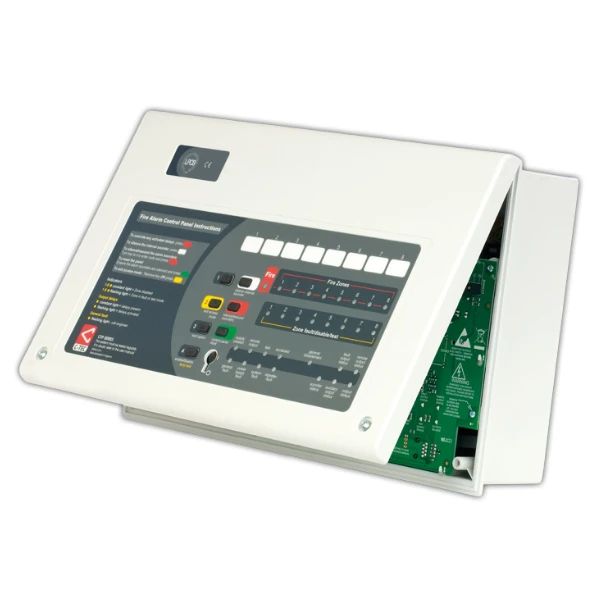

C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel: LPCB certified to EN54-2/4, C-TEC's CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features. Supplied in an attractive flush or surface mountable plastic enclosure.

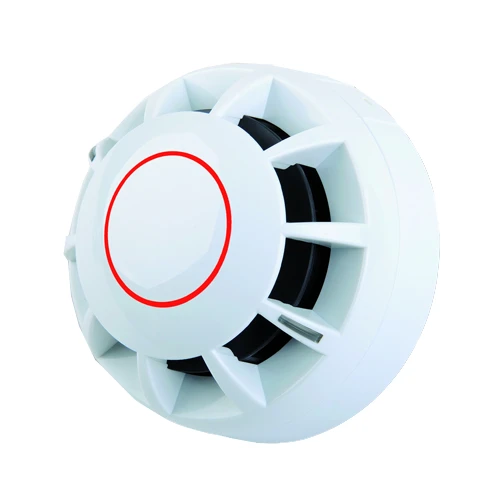

C-TEC C4403A1R ActiV Rate of Rise Heat Detector: A high-quality Type A1R static/rate of rise heat detector offering outstanding detection performance, certified to EN54-5.

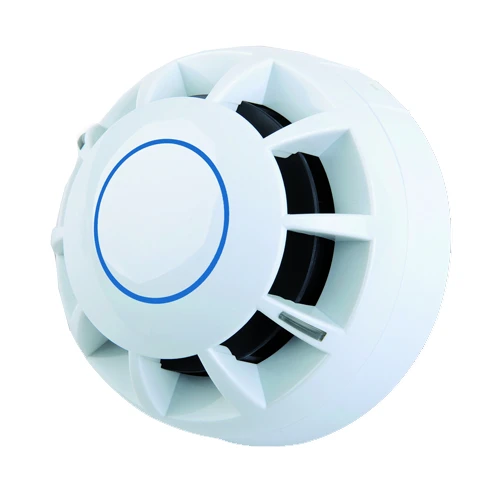

C-TEC C4416 ActiV Optical Smoke Detector: A high-quality optical smoke detector offering outstanding detection performance, certified to EN54-7.

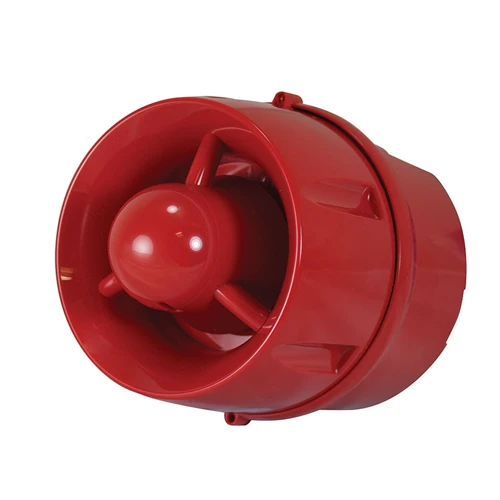

C-TEC BF430C/CC/SR ActiV Conventional Hi-Output 100dB(A) Wall Sounder (shallow base): includes 31 selectable tones and an optional secondary tone, LPCB certified to EN54-3.
C-TEC BF370S 'No Break' Surface Mount Conventional Call Point: IP42 rated call point with resettable element, certified to EN54 Parts 11(LPCB) and 13 (BSI).
C-TEC BC284/2 24V 2.3Ah VRLA battery pack (2 x 12V c/w link wire): A pair of high quality 12V 2.3Ah rechargeable batteries.

Specification	2 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	2 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	25 detectors or 32 detectors/call points combined
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Control Panel Datasheet	Click here to download
C-TEC ActiV Smoke Detector Datasheet	Click here to download
C-TEC ActiV Heat Detector Datasheet	Click here to download
C-TEC Wall Sounder Datasheet	Click here to download
C-TEC Call Point Datasheet	Click here to download

Overview

Features

Technical Data

Specification	2 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	2 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	25 detectors or 32 detectors/call points combined
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max
