C-TEC 2 Zone Fire Alarm Conventional Kit - Apollo (c/w Sounder Beacons)

Name: C-TEC 2 Zone Fire Alarm Conventional Kit - Apollo (c/w Sounder Beacons)
Brand: C-tec
Price: 348.444 GBP
Availability: InStock

Code: FDS361/015

£348.44

INC VAT

Code: FDS361/015

In stock
Typically dispatched in 2-3 working days
Save £ with kits

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£12.42 inc vat)

Apollo 55000-317APO Series 65 Optical Smoke Detector With Diode Base(£18.84 inc vat)

Apollo 55000-122APO Series 65 A1R Heat Detector with Diode Base(£16.38 inc vat)

Apollo 55000-127APO Series 65 BR Heat Detector 75°C with Diode Base(£16.98 inc vat)

FireSmart Conventional Sounder | Deep or Shallow Base(£19.14 inc vat)

FireSmart Conventional Sounder VAD | Red or White Flash(£45.90 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 2 Zone Conventional Fire Alarm Kit with sounder beacons provides a complete solution for installing a reliable conventional fire alarm system in smaller buildings.

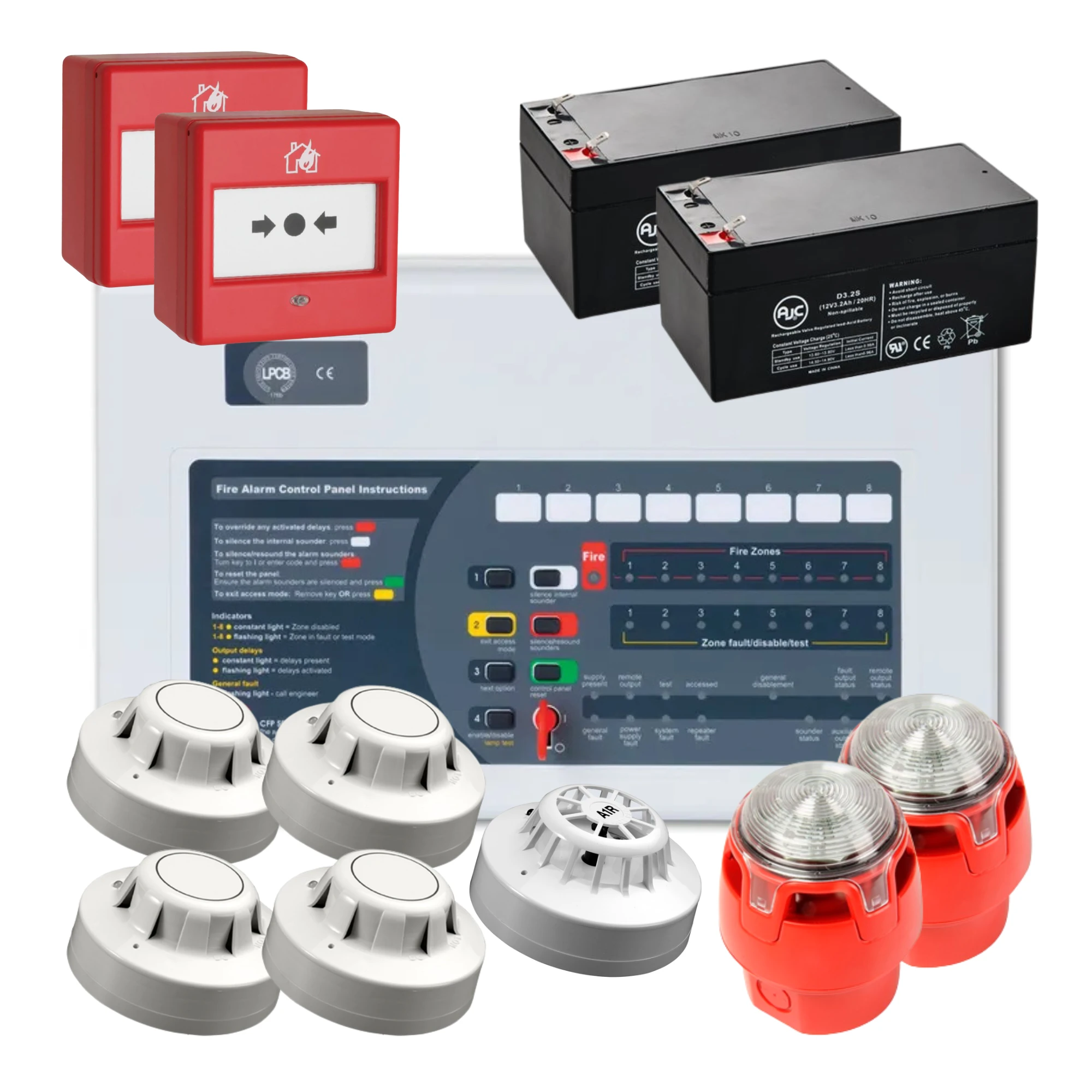

Kit Contents

1 × C-TEC CFP702-4 2 Zone Conventional Fire Alarm Control Panel
1 × Apollo 55000-122APO Series 65 A1R Heat Detector
4 × Apollo 55000-317APO Series 65 Optical Smoke Detectors

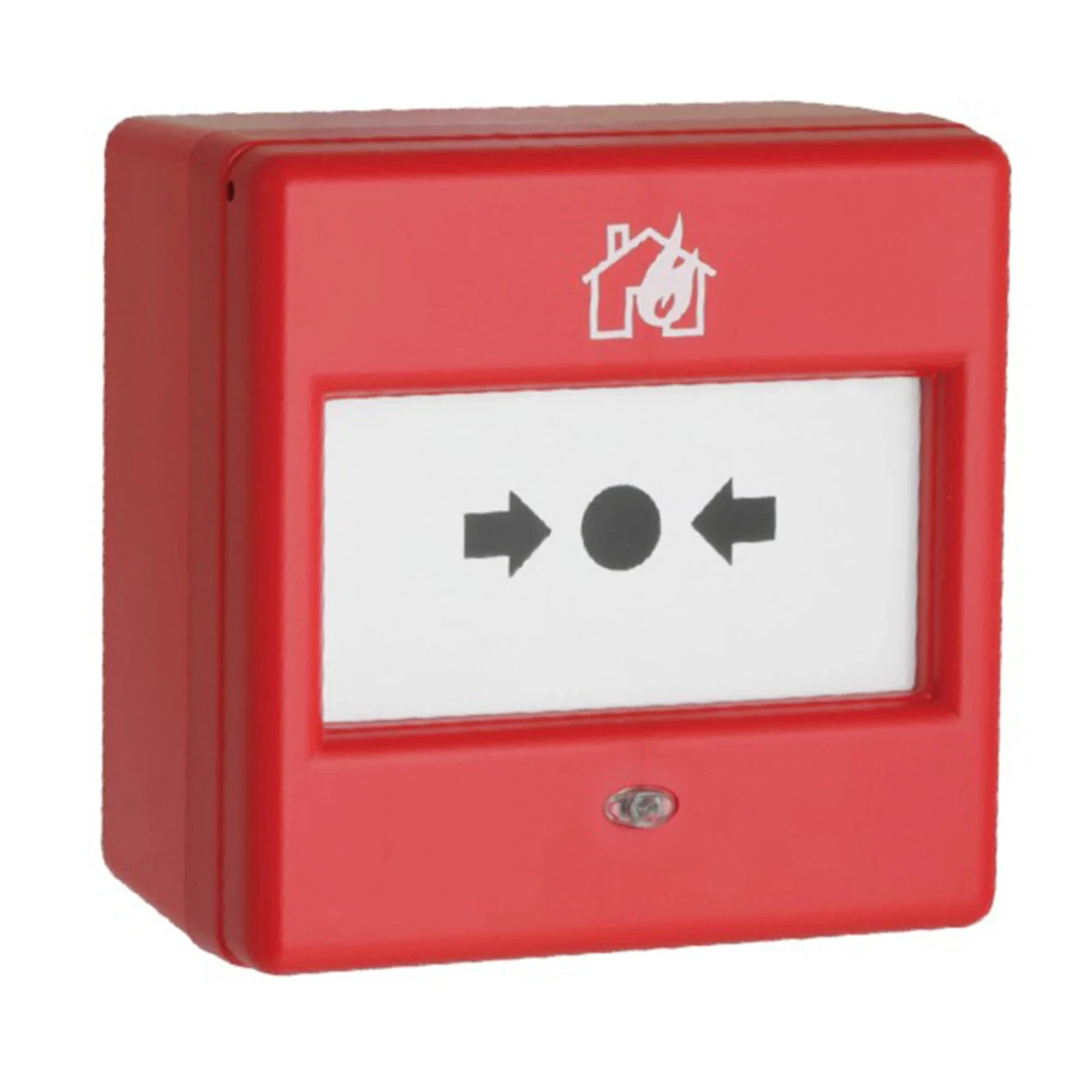

2 × FireSmart Universal Surface Conventional Manual Call Points
2 × FireSmart Sounder VAD Units
2 × 12V 3.2Ah Backup Batteries

This kit combines the C-TEC CFP702-4 2 Zone fire alarm control panel with Apollo Series 65 detection devices and FireSmart notification equipment, supplying the essential components needed to begin installation quickly and efficiently.

Designed as a traditional 4-wire conventional fire alarm system, the kit separates the detection and alarm circuits while delivering dependable fire detection and clear audible and visual warning throughout the building.

Apollo Series 65 detectors provide proven and reliable smoke and heat detection, while FireSmart sounder beacons deliver combined audible and visual alarm notification to help ensure occupants are alerted in the event of a fire.

Suitable for offices, retail units, small commercial premises and residential buildings, this kit offers a practical and straightforward fire alarm solution in a single package.

Complete 2 zone conventional fire alarm kit with sounder beacons
Ideal for small commercial premises and residential buildings
Uses the reliable C-TEC CFP conventional fire alarm panel
Apollo Series 65 detectors provide proven smoke and heat detection
FireSmart sounder beacons provide both audible and visual alarms
Conventional 4-wire system design for dependable operation
Manual call points included for manual alarm activation
Suitable for offices, retail units and small commercial buildings
Supplied with backup batteries for standby power protection
Provides a straightforward and cost-effective fire alarm installation

Specification	Detail
Approvals / Certifications	Certified to EN54 Parts 2 & 4 by LPCB. Certified to EN54-13 by Kiwa Telefication.
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA maximum
Internal Power Supply	19V–28.5V (27V nominal). Ripple 7V maximum (battery fault).
Total Output Current Limited To	1.5A @ 230Vac (maxA @ 146mA)
Quiescent Current	25mA (mains failed, internal sounder active, PSU & gen fault LED lit)
Max Battery Size and Type	2 × 12V 3.2Ah VRLA connected in series. Min. battery size 1.2Ah
No. of Detector Zone Circuits	2 (Max. length per circuit is 500m)
Call Point Resistor Value	470 to 680Ω
Max Devices per Detector Zone	25 detectors (or 32 detectors/manual call points combined)
No. of Conventional Sounder Circuits	4 (Max. length per circuit is 500m)
EOL Resistor Value	6800Ω 5% Tol. 0.25W (blue, grey, red, gold)
Alarm Voltage	27V max. 20V min (final battery voltage)
Max Sounder Output Current	4 × 200mA (800mA total)
Auxiliary Relays	Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max switch current 1A. Max switch voltage 30Vdc
Open Collector Outputs	Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition, provided all relevant delays have expired). Max sink current 30mA. Max open circuit voltage 24V Aux
Other Outputs	24V Aux. Power (Protected by resettable fuse. 100mA min. hold current. Resets when fault removed)
Auxiliary Inputs	Two: (1) Class Change (constant sounders); (2) Alert (pulsed sounders). Connect to 0V to trigger. Max input voltage 27V (non-latching)
Engineer (AL3) Functions	Program coincidence (double knock), Invoke One Man Walk Test, Program delays, Set up zones for non-latching operation, Program sounders to resound (or not resound) when a new zone enters alarm
Expansion Connections	Yes – for optional network driver cards (one required per repeater system), relay output cards and EN54-13 sounder circuit interface boards
Product Dimensions	380W × 235H × 96mm (hole required for flush mounting = 367W × 220H × 75D mm). No bezel required
Construction / Finish	Plastic lid and base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions / Temperature	-5°C to +40°C. Max relative humidity 95%

C-TEC CFP Conventional Fire Alarm Panel Datasheet	Click here to download
Apollo Smoke Detector Datasheet	Click here to download
Apollo Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Sounder Beacon Datasheet	Click here to download
