FireSmart 2 Zone Fire Alarm Conventional Kit

Name: FireSmart 2 Zone Fire Alarm Conventional Kit
Brand: Firesmart
Price: 344.388 GBP
Availability: InStock

Code: FDS300/001

£344.39

INC VAT

Was £351.42

Code: FDS300/001

In stock
Typically dispatched in 3-5 working days
Save £ with kits

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Add these extras to your kit

Please Select

FireSmart Surface Conventional Call Point(£12.66 inc vat)

FireSmart Optical Smoke Detector & Diode Base(£20.16 inc vat)

FireSmart A1R Heat Detector & Diode Base(£21.48 inc vat)

FireSmart Conventional Sounder VAD | Red or White Flash(£45.90 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The FireSmart 2 Zone Fire Alarm Conventional Kit provides a complete fire detection and alarm solution using reliable FireSmart control equipment and detection devices.

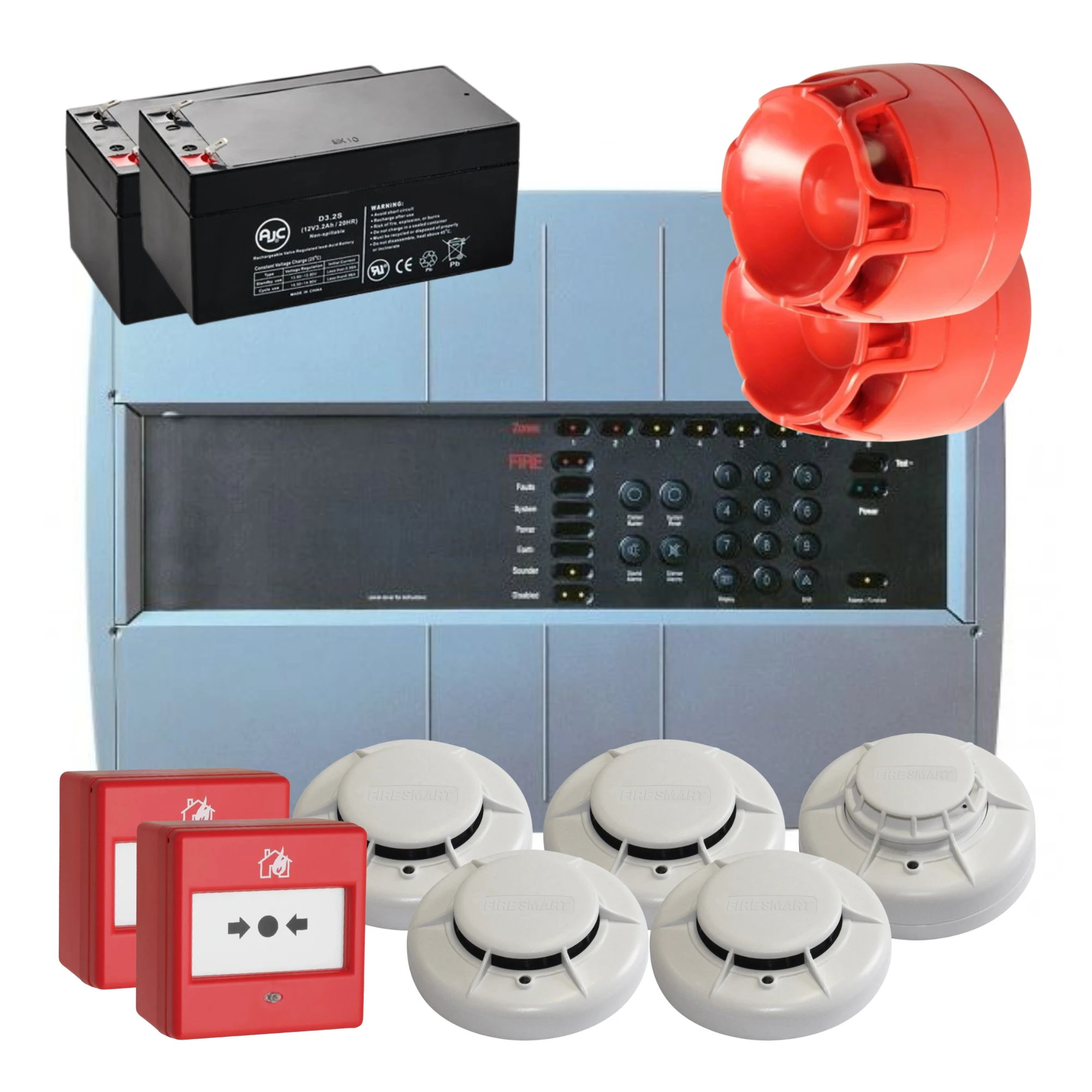

Kit Contents

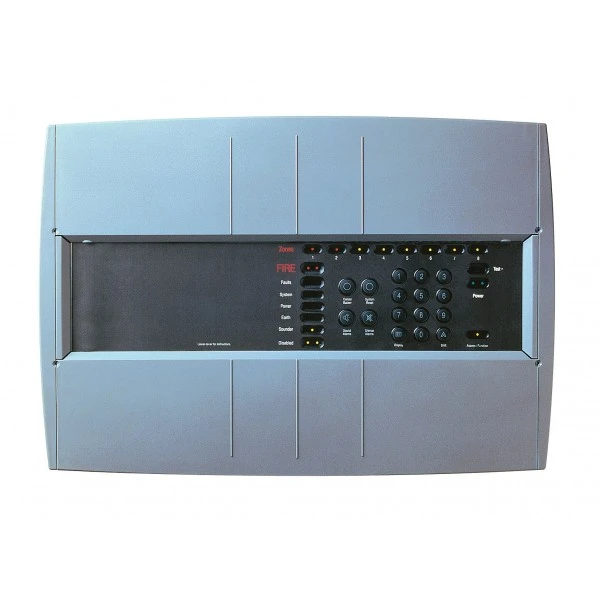

1 × FireSmart 2 Zone Conventional Fire Alarm Control Panel

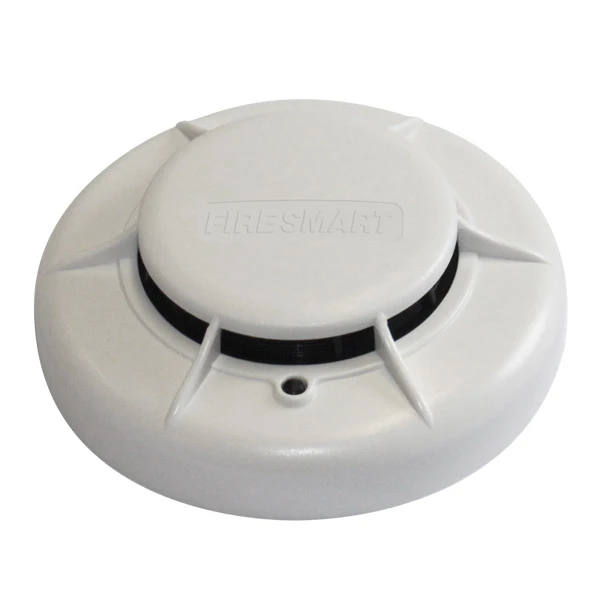

4 × FireSmart Optical Smoke Detectors
1 × FireSmart Rate-of-Rise Heat Detector
5 × FireSmart Diode Bases

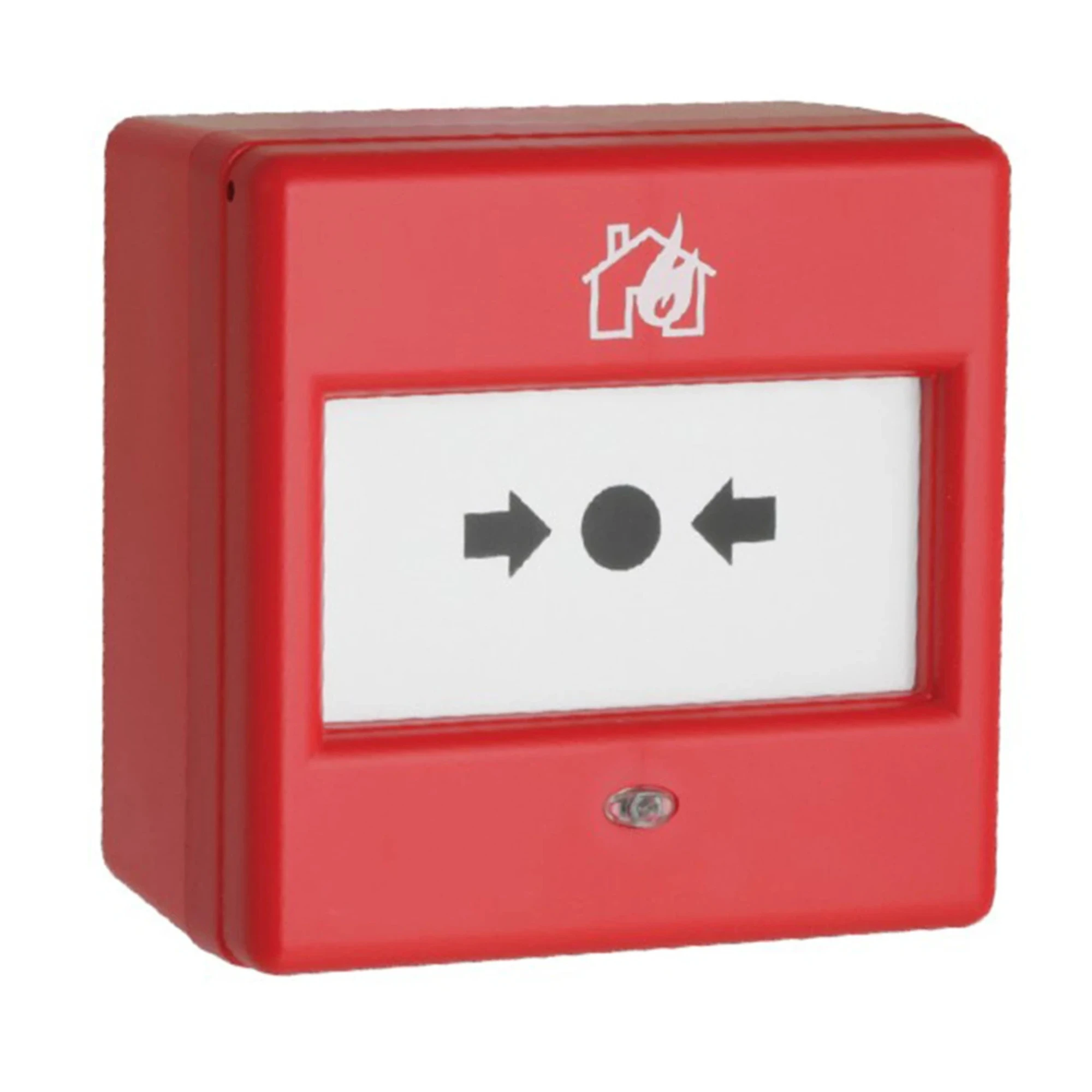

2 × FireSmart Conventional Manual Call Points
2 × FireSmart Sounders with Deep Bases

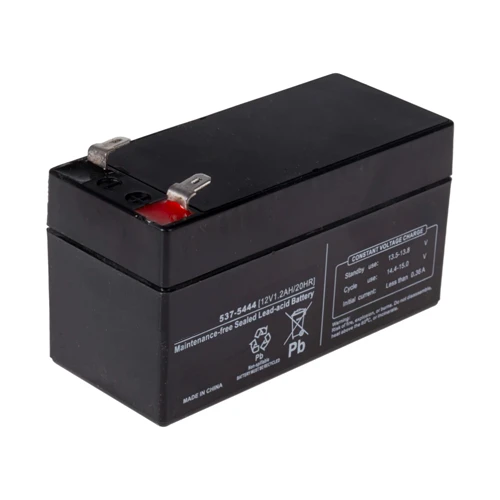

2 × FireSmart 12V 2.1Ah Backup Batteries

Designed for smaller buildings and straightforward installations, this kit contains all the essential components required to begin installing a conventional fire alarm system in one convenient package. The FireSmart 2 zone conventional control panel offers simple operation, dependable performance and an economical solution for many fire alarm installations.

FireSmart optical smoke and heat detectors provide accurate fire detection across a wide range of environments. Optical smoke detectors provide early warning of smoke, while the rate-of-rise heat detector monitors temperature changes for areas where smoke detection may not be suitable. FireSmart manual call points allow occupants to activate the alarm quickly, while FireSmart sounders provide clear audible alarm notification throughout the building.

Configured as a traditional 4-wire conventional fire alarm system, the kit separates detection and alarm circuits to provide reliable performance and straightforward installation.

Suitable for offices, retail units, small commercial premises and residential buildings, this kit offers a practical and cost-effective fire alarm solution.

Complete 2 zone conventional fire alarm installation kit
FireSmart 2 zone conventional fire alarm control panel
FireSmart optical smoke detectors for reliable smoke detection
FireSmart rate-of-rise heat detector for temperature-based detection
FireSmart diode bases for use with FireSmart detectors
Manual call points for manual fire alarm activation
FireSmart sounders provide clear audible alarm notification
Conventional 4-wire system configuration for straightforward installation
Suitable for commercial and residential fire alarm systems
Backup batteries included for standby power protection

Control Panel

Specification	Detail
Approvals / Certifications	Certified to EN54 Parts 2 & 4 by LPCB. Certified to EN54-13 by Kiwa Telefication
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA maximum
Internal Power Supply	19V–28.5V (27V nominal). Ripple 7V maximum (battery fault)
Total Output Current Limited To	1.5A @ 230Vac (maxA @ 146mA)
Quiescent Current	25mA (mains failed, internal sounder active, PSU & gen fault LED lit)
Max Battery Size and Type	2 × 12V 3.2Ah VRLA connected in series. Minimum battery size 1.2Ah
No. of Detector Zone Circuits	2 (Max. length per circuit 500m)
Call Point Resistor Value	470 to 680Ω
Max Devices per Detector Zone	25 detectors (or 32 detectors/manual call points combined)
No. of Conventional Sounder Circuits	4 (Max. length per circuit 500m)
EOL Resistor Value	6800Ω 5% Tol. 0.25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min (final battery voltage)
Max Sounder Output Current	4 × 200mA (800mA total)
Auxiliary Relays	Two: (1) Aux. Fire; (2) Fault. Volt free single pole changeover. Max switch current 1A. Max switch voltage 30Vdc
Open Collector Outputs	Two: (1) Reset (Active during reset cycle); (2) Remote (Active during any unsilenced fire condition, provided delays expired). Max sink current 30mA. Max open circuit voltage 24V Aux
Other Outputs	24V Aux power (Protected by resettable fuse. 100mA min hold current. Resets when fault removed)
Auxiliary Inputs	Two: (1) Class Change, constant sounders; (2) Alert, pulsed sounders. Connect to 0V to trigger. Max input voltage 27V (non-latching)
Engineer (AL3) Functions	Program coincidence (double knock), One Man Walk Test, Program delays, Set zones to non-latching, Configure sounders to resound or not when new zone enters alarm
Expansion Connections	Optional network driver cards (one per repeater system), relay output cards and EN54-13 sounder circuit interface boards
Product Dimensions	380W × 235H × 96mm (Flush mount cut-out 367W × 220H × 75D mm). No bezel required
Construction / Finish	Plastic lid and base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions / Temperature	-5°C to +40°C. Max relative humidity 95%

Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Conventional Sounder Datasheet	Click here to download
