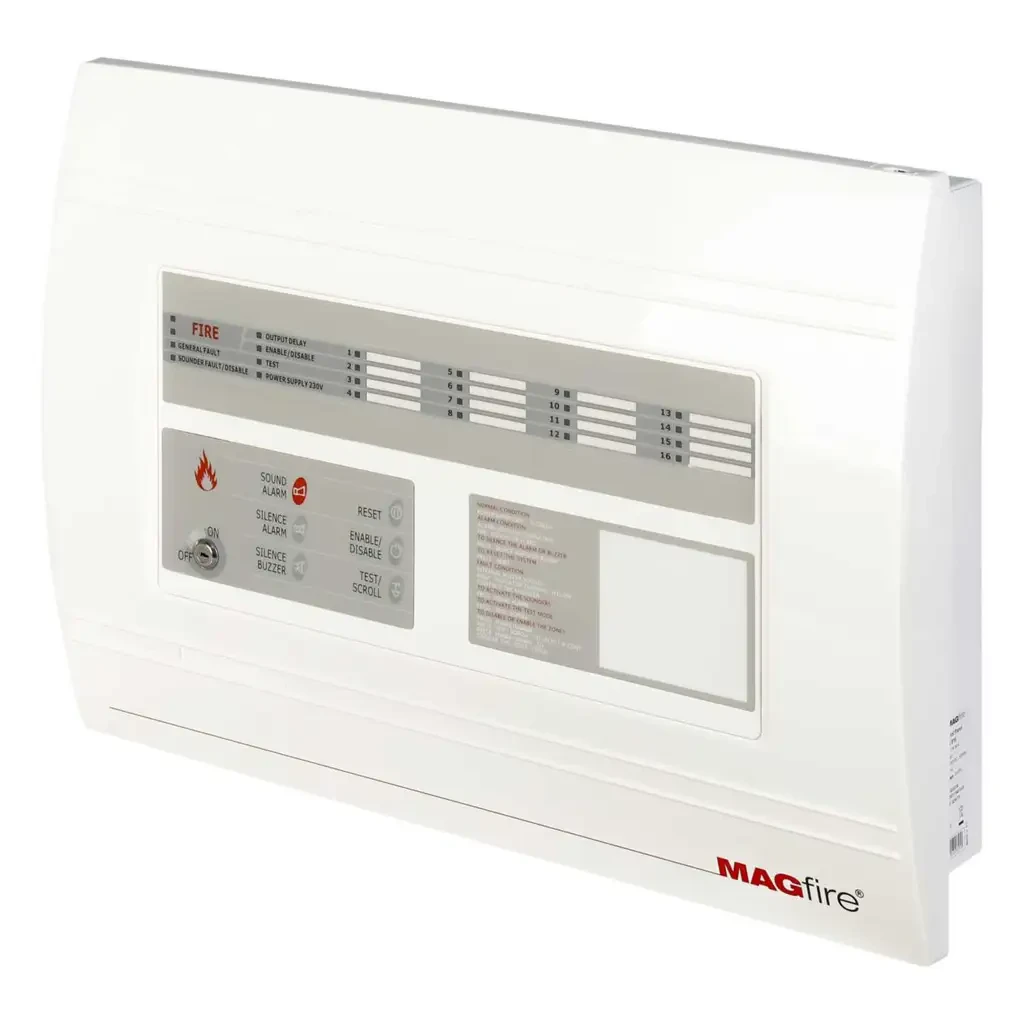

ESP MAGfire MAG816 8 Zone Expandable Fire Panel

Name: ESP MAGfire MAG816 8 Zone Expandable Fire Panel
Brand: Esp-magfire
Availability: InStock

Code: FDS002/279

Call to place order

INC VAT

Code: FDS002/279

In stock
Typically dispatched in 2-5 working days

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (+£550)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The ESP MAGfire 8 Zone Expandable Fire Panel (MAG816) is a conventional control panel designed for reliable performance and easy system expansion.

Supplied with 8 programmable detection zones, the panel can be expanded to 16 zones using additional zone cards, supporting up to 32 detectors per zone and unlimited manual call points.

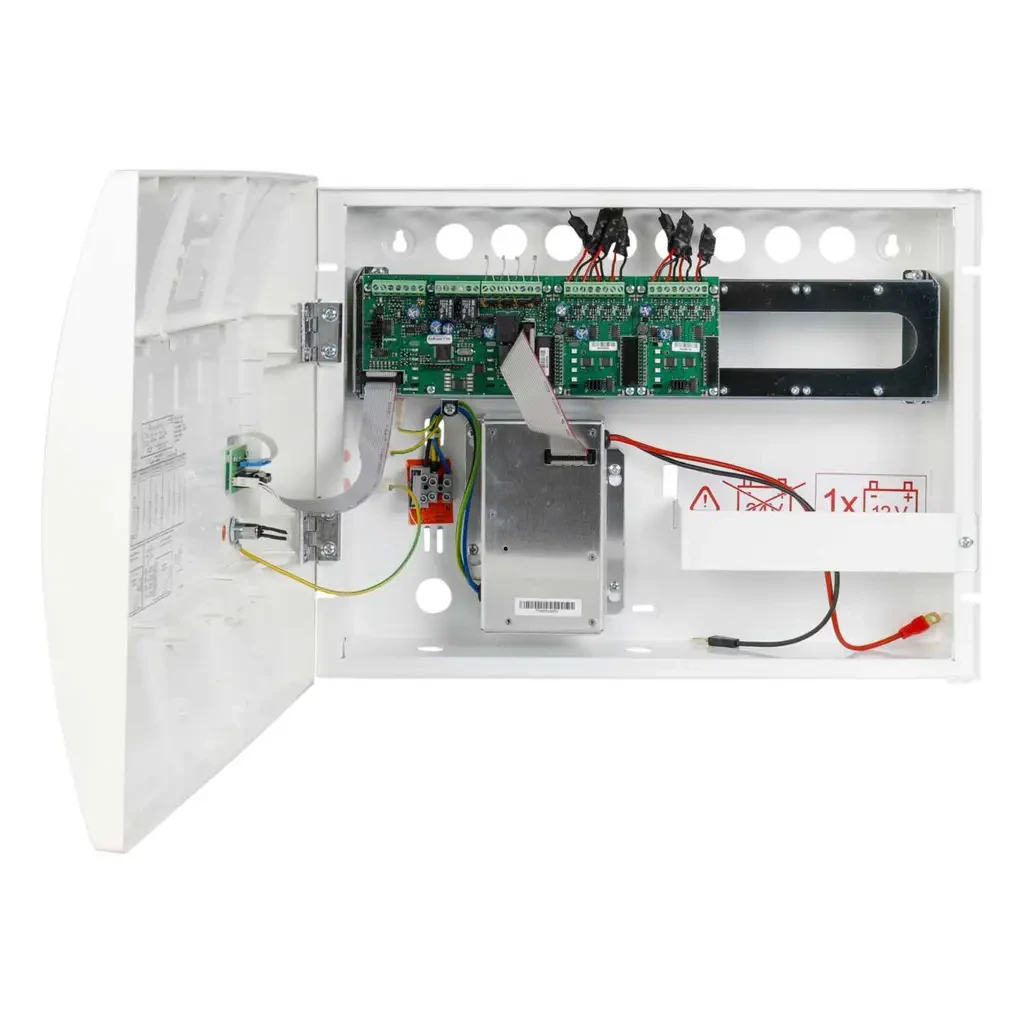

Built in an ABS enclosure, the MAG816 includes active end-of-line monitoring, detector head removal detection, and full compliance with BS 5839-1, EN54-2 and EN54-4 standards.

The MAGfire range combines dependable fire protection with simple operation, making it ideal for small to medium commercial installations.

8 zones expandable to 16
4 sounder circuits expandable to 16
Supports up to 32 detectors per zone
Unlimited call points per zone
Active end-of-line monitoring
Head removal detection
Built-in sound alarm button
One-man walk test function
Alarm delay configuration
Zone and sounder isolate options
Repeater and class change facility
Volt-free fire/fault relay outputs
Individual sounder fault ID
Key switch enable/disable
CE certified to EN54-2 & 4
ABS enclosure for durability
Requires 1 x 12V battery

Specification	Value
Dimensions (mm)	456 × 350 × 125
Maximum Detectors per Zone	32
Thresholds for Zone Conditions (mA)	0–2: Fault condition2–6: Normal condition6–10: Fire condition11–30: Short fault condition
Call Points per Zone	Unlimited
On-Board Sounder Circuits (A)	24V DC (maximum 300mA fused) Monitored
Weight (kg)	4 (without battery)
Warranty (Years)	3
Supply Voltage (VAC)	230
Power Availability (A)	0.7
Mains Fail Consumption (mA)	130 (1 zone expander)260 (2 zone expanders)
Standby Supply	Up to 12V 17Ah (battery calculation required)
Detection Zone End of Line	Custom EOL, MAG-EOL
Fault/Fire Relay	Volt-free 500mA @ 24V (max load)
Auxiliary Output	24V DC 300mA fused
Operating Temperature (°C)	–5 to +40
Storage Temperature (°C)	–20 to +50
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	4-Wire Conventional MAGFIRE Devices
Additional Information	Integral sound alarm buttonEnable/disable security keyOne-man walk test facilityIndividual sounder circuit fault IDIndividual zone/sounder isolateClass change facilityRepeater facility (additional MAG816 required)
Standards	BS EN 54-2, BS EN 54-4

Datasheet	Click here to download
Manual	Click here to download

Overview

Features

Technical Data

Specification	Value
Dimensions (mm)	456 × 350 × 125
Maximum Detectors per Zone	32
Thresholds for Zone Conditions (mA)	0–2: Fault condition2–6: Normal condition6–10: Fire condition11–30: Short fault condition
Call Points per Zone	Unlimited
On-Board Sounder Circuits (A)	24V DC (maximum 300mA fused) Monitored
Weight (kg)	4 (without battery)
Warranty (Years)	3
Supply Voltage (VAC)	230
Power Availability (A)	0.7
Mains Fail Consumption (mA)	130 (1 zone expander)260 (2 zone expanders)
Standby Supply	Up to 12V 17Ah (battery calculation required)
Detection Zone End of Line	Custom EOL, MAG-EOL
Fault/Fire Relay	Volt-free 500mA @ 24V (max load)
Auxiliary Output	24V DC 300mA fused
Operating Temperature (°C)	–5 to +40
Storage Temperature (°C)	–20 to +50
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	4-Wire Conventional MAGFIRE Devices
Additional Information	Integral sound alarm buttonEnable/disable security keyOne-man walk test facilityIndividual sounder circuit fault IDIndividual zone/sounder isolateClass change facilityRepeater facility (additional MAG816 required)
Standards	BS EN 54-2, BS EN 54-4
