Code: FDS100/522
INC VAT
Code: FDS100/522

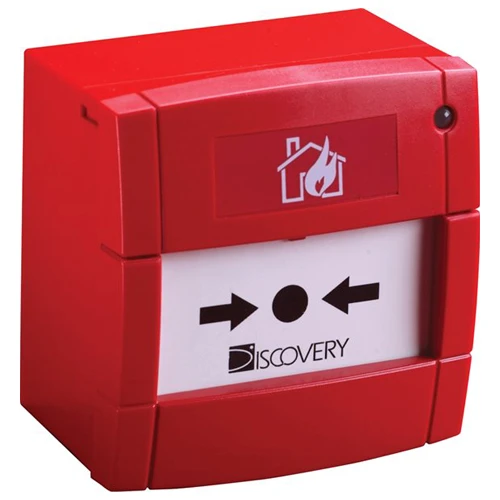

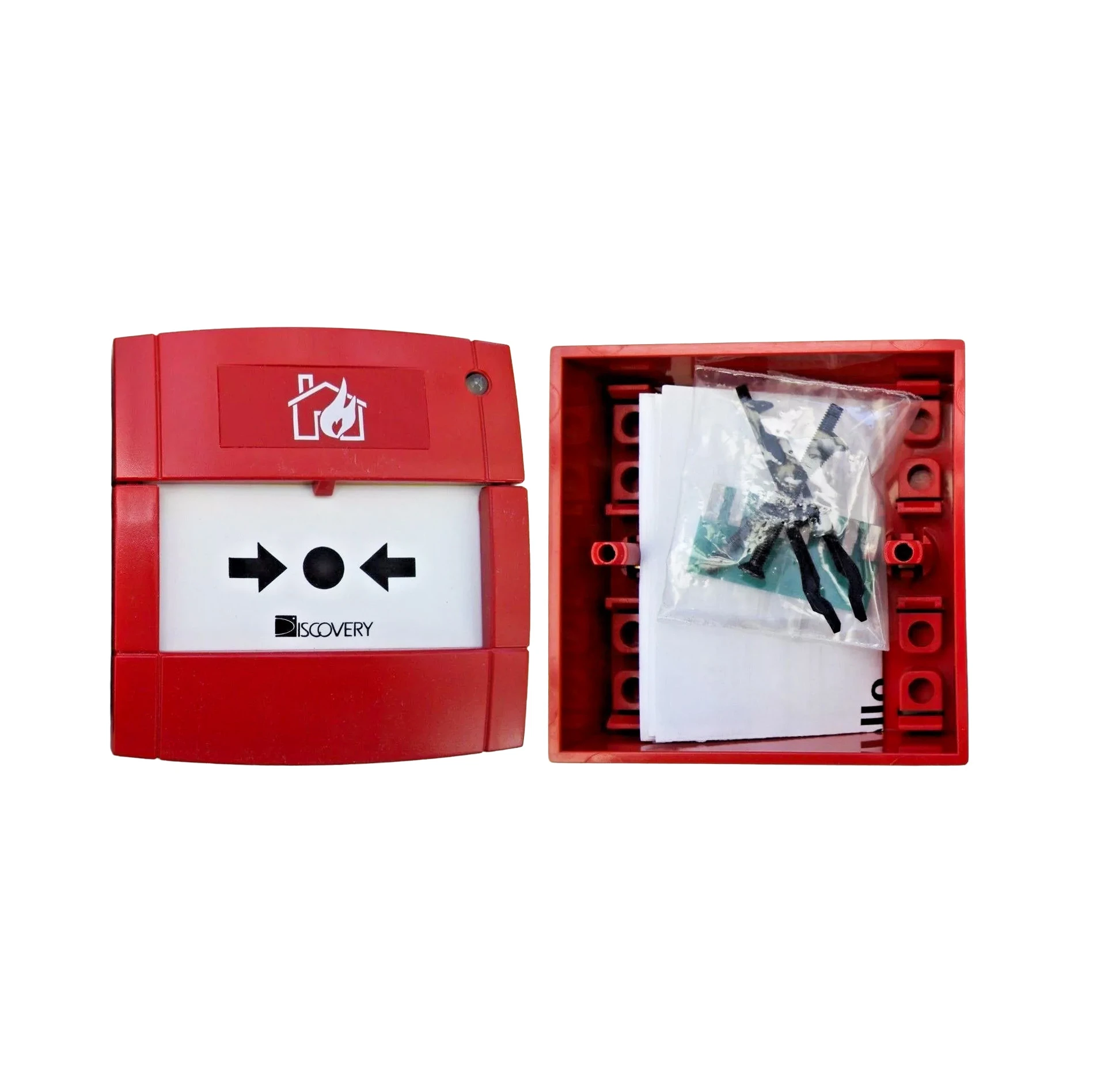

Apollo 58100-908APO Discovery addressable manual call point will work with any addressable alarm using Apollo Discovery protocol. The 58100-908APO uses the older style KAC call point moulding. Incorporating a visible alarm indicator when activated, the manual call point interrupts the polling cycle for a fast response.
Apollo 58100-908APOAPO
Older KAC style housing
Flashing LED option to indicate polling (Discovery systems only)
'Plug and play' terminal connections for fast wiring
Continuity link for wiring test before commissioning
Reports an activation in under 0.2 seconds
Resettable element
Category | Specification | Details |
---|---|---|
General | Warranty | 10 year |
Wireless | No | |
Mechanical | Colour | Red |
Weight | 180g | |
Materials housing | Polycarbonate | |
Product length | 88mm / 3.46in | |
Product width | 88mm / 3.46in | |
Product depth | 59mm / 2.32in | |
Detection principle | Operation of a switch | |
Key type | KAC Manual Call Point test & reset key | |
Conformance | Standards | EN 54-17 |
Approvals | LPCB, CPR | |
Performance | Analogue value nominal | 16 |
Electrical | Protocol voltage (max) | 9V |
Protocol voltage (min) | 5V | |
Protocol voltage | 5 to 9V peak to peak | |
Power-up surge current | 1mA | |
Quiescent current | 100μA | |
Polarity | L1 & L2 are polarity sensitive | |
Loop powered | Yes | |
Environmental | Humidity (max) | 95% RH |
Humidity (min) | 0% RH | |
Humidity | 0% to 95% (no condensation or icing) | |
Humidity note | No condensation or icing | |
Operating temperature (min) | -20°C / -4°F | |
Operating temperature (max) | 60°C / 140°F | |
Operating temperature | -20 to 60°C / -4 to 140°F | |
IP rating value | IP24D |
