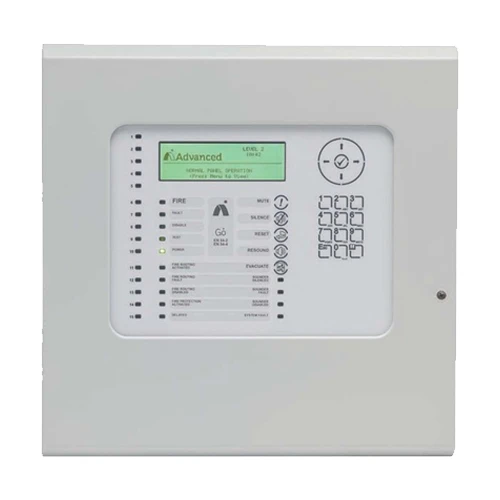

Advanced Electronics GO1 Single Loop Fire Alarm Control Panel | Apollo/Hochiki

Name: Advanced Electronics GO1 Single Loop Fire Alarm Control Panel | Apollo/Hochiki
Brand: Advanced-electronics
Price: 505.5 GBP
Availability: InStock

Code: FDS372/180

£505.50

INC VAT

Code: FDS372/180

Maximum 50 addresses
Multiprotocol support, Apollo (Discovery, XP95), Hochiki (ESP)
Graphical LCD user interface, LED indicators & push buttons.

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The new Go series from Advanced is an evolution for non-networked single-loop fire alarm systems. Its innovative design includes several improvements and upgrades to critical safety features, while retaining all the benefits and user-friendly operation of an Advanced fire alarm control panel.

This panel features a new ergonomic layout of control panel combined with a high resolution, high contrast, graphical LCD display. The tactile keypad allows simple select-and-click programming for faster engineer configuration and simple end-user operation.

Maximum 50 addresses
Multiprotocol support, Apollo (Discovery, XP95), Hochiki (ESP)
Graphical LCD user interface, LED indicators & push buttons.
Installer-friendly Auto-learn, Loop detection and On-board scope facility.
500 fire + 5000 general event logging, with advanced diagnostic precision to aid installation & fault-finding.
Integral 15 Zone LEDs ensures compliance with BS5839, with 35 additional software indication zones.
Uses a new Configuration Tool with Office365 appearance with better graphics and easier functions for programming.
Two on-board Sounder outputs, three on-board Relay outputs.
Optional 3 monitored input/outputs for Fire/Fault routing (with P-Bus adaptor & routing card) for full EN54 compliance when connected to an Alarm Receiving Centre.
Dedicated USB Type B port for direct PC connection.
Ethernet port for Cloud connection via AdvancedLive, to provide remote notification and panel management.
Innovative 'no hinge' removable door and hangable chassis for easier installation.
Employing an identical monitoring feature as the Mx-5000 series, the Go series meets the requirements of EN54-13 (2005) Clauses 5.3.4.1 and 5.3.4.2 (partial open & short circuits) for optimal fire system performance and complete peace of mind.

Specification	Details
Date of first manufacture	2021
Menu response time (display & keyboard)	12 MBps
Maximum number of loops	1
Loop current	500 mA
Maximum addresses per loop	50
Protocols supported	Apollo, Hochiki, Argus Vega
Number of inputs on board	2 (1 key switch, 1 monitored)
Number of sounder outputs on board	2 @ 1 A each (NB: Max. 1 A load, 1 A programmable)
Number of relay outputs on board	3 (1 A 30 VAC/DC max, 10 mA 5 V min)
Other monitored I/O	3 inputs / outputs for fire fault routing
Event capacity	5000 event and diagnostic + 500 fire
Auxiliary supply	100 mA (with extra PCB GOP-001)
Battery standby	Up to 2 × 12 V, 7 Ah (24 hr standby only)
Maximum number of zones	50
Networkable / repeaters	No
Maximum zones on network	N/A
Maximum panels on network	N/A
Programmable push buttons	No
Zonal LEDs	15 integrated
PC configuration tool	Supported (Next-generation PC ConfigTool)
RS232 communication	No
RS485 communication	No
USB communication	Yes (USB Type B interface for PC connection)
Ethernet communication	Yes (10-Base-T, 100-Base-T)
BMS module onboard / external	No
Graphic software	No
Dimensions (H × W × D)	345 × 345 × 87 mm
Semi-recess option	No
Access door	Innovative no-hinge door for quick removal and easy installation
Availability	Distribution and direct
Warranty	3 years
EN54-2 (Control & Indicating Equipment)	Yes (FM approved)
EN54-4 (Power Supply Equipment)	Yes (FM approved)
EN54-13	No

Advanced Electronics GO1 \| Single Loop Fire Alarm Control Panel \| Apollo/Hochiki Data Sheet	Click here to download
Advanced Electronics GO1+ Brochure	Click here to download

Overview

Features

Technical Data

Specification	Details
Date of first manufacture	2021
Menu response time (display & keyboard)	12 MBps
Maximum number of loops	1
Loop current	500 mA
Maximum addresses per loop	50
Protocols supported	Apollo, Hochiki, Argus Vega
Number of inputs on board	2 (1 key switch, 1 monitored)
Number of sounder outputs on board	2 @ 1 A each (NB: Max. 1 A load, 1 A programmable)
Number of relay outputs on board	3 (1 A 30 VAC/DC max, 10 mA 5 V min)
Other monitored I/O	3 inputs / outputs for fire fault routing
Event capacity	5000 event and diagnostic + 500 fire
Auxiliary supply	100 mA (with extra PCB GOP-001)
Battery standby	Up to 2 × 12 V, 7 Ah (24 hr standby only)
Maximum number of zones	50
Networkable / repeaters	No
Maximum zones on network	N/A
Maximum panels on network	N/A
Programmable push buttons	No
Zonal LEDs	15 integrated
PC configuration tool	Supported (Next-generation PC ConfigTool)
RS232 communication	No
RS485 communication	No
USB communication	Yes (USB Type B interface for PC connection)
Ethernet communication	Yes (10-Base-T, 100-Base-T)
BMS module onboard / external	No
Graphic software	No
Dimensions (H × W × D)	345 × 345 × 87 mm
Semi-recess option	No
Access door	Innovative no-hinge door for quick removal and easy installation
Availability	Distribution and direct
Warranty	3 years
EN54-2 (Control & Indicating Equipment)	Yes (FM approved)
EN54-4 (Power Supply Equipment)	Yes (FM approved)
EN54-13	No
