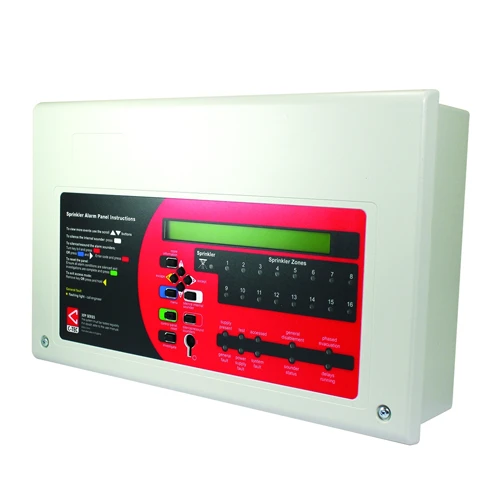

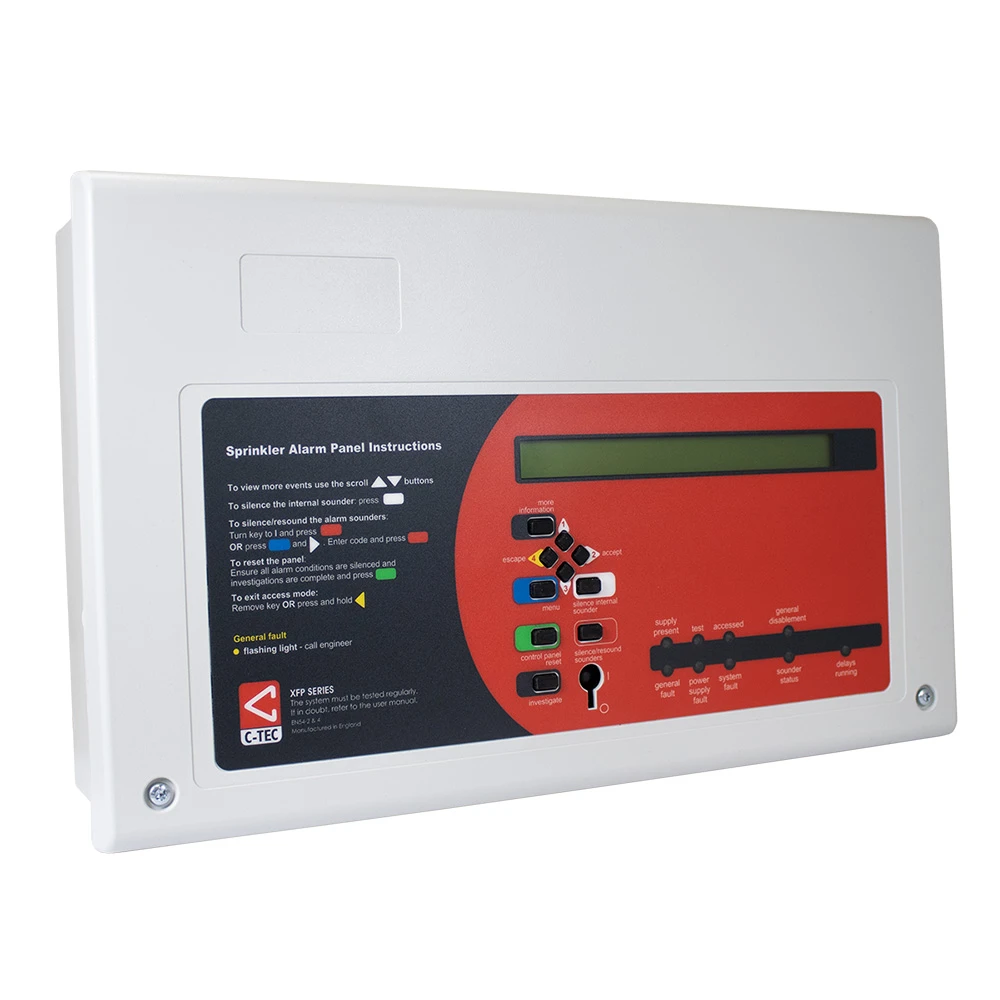

C-TEC SAP501E/X SAP 1 Loop 16 Zone Addressable Sprinkler Monitoring Panel (XP95/Discovery Protocol)

Name: C-TEC SAP501E/X SAP 1 Loop 16 Zone Addressable Sprinkler Monitoring Panel (XP95/Discovery Protocol)
Brand: C-tec
Price: 412.8 GBP
Availability: InStock

Code: FDS201/769

£412.80

INC VAT

Code: FDS201/769

Ideal for monitoring up to 126 sprinkler flow switches
One switch monitoring unit required per monitored flow switch
Utilises the same technology as C-TEC's popular XFP addressable fire panel

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC SAP 1 Loop 16 Zone Addressable Sprinkler Monitoring Panel is designed to provide reliable monitoring of sprinkler flow switches in addressable fire alarm systems using the Apollo XP95 and Discovery protocol.

Capable of monitoring up to 126 sprinkler flow switches on a single loop, the panel requires one switch monitoring unit per monitored flow switch, allowing clear and precise fault and alarm identification across large sprinkler installations.

Using the same core technology as C-TEC’s widely installed XFP addressable fire alarm control panels, the SAP panel offers proven reliability, familiar configuration and seamless integration with compatible addressable devices.

The panel supports up to 16 sprinkler zone indicators, which can be freely assigned using the panel’s PC programming software, making it suitable for both simple and more complex sprinkler monitoring layouts.

Housed in an attractive plastic enclosure suitable for flush or surface mounting, the panel is well suited to commercial and industrial environments where clear system indication and ease of operation are required.

Combined keypad or keyswitch entry provides controlled access to panel functions, ensuring authorised operation while maintaining system security.

This panel is ideal for use in buildings where sprinkler systems must be monitored independently or alongside addressable fire alarm systems in line with fire safety requirements.

Ideal for monitoring up to 126 sprinkler flow switches
One switch monitoring unit required per monitored flow switch
Utilises the same technology as C-TEC's popular XFP addressable fire panel
Up to 16 sprinkler zone indicators available (assignable via the panels PC programming tools)
Attractive flush or surface mountable plastic enclosure
Combined keypad or key switch entry

Protocol/compatibility	Apollo XP95/Discovery.
Mains supply	230V 50/60Hz.
Mains rated current	350mA maximum.
Internal power supply	27Vdc nominal.
Total output current limited to	1.4A @ 230Vac (Imax.A 210mA; Imin. 40mA).
Quiescent current	50mA (loop unloaded).
Max battery size and type	2 x 12V 3.2Ah VRLA connected in series.
No. of loop drivers	1.
Max. loop output current	500mA (25V min; 34V max).
Max. loop length	1KM.
Max. addressable devices per loop	126.
No. of conventional sounder circuits	2 (Max. length per circuit is 500m).
EOL resistor value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Max. sounder output current	400mA.
Auxiliary relays	3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Other outputs	24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA.
Auxiliary inputs	2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching).
PC connection	PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available.
Indicators	2 line x 40 character backlit display; 16 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault
Connections	Fixed, largest acceptable conductor size 1mm2.
Expansion connections	2-wire RS485 non-redundant network/repeater connection available via optional XFP761 network card. Max. 8 mains per network (Limit 1KM.) or 8 repeaters per non-networked main.
Product dimensions (mm)	380 W x 235 H x D 96mm (hole required for flush mounting = 367 W x 220 H x 75 D mm. No bezel required).
Construction & finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30.
Weight	1.8kg (without batteries).
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
