Apollo 55000-122APO | Series 65 A1R Heat Detector | Complete with Diode Base

Name: Apollo 55000-122APO | Series 65 A1R Heat Detector | Complete with Diode Base
Brand: Apollo
Price: 15.96 GBP
Availability: InStock

Code: FDS555/001

£15.96

INC VAT

Code: FDS555/001

Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty, smoky or steamy under natural conditions
Flashing LED versions available
Diode base included

Have a question about this? Click here

Overview Features Technical Data FAQs Downloads & Resources

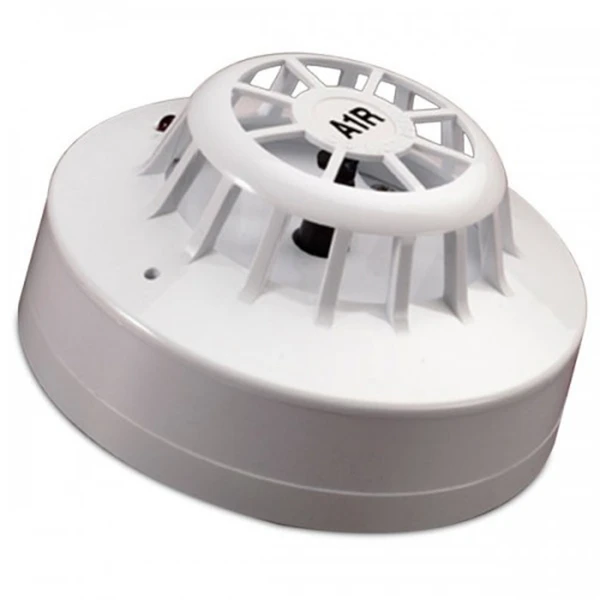

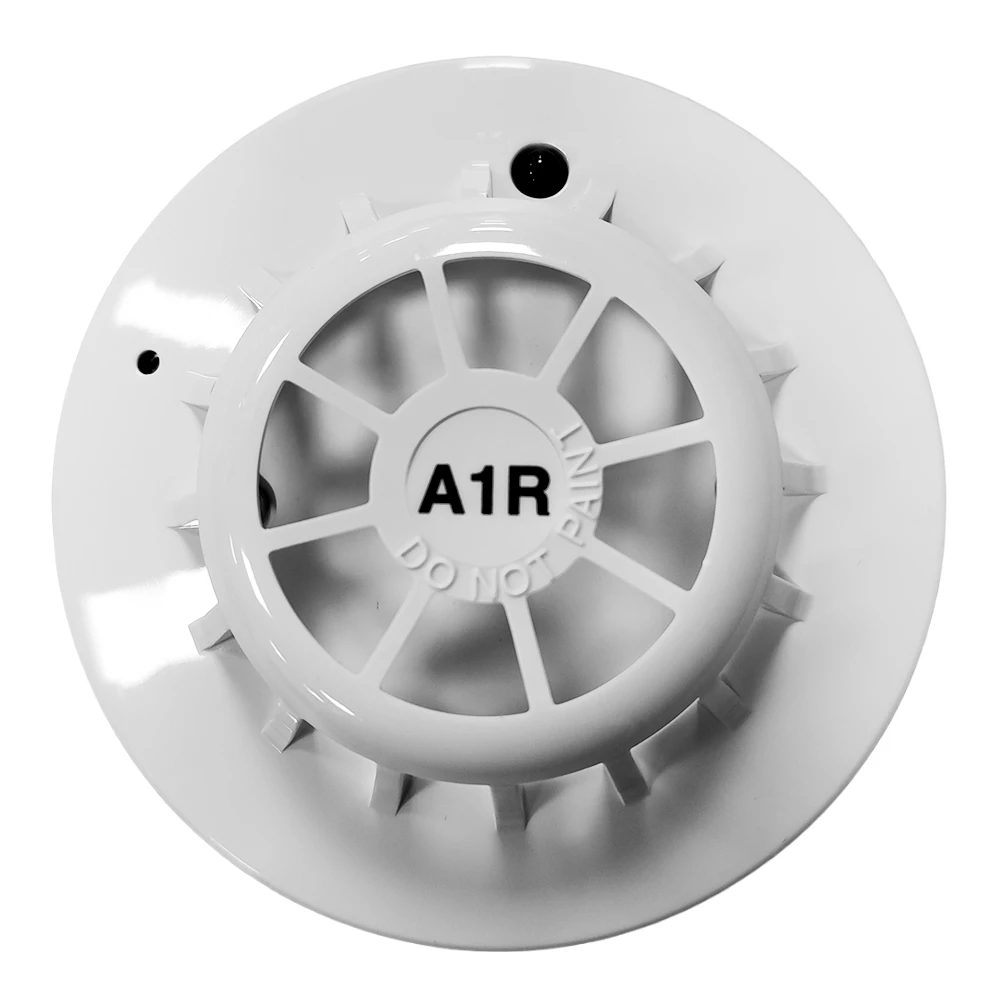

The Apollo 55000-122APO Series 65 A1R Heat Detector is a reliable conventional detector suitable for use with most conventional fire alarm control panels.

Housed in a casing that matches other detectors in the Apollo Series 65 range, it ensures visual consistency across your system.

This A1R model uses a dual thermistor sensing network to monitor ambient temperature. It is designed to trigger an alarm when the temperature rises rapidly—between 12°C and 15°C per minute, or reaches a fixed threshold of 57°C.

This makes it ideal for areas where smoke detectors may cause false alarms, such as kitchens, boiler rooms, or garages.

Apollo 55000-122APO
Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under natural conditions
Wide operating voltage
Flashing LED and magnet operated test switch option

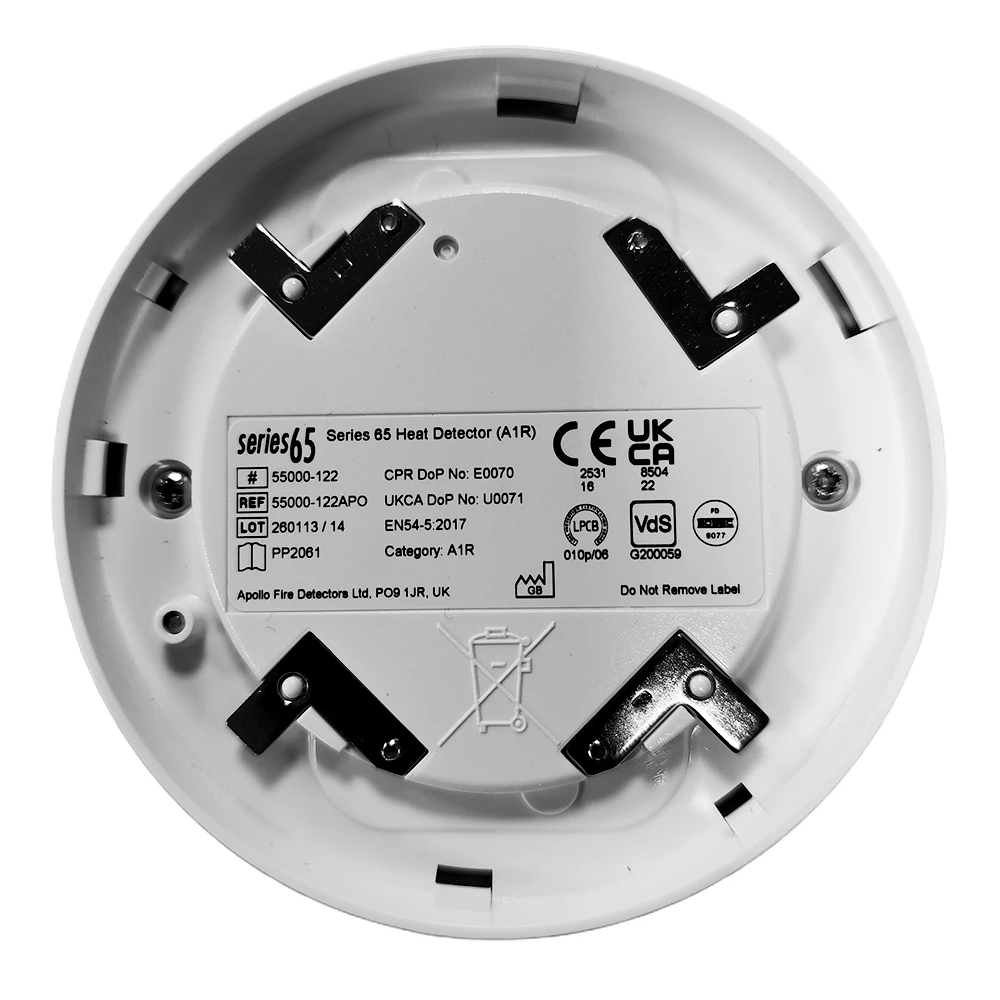

Complete with diode base

Warranty	10 years
Applications	B&Bs/guest houses Cafes Dusty environments Restaurants Retail Small to medium buildings
Heat classification	A1R
Colour	White
Weight	80g
Materials housing	Polycarbonate
Product length	42mm
Product diameter	100mm
Product length	1.65in
Product diameter	3.94in
Standards	EN 54-5
Approvals	CPR FG VdS BOSEC LPCB
Polarity	L1 & L2 are polarity insensitive
Holding voltage	6 to 6V
Holding voltage (max)	6V
Holding voltage (min)	6V
Minimum voltage to light alarm LED	12V
Alarm load	420Ω in series with 2V drop
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity Note	no condensation or icing
Humidity	0% to 95% (no condensation or icing)
Operating temperature	-20 to 90°C
Operating temperature (max)	90°C
Operating temperature (min)	-20°C
IP rating Value	IP23D
Storage temperature (max)	120°C
Storage temperature (min)	-30°C

What type of alarm panels is the Apollo 55000-122APO compatible with?

It is compatible with most conventional fire alarm control panels.

Where is an A1R heat detector best used?

A1R heat detectors are ideal for environments where smoke may be present during normal conditions, such as commercial kitchens, utility rooms, or workshops.

What triggers the detector to go into alarm?

The detector triggers an alarm either when the temperature exceeds 57°C or when there is a rapid temperature increase of 12–15°C per minute.
