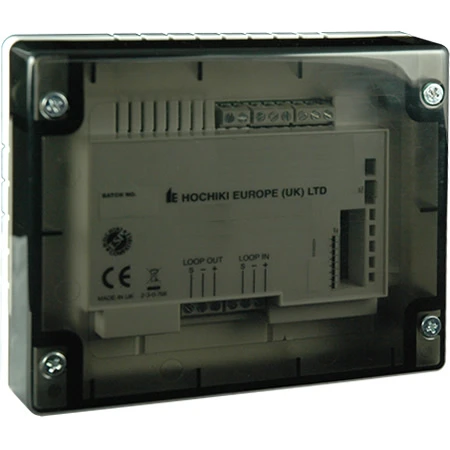

Hochiki CHQ-DIM2(SCI) Addressable Dual Input Module

Name: Hochiki CHQ-DIM2(SCI) Addressable Dual Input Module
Brand: Hochiki
Price: 51.24 GBP
Availability: InStock

Code: FDS900/096

£51.24

INC VAT

Code: FDS900/096

Hochiki CHQ-DIM2(SCI)
Single loop address
Loop powered

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Hochiki CHQ-DIM2(SCI) is a Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment. Also available as a DIN Rail mountable version; both models feature an integral short-circuit isolator.

Hochiki CHQ-DIM2(SCI)
Single loop address
Loop powered
2 Independent inputs for monitoring of volt free contacts
Each input can be configured to monitor either N/O or N/C contacts
Boxed module version available
Both models feature an integral SCI
Both models approved by LPCB & VdS
CHQ-Backbox available separately

Specification	Details
Operating Voltage	17–41 VDC
Quiescent Current (typ)	280 µA
Current Consumption	22 mA ± 20% (polling), 4.3 mA (both inputs active)*¹
Current in Short-Circuit	8 mA
Maximum Short-Circuit Current	1 A
Input Line Resistance	ON threshold <50 Ω, OFF threshold >100 kΩ
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-30°C to +60°C
Maximum Humidity	95% RH, non-condensing (at 40°C)

Hochiki CHQ-DIM2(SCI) Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Operating Voltage	17–41 VDC
Quiescent Current (typ)	280 µA
Current Consumption	22 mA ± 20% (polling), 4.3 mA (both inputs active)*¹
Current in Short-Circuit	8 mA
Maximum Short-Circuit Current	1 A
Input Line Resistance	ON threshold <50 Ω, OFF threshold >100 kΩ
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-30°C to +60°C
Maximum Humidity	95% RH, non-condensing (at 40°C)

Downloads & Resources

Related Products

Shop by Brand

We have every brand you work with so you can get everything you need in one place.

Manufacturer's Training

Book your manufacturer training with Fire Detection Shop today

Products From Fire Detection Shop

If you’re looking for high quality fire detection, security of fire safety equipment, we are your one-stop-shop for everything you need to get your job done.

Fire Detection Shop has a wide range of products, kits and accessories in stock and ready to ship - so you can place your order now with confidence.

To help you choose the right product, our technical team are on the end of the telephone to answer your questions. Alternatively, you can complete the form here and one of our specialists will call you back.

We have a team of in-house engineers trained to design, install and commission the products we sell. If you’re interested in the services we can provide you with a quotation.

Hochiki CHQ-DIM2(SCI) Addressable Dual Input Module

£51.24

Hochiki ATJ-EN(WHT) Addressable Heat Detector

Hochiki ALN-EN(WHT) | Addressable Optical Smoke Detector

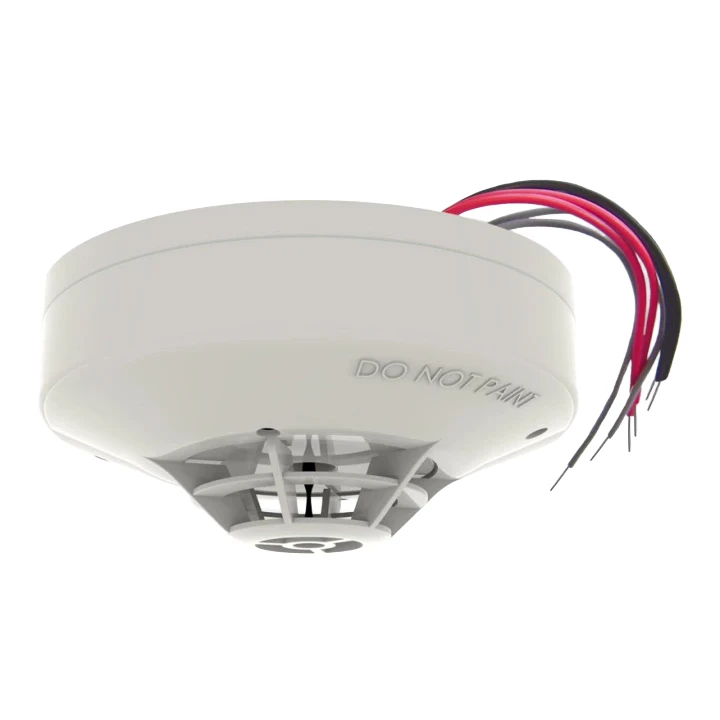

Hochiki ACB-EW Weatherproof Addressable Heat Detector

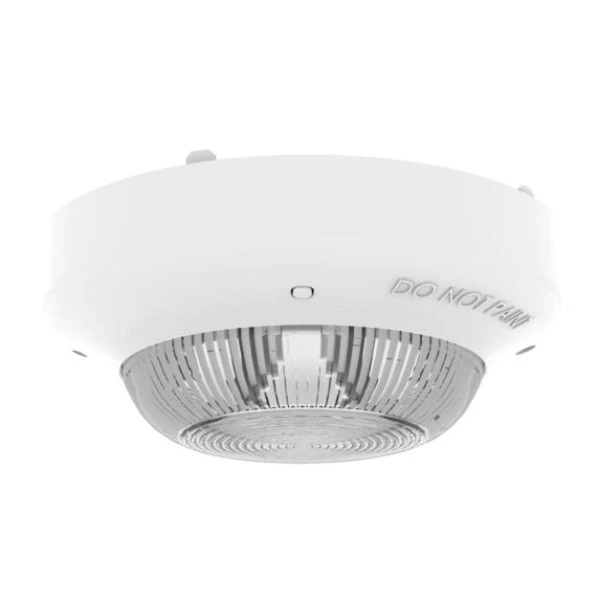

Hochiki CHQ-ARI Addressable Remote Indicator
