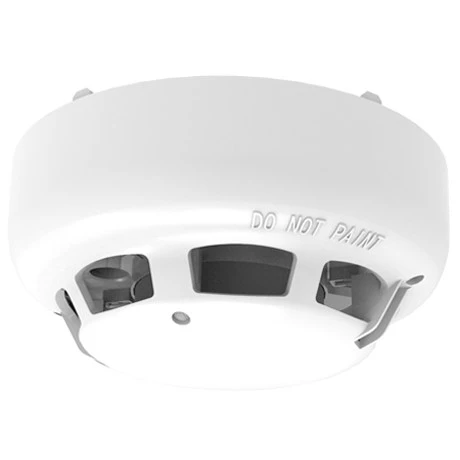

Hochiki ALN-EN(WHT) | Addressable Optical Smoke Detector

Name: Hochiki ALN-EN(WHT) | Addressable Optical Smoke Detector
Brand: Hochiki
Price: 33.239999999999995 GBP
Availability: InStock

Code: FDS100/098

£33.24

INC VAT

Code: FDS100/098

ALN-EN(WHT)
Hochiki ESP Protocol
Removable, High Performance chamber

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Hochiki ALN-EN(WHT) addressable smoke detector incorporates Hochiki's newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications.

This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.

ALN-EN(WHT)
Hochiki ESP Protocol
Removable, High Performance chamber
Twin LEDs allow 360 viewing - green when polling, turn red in fire
Locking mechanism (sensor to base)
Variable sensitivity
Electronically addressed
Pulsing/non-pulsing controlled from panel
Approved by LPCB & Vds
SIL Level 2 approved variants available
White casing
Base required

Parameter	Value
Ordering Code	ALN-EN – Ivory / ALN-EN(WHT) – White / ALN-EN(BLK) – Black
Operating Voltage	17 – 41 VDC
Low Power Mode (typ)	120 µA
Quiescent Current (typ)	400 µA
Alarm Current	9.1 mA (controlled by CIE, excluding remote indicator)
Transmission Method	Digital Communications using ESP
Operating Temperature Range	-10 °C to +50 °C
Operating Humidity	95% RH – Non-condensing (at 40 °C)
Sensitivity Levels	2%/m to 4.5%/m
Storage Temperature Range	-30 °C to +60 °C
Storage Humidity	<80% RH (at 60 °C)
Colour / Case Material	Ivory, White or Black / ABS
Weight	95 g
Diameter / Height	100 mm / 45 mm
Compatible Bases	YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB2, YBN-R/3(SCI)
Base Fixing Centres	48 ~ 74 mm
Approvals	LPCB, VdS
Wind Exposure (Ref EN54-7)	1 ± 0.2 m/s
Ingress Protection Rating	IP42

Hochiki ALN-EN Addressable Optical Smoke Detector Datasheet

Click here to download

Overview

Features

Technical Data

Parameter	Value
Ordering Code	ALN-EN – Ivory / ALN-EN(WHT) – White / ALN-EN(BLK) – Black
Operating Voltage	17 – 41 VDC
Low Power Mode (typ)	120 µA
Quiescent Current (typ)	400 µA
Alarm Current	9.1 mA (controlled by CIE, excluding remote indicator)
Transmission Method	Digital Communications using ESP
Operating Temperature Range	-10 °C to +50 °C
Operating Humidity	95% RH – Non-condensing (at 40 °C)
Sensitivity Levels	2%/m to 4.5%/m
Storage Temperature Range	-30 °C to +60 °C
Storage Humidity	<80% RH (at 60 °C)
Colour / Case Material	Ivory, White or Black / ABS
Weight	95 g
Diameter / Height	100 mm / 45 mm
Compatible Bases	YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB2, YBN-R/3(SCI)
Base Fixing Centres	48 ~ 74 mm
Approvals	LPCB, VdS
Wind Exposure (Ref EN54-7)	1 ± 0.2 m/s
Ingress Protection Rating	IP42

Downloads & Resources

Related Products

Shop by Brand

We have every brand you work with so you can get everything you need in one place.

Manufacturer's Training

Book your manufacturer training with Fire Detection Shop today

Products From Fire Detection Shop

If you’re looking for high quality fire detection, security of fire safety equipment, we are your one-stop-shop for everything you need to get your job done.

Fire Detection Shop has a wide range of products, kits and accessories in stock and ready to ship - so you can place your order now with confidence.

To help you choose the right product, our technical team are on the end of the telephone to answer your questions. Alternatively, you can complete the form here and one of our specialists will call you back.

We have a team of in-house engineers trained to design, install and commission the products we sell. If you’re interested in the services we can provide you with a quotation.

Hochiki ALN-EN(WHT) | Addressable Optical Smoke Detector

£33.24

Hochiki ACB-EW Weatherproof Addressable Heat Detector

£58.25

Hochiki ACC-EN Optical Smoke & Heat Multi Sensor | Ivory

£30.15

Hochiki ACC-EN(WHT) Optical Smoke & Heat Multi Sensor

£28.95

Hochiki ALN-EN Addressable Optical Smoke Detector | Ivory

£27.70

Hochiki ALN-EN(WHT) | Addressable Optical Smoke Detector

£27.70

Hochiki ATJ-EN Addressable Heat Detector | Ivory

£27.75

Hochiki ATJ-EN(WHT) Addressable Heat Detector

£27.70

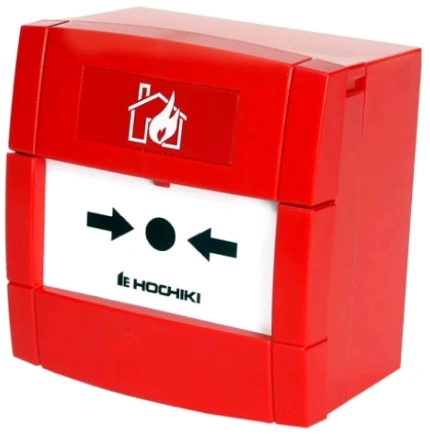

Hochiki CCP-SAVWIRE Manual Call Point

£8.85

Hochiki CHQ-AB ESP Addressable Beacon

£26.80

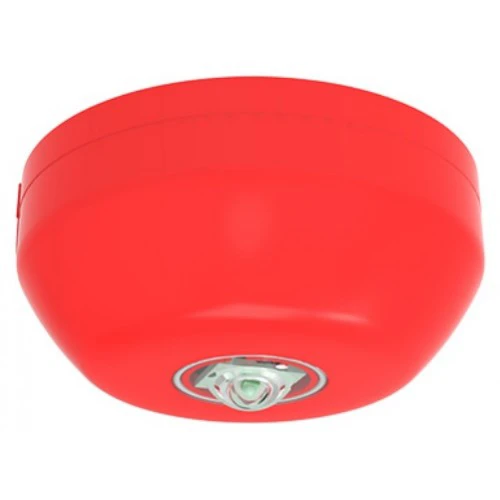

Hochiki CHQ-CB(Red)/RL | ESP Protocol Addressable Ceiling Beacon | Red Body/Red Lens
