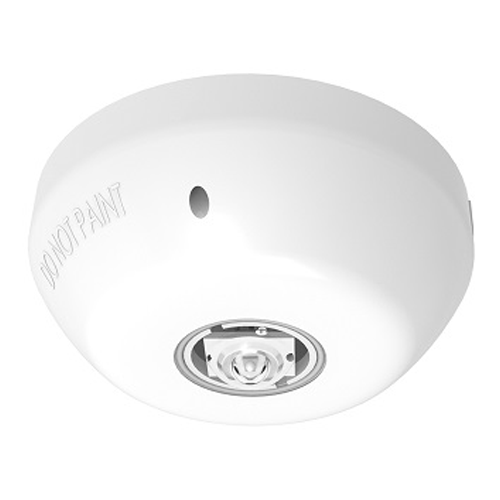

Hochiki CHQ-CB(White)/RL ESP Protocol Addressable Ceiling Beacon (White Body/Red Lens)

The Hochiki CHQ-CB (White Body / Red Lens) is an ESP protocol addressable ceiling beacon designed to provide clear and effective visual alarm indication within fire detection systems.

Loop-powered for simplified installation, the unit operates directly from the detection loop, removing the need for additional power supplies and reducing wiring complexity.

Featuring high-intensity LED technology and a precision-designed optic, the beacon delivers a bright, uniform flash to ensure strong visibility across its coverage area. Certified to EN54-23 as a Category ‘C’ ceiling-mounted visual alarm device, it is suitable for compliant installations in commercial and public environments.

Selectable light output levels and configurable flash frequencies (0.5 Hz or 1 Hz) allow the device to be tailored to specific project requirements. The white body with red lens offers a clean, unobtrusive appearance while maintaining clear visual signalling during alarm conditions.

• Addressable ceiling beacon using ESP protocol

• Loop-powered, no external PSU required

• High-intensity LED for strong visual output

• EN54-23 approved, Category ‘C’ (ceiling)

• Selectable light output levels

• Flash frequency options: 0.5 Hz or 1 Hz

• White body with red lens for discreet installation

• High-efficiency, low current design

• Compatible with a wide range of Hochiki ESP bases

• Optional PSU-powered configuration (panel dependent)
