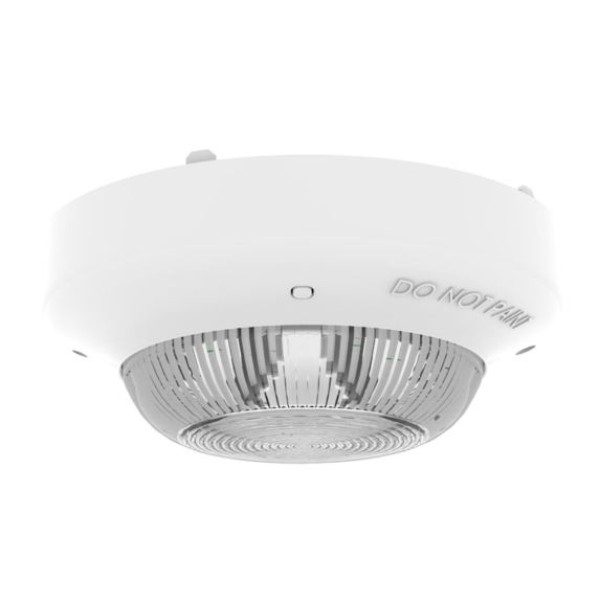

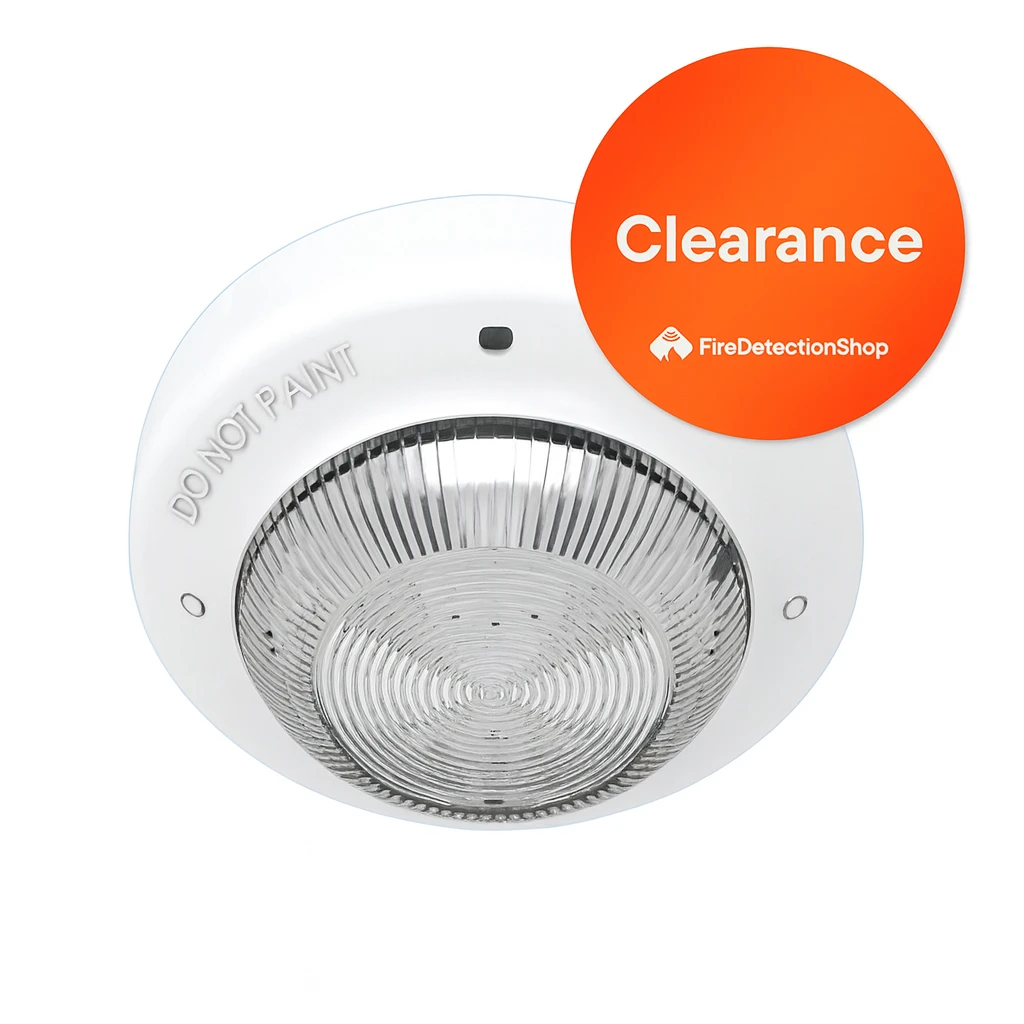

Hochiki CHQ-ARI Addressable Remote Indicator

Name: Hochiki CHQ-ARI Addressable Remote Indicator
Brand: Hochiki
Availability: InStock

Code: FDS002/229

Call to place order

INC VAT

Code: FDS002/229

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Hochiki CHQ-ARI is a loop-powered addressable remote indicator designed to provide a highly visible signal during fire alarm activations.

Its high-intensity LED technology, combined with a Fresnel lens design, ensures strong light output for clear indication.

Housed in an ivory casing that matches the Hochiki ESP sensor range, the CHQ-ARI integrates neatly with existing devices on the loop.

It is compatible with the Standard ESP Base (YBN-R/3), Base Sounders (CHQ-BS or YBO-BS), the Base Sounder Beacon (YBO-BSB), and the Short-Circuit Isolator Base (YBO-R/SCI).

High-intensity LED technology with Fresnel lens for clear visibility
Matches the shape and colour of the Hochiki ESP sensor range
Addressable via Hand Held Programmer (TCH-B100)
Supports up to 127 devices per loop
Loop-powered for easy installation
VdS approved
Available in ivory case with clear lens
Ordering Code: CHQ-ARI | CHQ-ARI(WHT)

Specification	Detail
Ordering Codes	CHQ-ARI – Ivory / CHQ-ARI(WHT) – White
Operating Voltage	17 – 41 VDC
Quiescent Current (typ)	280 µA (300 µA max)
Loop Current (when polled)	22 mA ±20%
Alarm Current (typ)	4.5 mA (5.4 mA max)
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-30°C to +60°C
Maximum Humidity	95%RH, non-condensing (at 40°C)
Colour / Case Material	Ivory or White / ABS
Lens Colour	Transparent (clear)
Weight (g) / Diameter (mm) / Height (mm)	88 g / 100 mm / 38 mm (46 mm with base)
Base Fixing Centres (mm)	48 – 74
Approvals	VdS (G206053)

Hochiki CHQ-ARI Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Detail
Ordering Codes	CHQ-ARI – Ivory / CHQ-ARI(WHT) – White
Operating Voltage	17 – 41 VDC
Quiescent Current (typ)	280 µA (300 µA max)
Loop Current (when polled)	22 mA ±20%
Alarm Current (typ)	4.5 mA (5.4 mA max)
Operating Temperature Range	-10°C to +50°C
Storage Temperature Range	-30°C to +60°C
Maximum Humidity	95%RH, non-condensing (at 40°C)
Colour / Case Material	Ivory or White / ABS
Lens Colour	Transparent (clear)
Weight (g) / Diameter (mm) / Height (mm)	88 g / 100 mm / 38 mm (46 mm with base)
Base Fixing Centres (mm)	48 – 74
Approvals	VdS (G206053)
