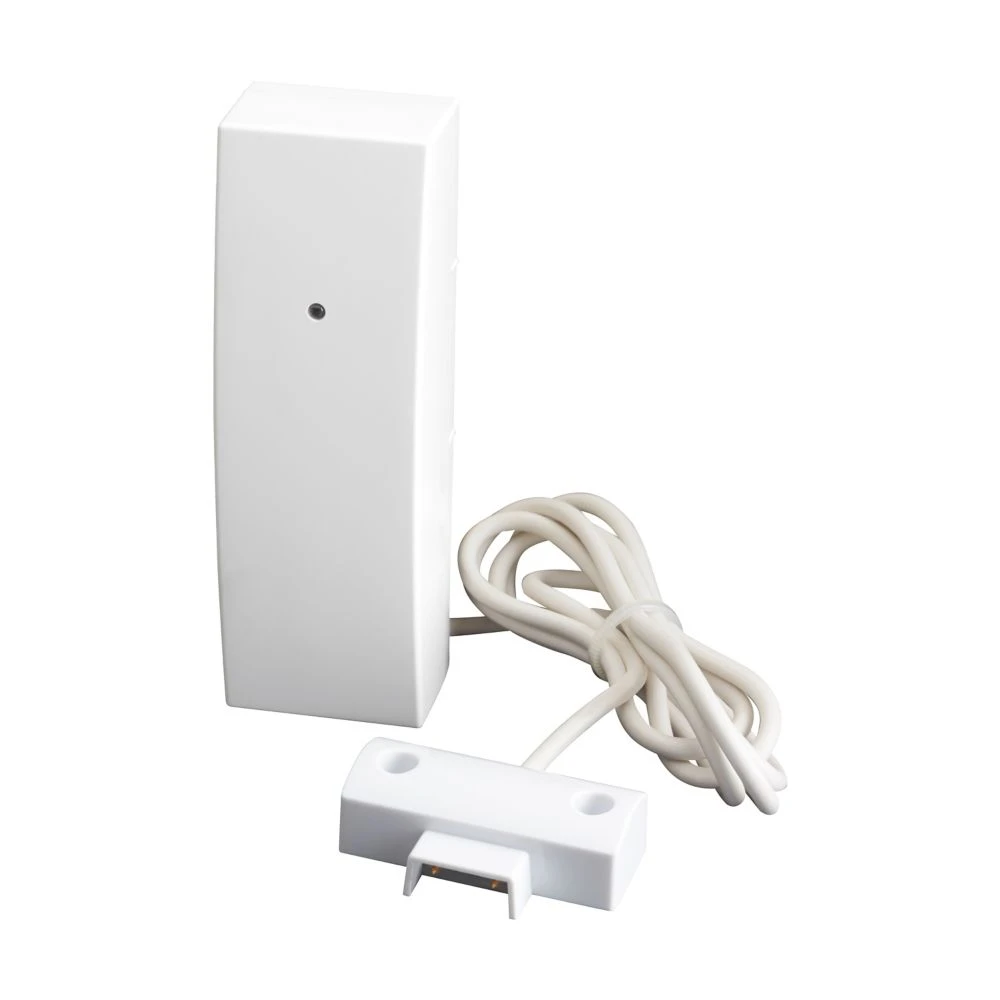

Eaton DET-2R-IO Wireless Water Detector & I/O Module Grade 2 Universal Transmitter

The Eaton (Scantronic) DET-2R-IO is a wireless Grade 2 universal transmitter that combines a wired zone input and a wired output in one compact radio module.

It is commonly used as a wireless water leak detector interface, but it can also be used to bring other compatible wired devices onto a Scantronic Secure Radio intruder alarm system.

It is designed for installations where a hard-wired detector or device needs to communicate back to the alarm panel by radio rather than by cable.

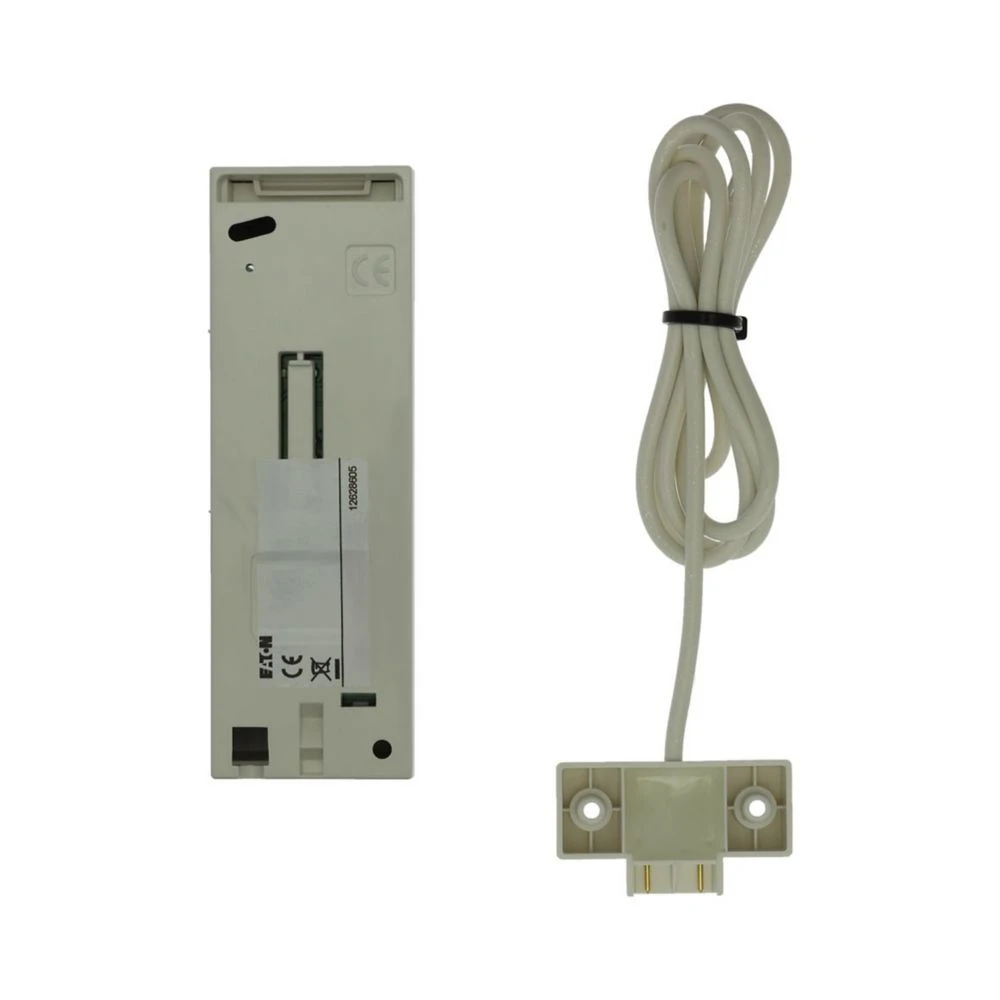

The single wired input is typically used with a flood or water leak probe, while the wired output gives added flexibility for broader input and output applications.

Using encrypted bidirectional Scantronic Secure Radio communication, the DET-2R-IO is intended to provide reliable signalling and fast status reporting within compatible Eaton (Scantronic) intruder alarm systems. This makes it a practical option for residential and light commercial installations where wireless expansion or environmental monitoring is required.

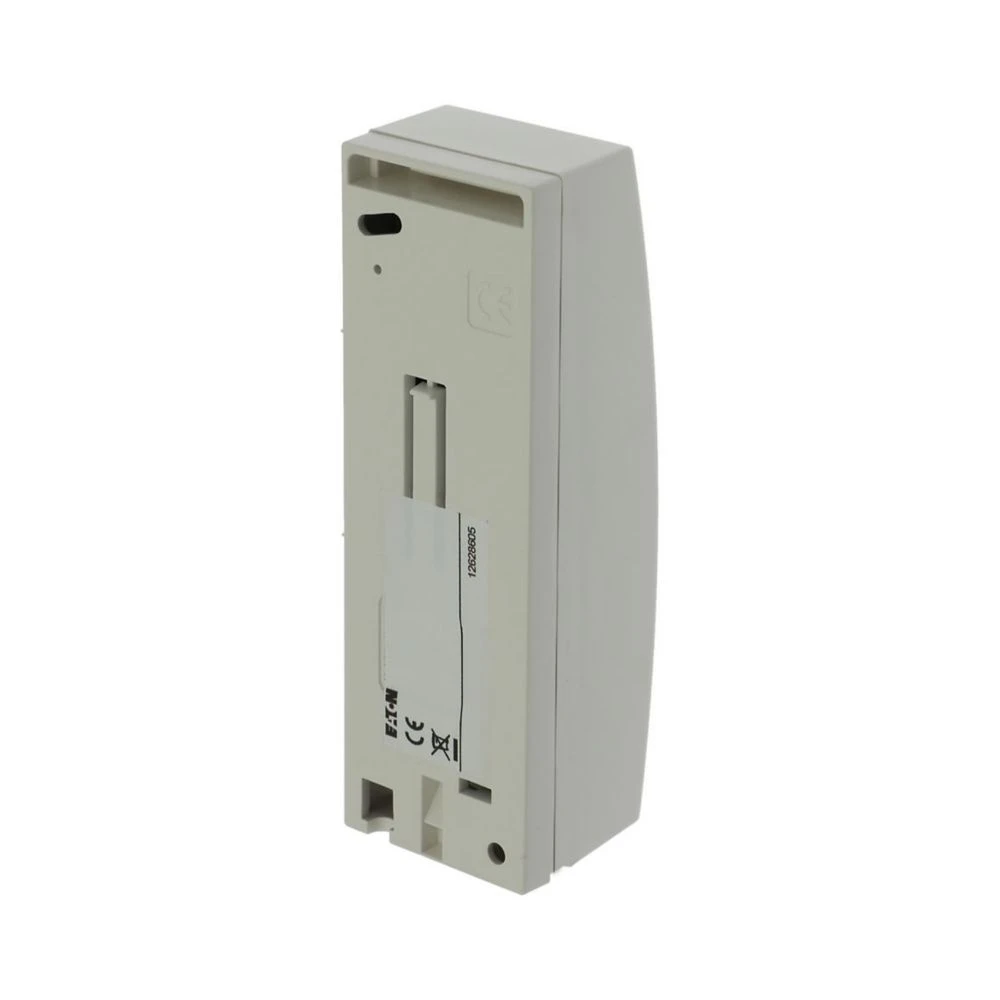

The unit is surface mounted and has a compact housing. It is CE marked, rated Grade 2 and suitable for operating temperatures from -10C to +55C.

• Eaton (Scantronic) DET-2R-IO wireless IO device and water detector

• Multi-function operation, wired input, wired output and water detection

• Single wired zone input for connecting external devices

• Wired output for simple control of external equipment

• Early warning of water presence to help minimise damage

• Can be programmed to trigger on water detection or when dry

• Encrypted two-way Secure Radio communication

• Grade 2 device

• Flexible installation with wireless connectivity

• Suitable for basements, plant rooms and areas prone to leaks
