C-TEC LAP2/CA CAST Addressable Multi-Message Lockdown Alert Panel

Name: C-TEC LAP2/CA CAST Addressable Multi-Message Lockdown Alert Panel
Brand: C-tec
Price: 1600.128 GBP
Availability: InStock

Code: FDS005/006

£1,600.13

INC VAT

Code: FDS005/006

LAP2/CA
Dedicated CAST addressable multi-message lockdown alert panel
Designed to support preparedness for Martyn’s Law requirements

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

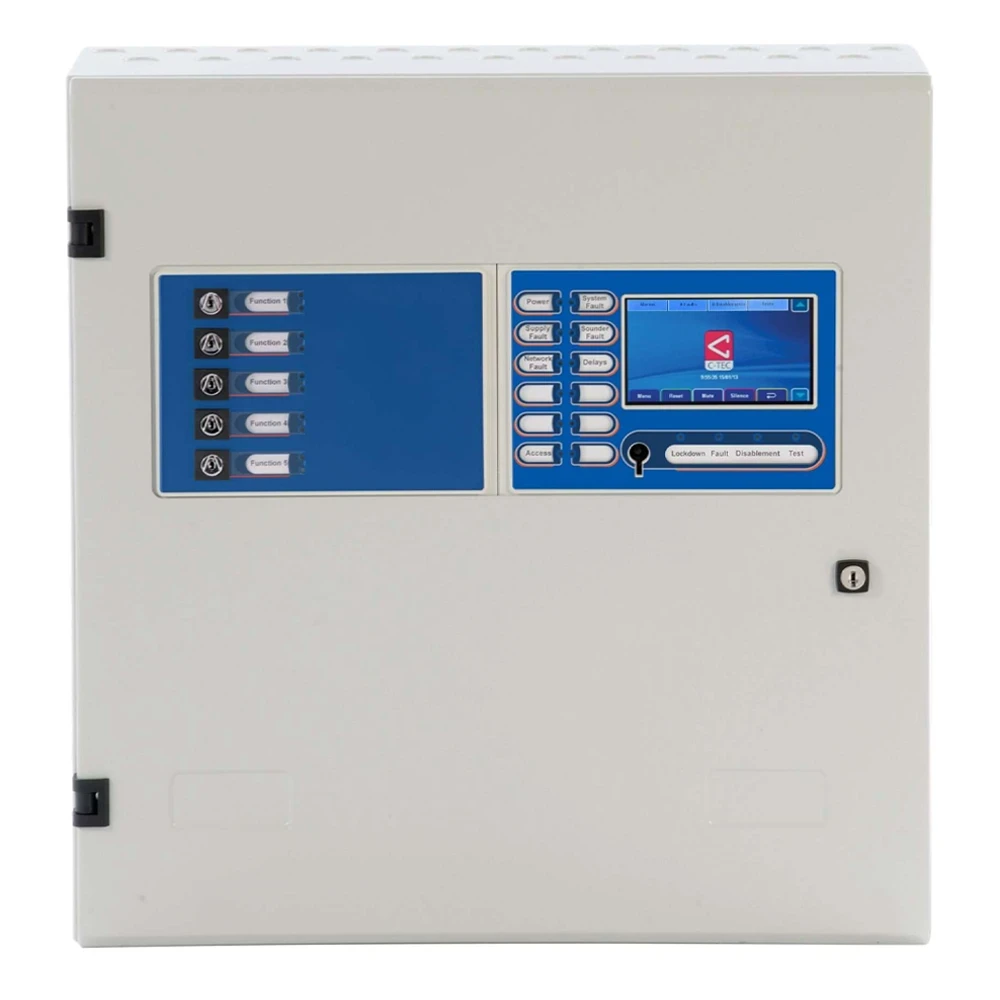

The C-TEC LAP2/CA is a dedicated CAST addressable multi-message lockdown alert panel designed for managing lockdown, invacuation and emergency evacuation alerts across commercial and public premises.

Fully monitored and battery backed, it provides a central control point for delivering clear, situation-specific voice messages through compatible C-TEC CAST lockdown sounders and sounder VADs.

The panel has been developed to help venues prepare for the requirements of the Terrorism (Protection of Premises) Act 2025, commonly known as Martyn’s Law. The legislation introduces public protection requirements for qualifying premises and events, including appropriate procedures for lockdown, communication and evacuation or invacuation.

Secure key-switch controls allow authorised users to select messages appropriate to different incidents, including internal threats requiring full or partial lockdown, external threats, full evacuation and an all-clear notification. Alternative or coded messages can also be arranged by special order.

The lockdown alert panel incorporates two CAST protocol loop drivers, allowing multiple compatible multi-message lockdown voice devices to be connected. Messages can also be initiated using compatible lockdown call points, enabling the system to be tailored around a venue's risk assessment and emergency procedures.

A full-colour 480 x 272 pixel touchscreen provides system information and controls, while C-TEC ENVISION Cloud compatibility supports remote or on-site incident monitoring and data management. Additional connectivity includes programmable inputs and relays, RS232, RS485 and optional high-integrity network connectivity.

Designed for use with C-TEC CAST lockdown alert voice sounders, voice sounder VADs and lockdown alert call points, the LAP2/CA provides a dedicated platform for clearly communicating different emergency instructions throughout a building.

LAP2/CA
Dedicated CAST addressable multi-message lockdown alert panel
Designed to support preparedness for Martyn’s Law requirements
Two CAST protocol loop drivers
Supports up to 255 addressable devices per loop
Secure keyswitch selection of situation-specific voice messages
Supports full lockdown, partial lockdown, evacuation and all-clear messaging
Fully monitored and battery backed
Full-colour 480 x 272 pixel touchscreen
C-TEC ENVISION Cloud enabled for on-site or remote monitoring

Specification	Details
Model	LAP2/CA
Protocol / Compatibility	C-TEC CAST
Mains Supply	230V 50/60Hz
Mains Rated Current	1.3A maximum
Internal Power Supply	27Vdc nominal
Total Output Current	5A @ 230Vac
Battery Charge Capacity	7Ah min to 18Ah max
Quiescent Current	Varies depending on panel configuration
Maximum Battery Size And Type	2 x 12V 18Ah VRLA connected in series
Number Of Loop Drivers	2
Maximum Loop Output Current	450mA
Maximum Loop Length	1km
Maximum Addressable Devices Per Loop	255
Conventional Sounder Circuits	2, maximum length 500m per circuit
EOL Resistor Value	6800Ω 5% Tol. 0.25W
Maximum Sounder Output Current	2 x 1A
Auxiliary Relays	2 x programmable relays, 1 x fault relay, volt-free single pole changeover, max. switch current 1A, max. switch voltage 30Vdc
Other Outputs	24V Aux. Power, 19.5V min to 28V max, resettable fuse protected, max. current 100mA
Auxiliary Inputs	2 x programmable inputs, connect to 0V to trigger, max. input voltage 27V, non-latching
PC Connection	Galvanically isolated USB socket on Z41 control module
Pager / DECT Connection	RS232, requires minimum BF874QAQ transmitter and BF877QAQ display pager
Graphics Interface / Diagnostics	RS485, Drax compatible, C-TEC ENVISION Cloud Enabled
Network Connection	RS485 high-integrity multi-path fault tolerant network via optional ZHN network card, maximum 64 network nodes
Indicators	Full-colour 480 x 272 pixel touchscreen, relevant EN54 indicators plus 5 programmable indicators
Controls	Interactive touchscreen with menu-sensitive buttons and 1 x keyswitch for direct Access Level 2 access
Connections	Fixed, largest acceptable conductor size 1mm²
Expansion Connections	RS485 peripheral bus supporting up to 15 A-Bus PCBs
Dimensions	450 W x 462 H x 127 D mm
Semi-Flush Mounting Hole	456 W x 468 H x 122 D mm, requires ZBEZS bezel
Construction	1.2mm Zintec mild steel
Finish	Light grey textured, RAL7035 epoxy paint
IP Rating	IP30
Operating Temperature	-5°C to +40°C
Maximum Relative Humidity	95%

C-TEC LAP2/CA CAST Datasheet
