C-TEC 8 Zone Fire Alarm Conventional Kit - Orbis

Name: C-TEC 8 Zone Fire Alarm Conventional Kit - Orbis
Brand: C-tec
Price: 372.792 GBP
Availability: InStock

Code: FDS372/442

£372.79

INC VAT

Was £381.36

Code: FDS372/442

In stock
Typically dispatched in 2-3 working days
Save £ with kits

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 8 Zone Fire Alarm Conventional Kit – Orbis provides a complete solution for starting a conventional fire alarm installation. Built around the reliable C-TEC CFP control panel and Apollo Orbis detection devices, this kit includes all the essential components required to begin protecting a premises quickly and efficiently.

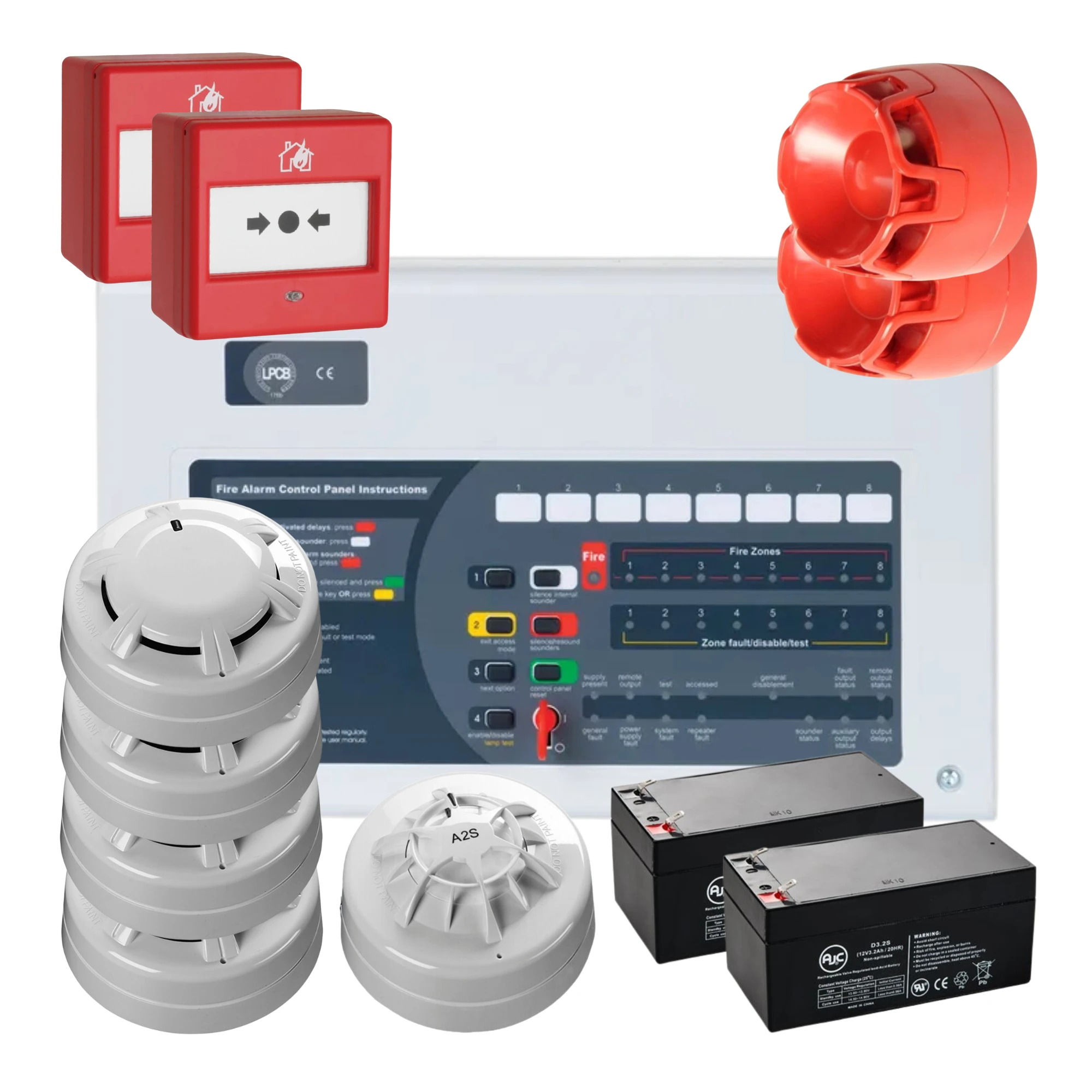

Kit Contents

1 × C-TEC CFP708-4 8 Zone Conventional Fire Alarm Panel

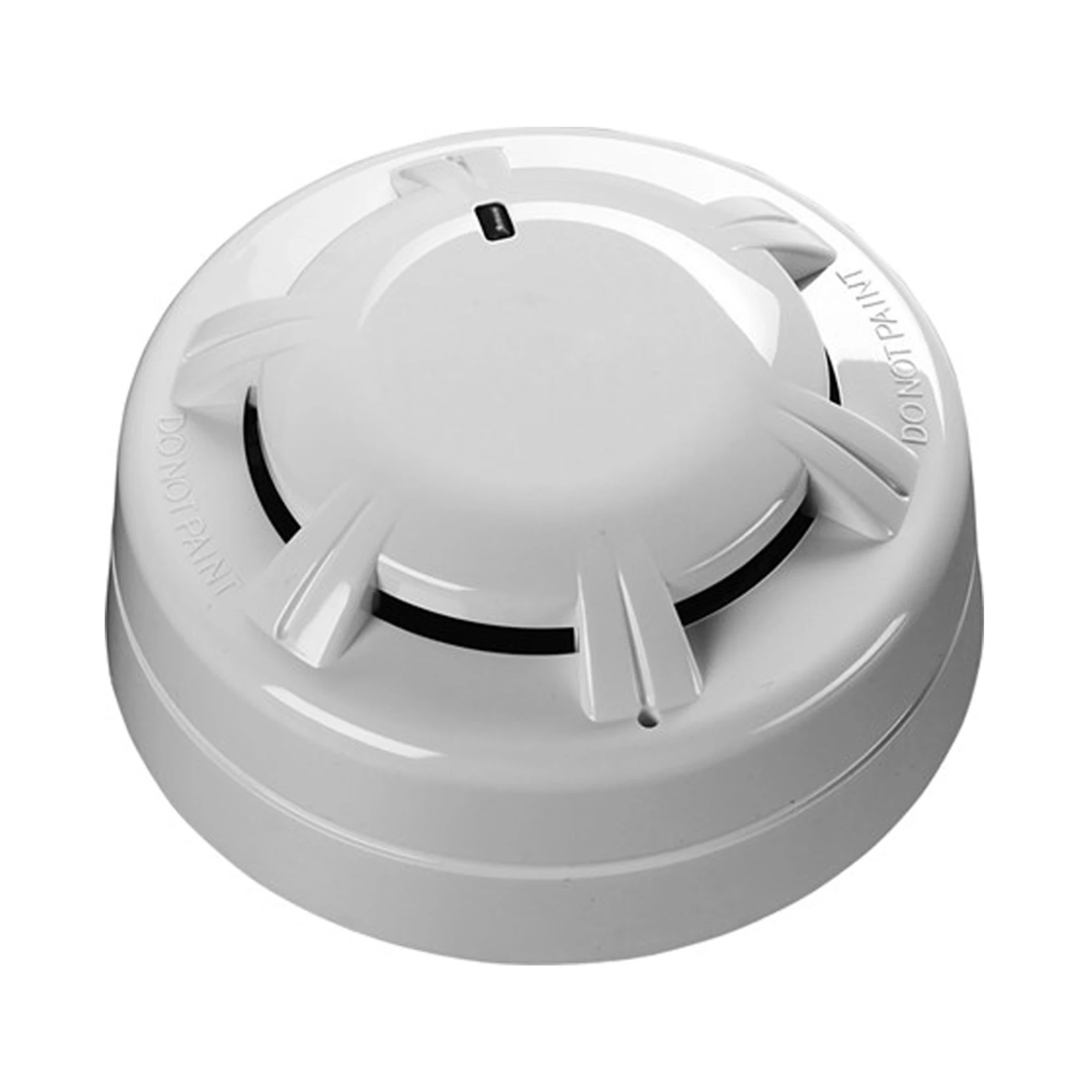

4 × Apollo ORB-OP-12001-APO Orbis Optical Smoke Detectors

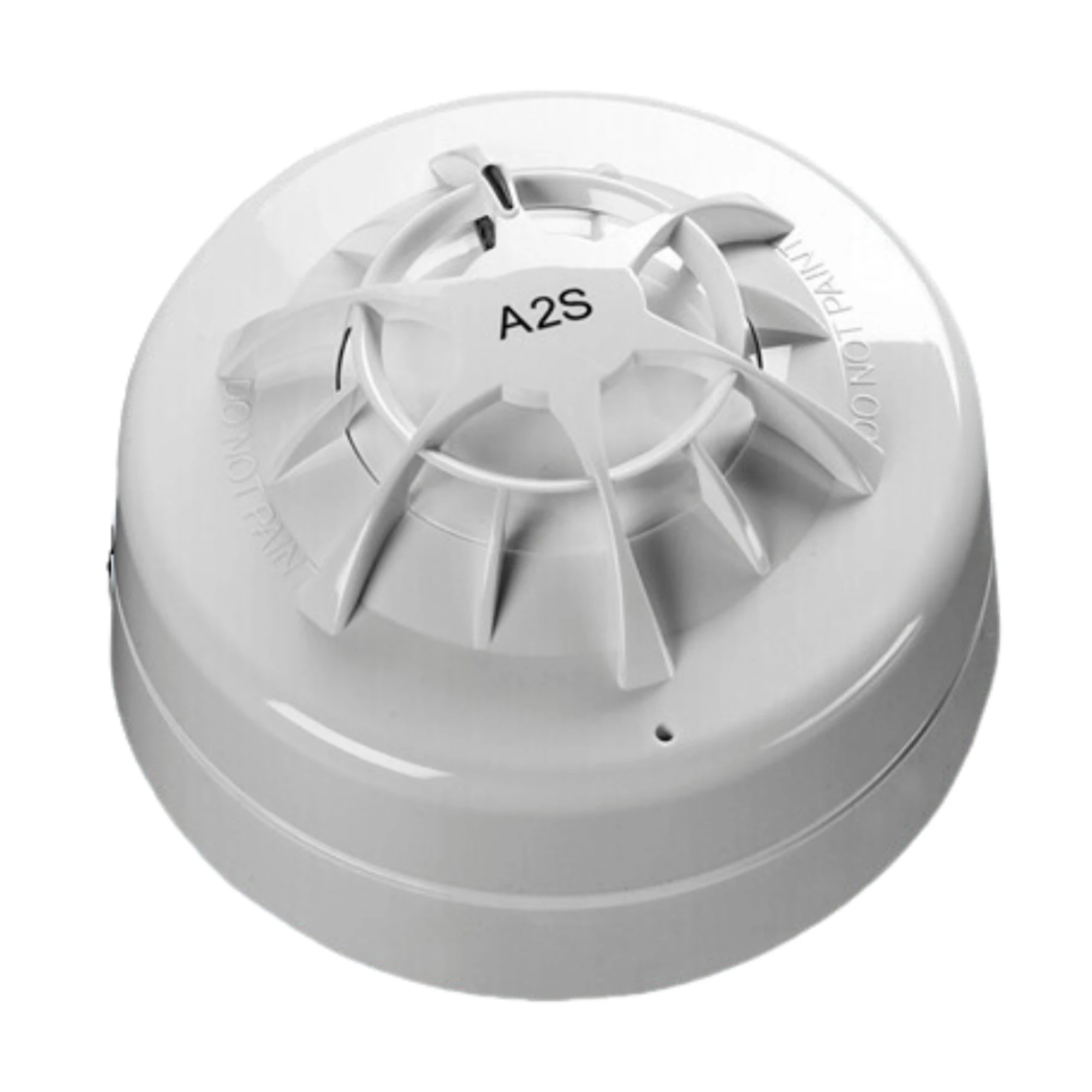

1 × Apollo ORB-HT-11002-APO Orbis A2S Fixed Temperature Heat Detector
5 × Apollo ORB-DB-00003-APO Orbis Conventional Diode Bases

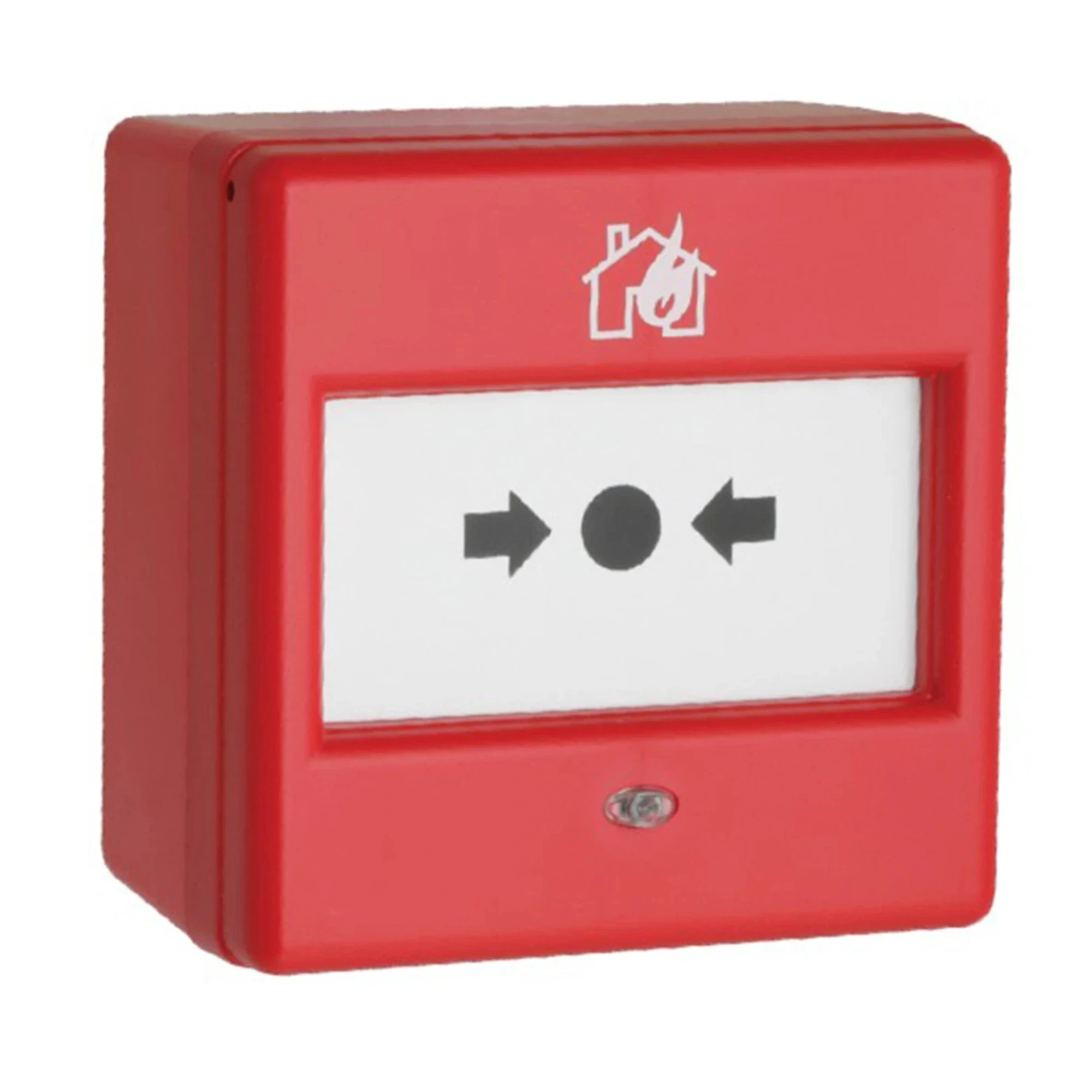

2 × FireSmart Universal Conventional Manual Call Points

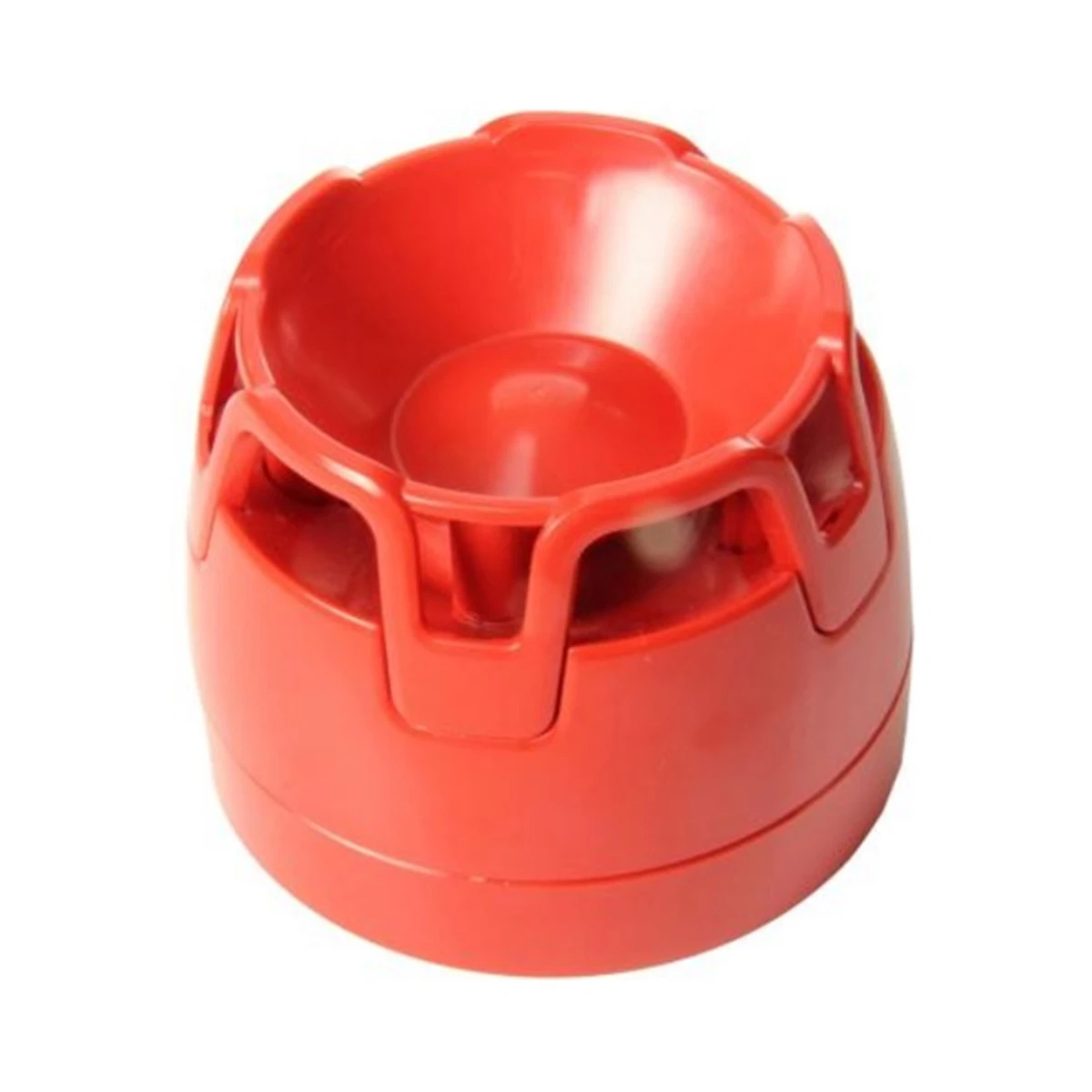

2 × FireSmart Conventional Sounders with Deep Bases
1 × FireSmart 3.4Ah Trade Battery Twin Pack

Apollo Orbis detectors are widely used in conventional fire alarm systems due to their reliability and consistent detection performance. Combined with the C-TEC control panel, this 4-wire conventional system offers dependable fire detection while remaining straightforward to install and configure.

Additional devices can be selected from the options to tailor the system to the specific requirements of your premises.

Complete 8 zone conventional fire alarm starter kit
Built around the LPCB approved C-TEC CFP708-4 control panel
Apollo Orbis optical smoke detectors for reliable fire detection
Apollo Orbis A2S fixed temperature heat detector for heat detection areas
Orbis diode bases for secure detector installation
Resettable universal manual call points compliant with EN54-11
FireSmart sounders with deep bases for clear audible alarm signalling
Backup batteries included for standby power during mains failure
Compatible components designed for straightforward installation

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Conventional Sounder Datasheet	Click here to download

Overview

Features

Technical Data

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max
