C-TEC 8 Zone Fire Alarm Conventional Kit - Hochiki

Sub-total £315.71

Compatible

Product	Price (ex VAT)	Quantity	Total (ex VAT)
	£ ex VAT		£0.00

Sub-total

Have you seen the same FireShield products?
Shop now for more competitive prices and a greater range.

Shop Now

Continue

1 item added to basket

C-TEC 8 Zone Fire Alarm Conventional Kit - Hochiki

Continue shopping

Go to Basket

We Recommend

Bestseller

Save 2%

C-TEC 8 Zone Fire Alarm Conventional Kit - Hochiki

Name: C-TEC 8 Zone Fire Alarm Conventional Kit - Hochiki
Brand: C-tec
Price: 378.852 GBP
Availability: InStock

Code: FDS100/520

£378.85

INC VAT

Was £386.58

Code: FDS100/520

In stock
Typically dispatched in 2-5 working days
Save £ with kits

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£12.42 inc vat)

Hochiki SOC-E3N(WHT) Conventional Optical Smoke Detector w/ Diode base(£20.22 inc vat)

Hochiki DCD-AE3(WHT) Conventional Combined 60°C Heat Detector w/ Diode base(£22.44 inc vat)

FireSmart Conventional Sounder | Deep or Shallow Base(£19.14 inc vat)

FireSmart Conventional Sounder VAD | Red or White Flash(£45.90 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 8 Zone Fire Alarm Conventional Kit – Hochiki provides a complete solution for starting a conventional fire alarm installation. Combining the reliable C-TEC CFP control panel with Hochiki detection devices, this kit includes the essential equipment required to begin protecting a premises quickly and efficiently.

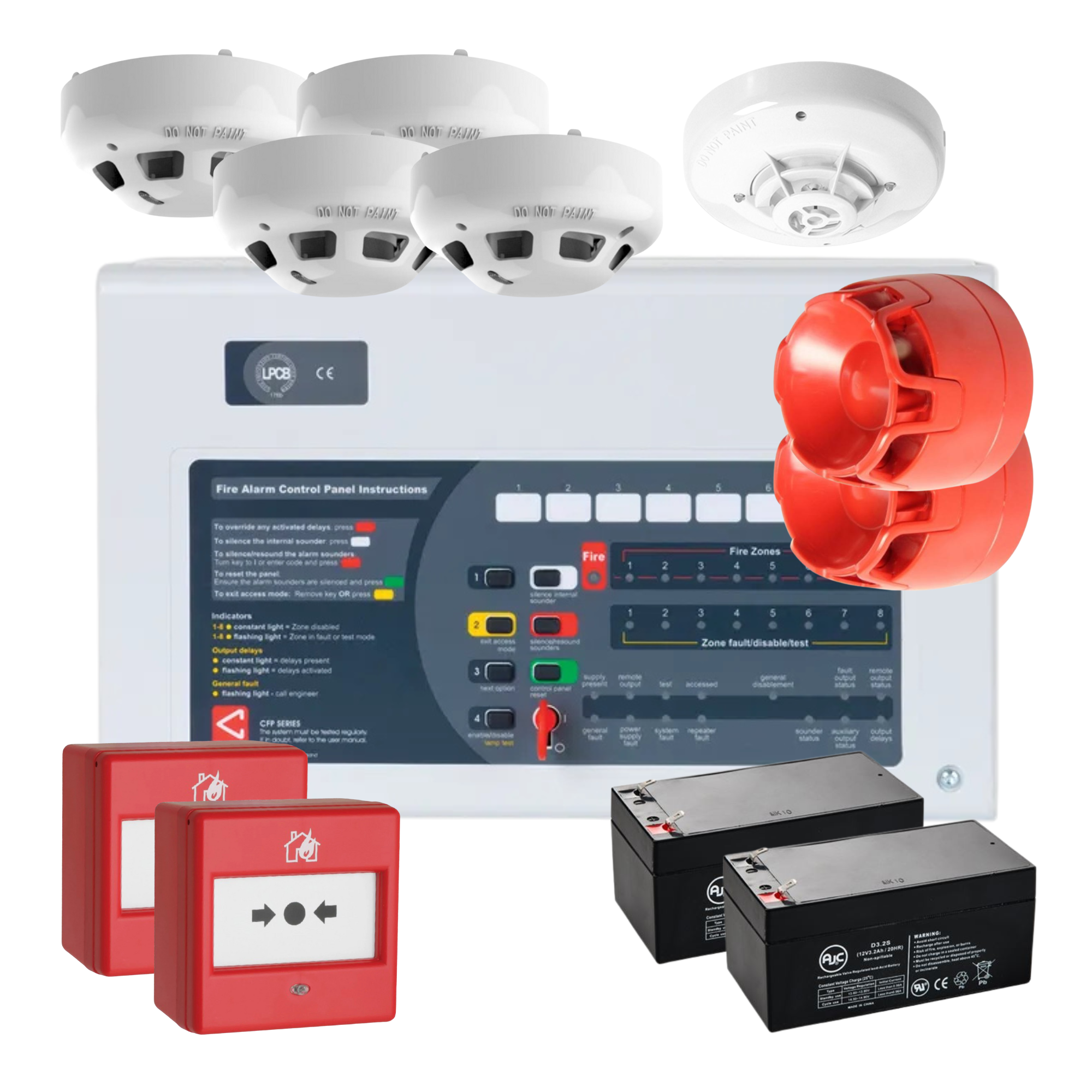

Kit Contents

1 × C-TEC CFP708-4 8 Zone Conventional Fire Alarm Panel
4 × Hochiki SOC-E3N(WHT) Conventional Optical Smoke Detectors
1 × Hochiki DCD-AE3(WHT) Conventional Combined 60°C Heat Detector
5 × Hochiki YBN-R6SK Diode Bases
2 × Universal Conventional Manual Call Points
2 × FireSmart Sounders with Deep Bases
2 × FireSmart 12Vdc 3.2Ah Backup Batteries

Using the trusted Hochiki range of conventional detectors, the system delivers dependable fire detection performance alongside simple installation. This 4-wire conventional fire alarm system is designed for straightforward projects where reliability and compatibility are essential.

Additional devices can be selected from the options to configure the system to match the requirements of your premises.

Complete 8 zone conventional fire alarm starter kit
Built around the LPCB approved C-TEC CFP708-4 control panel
Hochiki optical smoke detectors for reliable fire detection
Hochiki combined heat detector suitable for temperature-based detection areas
Hochiki diode bases for secure detector installation
Resettable conventional manual call points compliant with EN54-11
FireSmart sounders with deep bases for clear audible alarm signalling
Backup batteries included for standby power during mains failure
Designed for straightforward installation and system configuration

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Conventional Sounder Datasheet	Click here to download

Overview

Features

Technical Data

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Downloads & Resources
