The C-TEC 8 Zone Fire Alarm Conventional Kit – FireSmart provides a complete solution for starting a conventional fire alarm installation. Combining the reliable C-TEC CFP control panel with FireSmart detection and notification devices, this kit contains the essential equipment required to begin protecting a premises quickly and efficiently.

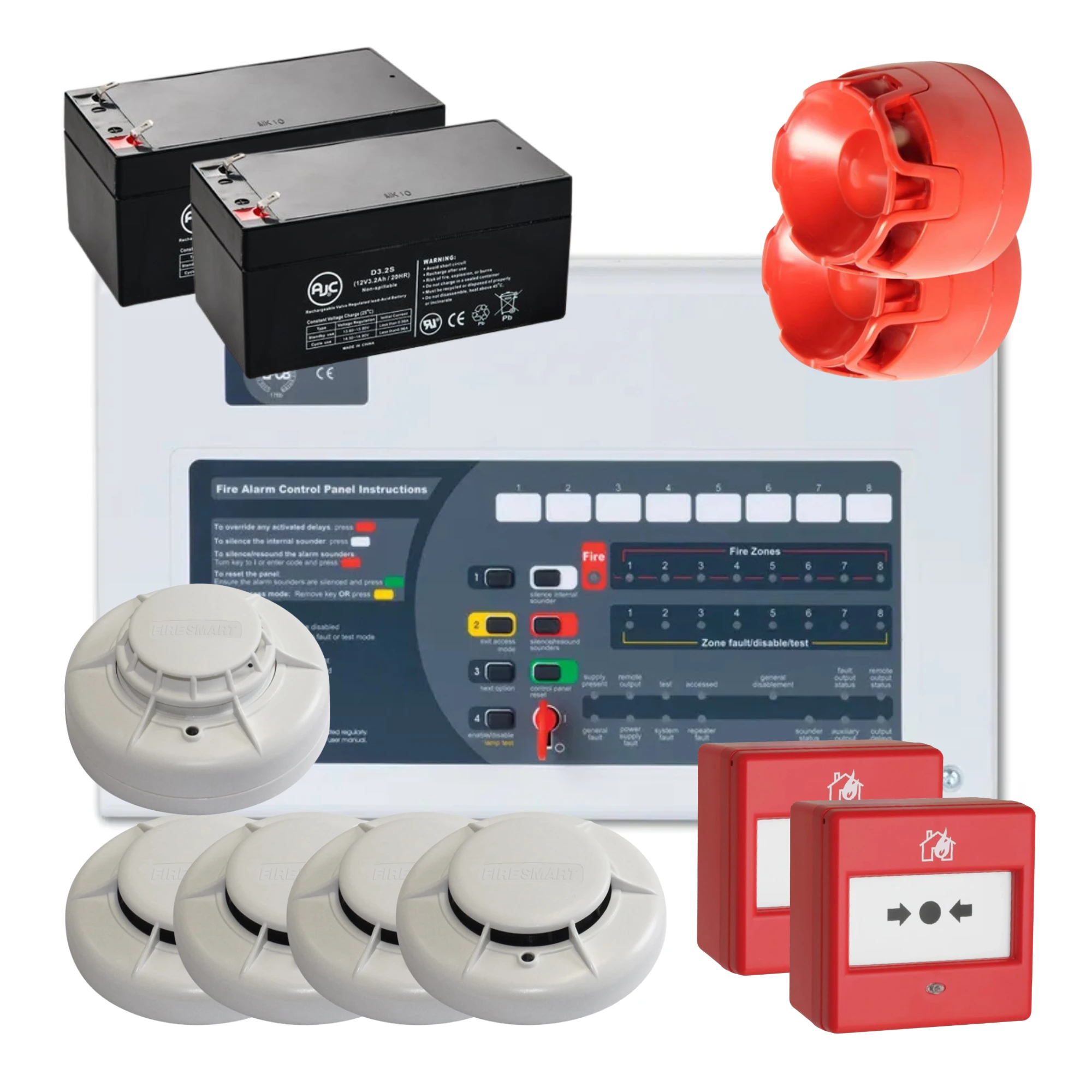

Kit Contents

1 × C-TEC CFP708-4 8 Zone Conventional Fire Alarm Panel
4 × FireSmart Optical Smoke Detectors
1 × FireSmart Rate-of-Rise Heat Detector

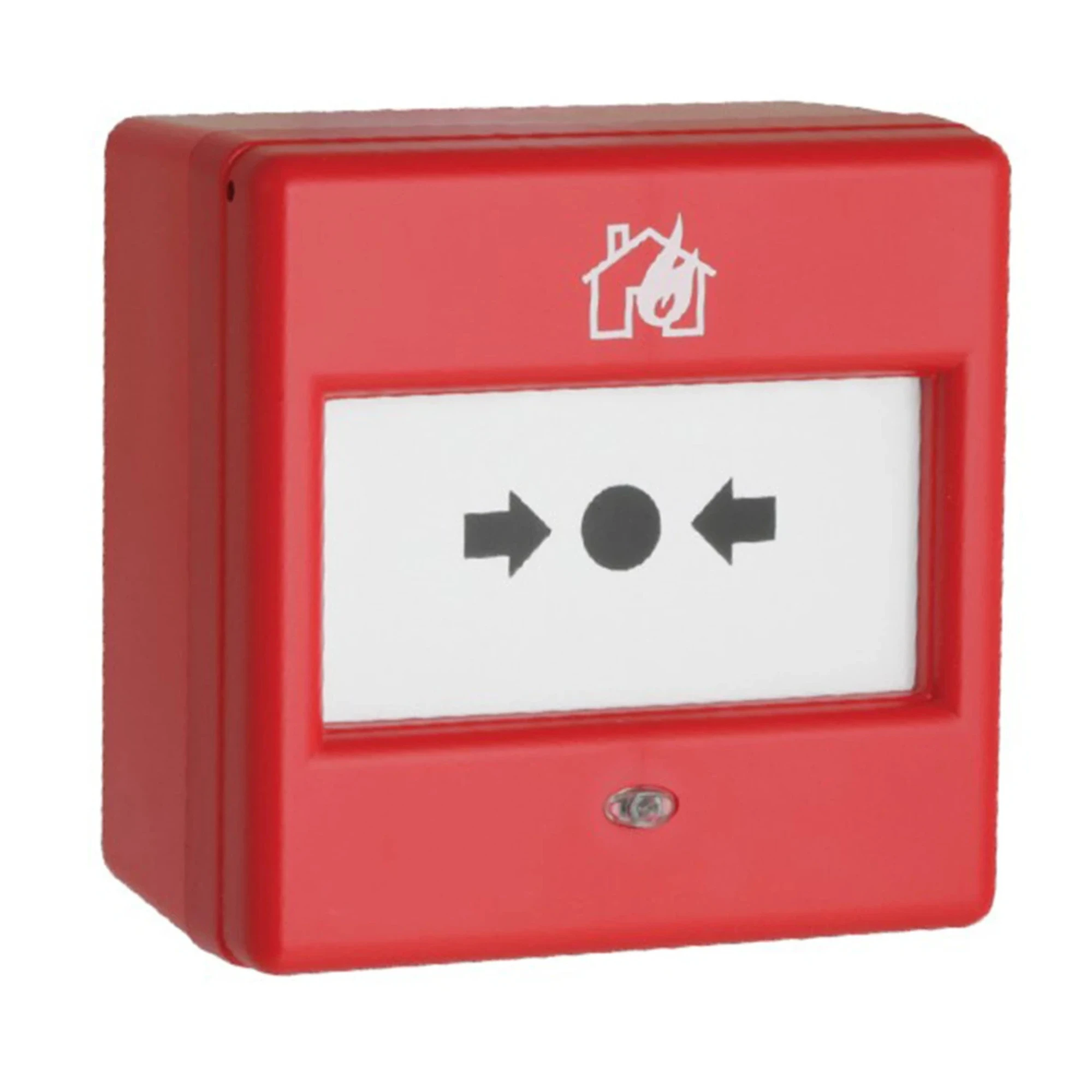

2 × FireSmart Conventional Manual Call Points

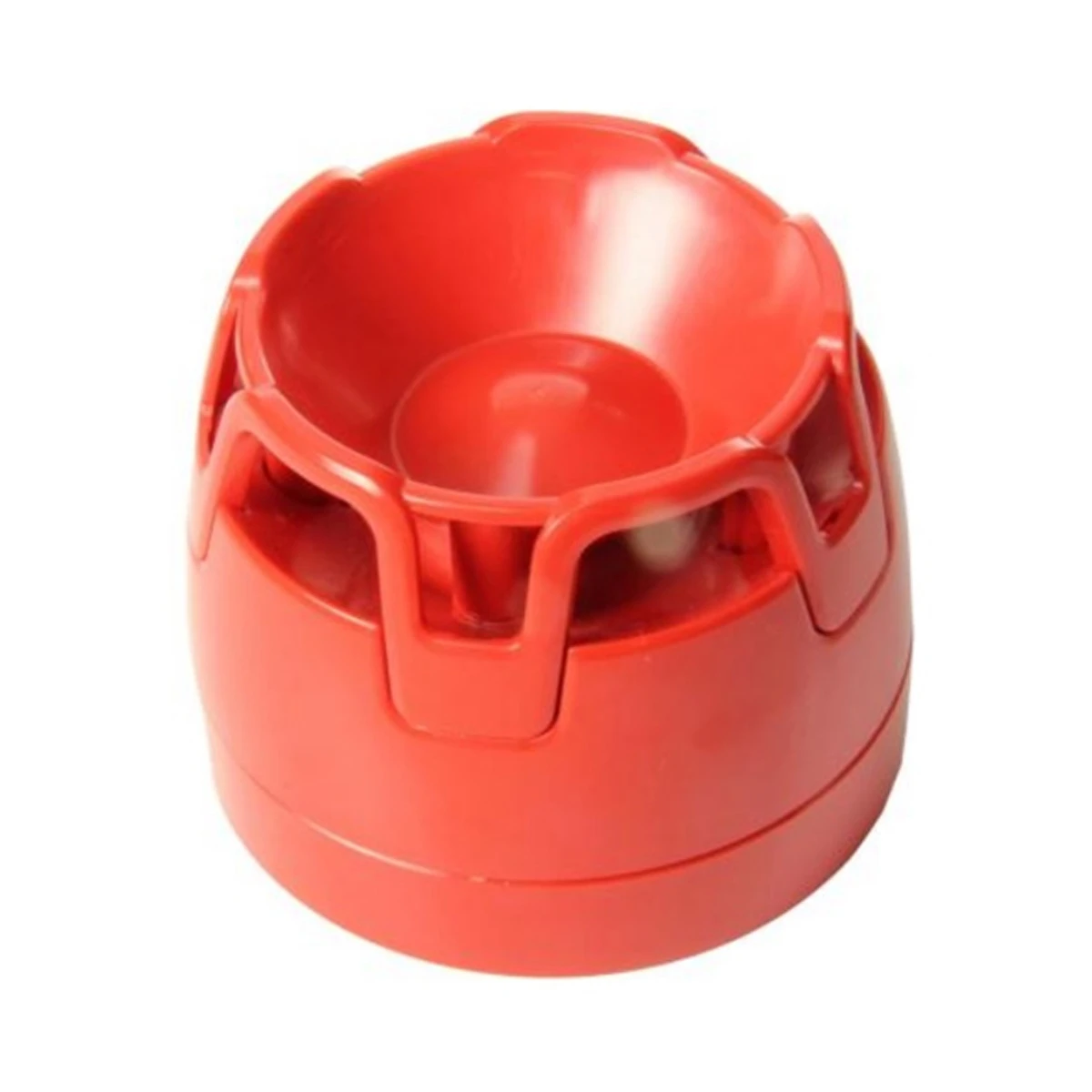

2 × FireSmart Red Sounders with Deep Bases
2 × FireSmart 12Vdc 2.1Ah Backup Batteries

Using the trusted FireSmart range of products, the system offers dependable fire detection and alarm signalling while remaining simple to install and cost-effective. The carefully selected components are fully compatible, helping installers streamline specification and installation.

Additional devices can be selected from the options to configure the system to match the specific requirements of your premises.

Complete 8 zone conventional fire alarm starter kit
Built around the LPCB approved C-TEC CFP708-4 control panel
FireSmart optical smoke detectors for reliable fire detection
FireSmart rate-of-rise heat detector for high temperature environments
Resettable conventional manual call points compliant with EN54-11
FireSmart sounders with deep bases for clear audible alarm signalling
Backup batteries included for standby power during mains failure
Compatible components designed for straightforward installation
Suitable for small to medium sized commercial premises

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Conventional Sounder Datasheet	Click here to download

Overview

Features

Technical Data

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max
