C-TEC 8 Zone Fire Alarm Conventional Kit - Apollo (c/w Sounder Beacons)

Name: C-TEC 8 Zone Fire Alarm Conventional Kit - Apollo (c/w Sounder Beacons)
Brand: C-tec
Price: 482.748 GBP
Availability: InStock

Code: FDS361/013

£482.75

INC VAT

Code: FDS361/013

In stock
Typically dispatched in 3-5 working days
Save £ with kits

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£12.42 inc vat)

Apollo 55000-317APO Series 65 Optical Smoke Detector With Diode Base(£18.84 inc vat)

Apollo 55000-122APO Series 65 A1R Heat Detector with Diode Base(£16.38 inc vat)

Apollo 55000-127APO Series 65 BR Heat Detector 75°C with Diode Base(£16.98 inc vat)

FireSmart Conventional Sounder | Deep or Shallow Base(£19.14 inc vat)

FireSmart Conventional Sounder VAD | Red or White Flash(£45.90 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 8 Zone Conventional Fire Alarm Kit with sounder beacons provides a complete fire detection and alarm solution for larger buildings requiring multiple fire zones and clear audible and visual alarm notification.

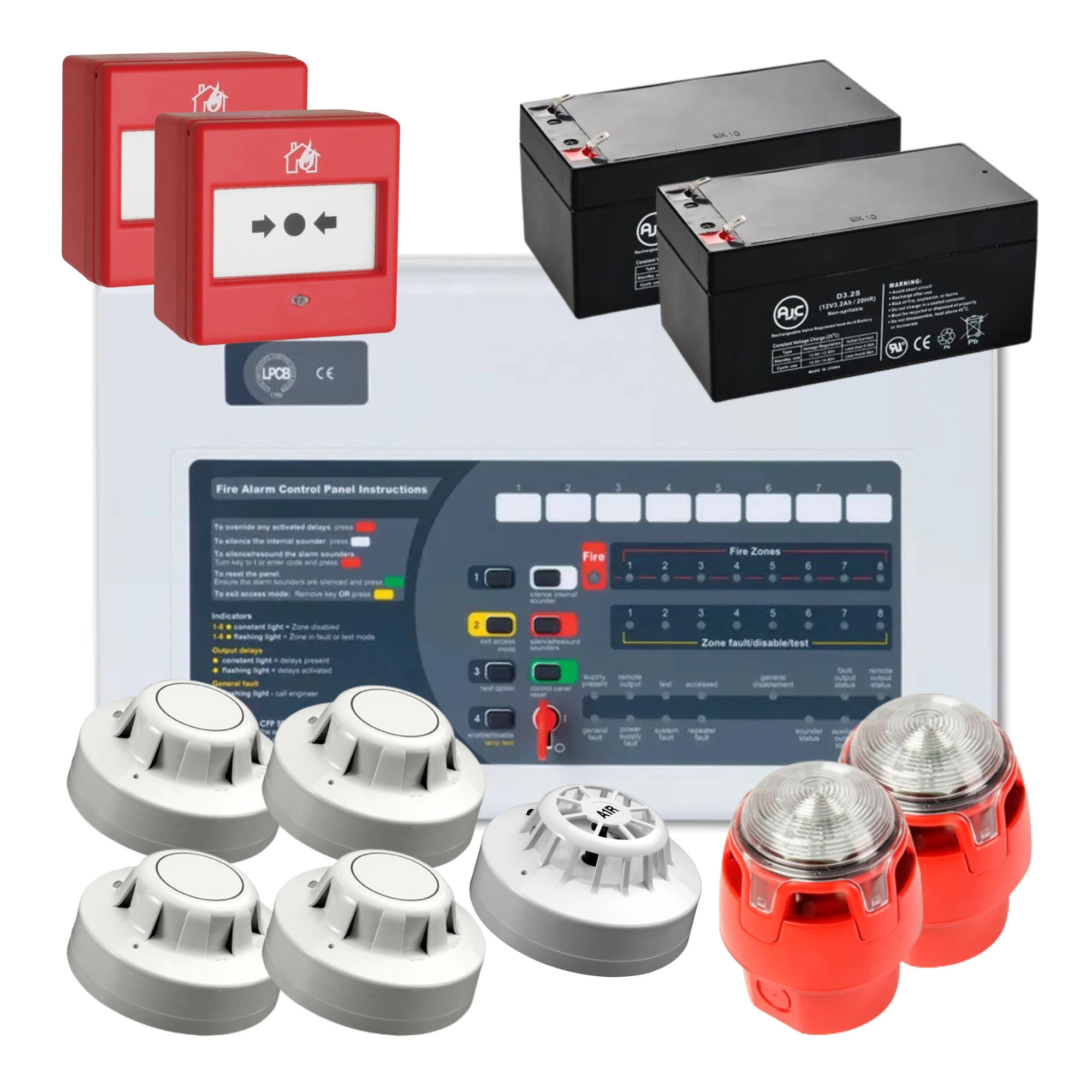

Kit Contents

1 × C-TEC CFP 8 Zone Conventional Fire Alarm Control Panel
1 × Apollo 55000-122APO Series 65 A1R Heat Detector
4 × Apollo 55000-317APO Series 65 Optical Smoke Detectors

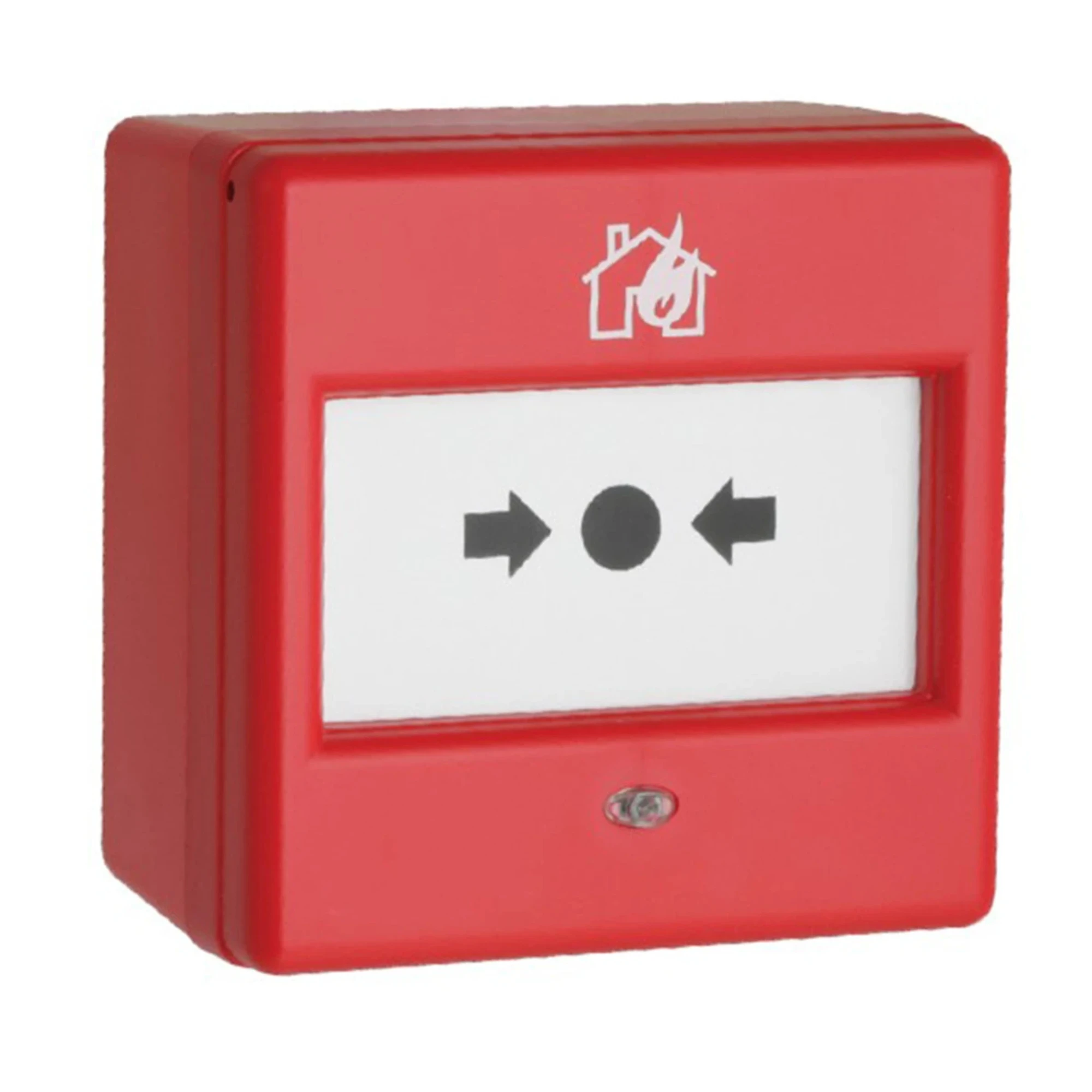

2 × FireSmart Universal Surface Conventional Manual Call Points
2 × FireSmart Sounder VAD Units
2 × 12V 3.2Ah Backup Batteries

This kit combines a C-TEC CFP conventional fire alarm control panel with Apollo Series 65 detectors and FireSmart notification devices, supplying the key components needed to install a reliable conventional fire alarm system quickly and efficiently.

Designed as a traditional 4-wire conventional fire alarm system, the kit separates detection and alarm circuits while delivering dependable fire detection and strong alarm coverage throughout the building.

Apollo Series 65 detectors provide proven optical smoke and heat detection, while FireSmart sounder beacons deliver combined audible and visual alarm signalling to help ensure occupants are clearly alerted during a fire emergency.

Suitable for offices, schools, retail premises and commercial buildings requiring multiple fire zones, this kit offers a practical and scalable fire alarm installation in one convenient package.

Complete 8 zone conventional fire alarm kit with sounder beacons
Suitable for larger buildings requiring multiple fire zones
Uses a reliable C-TEC CFP conventional fire alarm control panel
Apollo Series 65 detectors provide trusted smoke and heat detection
FireSmart sounder beacons deliver combined audible and visual alarms
Conventional 4-wire system design for dependable operation
Manual call points included for manual fire alarm activation
Suitable for offices, schools, retail units and commercial premises
Supplied with backup batteries for standby power protection
Provides a practical and straightforward fire alarm installation

Specification	8 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	8 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

C-TEC CFP Conventional Fire Alarm Panel Datasheet	Click here to download
Apollo Optical Smoke Detector Datasheet	Click here to download
Apollo Heat Detector Datasheet	Click here to download
Call Point Datasheet	Click here to download
Sounder VAD Datasheet	Click here to download
