2 Zone Contractor Fire Alarm Kit

Name: 2 Zone Contractor Fire Alarm Kit
Brand: C-tec
Price: 391.152 GBP
Availability: InStock

Code: FDS500/666

Call to place order

Code: FDS500/666

In stock

Typically dispatched in 1-2 working days

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£8.83 inc vat)

FireSmart Univ. Smoke Detector w/Base(£17.04 inc vat)

FireSmart Univ. Standard Heat Detector w/Base(£15.97 inc vat)

FireSmart Univ. Hi-Temp Heat Detector w/ Base(£15.64 inc vat)

FireSmart BS5839 Fire Alarm Mains Isolator with Keyswitch (Red)(£17.40 inc vat)

FireSmart Essential 2 Core 1.5mm Fire Alarm Cable(£141.65 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Please contact us

Overview Features Technical Data Downloads & Resources

The 2 Zone Contractor Fire Alarm Kit is a complete conventional fire alarm package designed for smaller installations where reliable fire detection and straightforward installation are essential. Bringing together a compatible selection of fire alarm equipment, the kit provides a convenient solution for protecting offices, shops, small commercial premises and similar environments.

At the centre of the system is the C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel, which is LPCB certified to EN54 Parts 2 and 4. The panel is supported by eight optical smoke detectors, four conventional manual call points and four sounders, providing a combination of automatic fire detection, manual alarm activation and audible warning.

Kit Contents

1 x C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel
8 x Optical Smoke Detectors
4 x Conventional Manual Call Points

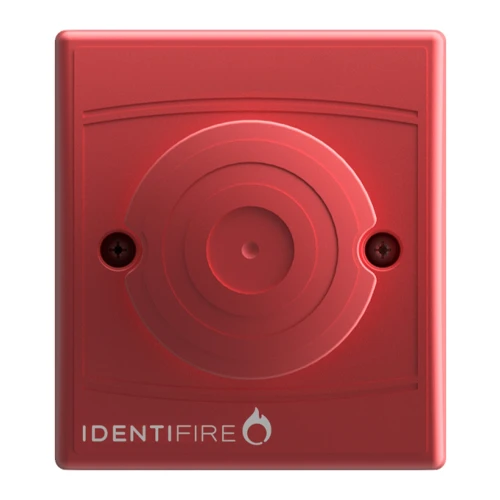

4 x Conventional Sounders
2 x 12Vdc 3.2Ah Backup Batteries

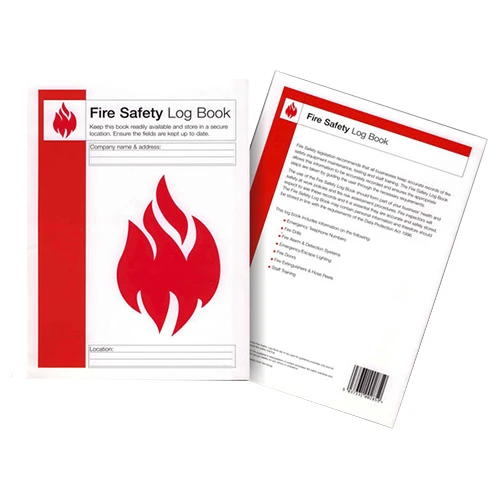

1 x Fire Alarm Log Book

Complete 2 zone conventional fire alarm kit for smaller installations
Includes 8 optical smoke detectors with bases
4 conventional manual call points with resettable press-to-break elements
4 conventional sounders with low current consumption
2 x 12V DC 3.2Ah backup batteries
1 x fire alarm log book for recording servicing and maintenance
C-TEC control panel LPCB certified to EN54 Parts 2 and 4
Manual call points compliant with EN54-11 and sounders approved to EN54-3
Compatible components supplied together for convenient ordering and installation

Specification	2 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	2 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	25 detectors or 32 detectors/call points combined
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Sounder Datasheet	Click here to download
