C-TEC 4 Zone Fire Alarm Conventional Kit - Orbis

Name: C-TEC 4 Zone Fire Alarm Conventional Kit - Orbis
Brand: C-tec
Price: 318.816 GBP
Availability: InStock

Code: FDS372/441

£318.82

INC VAT

Was £325.32

Code: FDS372/441

In stock
Typically dispatched in 2-5 working days
Save £ with kits

We Recommend These Add-ons

Please Select

Fire Alarm Zone Plan (Digital Only) (+£135)

Add these extras to your kit

Please Select

FireSmart Universal Conventional Call Point(£12.42 inc vat)

Apollo ORB-OP-12001-APO Orbis Conventional Optical Smoke Detector w/ Diode base(£20.64 inc vat)

Apollo ORB-HT-11002-APO Orbis A2S Fixed Temp Conventional Heat Detector w/ Diode base(£15.54 inc vat)

FireSmart Conventional Sounder | Deep or Shallow Base(£19.14 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC 4 Zone Fire Alarm Conventional Kit – Orbis provides a complete fire detection solution for small to medium sized installations. Combining the reliable C-TEC CFP conventional fire alarm panel with Apollo Orbis detection devices, this kit includes all the essential components required to begin a conventional fire alarm installation.

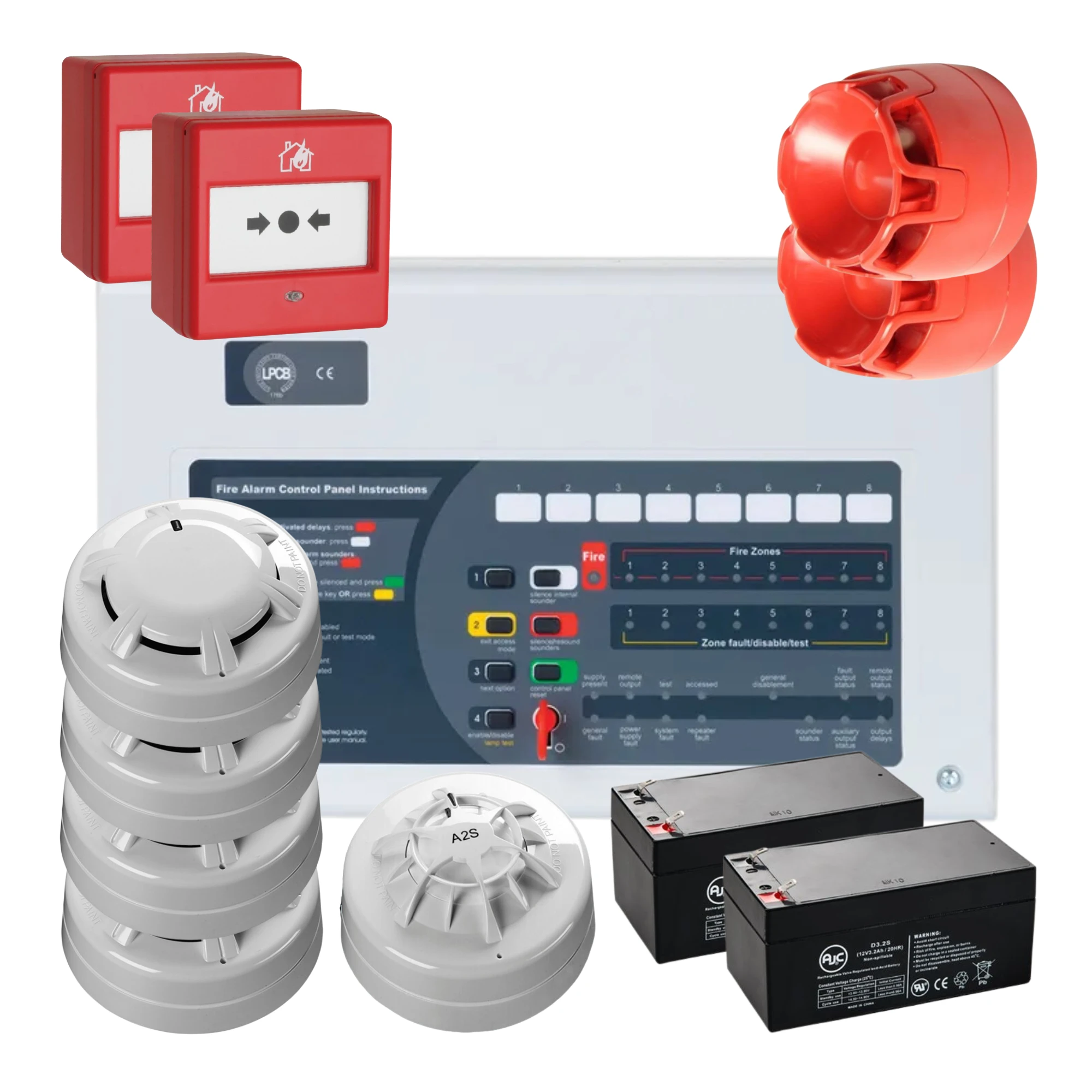

Kit Contents

1 × C-TEC CFP704-4 4 Zone Conventional Fire Alarm Panel

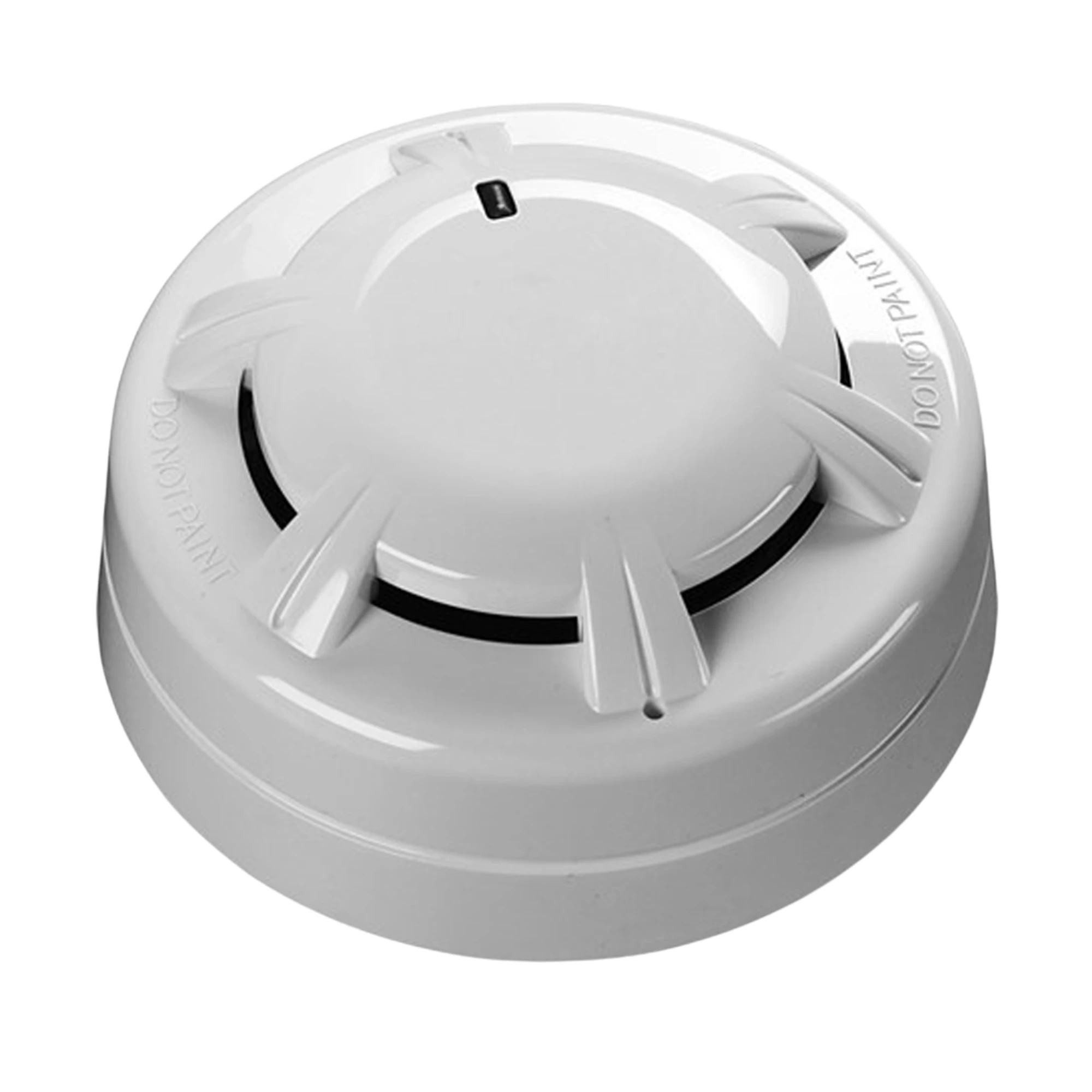

4 × Apollo ORB-OP-12001-APO Orbis Optical Smoke Detectors

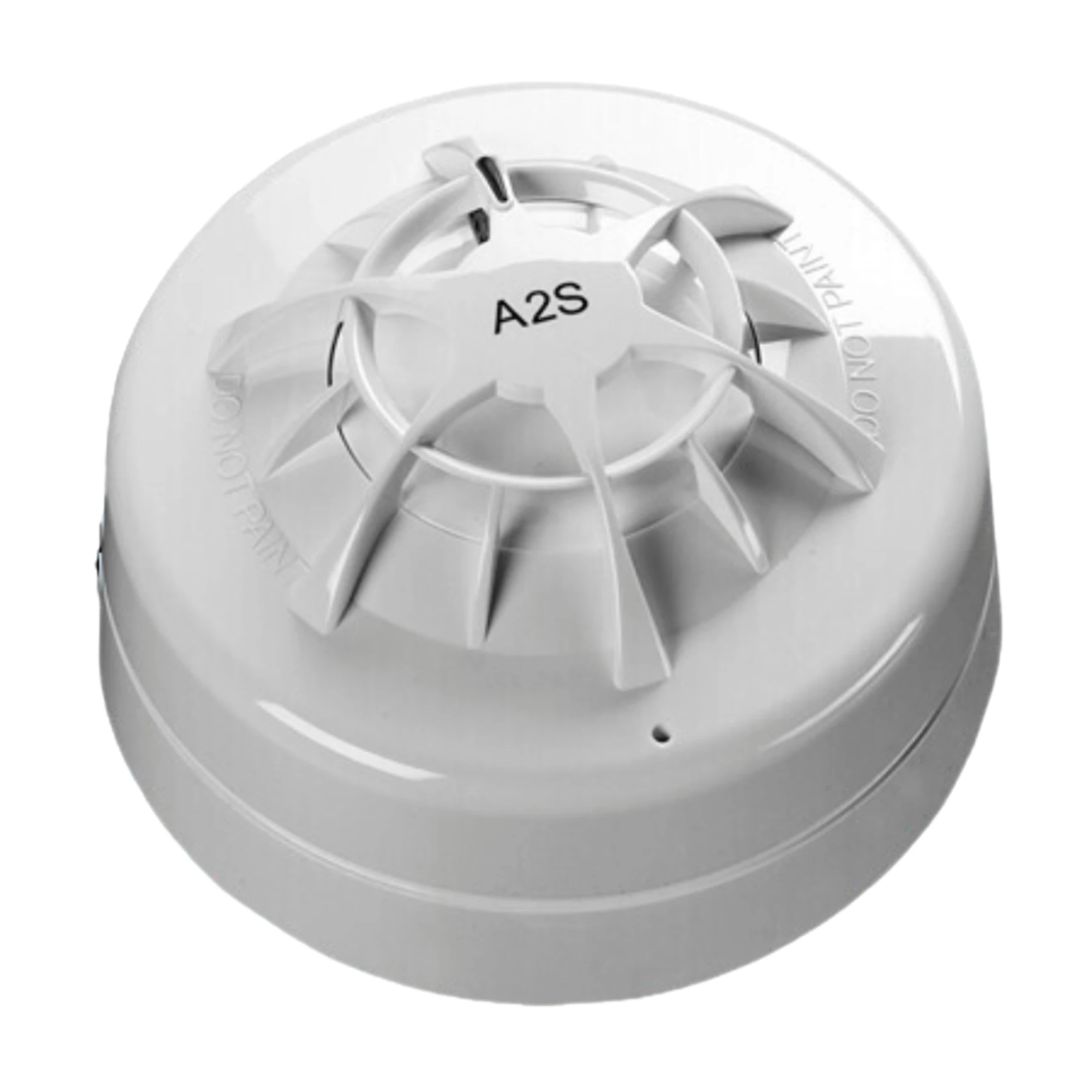

1 × Apollo ORB-HT-11002-APO Orbis A2S Fixed Temperature Heat Detector
5 × Apollo Orbis ORB-DB-00003-APO Diode Bases

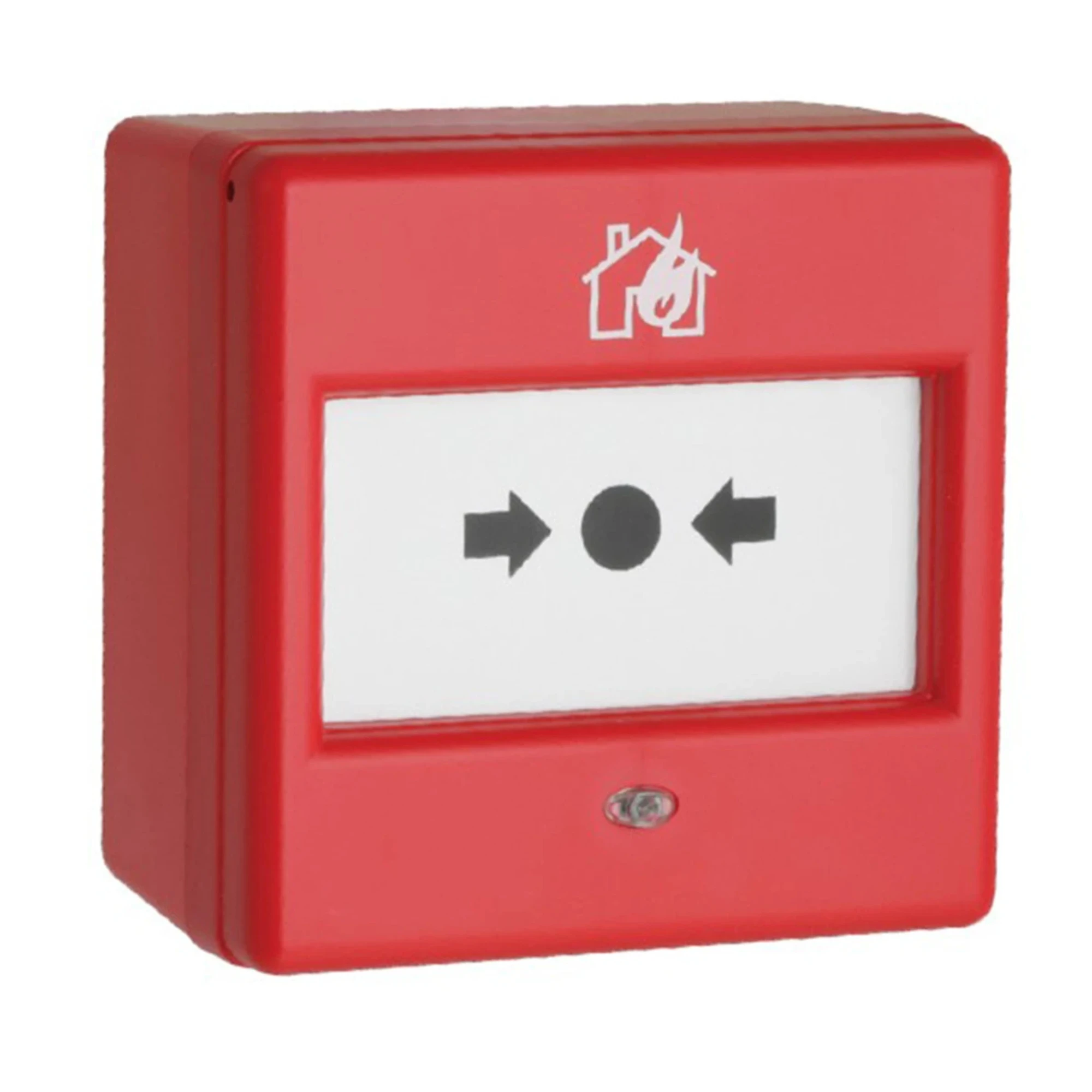

2 × FireSmart Universal Conventional Manual Call Points

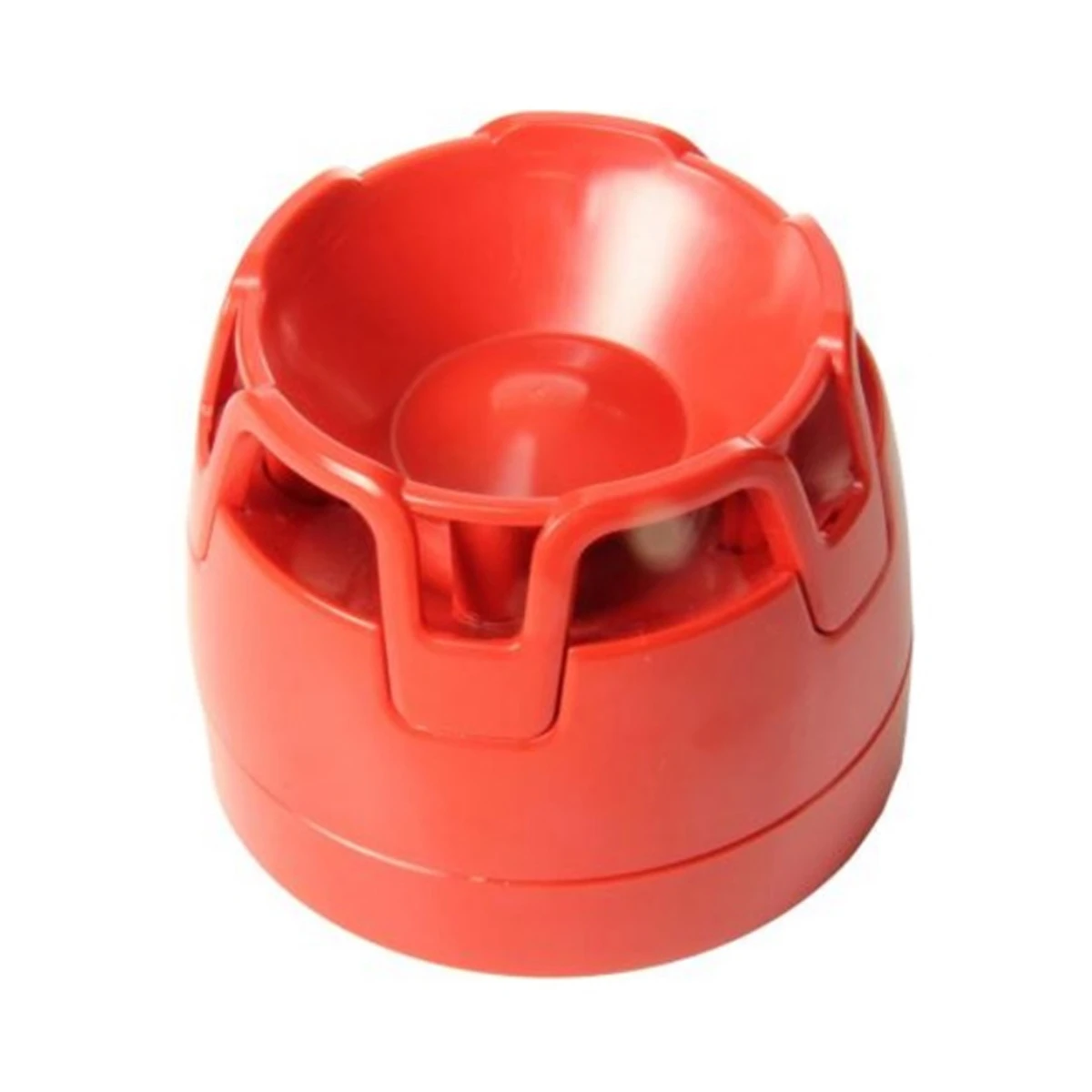

2 × FireSmart Conventional Sounders with Deep Bases

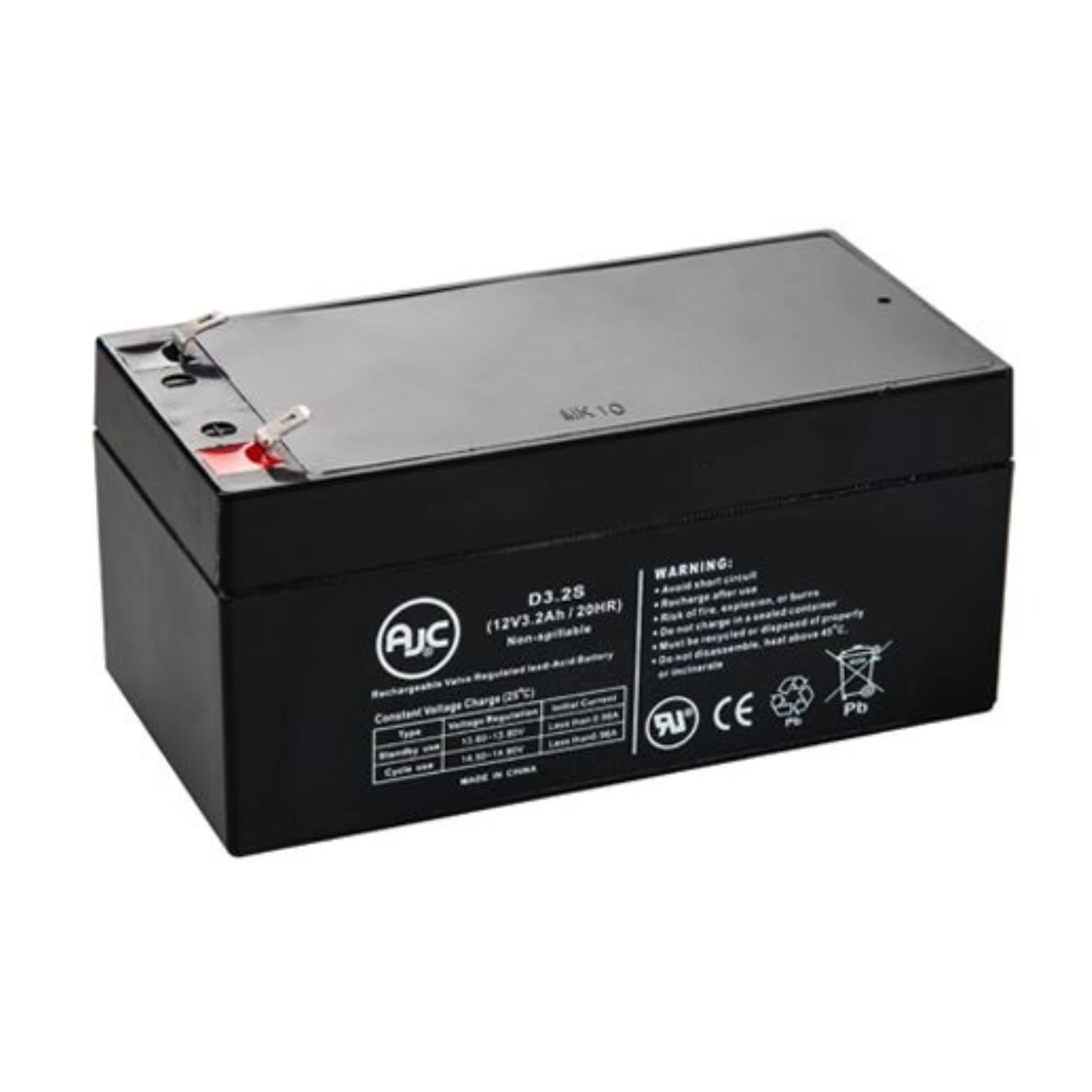

1 × FireSmart 3.4Ah Trade Battery Twin Pack

This 4-wire conventional system offers dependable fire detection and alarm signalling while keeping installation straightforward and cost-effective. The carefully selected components are fully compatible, helping installers reduce specification time and ensuring the system performs reliably once installed.

The kit includes optical smoke detectors for general detection areas, a fixed temperature heat detector for environments where smoke detection may not be suitable, manual call points for manual activation and sounders to provide clear audible alarm notification.

Complete conventional fire alarm kit using Apollo Orbis detection devices
Built around the LPCB approved C-TEC CFP704-4 4 zone conventional fire alarm panel
Apollo Orbis optical smoke detectors for reliable fire detection
A2S fixed temperature heat detector suitable for kitchens and high temperature environments
Apollo Orbis diode bases for secure detector installation
Resettable universal manual call points compliant with EN54-11
FireSmart sounders provide clear and reliable audible alarm signalling
Backup batteries included for standby power during mains failure
Fully compatible components designed for dependable system performance
Ideal for small to medium sized commercial premises
Simplifies system specification, ordering and installation

Specification	4 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	4 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

C-TEC Control Panel Datasheet	Click here to download
Apollo Smoke Detector Datasheet	Click here to download
Apollo Heat Detector Datasheet	Click here to download
Universal Call Point Datasheet	Click here to download
Conventional Sounder Datasheet	Click here to download

Overview

Features

Technical Data

Specification	4 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	4 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max
