The C-TEC 4 Zone Fire Alarm Conventional Kit – ActiV provides a complete and reliable fire detection solution using devices from C-TEC’s ActiV conventional range. Designed to simplify installation, this kit includes all the essential components required to begin installing a conventional fire alarm system in one convenient package.

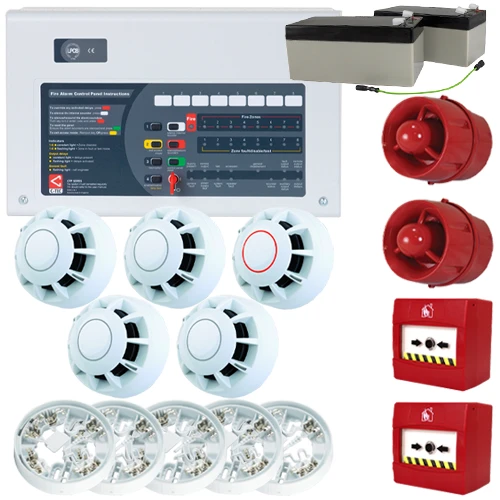

Kit Contents

1 x C-TEC CFP704-4 4 Zone Conventional Fire Alarm Panel
1 x C-TEC C4403A1R ActiV Rate-of-Rise Heat Detector
4 x C-TEC C4416 ActiV Optical Smoke Detectors
2 x C-TEC BF430C/CX/SR ActiV Conventional Hi-Output 100dB(A) Wall Sounders with Shallow Base
2 x C-TEC BF370S No Break Surface Mount Conventional Manual Call Points
2 x C-TEC BC285/2 24V 3.2Ah VRLA Backup Batteries

At the heart of the system is the C-TEC CFP704-4 four zone conventional fire alarm panel, paired with ActiV optical smoke detectors, a rate-of-rise heat detector, manual call points and high output sounders.

The components are designed to work together seamlessly, helping installers achieve a quick and efficient installation while ensuring dependable fire detection and alarm signalling.

Suitable for small to medium sized commercial premises such as offices, retail units, warehouses and workshops, this kit provides a practical and cost-effective fire protection solution.

Complete conventional fire alarm kit using C-TEC ActiV detection devices
Built around the LPCB approved C-TEC CFP704-4 4 zone conventional fire alarm panel
ActiV optical smoke detectors for reliable and accurate fire detection
Rate-of-rise heat detector suitable for kitchens or high humidity areas
Conventional manual call points with resettable element
High output wall sounders providing clear audible alarm signalling
Backup batteries included for standby power during mains failure
Fully compatible ActiV devices for reliable system operation
Ideal for small to medium sized commercial premises
Simplifies system specification, ordering and installation for contractors

Specification	4 Zone Panel
Approvals/Certifications	EN54 Parts 2 & 4 (LPCB), EN54-13 (Kiwa Telefication)
Mains Supply	230V 50/60Hz
Mains Rated Current	350mA max
Internal Power Supply	19V–28.5V (27V nominal), Ripple 7V max
Total Output Current	1.5A @ 230Vac (ImaxA eq 146mA)
Quiescent Current	25mA (mains failed, internal sounder active)
Max Battery Size & Type	2 x 12V 3.2Ah VRLA (Min. 1.2Ah)
No. of Detector Zones	4 (Max. 500m per circuit)
Call Point Resistor Value	470 to 680Ω
Max Devices per Zone	Same
No. of Sounder Circuits	4 (Max. 500m per circuit)
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold)
Alarm Voltage	27V max, 20V min
Max Sounder Output Current	4 x 200mA (800mA total)
Auxiliary Relays	2: Aux. Fire & Fault, volt-free SPCO, 1A @ 30Vdc
Open Collector Outputs	2: Reset & Remote, 30mA max sink, 30V open circuit
Other Outputs	24V Aux Power, resettable fuse, 100mA min hold
Auxiliary Inputs	2: Class Change & Alert, 27V max input
Engineer Functions	Coincidence, 1-man test, programmable delays, zone & sounder behaviour settings
Expansion Connections	Yes – repeater/network/relay/sounder interface board compatible
Product Dimensions (mm)	380 W x 235 H x 96 D (Flush: 367 W x 220 H x 75 D)
Construction & Finish	Plastic lid/base, RAL7035 textured
IP Rating	IP30
Weight	1.75kg (without batteries)
Operating Conditions	-5ºC to +40ºC, 95% RH max

C-TEC Control Panel Datasheet	Click here to download
Smoke Detector Datasheet	Click here to download
Heat Detector Datasheet	Click here to download
Sounder Datasheet	Click here to download
Call Point Datasheet	Click here to download
