Apollo 55100-022MAR Conventional Marine Waterproof Manual Call Point

Name: Apollo 55100-022MAR Conventional Marine Waterproof Manual Call Point
Brand: Apollo
Price: 126.06 GBP
Availability: InStock

Code: FDS100/660

£126.06

INC VAT

Code: FDS100/660

55100-021MAR
Waterproof
ABS / Polycarbonate

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

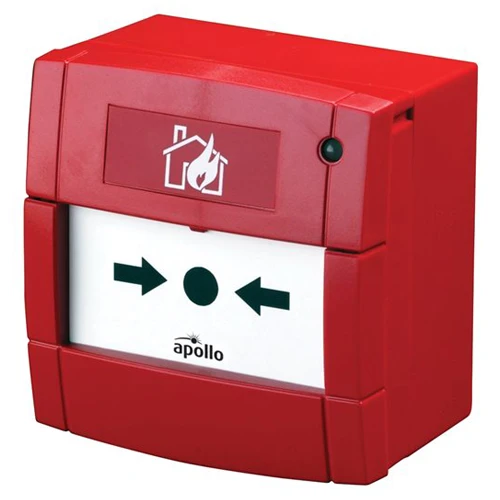

The Apollo 55100-022MAR Conventional Marine Waterproof Manual Call Point is a Type A call point designed for outdoor and marine environments.

It is intended for use on conventional marine fire detection systems and provides reliable manual alarm activation in harsh conditions.

The manual call point features a resettable operating element rather than a break glass, allowing the unit to be quickly restored using a test and reset key.

A surface-mount back box is supplied as standard, making installation straightforward on a wide range of substrates.

The unit uses a plug-and-play terminal block design, allowing all field wiring to be terminated quickly and helping to reduce installation time.

The red manual call point is approved to EN 54-11 and complies with the Marine Equipment Directive 96/98/EC.

55100-021MAR
Waterproof
ABS / Polycarbonate
Marine
Red LED indicator
'Plug and Play' terminal connections for fast wiring
Resettable element
'Type A' call point suitable for outdoor use

Specification	Details
Warranty	3 year
Colour	Red
Weight	350 g
Product length	97.5 mm
Product width	93 mm
Product depth	71 mm
Detection principle	Operation of a switch
Key type	KAC Manual Call Point test & reset key
Product length	3.84 in
Product width	3.66 in
Product depth	2.8 in
Standards	EN 54-11
Approvals	CCS
Humidity (max)	96% RH
Humidity (min)	0% RH
Humidity	0% to 96% (no condensation or icing)
Humidity note	No condensation or icing
Operating temperature (min)	-25°C
Operating temperature (max)	70°C
Operating temperature	-25 to 70°C
IP rating	IP67
Operating temperature	-13 to 158°F
Operating temperature (max)	158°F
Operating temperature (min)	-13°F

Apollo 55100-022MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	3 year
Colour	Red
Weight	350 g
Product length	97.5 mm
Product width	93 mm
Product depth	71 mm
Detection principle	Operation of a switch
Key type	KAC Manual Call Point test & reset key
Product length	3.84 in
Product width	3.66 in
Product depth	2.8 in
Standards	EN 54-11
Approvals	CCS
Humidity (max)	96% RH
Humidity (min)	0% RH
Humidity	0% to 96% (no condensation or icing)
Humidity note	No condensation or icing
Operating temperature (min)	-25°C
Operating temperature (max)	70°C
Operating temperature	-25 to 70°C
IP rating	IP67
Operating temperature	-13 to 158°F
Operating temperature (max)	158°F
Operating temperature (min)	-13°F
